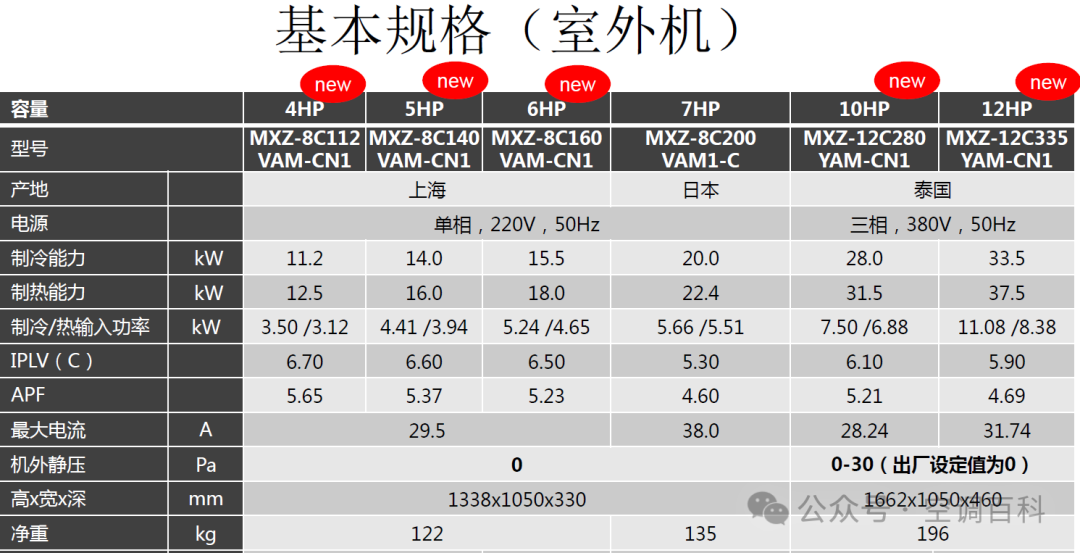

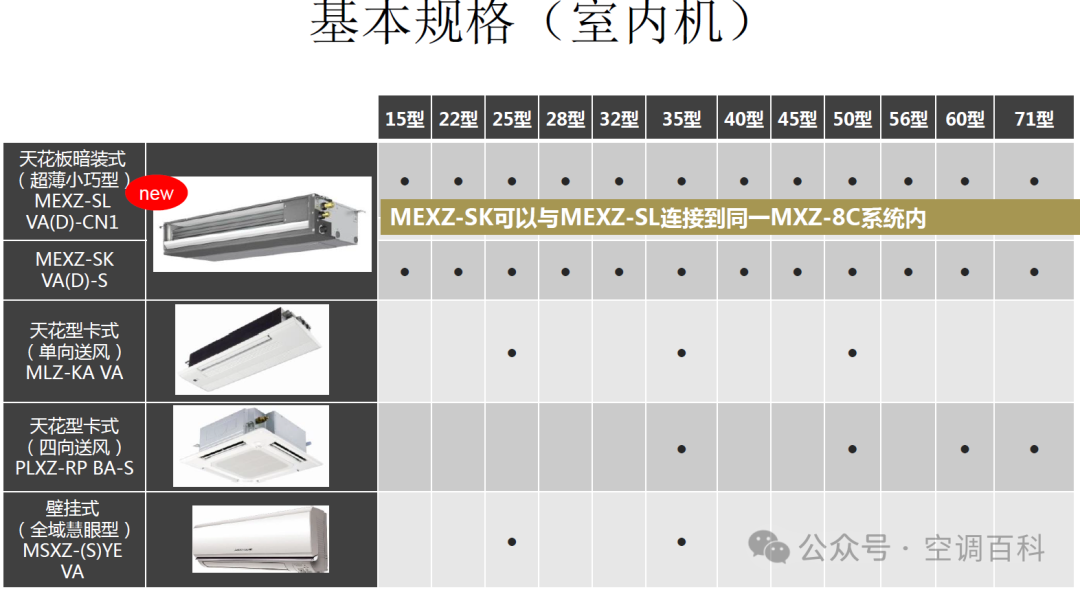

Mitsubishi Electric Power Multi Series

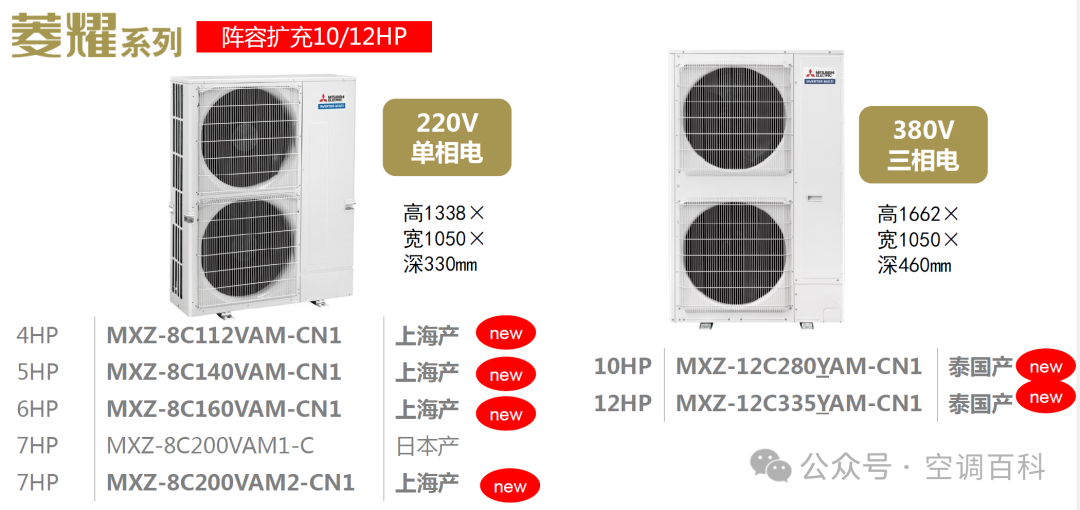

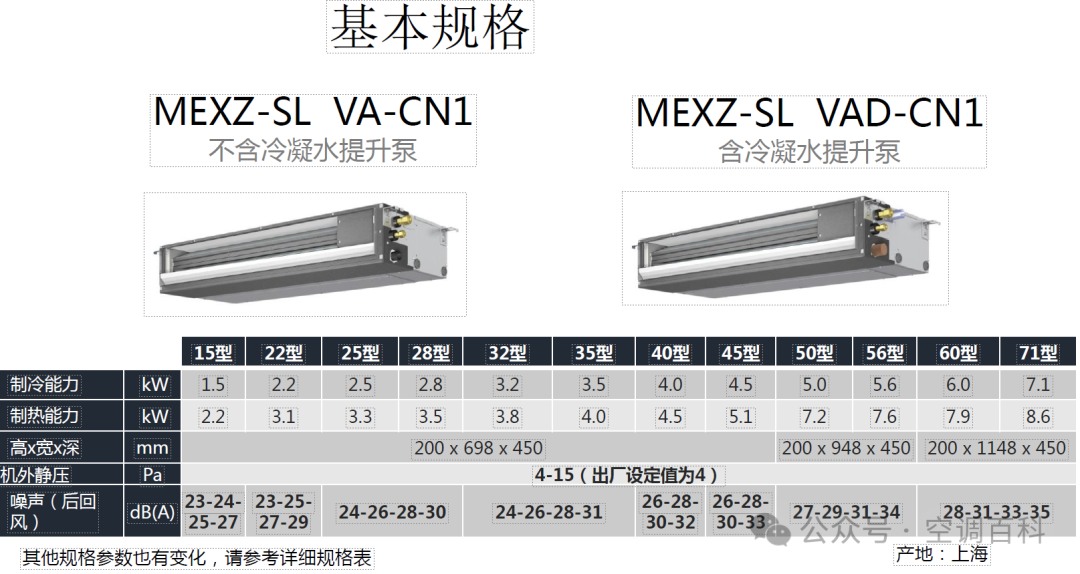

VAM-CN1 represents production in Shanghai;
VAM-C represents production in Japan;
YAM-CN1 represents production in Thailand;

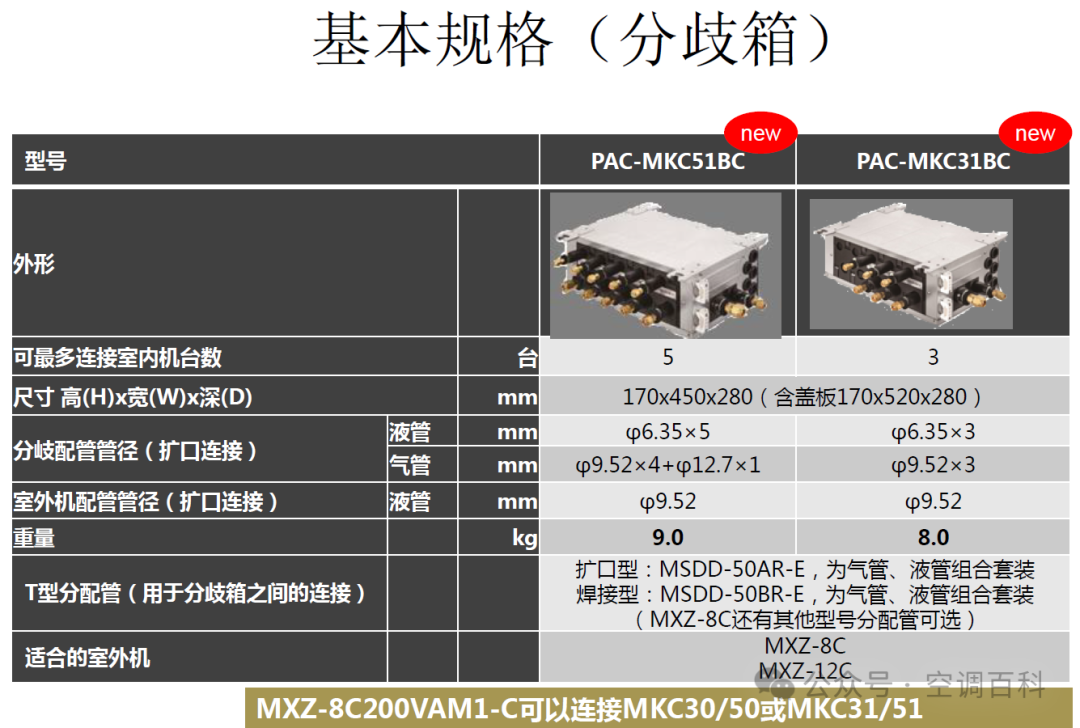

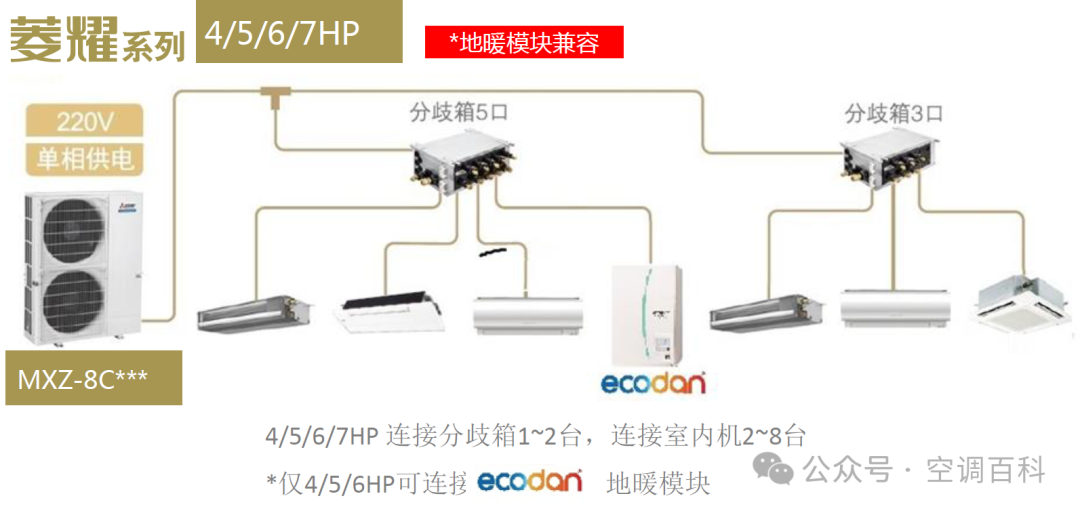

4HP-5HP-6HP-7HP can connect up to 2 diverter boxes, connecting 2 to 8 indoor units

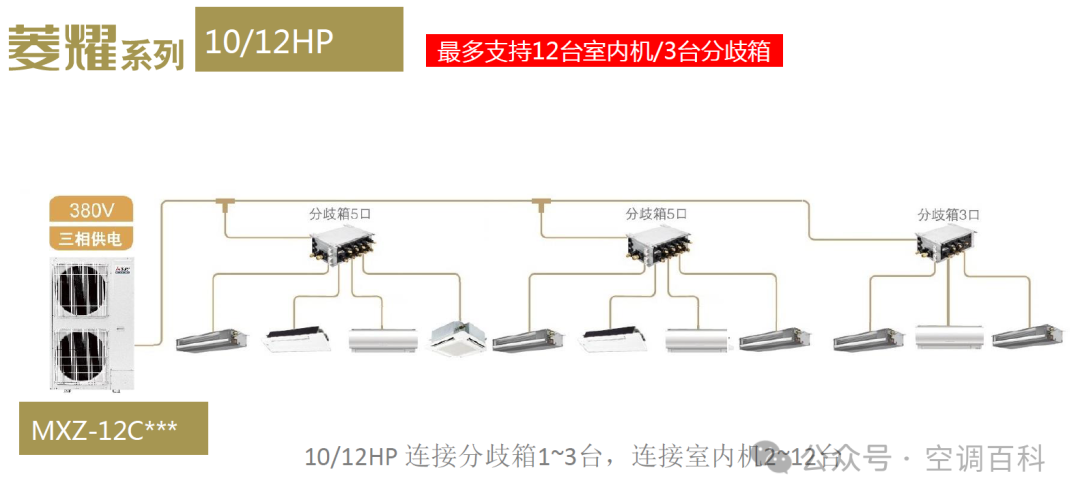

10HP-12HP can connect up to 3 diverter boxes; connecting 2 to 12 indoor units
Note: The total cooling capacity of indoor units connected to each diverter box must not exceed 20.2kW
10/12HP outdoor units can choose a static pressure of 30Pa.
In adverse installation conditions, it can reduce exhaust airflow short-circuiting, ensuring the heat dissipation effect of the outdoor unit.
Total piping length up to 240m, suitable for larger areas:
Outdoor unit → diverter box (total piping length) 95 meters;
Diverter box → indoor unit (total piping length) 145 meters;
Diverter box → indoor unit (single pipe length) 25 meters;
Outdoor unit → indoor unit (single pipe length) 80 meters;
Farthest diverter box → first branch (single pipe length) 60 meters;
Outdoor unit → indoor unit (outdoor unit above) 50 meters;
Outdoor unit → indoor unit (outdoor unit below) 40 meters;
Diverter box → indoor unit 15 meters;
Indoor unit → indoor unit 12 meters;
Diverter box → diverter box 15 meters;
Note: The diverter box must be installed within the height space between the outdoor and indoor units;
Features of the 4~12HP side discharge units:
Full series of scroll compressors
Subcooling circuit
Low noise operation
Remote network control (optional)
3D air supply panel (optional)
Full series of dual fans
Diverter box connection
Class 1 energy efficiency
Long piping design
Smart home (optional)
Full domain smart eye (optional)

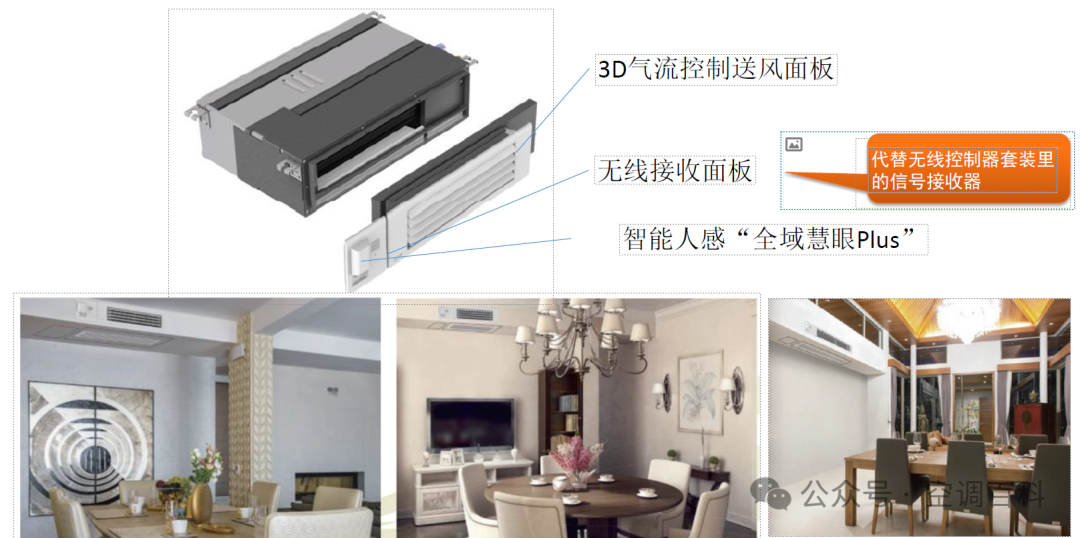

Optional 3D airflow control air supply panel;
Can be adjusted horizontally and vertically with a remote control;
Automatic closure when powered off
When the indoor unit is powered off, the vertical louver will close, effectively preventing dust and dirt from entering the air conditioning unit. The upper part has a dust-proof edge to prevent dust from falling into the air outlet and being blown in all directions.
Beautiful design, with brand logo.
ABS material, pure white, with a matte finish, more aesthetically pleasing than commercially available air outlets.
Optional remote network control function;

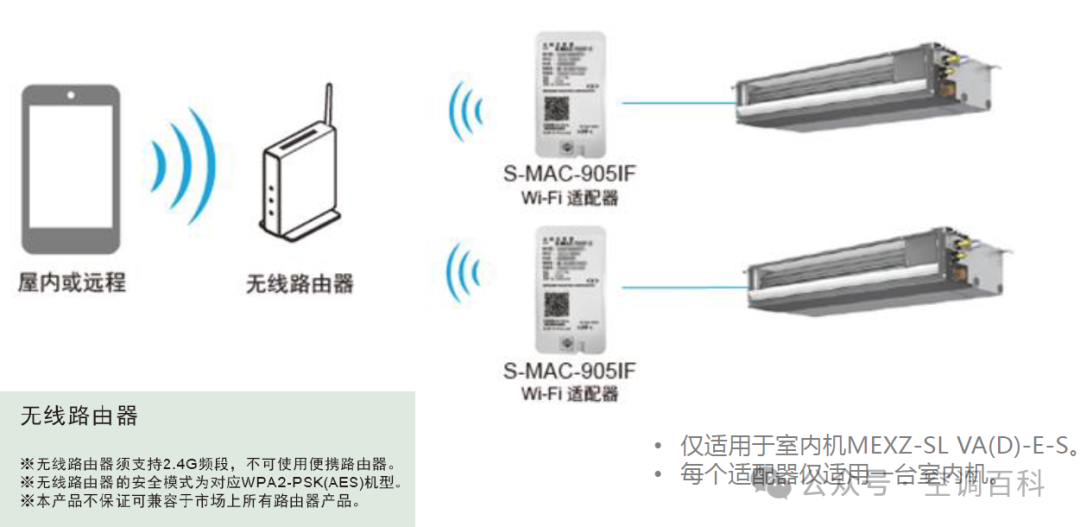

Requires Wi-Fi network adapter S-MAC-905IF;
