High-Precision 3D Attitude Measurement System – H Series
Product Introduction
The JL-H series integrates a self-excited high-precision MI three-axis magnetic sensor, a thermal three-axis high-precision accelerometer, and an adaptive compensated three-axis gyroscope. It uses a dedicated co-processor to calculate heading in real-time, combining filtering algorithms to provide real-time tilt angles and inertial smoothing compensation, ensuring high-precision heading information even when the tilt angle reaches 90°. It features a compact size and low power consumption, making it suitable for miniaturized, high-precision sensitive measurement systems.It supports RS232, RS485, and TTL level output interfaces, with an output angle range of 0° to 360°, accommodating various application scenarios and allowing for easy and rapid integration of electronic compass functions into various systems.Main Features
- Output of three-dimensional attitude angles (pitch angle, roll angle, heading angle)
- With hard magnetic, soft magnetic, and tilt compensation
- High precision heading angle
- 1.0° RMS (TA=25℃, tilt < 90°)
- Roll angle and pitch angle accuracy (full range):
- Dynamic accuracy ≤ 0.5°
- Heading angle range: 0° to 360°
- Roll angle range: 180°, pitch angle range: 90°
- Supports user on-site secondary calibration
- Power supply: 9 to 36 VDC
- Power consumption: 28 mA @ 12 VDC
- Interface: Standard RS232 (default) or RS485/LV-TTL (configurable)
- Size: 33 mm × 27 mm × 10 mm
- Operating temperature: -40℃ to +85℃
Application Scenarios
- Device attitude control
- Trajectory tracking analysis system
- Inertial navigation system
- Navigation and mapping
- Servo control
- Attitude safety monitoring
- Heading reference system
- Autonomous driving systems AGV/ROV, etc.

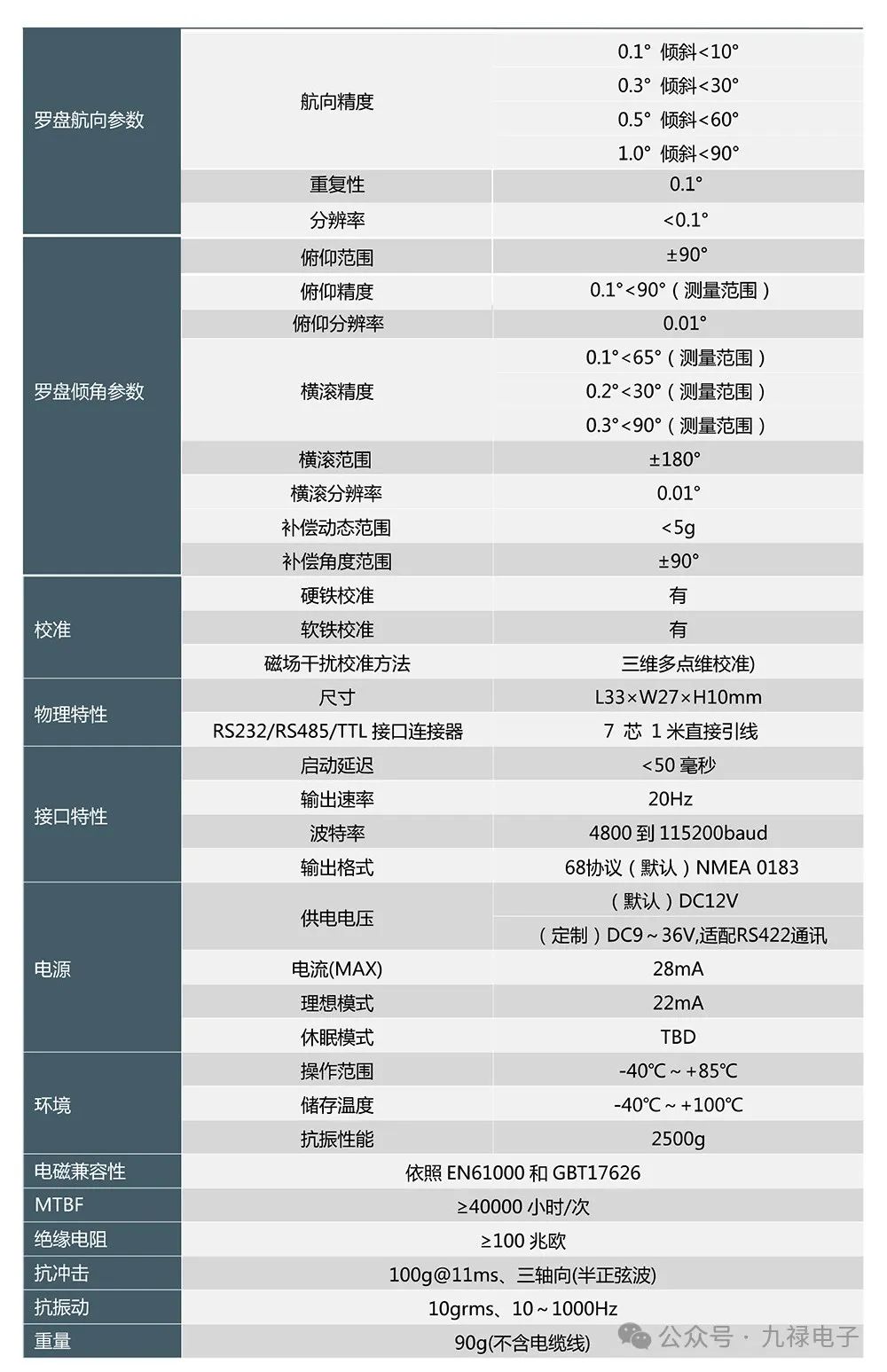

Performance Parameters
High-Precision 3D Attitude Measurement System – D Series
Product Introduction
JL-D series three-dimensional dynamic electronic compass integrates a 9-axis inertial measurement unit, including a three-axis accelerometer, three-axis gyroscope, and three-axis magnetic sensing technology.
Utilizing the high dynamic angle characteristics of the gyroscope and the high stability characteristics of the accelerometer, the dynamic inertial navigation algorithm derives the pitch and roll angles that follow complex attitude changes. The magnetic azimuth angle uses hard magnetic and soft magnetic calibration algorithms to eliminate the influence of magnetic fields in environments with magnetic interference. The central processor calculates the heading in real-time, and dynamic pitch and roll angles provide dynamic heading compensation over a wide range, ensuring that the compass can provide accurate heading data even at tilt angles up to ±85°.
The product supports various serial communication interfaces such as RS232, RS485, and TTL. The compass can operate stably for long periods in harsh environments. It is compact and low power, making it suitable for integration into high-precision control systems, and is widely used in fields such as unmanned aerial vehicles, antenna stabilization, tower crane anti-collision, and directional navigation system integration.
Main Features
- Output of three-dimensional attitude angles (pitch angle, roll angle, heading angle)
- With hard magnetic, soft magnetic, and tilt compensation
- High precision heading angle:
1.0° RMS (TA=25℃, tilt < 60°)1.5° RMS (TA=25℃, tilt < 85°)
- Roll angle and pitch angle accuracy (full range):
Dynamic accuracy < 0.5°
- Heading angle range: 0 to 360°
Roll angle range: 180°, pitch angle range: 85°
- Supports user on-site secondary calibration
- Power supply: 5V/9 to 36 VDC
- Power consumption: 35 mA @ 5 VDC
- Interface: Standard RS232 (default) or RS485/LV-TTL (configurable)
- Size: 33 mm × 27 mm × 10 mm
- Operating temperature: -40 to +85℃
Application Scenarios
- Satellite antenna star searching
- Artillery launch systems
- Infrared imaging devices
- Marine navigation and mapping
- Antenna servo control
- Map re-drawing devices
- Unmanned aerial vehicles
- Ship control systems (on-water, underwater, ROV)

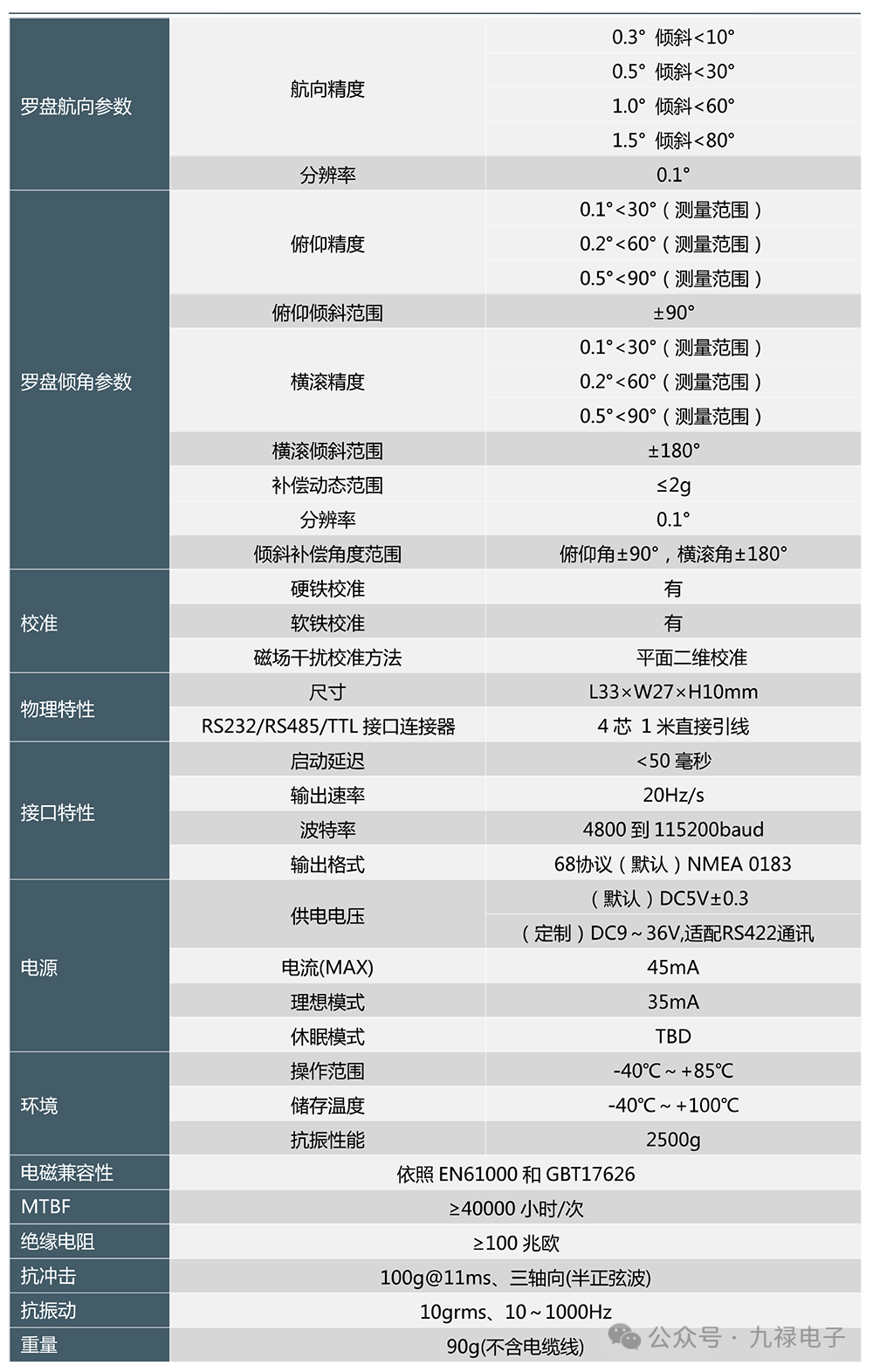

Performance Parameters
High-Precision 3D Attitude Measurement System – C Series
Product Introduction
The JL-C series industrial-grade three-dimensional static application electronic compass integrates a three-axis magnetometer and a three-axis accelerometer. It uses an industrial-grade CPU system to calculate the heading angle in real-time, allowing for real-time calculation of tilt angles and compensation, enhancing the product’s applicability.It incorporates hard magnetic interference and soft magnetic interference compensation technology, ensuring the product’s anti-interference capability and stability, allowing it to eliminate the influence of magnetic fields from ferrous and magnetic objects through secondary calibration, thus ensuring measurement accuracy.The product supports various serial communication interfaces such as RS232, RS485, and TTL. The compass can operate stably for long periods in harsh environments.It is compact and low power, making it suitable for integration into high-precision control systems, and is widely used in fields such as unmanned aerial vehicles, antenna stabilization, tower crane anti-collision, and directional navigation system integration.
Main Features
- Output of three-dimensional attitude angles (pitch angle, roll angle, heading angle)
- With hard magnetic, soft magnetic, and tilt compensation
- High precision heading angle:
0.3° RMS (TA=25℃, tilt < 30°)
1.0° RMS (TA=25℃, tilt < 85°)
- Roll angle and pitch angle accuracy (full range):
0.1° (TA=25℃)
- Heading angle range: 0 to 360°
Roll angle range: ±180°, pitch angle range: ±85°
- Supports user on-site secondary calibration
- Power supply: 5V/9 to 36 VDC
- Power consumption: 12 mA @ 5 VDC
- Interface: Standard RS232 (default) or RS485/LV-TTL (configurable)
- Size: 33 mm × 27 mm × 10 mm
- Operating temperature: -40 to +85℃
Application Scenarios
- Satellite antenna star searching
- Artillery launch systems
- Infrared imaging devices
- Marine navigation and mapping
- Antenna servo control
- Map re-drawing devices
- Unmanned aerial vehicles
- Ship control systems (on-water, underwater, ROV)

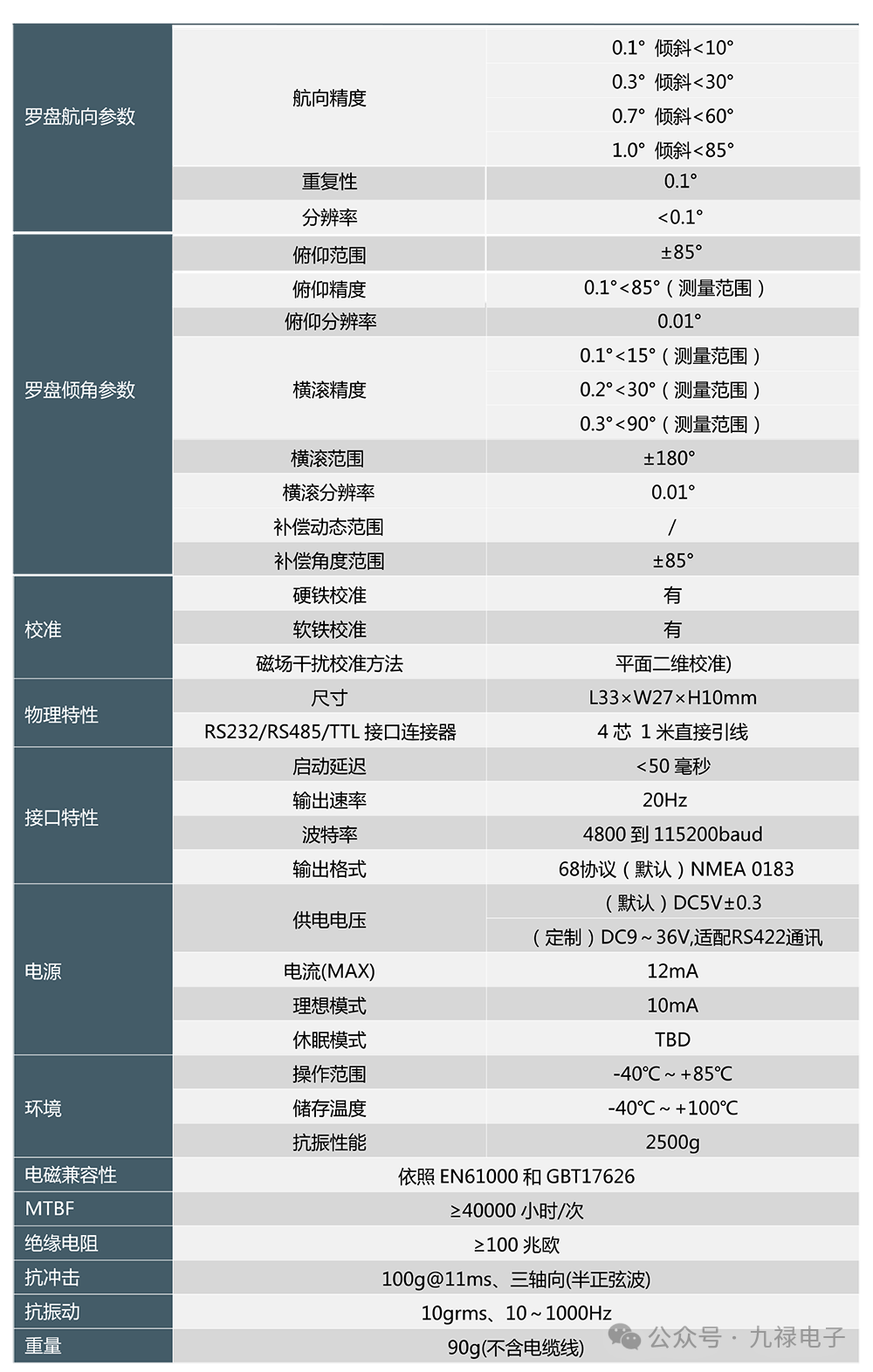

Performance Parameters

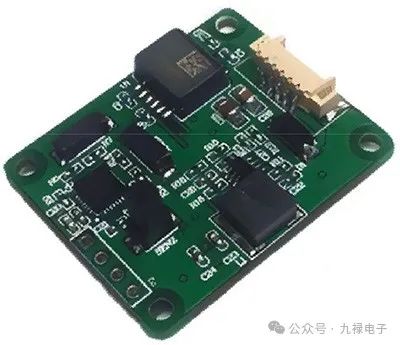

Domestic 3D Attitude Measurement System
Product Introduction
It integrates hard magnetic interference and soft magnetic interference compensation technology, ensuring the product’s anti-interference capability and stability, allowing it to eliminate the influence of magnetic fields from ferrous and magnetic objects through secondary calibration, thus ensuring measurement accuracy.
The JL-D.P series is a high-precision 100% domestically produced three-dimensional electronic compass, with all internal components including core devices (MCU, magnetometer, gyroscope, accelerometer) and passive components (capacitors, resistors, etc.) being domestically sourced and controllable.
The product supports RS232, RS422, and other serial communication interfaces.
Military-grade design, with component selection reaching general military standards, customizable to seven specialized levels, allowing the compass to operate stably for long periods in harsh environments.
It is compact and low power, making it suitable for integration into high-precision control systems, and is widely used in fields such as unmanned aerial vehicles, antenna stabilization, anti-collision systems, and directional navigation system integration.
Main Features
- Three-dimensional attitude angles, three-axis geomagnetic, three-axis acceleration
- With hard magnetic, soft magnetic, and tilt compensation
- Heading angle range: 0 to 360°
- Roll angle range: ±180°, pitch angle range: ±85°
- Tilt compensation range: <= ±40°
- Heading angle accuracy: 0.8° RMS (TA=25°C, tilt < 20°)
- Roll angle and pitch angle accuracy (full range): 0.1° (TA=25°C)
- Supports user on-site secondary calibration
- Power supply: 9 to 36 VDC
- Power consumption: 60 mA @ 12 VDC
- Communication: Standard RS422, full duplex with isolation
- Size: 50 mm × 40 mm × 10 mm (maximum)
- Operating temperature: -55 to +125°C
Application Scenarios
- Satellite antenna star searching
- Artillery launch systems
- Infrared imaging devices
- Marine navigation and mapping
- Antenna servo control
- Map re-drawing devices
- Unmanned aerial vehicles
- Ship control systems (on-water, underwater, ROV)
Performance Parameters
-
