Canopen is an open and widely used fieldbus. This article mainly introduces the various products from Schneider that support Canopen communication.
Canopen Master Stations:
Twido, M238, M258, M241, M251, LMC058/LMC078, M340, Premium
(The number of supported slave devices varies for each master station; please refer to the manual for details.)
Canopen Slave Stations:
ATV312/61/71
IMC Card
Lexium23/28/32
Tesys U/T
OTB/STB
Osicoder
Preventa
…
Connection Accessories:
Communication cable (one end is SUB-D 9 female, the other is RJ45):
VW3M3805R*** (integrated terminal resistor)
TCSCCN4F3M** (no terminal resistor, discontinued)

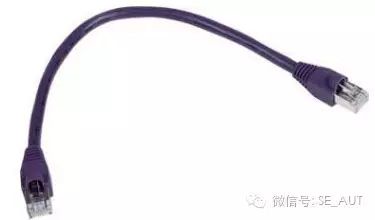

Canopen cable (both ends are RJ45, generally used to connect two slave stations):
VW3CANCARR03: 0.3m
VW3CANCARR1: 1m

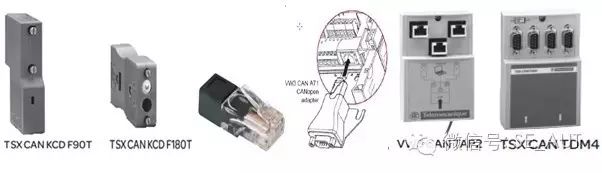

From left to right:
SUB-D 9 angled connector: TSXCANKCDF90T
SUB-D 9 straight connector: TSXCANKCDF180T
RJ45 terminal resistor: TCSCAR013M120
SUB-D 9 to RJ45 adapter: VW3CANA71
RJ45 junction box: VW3CANTAP2
SUB-D 9 junction box: TSXCANTDM4
