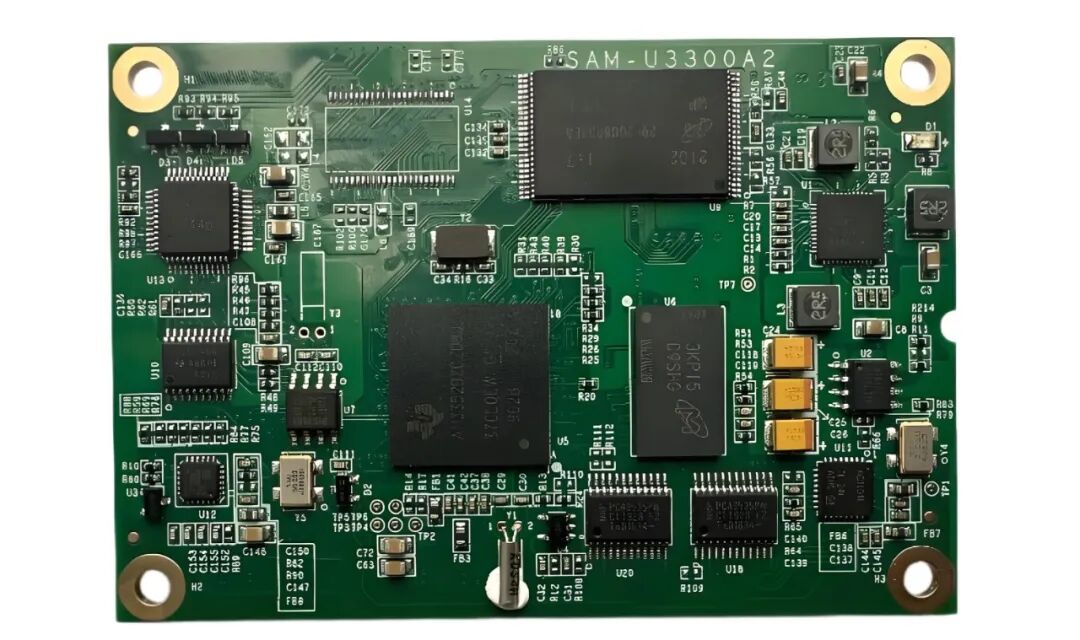

In 2014, a critical period for the transformation of industrial automation towards intelligence,we launched theSAM-U3300A industrial-grade core board, providing high-reliability embedded solutions for industrial equipment through collaborative innovation at the hardware architecture and system levels.
Energy Efficiency Innovation: Low-Power Architecture Breaks Environmental Limitations

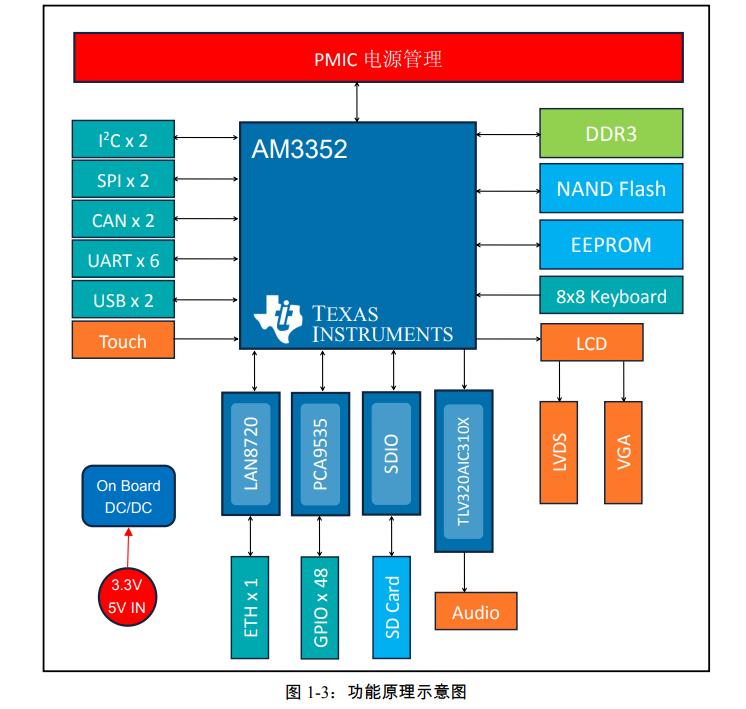

1. Based on low powerTI Cortex™-A8 series CPU AM335X, the U3300A achieves an ultra-low power consumption of 1.5W (5V/300mA) at an 800MHz clock frequency, saving over 70% energy compared to similar performance X86 solutions.
2. Through innovative thermal distribution design and fanless structure, the core board maintains stable operation in a wide temperature range of -40℃ to 85℃, successfully passing high-temperature and high-humidity cycling tests (85℃/95%RH), providing reliable hardware support for outdoor power monitoring, smart warehousing, and other scenarios.
3. Integrated with VGA/LCD/LVDS triple-mode output, supporting 1920×1080 resolution and 24-bit color depth display, combined with the SGX530 graphics engine to achieve smooth rendering at 60 frames per second. This design effectively resolves compatibility issues for industrial HMI devices during multi-screen collaboration, enabling synchronized display of process visualization and data dashboards in the smart monitoring field.
System Upgrade: Building an Industrial-Grade Stable Platform
In response to the demand for system stability in industrial environments, the U3300A adopts a dual-system redundancy architecture:
1. The WinCE7.0 system retains traditional industrial control development habits, while the Linux3.2 kernel provides microsecond-level real-time response capability.
2. In the industrial communication field, the core board integrates 8 configurable serial ports (including 2 CAN bus) and dual Gigabit network interfaces, supporting hardware-level parsing of protocols such as Modbus and Profinet.
3. Through a 12-layer PCB stacking design and differential signal isolation technology, it maintains communication stability in a 30V/m electromagnetic interference environment, complying with the IEC 61000-4-3 industrial immunity standard.
Scenario Empowerment: Flexible Adaptation to Industrial Innovation
The pin multiplexing architecture of the U3300A creates a new paradigm for industrial core board expansion:
1. By dynamically configuring 16 GPIOs and 4 12-bit ADCs, subsystems for data acquisition and device control can be quickly constructed.
2. In smart detection devices, this design enables parallel processing of multiple sensor signals and real-time feedback;
3. In the field of mechanical control, it supports PWM precision speed regulation and digital IO interlocking control.
Technological Evolution: Continuous Deepening of Embedded Solutions
The U3300A core board reshapes the energy efficiency benchmark of industrial equipment through ARM architecture, enhancing environmental adaptability with system-level protective design, and achieving flexibility in expansion through an interface matrix. These features gradually replace traditional solutions in fields such as smart grids and industrial IoT, promoting the process of localization.
In the wave of industrial intelligence, the U3300A continuously empowers the transformation and upgrading of industrial equipment with its real-time performance, reliability, and adaptability.
If there are related project product needs, or technical exchanges, engineers from all fields are welcome to leave us a message or consult us. http://www.samgtron.com / 24-hour consultation hotline:19117126619
