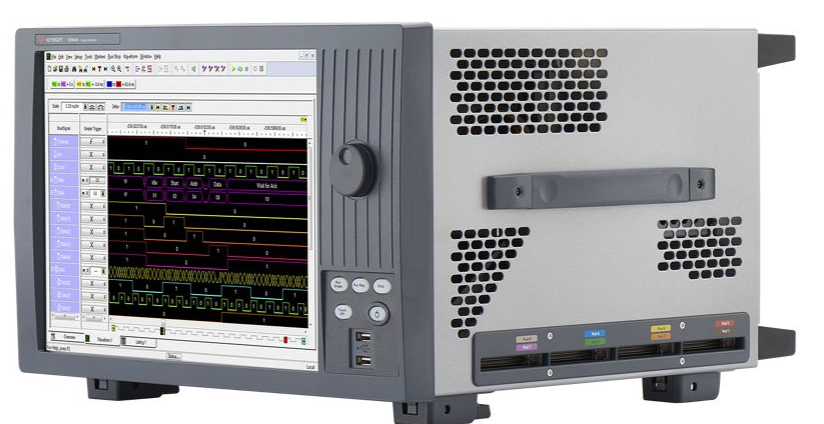

16862A 68-Channel Portable Logic Analyzer
Suzhou Xinlitong
Overview
68-Channel Portable Logic Analyzer
The 16862A Portable Logic Analyzer provides faster deep memory timing capture capabilities, helping you complete digital debugging more quickly.
Features
Logic Analyzer Configuration
-
Standard 68 channels, 350 MHz state, 12.5 GHz timing scaling, 2.5 GHz timing, 2 Mb deep memory
-

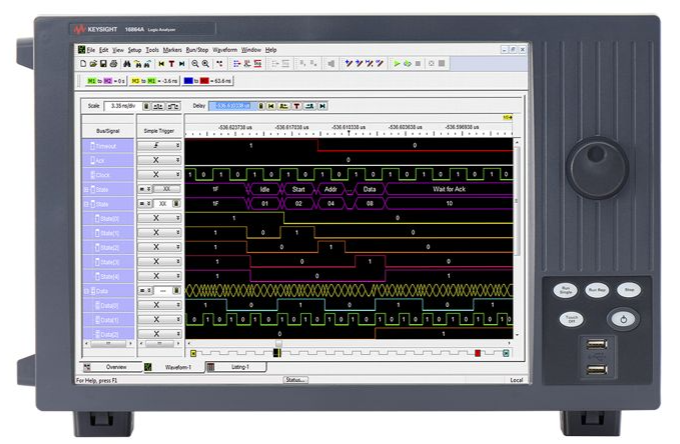

15-inch (38.1 cm) color touchscreen allows you to view a large number of signals and buses, and navigate quickly
-
Built-in removable solid-state drive, USB 3.0 port, and LAN port for fast data transfer and large data storage
-
1.4 GHz trigger sequence generator ensures capture of high-speed events
Timing Analysis (Asynchronous Sampling)
-
Up to 2.5 GHz/5.0 GHz/10 GHz (full channel/half channel/quarter channel) timing, capable of capturing signal activity at high resolution
-
Up to 128 Mb/256 Mb/512 Mb (full channel/half channel/quarter channel) deep memory, supporting identification of long-interval issues and root causes of symptoms
-
12.5 GHz (80 ps) timing scaling and 256 K memory depth support analysis of trigger events at high resolution
State Analysis (Synchronous Sampling)
-
State data rate up to 1.4 Gb/s, state clock rate up to 700 MHz, supporting high-speed data capture
-
Automatic threshold/sample position setting for accurate measurement of high-speed buses
-
Simultaneous display of eye diagrams for all channels, allowing you to quickly identify problematic signals
