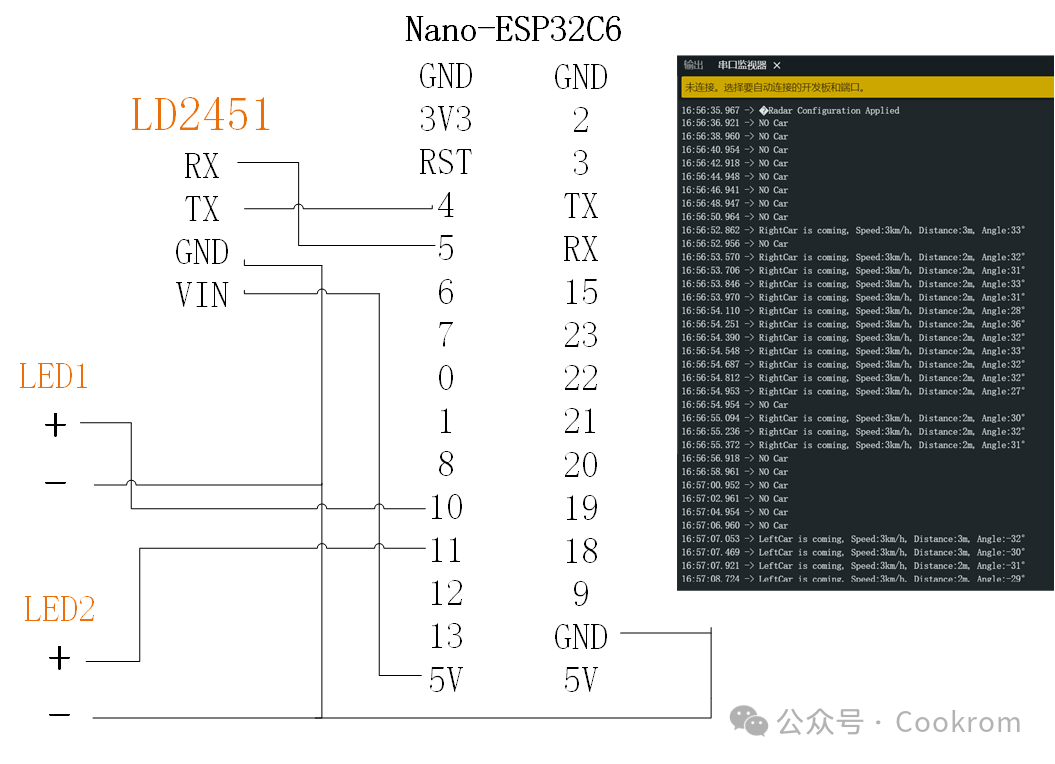

Introduction: The LD2451 radar module supports rear vehicle detection with LED light prompts (who drives without playing music? So playing prompts is somewhat redundant; it’s better to use light prompts directly). It can only be used as an auxiliary; good driving skills still require frequent checking of the rearview mirror.Wiring Diagram:
//#include <SoftwareSerial.h>// Source code from Bilibili, modified based on it#include <HardwareSerial.h>#include <HLK_LD2451.h>// Radar serial port configuration (RX=4, TX=5)#define RXD2 4#define TXD2 5HardwareSerial radarSerial(2); // RX=D2(4), TX=D1(5)// Radar protocol constantsconst uint8_t DATA_HEADER[4] = {0xF4, 0xF3, 0xF2, 0xF1};const uint8_t DATA_FOOTER[4] = {0xF8, 0xF7, 0xF6, 0xF5};// Pin definitionsconst int LEFT_PIN = 10; // Left side vehicle control pin (active low)const int RIGHT_PIN = 11; // Right side vehicle control pin (active low)// State machine variablesenum ParserState { WAITING_HEADER, READING_LENGTH, READING_DATA, READING_FOOTER};ParserState state = WAITING_HEADER;uint8_t headerIndex = 0;uint16_t dataLength = 0;uint16_t dataIndex = 0;uint8_t packetBuffer[128]; // Data buffer// Vehicle detection status flagsbool hasVehicleDetected = false;bool leftVehicleDetected = false; // Left side vehicle flagbool rightVehicleDetected = false; // Right side vehicle flag// Last print timestamp (for controlling output frequency)unsigned long lastPrintTime = 0;// Print interval (milliseconds)const unsigned long PRINT_INTERVAL = 2000; // Print every 2 secondsvoid setup() { // Initialize serial port Serial.begin(115200); // Debug serial radarSerial.begin(115200, SERIAL_8N1, RXD2, TXD2); // Radar default baud rate // Initialize control pins pinMode(LEFT_PIN, OUTPUT); pinMode(RIGHT_PIN, OUTPUT); delay(1000); Serial.println("LD2451 Vehicle Detection System Started"); // Set initial state to high (off) digitalWrite(LEFT_PIN, HIGH); digitalWrite(RIGHT_PIN, HIGH); // Send radar configuration command sendConfigCommand();}void loop() { // Process radar data while (radarSerial.available()) { processRadarData(radarSerial.read()); } // Check if no vehicle detected and print in a loop unsigned long currentTime = millis(); if (!hasVehicleDetected && currentTime - lastPrintTime >= PRINT_INTERVAL) { Serial.println("NO Car"); // Serial.println("未检测到车辆"); // Keep high (off) when no vehicle detected digitalWrite(LEFT_PIN, LOW); digitalWrite(RIGHT_PIN, LOW); lastPrintTime = currentTime; } else { // Control pins based on left and right detection status (active low) if (leftVehicleDetected && rightVehicleDetected) { // Both sides have vehicles approaching digitalWrite(LEFT_PIN, HIGH); digitalWrite(RIGHT_PIN, HIGH); } else if (leftVehicleDetected) { // Only left side vehicle digitalWrite(LEFT_PIN, HIGH); digitalWrite(RIGHT_PIN, LOW); } else if (rightVehicleDetected) { // Only right side vehicle digitalWrite(RIGHT_PIN, HIGH); digitalWrite(LEFT_PIN, LOW); } } // Reset detection flags at the end of each loop hasVehicleDetected = false; leftVehicleDetected = false; rightVehicleDetected = false;}// Send radar configuration commandvoid sendConfigCommand() { // Enable configuration command uint8_t enableCmd[] = {0xFD, 0xFC, 0xFB, 0xFA, 0x04, 0x00, 0xFF, 0x00, 0x01, 0x00, 0x04, 0x03, 0x02, 0x01}; radarSerial.write(enableCmd, sizeof(enableCmd)); delay(50); // Target detection parameter configuration (100m distance, only detect approaching, 1km/h minimum speed, 2s delay) uint8_t configCmd[] = {0xFD, 0xFC, 0xFB, 0xFA, 0x06, 0x00, 0x02, 0x00, 0x64, 0x02, 0x01, 0x02, //0x64, 0x02, 0x01, 0x02 //100m distance, near and far detection, 1km/h minimum speed, 2s delay 0x04, 0x03, 0x02, 0x01}; radarSerial.write(configCmd, sizeof(configCmd)); delay(50); // End configuration command uint8_t endCmd[] = {0xFD, 0xFC, 0xFB, 0xFA, 0x02, 0x00, 0xFE, 0x00, 0x04, 0x03, 0x02, 0x01}; radarSerial.write(endCmd, sizeof(endCmd)); Serial.println("Radar Configuration Applied");}// Radar data processing state machinevoid processRadarData(uint8_t byte) { switch (state) { case WAITING_HEADER: if (byte == DATA_HEADER[headerIndex]) { headerIndex++; if (headerIndex == 4) { state = READING_LENGTH; dataIndex = 0; } } else { headerIndex = 0; } break; case READING_LENGTH: packetBuffer[dataIndex++] = byte; if (dataIndex == 2) { dataLength = (packetBuffer[1] << 8) | packetBuffer[0]; // Little-endian format dataIndex = 0; if (dataLength > 0 && dataLength < sizeof(packetBuffer)) { state = READING_DATA; } else { state = WAITING_HEADER; } } break; case READING_DATA: packetBuffer[dataIndex++] = byte; if (dataIndex >= dataLength) { state = READING_FOOTER; headerIndex = 0; } break; case READING_FOOTER: if (byte == DATA_FOOTER[headerIndex]) { headerIndex++; if (headerIndex == 4) { parseTargetData(); state = WAITING_HEADER; headerIndex = 0; } } else { state = WAITING_HEADER; headerIndex = 0; } break; }}// Parse target datavoid parseTargetData() { if (dataLength < 2) return; uint8_t targetCount = packetBuffer[0]; uint8_t alarmInfo = packetBuffer[1]; // Reset left and right detection status leftVehicleDetected = false; rightVehicleDetected = false; // Check for valid targets if (targetCount == 0 || dataLength < 2 + targetCount * 5) { return; } // Process each target for (int i = 0; i < targetCount; i++) { int offset = 2 + i * 5; // Parse target parameters int8_t angle = packetBuffer[offset] - 0x80; // Angle conversion uint8_t distance = packetBuffer[offset + 1]; // Distance (meters) uint8_t dir = packetBuffer[offset + 2]; // Direction (0x01=approaching) uint8_t speed = packetBuffer[offset + 3]; // Speed (km/h) uint8_t snr = packetBuffer[offset + 4]; // Signal-to-noise ratio // Filtering conditions: approaching + valid speed + excluding directly behind ±5° if (dir == 0x01 && speed >= 1 && abs(angle) > 5) { // Fix direction judgment logic (angle>0 corresponds to right side, angle<=0 corresponds to left side) //String direction = (angle > 0) ? "右侧" : "左侧"; String direction = (angle > 0) ? "Right" : "Left"; // Serial output results Serial.print(direction + " Car is coming, "); Serial.print("Speed:" + String(speed) + "km/h, "); Serial.print("Distance:" + String(distance) + "m, "); Serial.print("Angle:" + String(angle) + "°"); //Serial.print(direction + "来车, "); //Serial.print("速度:" + String(speed) + "km/h, "); //Serial.print("距离:" + String(distance) + "m, "); //Serial.print("角度:" + String(angle) + "°"); Serial.println(); // Update flag when vehicle detected hasVehicleDetected = true; // Update left and right detection status if (direction == "Left") { //if (direction == "左侧") { leftVehicleDetected = true; } else { rightVehicleDetected = true; } } }}
