Overview
The AWT200-LW series LoRaWAN gateway is equipped with a high-performance SX1302 RF chip, offering multiple frequency bands and model options to accurately meet the communication needs of different regions worldwide, catering to a diverse range of customer applications.
This gateway supports rapid deployment of LoRaWAN network access and wireless services, simplifying the operational process for users and enhancing deployment efficiency. As a professional data communication gateway, its core advantages include: data collection and analysis of terminal devices through wireless transmission, eliminating the need for cumbersome wiring; while also featuring long transmission distances, strong anti-interference capabilities, large network capacity, and high cost-effectiveness, making it adaptable for various applications such as smart agriculture, industrial monitoring, and smart cities, providing stable and reliable underlying communication support for various IoT scenarios.
PART02Product Models

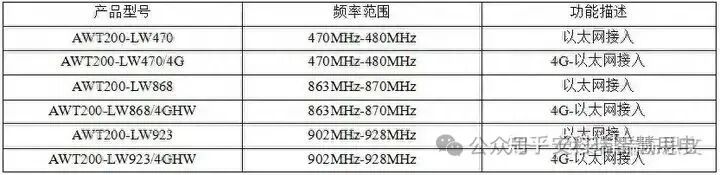

PART03Features
1. Supports 8 channels of BW125KHZ LoRa data reception
2. Dynamic frequency adjustment to maintain communication stability
3. Built-in web configuration tool for easy gateway parameter settings
4. Optional 4G module for network access
5. Supports modification of NS server address
6. Can add terminal nodes on the NS web page and supports group management between different nodes
PART04Typical Applications
The AWT200-LW collects data from terminal nodes via wireless RF and uploads the data to the designated NS platform for processing through Ethernet or 4G, and can also receive information from the platform to transmit to specified terminal nodes, achieving flexible and precise control over different terminal nodes.
Additionally, the AWT200-LW is suitable for: low-power IoT applications, automatic meter reading, smart cities, industrial automation, smart homes, and other scenarios.

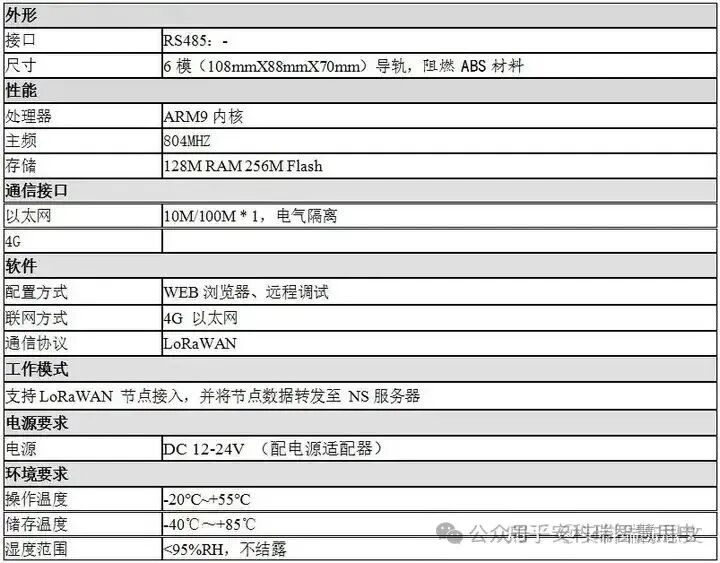

PART05Technical Parameters
PART06Installation and Wiring

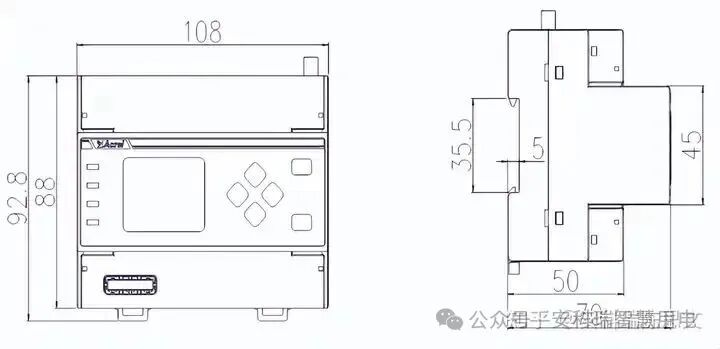

Dimensions
PART07Installation Method
The AWT200-LW data communication gateway adopts a standard 35mm DIN rail mounting method.

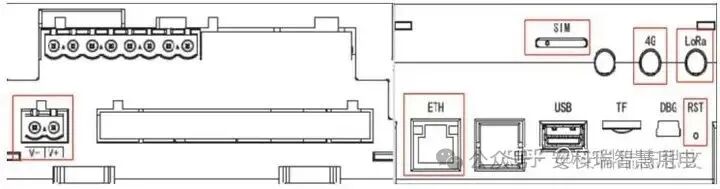

Wiring Instructions
PART08Panel Light Definitions
Each status indicator light should be labeled with its function in Chinese characters, with the color and specific status of the indicator lights as follows:
Status Indicator Light (Red): Red flashing – indicates normal program operation
Communication Indicator Light (Red): Red steady or flashing – indicates normal communication with nodes, LoRaWAN protocol stack operating normally; flashing indicates data transmission and reception with nodes;
Network Indicator Light (Red): Red steady – indicates normal connection with the NS server;
Red flashing – indicates connection to the NS server is in progress;
