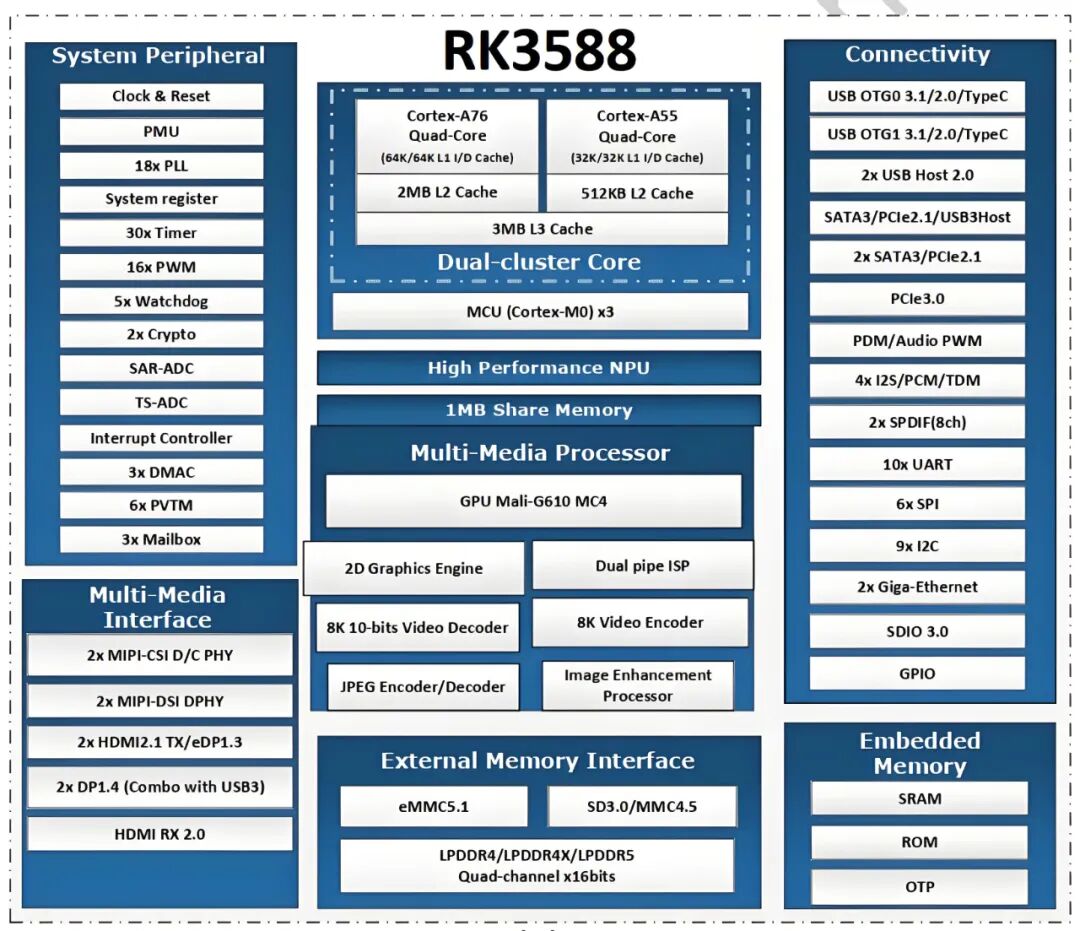

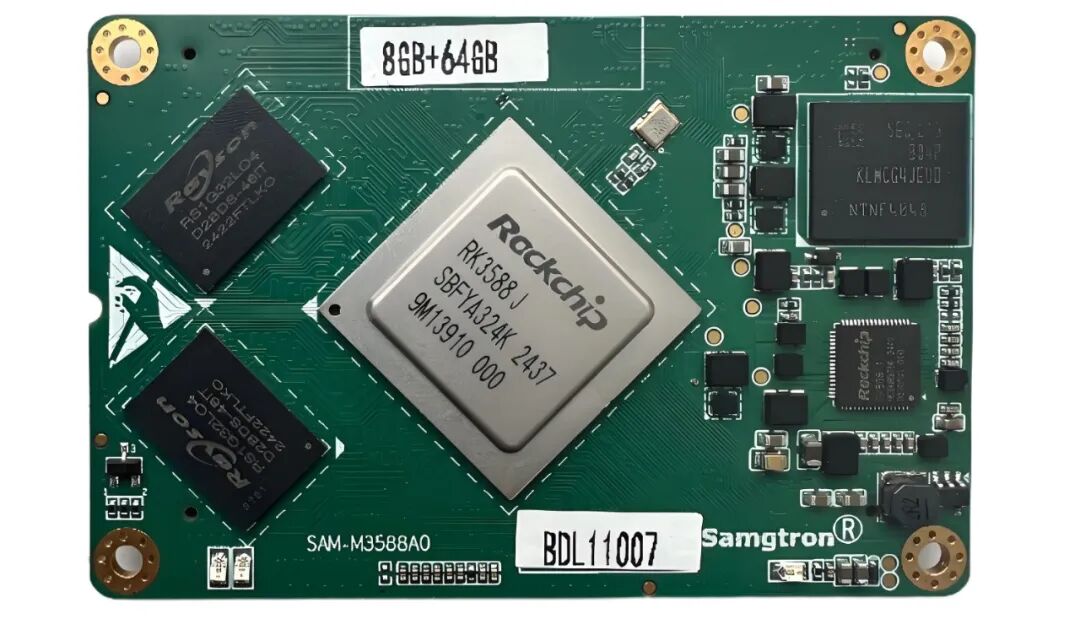

Shanghai Hanchuan Intelligent Technology Co., Ltd., a high-tech enterprise deeply engaged in the embedded field for nearly twenty years, is proud to launch its flagship product in 2024—the SAM-M3588A high-performance embedded core board. This core board is based on the flagship RK3588J processor (8nm advanced process), integrating powerful computing capabilities (4x [email protected] + 4x [email protected]) and an NPU with up to 6TOPS computing power, specifically designed to meet the high-performance edge computing needs in harsh industrial environments.
The core advantages of the SAM-M3588A core board are reflected in the following four key dimensions:
Outstanding Visual Processing and AI Capabilities:
1. Dual ISP Architecture: Integrates two high-performance ISPs, supporting image input up to 48MP@15fps (dual ISP collaboration) or 32MP@30fps, and incorporates advanced image processing algorithms such as HDR, 3DNR, and fisheye correction, ensuring industrial-grade imaging quality.
2. High-Performance NPU: Built-in neural network processing unit with 6TOPS computing power, supporting INT4/INT8/FP16 mixed operations, compatible with mainstream AI framework model conversion and deployment such as TensorFlow/PyTorch, providing strong computational support for real-time AI visual analysis (e.g., security monitoring, machine vision inspection).
3. Flexible Multi-Channel Video Input: Provides 4 MIPI CSI DPHY (2.5Gbps/lane), 2 DCPHY (compatible with DPHY/CPHY), and 1 HDMI RX (supports 4K@60fps input), easily constructing complex multi-camera systems.
4. Ultra HD Codec: Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.264/H.265 video encoding, meeting the needs for ultra-high-definition video processing and transmission.
Top-Level Ultra-Clear Display and Multi-Screen Output Capabilities:
1. Diverse HD Interfaces: Integrates HDMI 2.1 output (supports 8K@60fps), dual eDP 1.3 interfaces (supports 4K@60fps), dual MIPI DSI interfaces (supports 4K@60fps, compatible with DSC 1.2a compression technology), and RGB/BT.1120 interfaces (supports 1080P@60fps).
2. Multi-Screen Display and Splicing: Through a combination of multiple interfaces, flexible multi-screen display or high-resolution splicing display can be achieved, suitable for digital signage, medical imaging display, industrial control consoles, and other scenarios.
3. Rich Color Performance: Supports 10-bit RGB/YUV color depth, significantly enhancing the color levels and expressiveness of the image.
Rich High-Speed Interconnect and Expansion Interfaces:
1. High-Speed Networking: Integrates dual Gigabit Ethernet interfaces (RGMII/RMII), supporting 10/100/1000M adaptive.
2. High-Performance PCIe Expansion: Provides 1 PCIe 3.0 x4 interface (5Gbps/lane, suitable for NVMe SSDs or high-speed acquisition cards) and 3 independent PCIe 2.1 interfaces (5Gbps), offering strong expansion capabilities.
3. Large Capacity Storage Solutions: Equipped with 3 SATA 3.0 interfaces (6Gbps), supporting massive data storage.
4. High-Speed USB: Provides 2 USB 3.1 OTG and 1 USB 3.1 Host interface (5Gbps), with OTG supporting Type-C DP Alt mode.
5. Comprehensive General Interfaces: Integrates dual USB 2.0 Host, SDIO 3.0 (150MHz), and multiple high-speed UARTs (up to 4Mbps), meeting diverse peripheral connection needs.
Industrial-Grade Reliability and Robustness:
1. Wide Temperature Operating Guarantee: Offers industrial-grade (RK3588J, -40℃ ~ 85℃) and commercial-grade (RK3588, 0℃ ~ 80℃) options, adapting to different environmental temperature requirements.
2. Robust Power Management: Utilizes industrial-grade PMIC (RK806-1/RK860 series), supporting a wide voltage input range of 4V±5%, ensuring power supply stability.
3. Multiple Reliability Designs: Integrates hardware watchdogs (5 channels) and enhanced anti-static designs (ESD protection).
4. High Specification Structure and Longevity: Adopts a 10-layer PCB stacking design to optimize electrical performance and signal integrity, with an average time between failures (MTBF) of up to 500,000 hours.
5. Harsh Environment Adaptability: Supports 5%~95% humidity (non-condensing) operating environment, with a storage temperature range of -55℃~105℃.
The SAM-M3588A core board, with its powerful comprehensive performance and industrial-grade reliability, is the ideal “smart core” for building complex applications such as smart medical devices, industrial robot control systems, intelligent in-vehicle infotainment and cockpit systems, edge AI servers, and high-end digital signage.
Hanchuan Technology relies on years of successful experience in industrial automation, smart transportation, smart power, IoT, military aerospace, and other fields, as well as a complete standardized electronic production workshop and a strict quality control system (including 100% functional testing, comprehensive reliability testing, high and low-temperature and aging tests), ensuring the excellent quality and long-term stable operation of delivered products. We not only provide the SAM-M3588A core board hardware but also offer complete hardware and software reference solutions (covering BIOS porting, Linux, Android, HarmonyOS, Kirin, and other operating system customization and optimization), significantly shortening the product development cycle for customers (by over 50%).
Adhering to the philosophy of “Professionalism Builds Quality, Cooperation Creates the Future,” we are committed to becoming a trusted partner for customers in the embedded field, helping them tackle the opportunities and challenges of the embedded market.
If you would like to learn more about the application solutions of SAM-M3588A in your specific scenario, feel free to reach out for in-depth discussions.
