Features and Application Scenarios of Renesas RA2L2

1

Introduction to RA2L2 Product

Features

• 110-nm low power process

• 48MHz Arm^®Cortex^®-M23 core

• Up to 128KB flash, 16KB SRAM, 4KB data flash

• 32pin to 64pin, LQFP, QFN packages

• Diverse interfaces such as USBFS, I3C, SSI, LPUART, and CAN

• 16-bit & 32-bit GPT, 32-bit LPAGT, RTC

• Operating temperature range: Ta=-40°C~125°C

• Wide operating voltage range: 1.6V-5.5V

• Security and encryption features

Advantages

• Supports USB FS (Full Speed) Type-C (Peripheral Receiving Mode, supports 3.0A power supply), I3C, SSI, LPUART, CAN, and other diverse interfaces

• Integrated CAN 2.0 protocol, allowing migration from the previous generation M16C/R8C CAN MCU

• Optimized low power consumption, 88μA/MHz operating current and 0.25uA standby current

• Easy portability between RA series

• Reduces system costs by minimizing the number of external components

Typical Applications

• USB data logger

• Label/thermal printer

• EV charger

• Battery charger

• Barcode/RFID reader

• Elevator

Product Link

RA2L2 – 48MHz Arm Cortex-M23 Entry-Level USB General-Purpose Microcontroller | Renesas Electronics

https://www.renesas.cn/en/products/ra2l2?queryID=19ad585bccea0d1b61aff578e2bebf8b

2

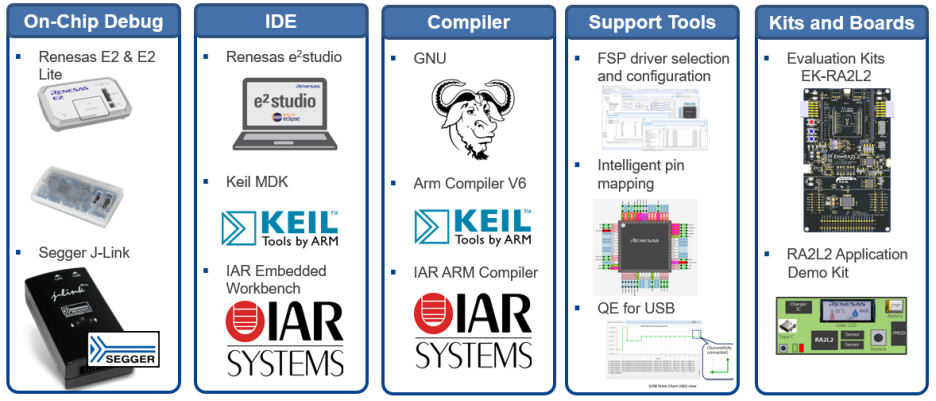

Development Tools

Like other RA products, the RA2L2 supports debuggers including Renesas Electronics’ E2/E2 Lite/EZ-CUBE3, SEGGER’s J-Link, IAR’s I-jet, Arm’s ULINK, and open-source CMSIS-DAP.

Software development relies on FSP (Flexible Software Package), which not only provides HAL Driver-level drivers but also includes rich middleware such as file systems, USB protocol stacks, and network protocols. Additionally, configurations for FreeRTOS and Azure RTOS can be completed through the FSP UI interface. All content is hosted onGitHub (Releases · renesas/fsp), available for download.(You can copy the link below into your browser or scan the QR code to view)

GitHub (Releases · renesas/fsp)

https://github.com/renesas/fsp/releases/

The compiler supports commercial Arm Compiler V6 and IAR Arm Compiler, as well as free GNU and Arm LLVM. For compiler version requirements, please refer to the details in the Tools list on theReleases · renesas/fsppage.(You can copy the link below into your browser or scan the QR code to view)

Releases · renesas/fsp

https://github.com/renesas/fsp/releases/

FSP can be embedded into Renesas Electronics’ IDE e² studio based on the Eclipse platform. For third-party IDEs like Keil MDK and IAR Embedded Workbench for Arm, it needs to be used with the RASC (RA Smart Configurator) standalone plugin, which can be downloaded fromGitHub (Releases · renesas/fsp), and more details can be found in the RASC documentation(RASC MDK IAR User Guide).(You can copy the link below into your browser or scan the QR code to view)

GitHub (Releases · renesas/fsp)

https://github.com/renesas/fsp/releases/

RASC MDK IAR User Guide

https://renesas.github.io/fsp/_s_t_a_r_t__d_e_v.html#RASC-MDK-IAR-user-guide

For download links of each tool, please refer to the content in the table:

IDE

1

Name:e² studio

Version/Download Link:

Renesas e² studio downloads

https://www.renesas.cn/en/software-tool/e-studio#downloads

2

Name:Keil MDK

Version/Download Link:

ARM Product Updates (keil.com)

https://www.keil.com/update/rvmdk.asp

3

Name:

IAR Embedded Workbench for Arm

Version/Download Link:

IAR EW for Arm Free Trial Version

https://www.iar.com/products/architectures/arm/iar-embedded-workbench-for-arm/iar-embedded-workbench-for-arm-free-trial-version/

Toolchain

1

Name:LLVM

Version/Download Link:

LLVM-embedded-toolchain-for-Arm/releases

https://github.com/ARM-software/LLVM-embedded-toolchain-for-Arm/releases

2

Name:GCC

Version/Download Link:

arm-gnu-toolchain-downloads

https://developer.arm.com/downloads/-/arm-gnu-toolchain-downloads

ICE

1

Name:E2&E2 Lite

Version/Download Link:

E2 emulator [RTE0T00020KCE00000R] | Renesas

https://www.renesas.com/en/software-tool/e2-emulator-rte0t00020kce00000r

E2 emulator Lite [RTE0T0002LKCE00000R] | Renesas

https://www.renesas.com/en/software-tool/e2-emulator-lite-rte0t0002lkce00000r

2

Name:J-Link

Version/Download Link:

Segger Debug Probes J-Link

https://www.segger.com/products/debug-probes/j-link/

3

Name:I-jet

Version/Download Link:

IAR I-jet

https://www.iar.com/embedded-development-tools

Code Generator

1

Name:RASC (RA Smart Configurator)

Version/Download Link:

Documentation RASC MDK IAR User Guide

https://renesas.github.io/fsp/_s_t_a_r_t__d_e_v.html#RASC-MDK-IAR-user-guide

2

Name:FSP

Version/Download Link:

Releases · renesas/fsp

https://github.com/renesas/fsp/releases/

For example code and development board, please refer to the links in the following table:

1

Name:RA Product Examples

Brief Description:

Includes most examples for the RA series products^Note

Download Link:

renesas/ra-fsp-examples

https://github.com/renesas/ra-fsp-examples

2

Name:Development Board

Brief Description:

EK board of RA series

Download Link:

Renesas RA Microcontroller Evaluation Kits

https://www.renesas.com/en/products/microcontrollers-microprocessors/ra-cortex-m-mcus/ra-kits

3

Evaluation Board

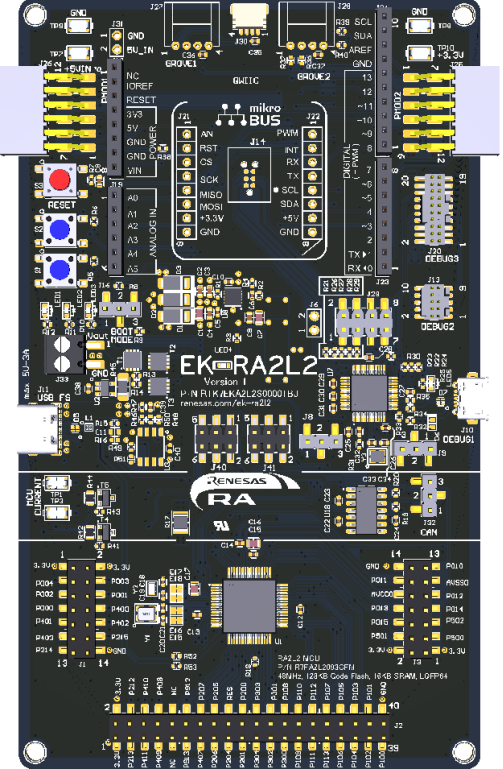

EK-RA2L2 Evaluation Board

Main Features

• R7FA2L2093CFM (RA2L2 64-pin LQFP)

• 48MHz, Arm^®Cortex^®-M23 core

• 128kB flash, 16kB SRAM, 4kB data flash, USB FS, USB Type-C detection

• Direct access to MCU pins

• MCU current measurement point CAN bus x1 (equipped with CAN transceiver)

• USB Type-C^™ interface and receiver

• USB-C receiver terminal (0.5A/1.5A/3.0A 5V) supports USB or external power supply (self-powered)

• USB-C receiver terminal (1.5A/3.0A 5V) supports USB-C power supply (bus-powered)

• CC pin detects VBUS current supply capability (0.5A/1.5A/3.0A 5V)

• VBUS monitoring

Eco & System Control Access

• 5V input provided via USB (Debug, FS (Type-C)) or external power supply

• Onboard Debug (Segger J-Link^®)

• Debug in (SWD)

• Debug out (SWD)

• 3 user LEDs & 2 user buttons

• 2 SeeedGrove^® systems (I²C & analog)

• 2 Digilent Pmod^TM (SPI & I²C & UART)

• Arduino^TM (Uno R3)

• MikroElektronika^TM mikroBUS**

• SparkFun Qwiic (I²C)

• MCU boot configuration jumper

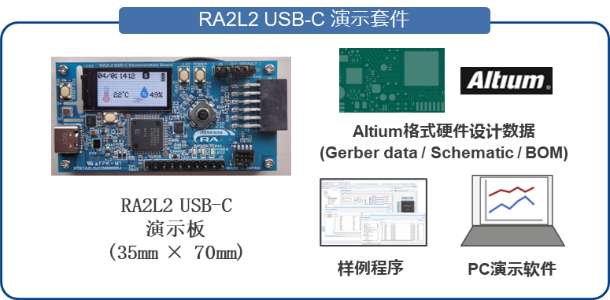

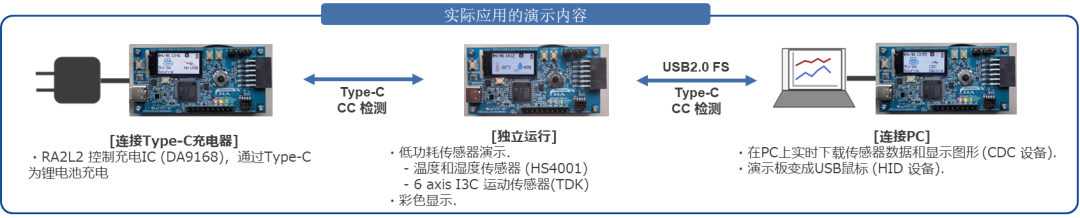

RA2L2 Application Demonstration Kit

Main Features

• Demonstrates the main features of RA2L2

• USBFS + Type-C, low power, diverse interfaces

• Compact single board with USB battery application functionality

• MCU (RA2L2), charging IC (DA9168), sensors (temperature and humidity sensor HS4001, 6-axis motion sensor)

• 1 battery, small color LCD

• Supports 3 demonstration use cases and 2 demonstration modes

• Standalone, connected to PC, connected to Type-C charger

• Low power sensor demonstration mode, mouse demonstration mode

Need Technical Support?

If you have any questions while using Renesas MCU/MPU products, you can identify the QR code below or copy the URL into your browser to enter theRenesas Technical Forum to find answers or get online technical support.

https://community-ja.renesas.com/en/forums-groups/mcu-mpu/

1

END
