Flexible Printed Circuit Boards, abbreviated as FPC
are a special type of PCB
How fantastical is the FPC production line?
Its level is comparable to that of a sci-fi blockbuster
This is the intelligent production base for circuit boards in Hunan Jinkang
Fully automated production line
AI quality inspection
Intelligent warehousing system and modern intelligent management system

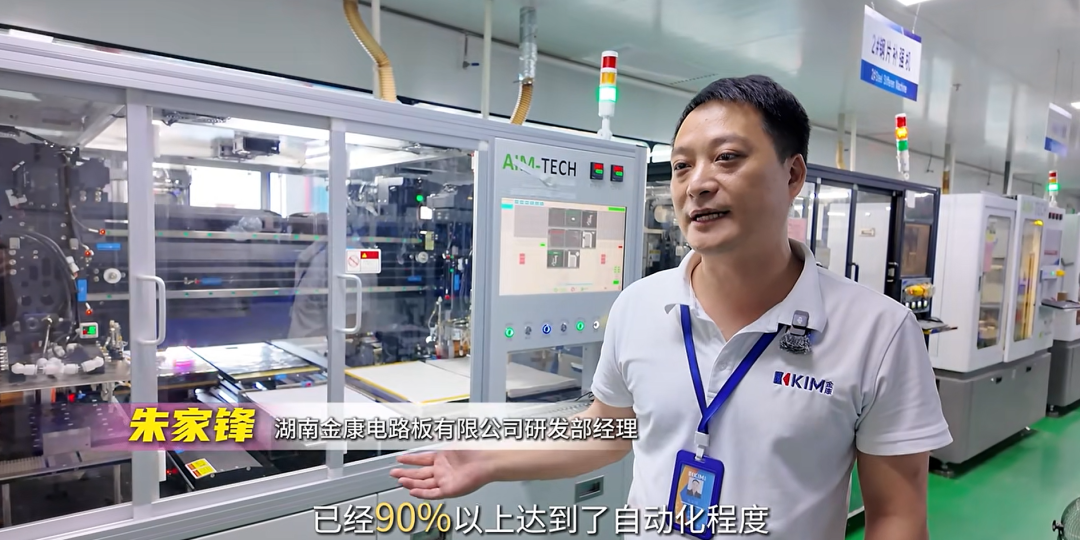

The current equipment at Hunan Jinkang Circuit Board
has achievedover 90%automation level
The daily output can reach 1500-2000 square meters
The existing equipment precision can reach 50 microns
thinner than a human hair

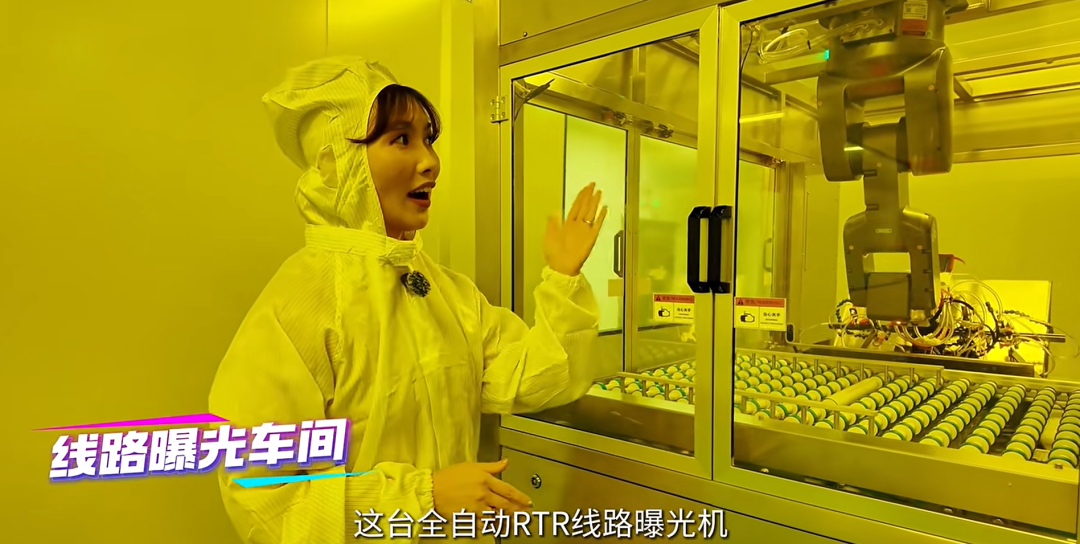

This is the circuit exposure workshop
This fully automatic RTR circuit exposure machine
has an exposure resolution of up to 2 microns
Combined with online AOI automatic detection
each circuit board is of micron-level high quality

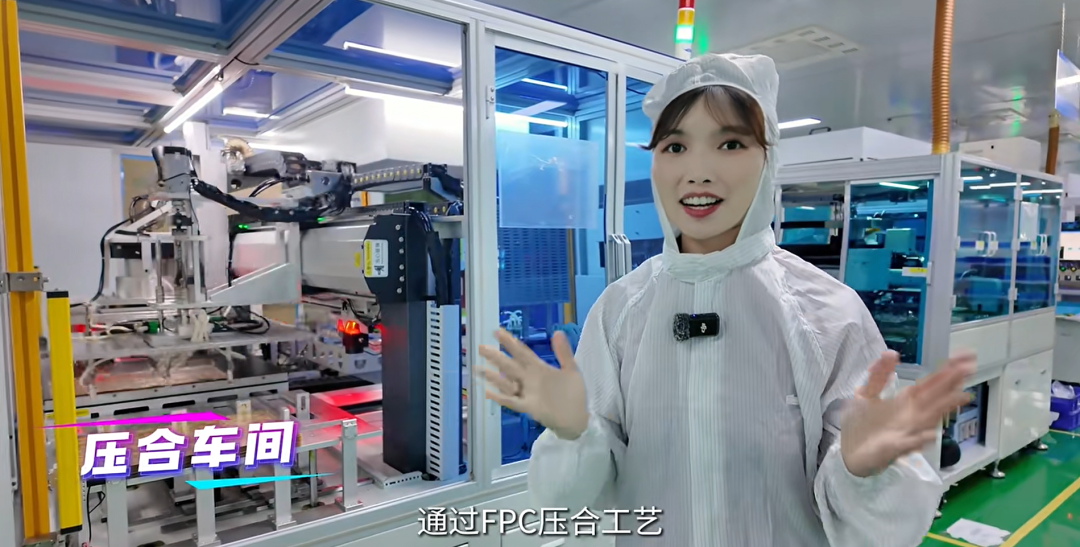

This is the lamination workshop
Through the FPC lamination process
different materials are perfectly laminated together
both flexible and strong
such as wireless charging, smartphones, and medical probes
all rely on it to provide core power

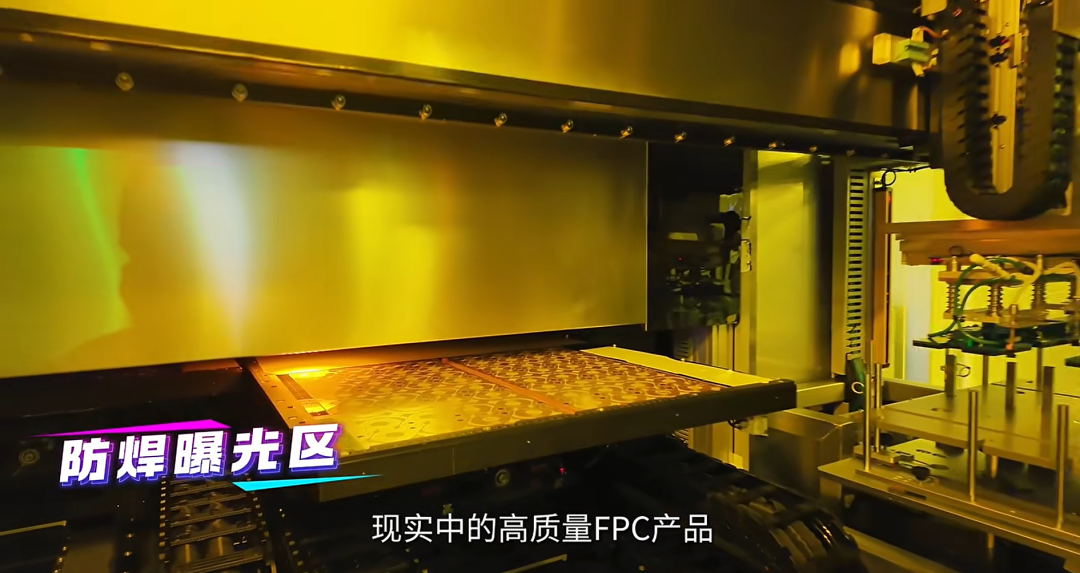

This is the solder mask exposure area
The fully automatic solder mask exposure machine
uses a perfect combination of light and chemicals
to “draw” precise patterns on each “circuit board”
transforming design drawings into high-quality FPC products in reality
