01
Overview
The OLED screen has advantages such as high contrast, low power consumption, wide viewing angles, and self-emissive pixels, making it suitable for small display applications like wearable devices and desktop widgets.

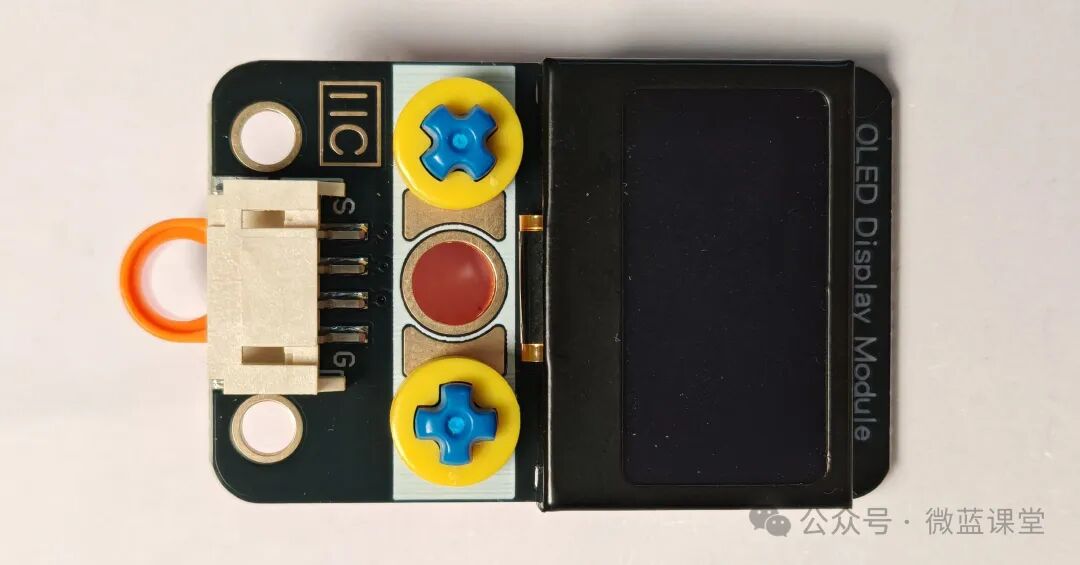

This OLED display has a size of 0.96 inches, with a resolution of 128×64 pixels, and uses I2C communication, driven by the SSD1306.
It is important to note the risk of screen burn-in and aging with OLED screens, so avoid displaying static images for extended periods.
02
Wiring
-
Operating Voltage: 3.3V-5V
-
Communication Type: IIC Protocol
-
IIC Address: 0x3D
-
Right 1-G: GND, negative terminal
-
Right 2: 3.3V, positive terminal
-
Right 3: SDA, pin 21
-
Right 4-S: SCL, pin 22
03

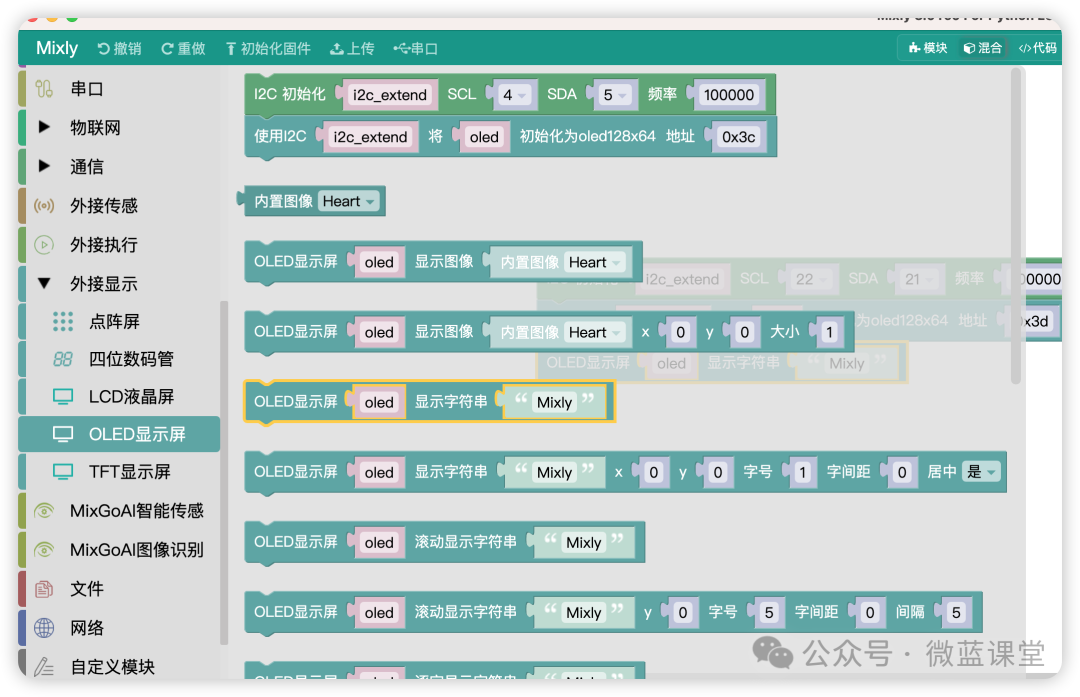

Programming
Program Explanation:

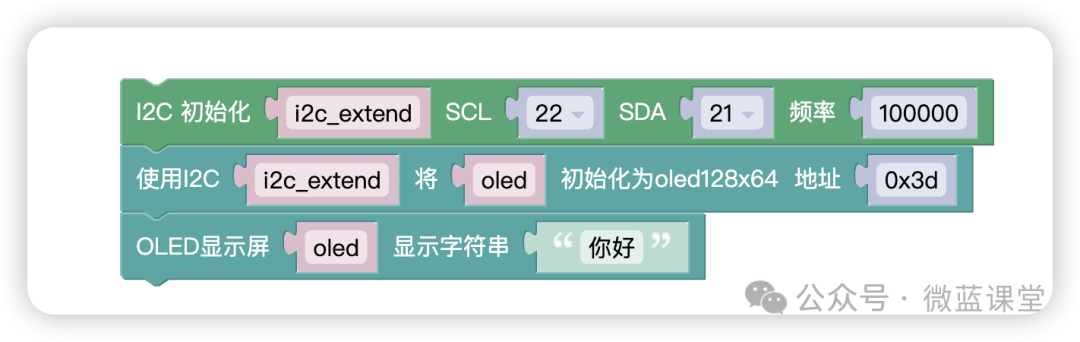

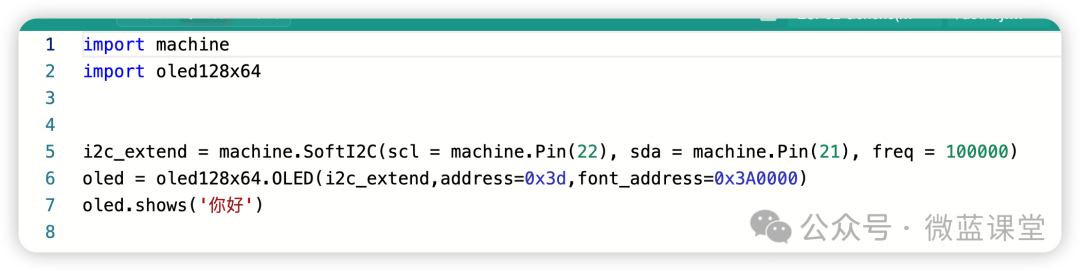

First, initialize the I2C pins, connecting SCL to pin 22 and SDA to pin 21; then set the OLED device address to 0x3D; finally, set the content to be displayed on the OLED.
04

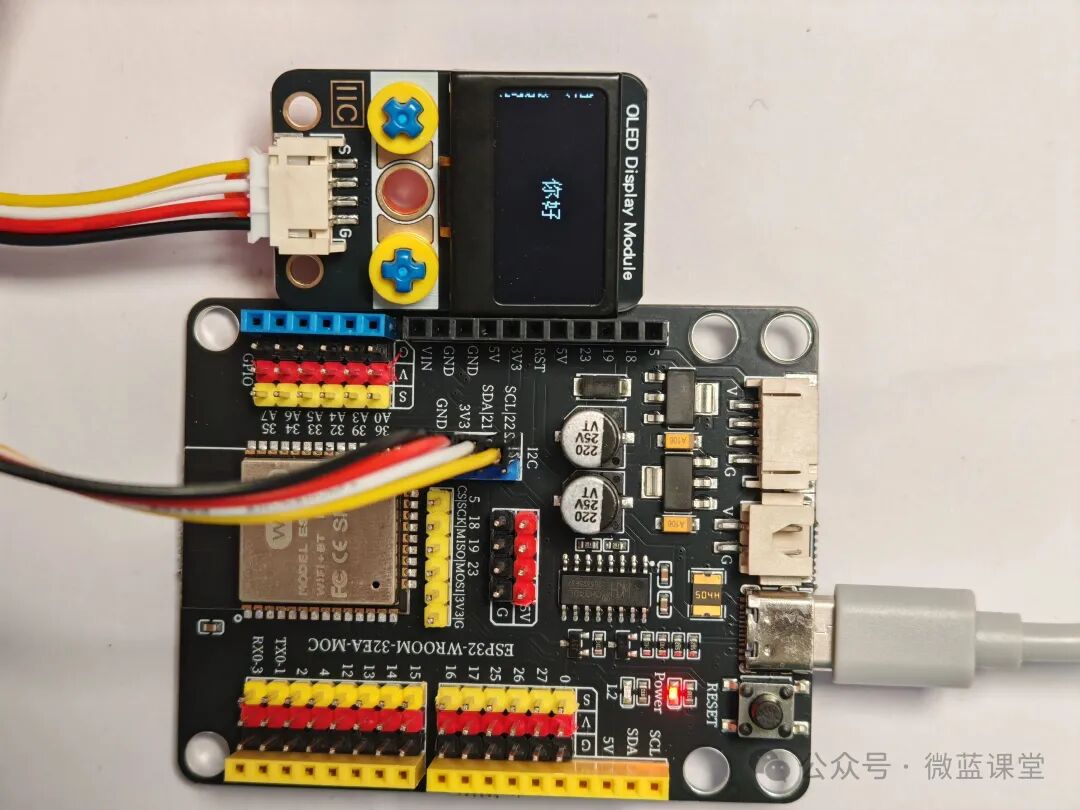

Effect
