The MIPI video interface features high data transmission rates, capable of meeting the demands of high-resolution and high-refresh-rate displays. Its transmission speed can reach several Gbps, ensuring that image and video data can be transmitted and processed quickly and accurately, allowing for efficient and compatible data transfer with cameras in the field of image processing.
The design of the dual MIPI interface uses low-voltage signals, which not only effectively reduces power consumption, thereby extending the battery life of mobile devices, but also enhances the transmission speed.

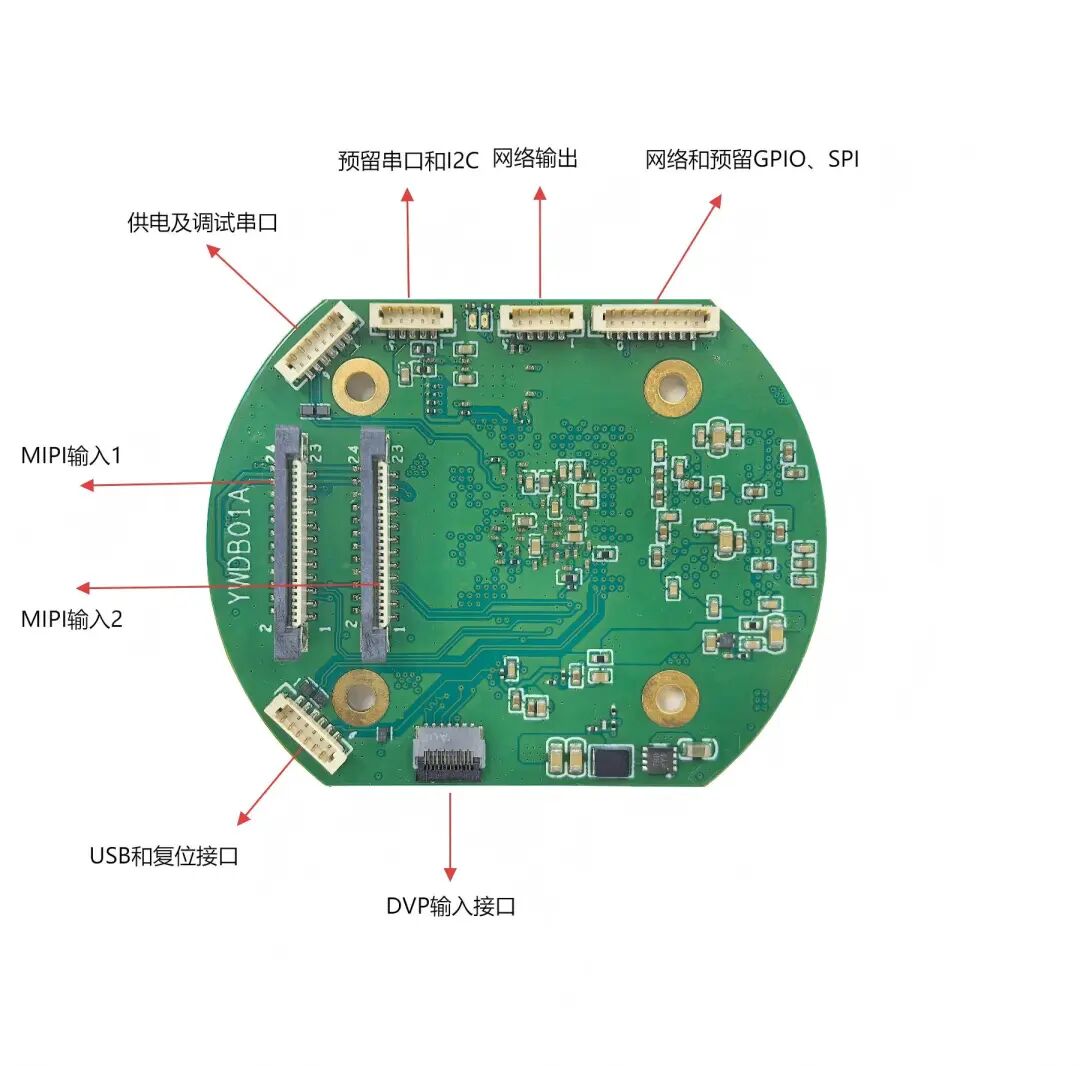

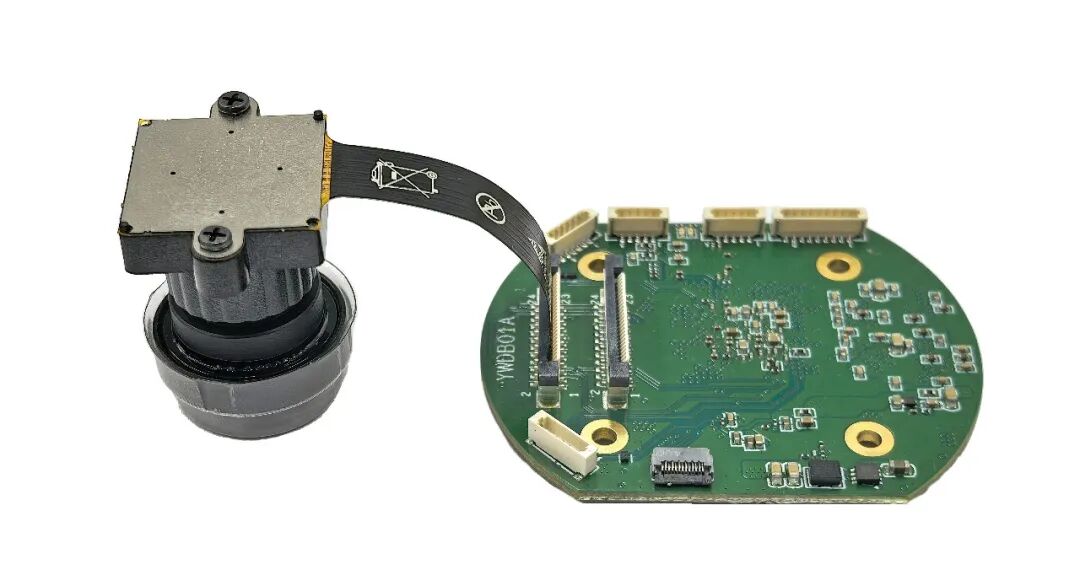

The Viztra-LE048 image processing board launched by Huishi Optoelectronics uses the Rockchip RV1126 as the main processor, designed with dual MIPI inputs, one DVP infrared input, and one Gigabit network output.
It can achieve autonomous detection and recognition of targets at a frame rate of no less than 50Hz, and automatically or manually select targets for locking and tracking, while outputting the deviation information of the target relative to the center of the field of view.
The board overall presents characteristics of low power consumption and lightweight, with dimensions within 47.8mm*38.5mm*8mm and a weight of less than 9g, with an output power consumption not exceeding 4W.
Features
1. Manual/automatic adjustment function for tracking gate position and size;
2. Manual/automatic adjustment function for target extraction threshold;
3. Manual setting function for black/white targets under centroid tracking mode;
4. Function to show/hide and adjust the position of the crosshair;
5. Electronic magnification function of 1~4 times at the center of the crosshair, with a step size of 0.1;
6. Picture-in-picture function, allowing control over the display/hide of the picture-in-picture;
7. Raw video processing function for visible light sensors, including image enhancement, dehazing, etc.;
8. Video recording, playback, and export functions;
9. OSD function, allowing display/hide of (gates, status information, target information, etc.);
10. Self-check function.
Detailed Parameters
|
Performance |
|
|
Tracking Frame Rate |
1080P@50Hz |
|
Offset Output Delay |
1.5 frames |
|
Minimum Tracking Target (Small Target) |
Total pixel count ≤ 3 (target contrast not less than 5%) |
|
Minimum Recognizable Target |
12×12 pixels |
|
Recognition Probability |
85% |
|
Target Capture Time |
<0.1s |
|
Video Channel Switching Time |
100ms |
|
Video Compression Storage Capacity |
≥1h |
|
Input and Output |
|
|
DVP Video Input Interface |
Infrared Video Input |
|
MIPI Video Input Interface |
Visible Light Video Input |
|
MIPI Video Input Interface |
Visible Light Video Input |
|
Network Output |
|
|
Mechanical/Electrical Parameters |
|
|
Operating Voltage |
DC 12V |
|
Power Consumption |
≤4W |
|
Dimensions |
≤47.8mmX38.5mmx8mm |
|
Weight |
Approximately 9g |
|
Environmental Adaptability |
|
|
Operating Temperature |
-40℃~+65℃ |
|
Storage Temperature |
-40℃~+70℃ |
