[CH.1] Shallow Trench Isolation (STI) Gapfill Defects

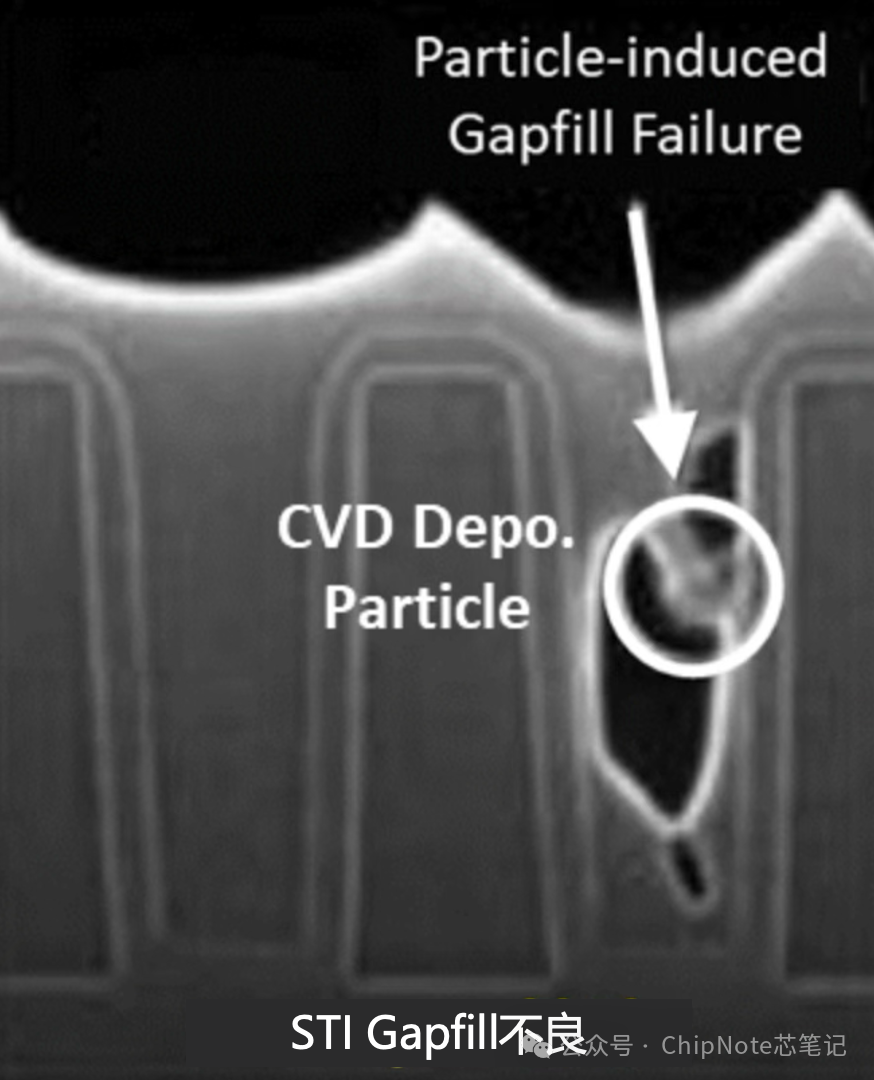

The first type of defect is the poor filling of STI (Shallow Trench Isolation). The isolation process can be divided into trench isolation and junction isolation. Particularly for trench isolation, it defines the transistor device domain by increasing the physical distance between adjacent devices while also providing electrical isolation. However, during the formation of STI, if the deposition process capability is insufficient as shown in the figure, incomplete filling can occur due to overhang at the opening or particles within the trench profile, leading to voids and causing field leakage between adjacent devices. This results in increased device characteristic dispersion or mismatch; in severe cases, the device may experience hard failure and cease to function properly. As the process continues to shrink, the demand for high-difficulty gapfill technology in deposition processes is increasing.

[CH.2] Seam Defects

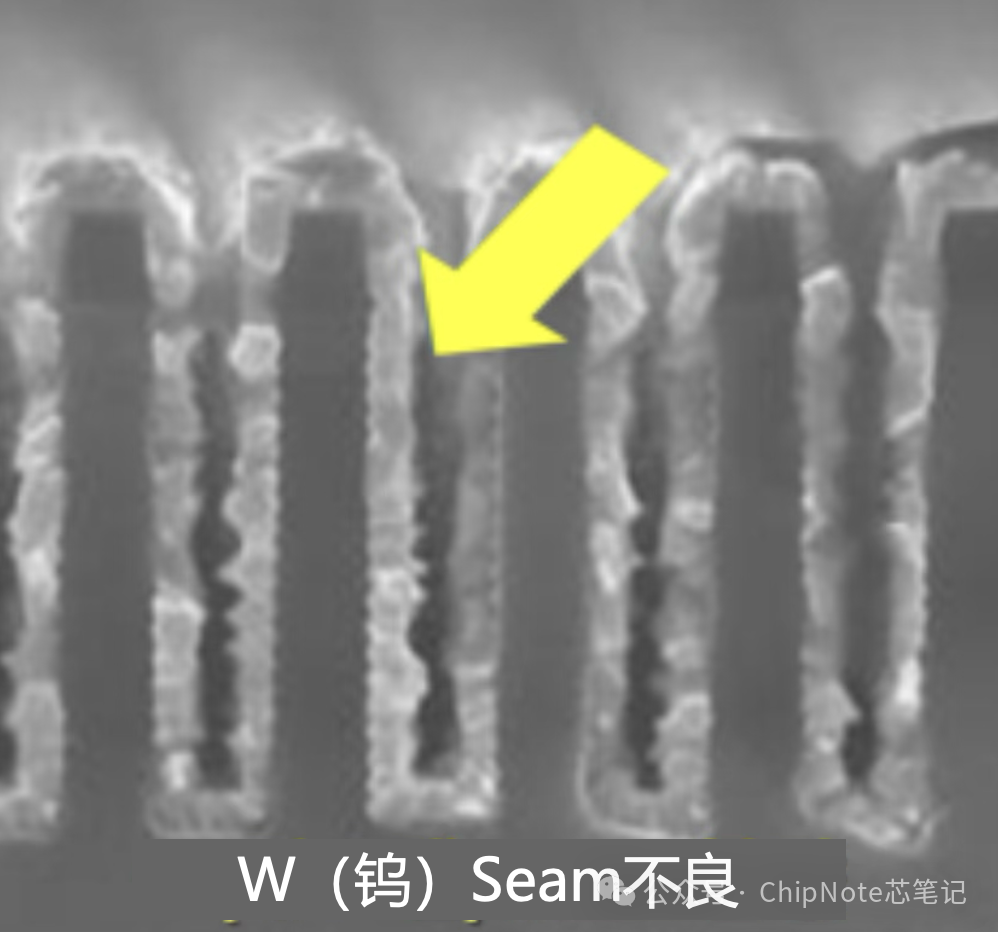

The second defect is the seam defect. Seam defects and voids share a common characteristic of being caused by a decrease in gapfill capability due to high aspect ratio (High AR) and poor step coverage. (They can be simply understood as morphological differences; when seam gaps are severe, they can evolve into voids.) Especially in advanced processes, to achieve high density and multifunctionality within a single chip, countless transistors (Tr.) are integrated into the IC. To realize their electrical functions, a large number of contacts/vias and complex metal routing must be formed. Therefore, the contact/via holes formed to connect the metal lines between upper and lower layers increasingly exhibit high aspect ratio profiles. If, as shown in the figure, tungsten (W) metal is not properly filled, it can lead to increased resistance and thus failure. Therefore, a high-difficulty deposition process technology with excellent step coverage characteristics is required.

[CH.3] Defects Caused by Particles

Defects caused by particles typically present a random distribution on the wafer map, most manifesting as hard failures. Therefore, it is necessary to strengthen Continuous Improvement Activities (CIP) to reduce particle occurrences. Particle defects generally lead to short circuits between metal lines or voids in contact/via holes, resulting in open failures. Additionally, if deposition processes occur in the presence of particles, bias or stress may be released in the areas where particles are located, potentially causing pinhole defects. Since defects caused by particles are mostly hard failures, there are few remedial measures other than maintaining a clean manufacturing environment. Moreover, they account for a significant portion of yield loss, making them critical.

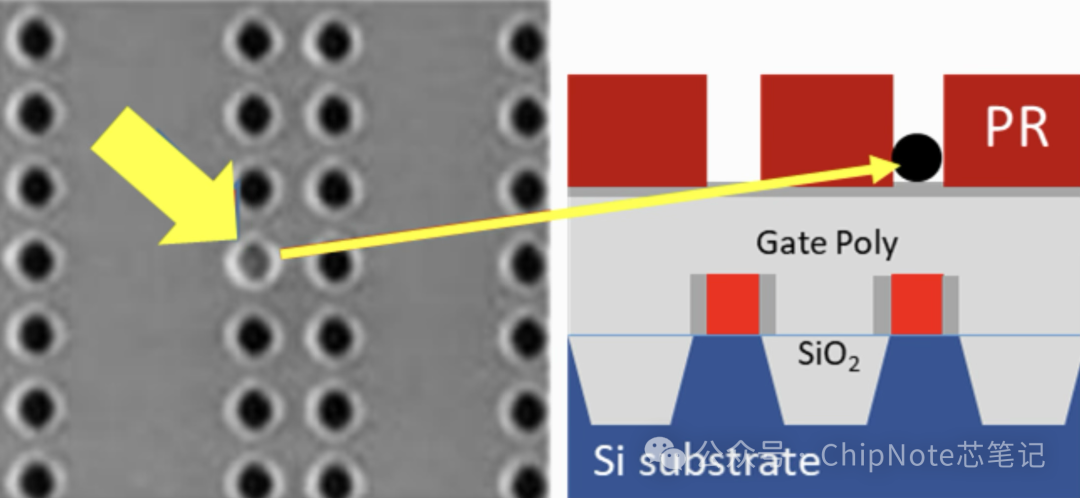

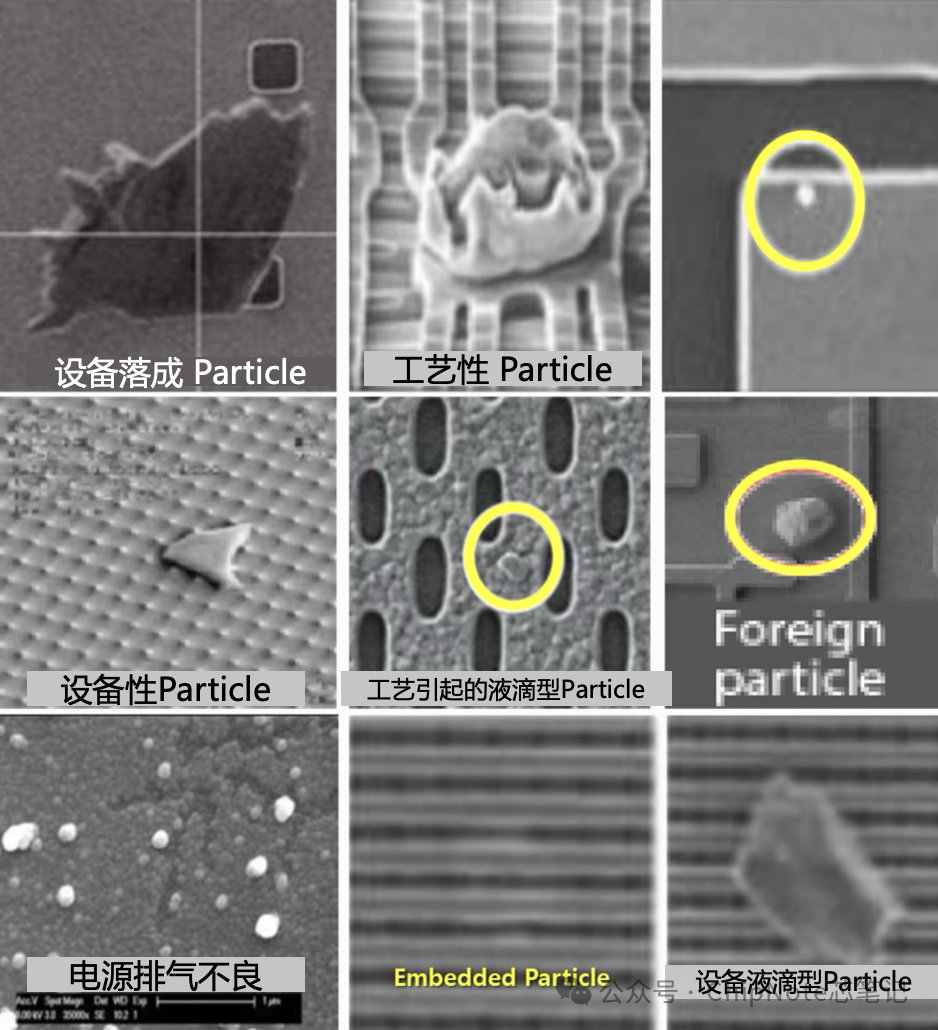

Typically, particle defects can be classified into three categories: 1. Equipment-induced particles, 2. Process-induced particles, 3. External particles. As inferred from the figure, equipment-induced particles generally appear at the edges of the wafer, indicating inappropriate preventive maintenance (PM) and exhaust conditions of the equipment, necessitating a re-examination of the equipment input parameters. Particles generated during the process typically exhibit a round shape, possibly due to equipment failure or unoptimized process conditions. The last type is non-reactive or equipment-induced, but rather particles from the external environment. When photolithography patterns are formed over particles, the presence of particles beneath the patterned film can cause step height differences, thereby affecting the integrity of the upper pattern. Therefore, the PM cycle of the equipment, optimization of process conditions, and a clean process environment are key to controlling particle defects.

[CH.4] Deposition Uniformity Defects

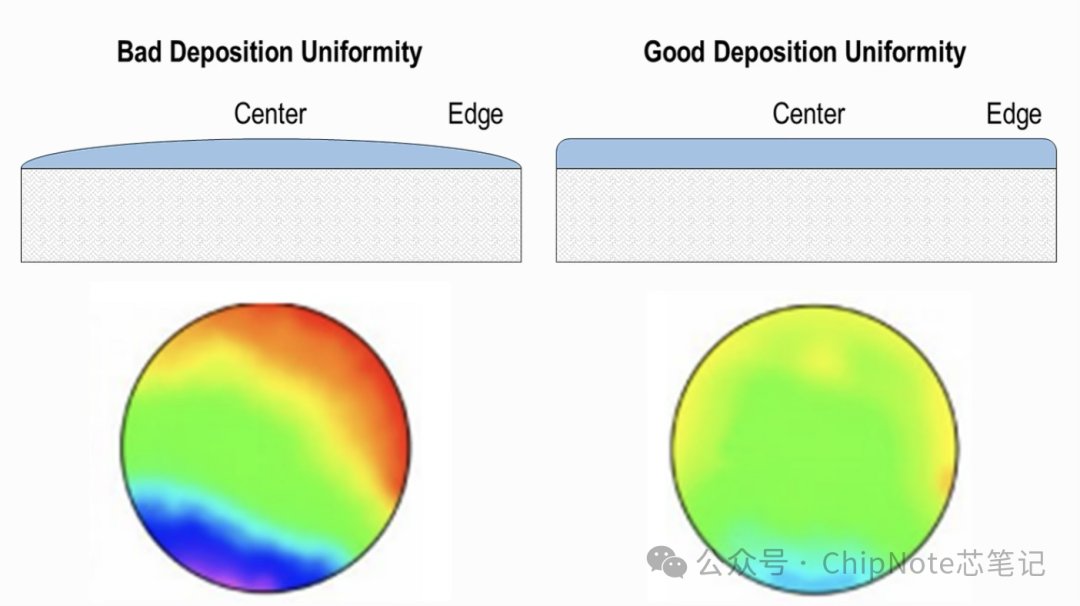

Poor uniformity on the wafer during the deposition process can lead to variations in device characteristics and cause defects such as open/short circuits in subsequent processes. Process engineers need to optimize deposition conditions such as temperature and pressure in the process recipe while improving uniformity at various positions on the wafer. In other words, optimizing uniform deposition rates based on wafer position is the responsibility of deposition process engineers. The uniformity between the center and edge of the wafer is crucial not only in the deposition process but also poses key challenges in photolithography, chemical mechanical polishing (CMP), and etching processes. Especially with the advent of fine processes, its importance is further heightened.

[CH.5] Silicide Encroachment / Silicide Stringer Defects

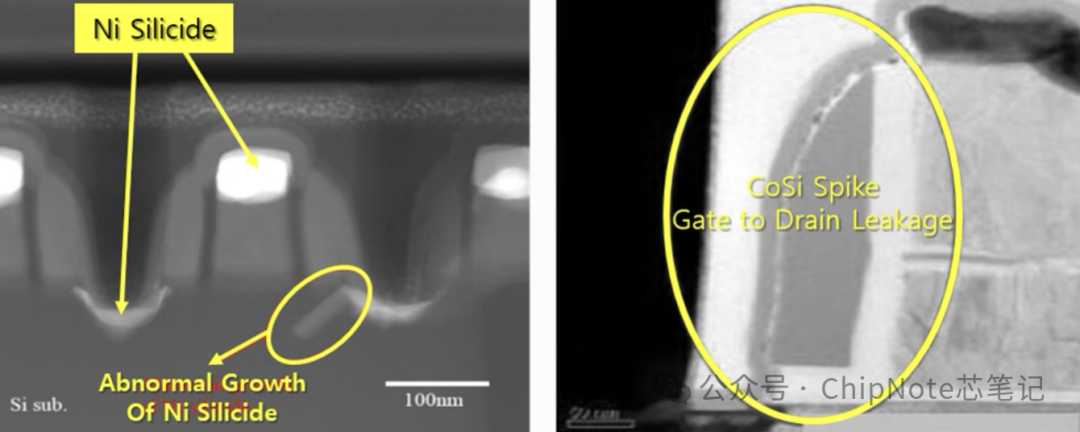

The silicide process is aimed at reducing the high contact resistance caused by the Schottky barrier formed due to the work function difference between metals and semiconductors. The basic process of the so-called self-aligned silicide (Salicide) can be briefly described as follows: First, metals such as Co/Ti/Ni are deposited over the entire wafer surface through physical vapor deposition (PVD) along with a capping layer, followed by annealing to allow metal atoms to diffuse into the silicon and form a silicide layer. However, in actual processes, silicide may exhibit abnormal growth (encroachment), leading to junction leakage in devices. This issue is often significantly influenced by silicon substrate doping, surface cleaning, Ni film thickness, and annealing conditions. The silicide stringers shown in the right figure refer to silicide residues remaining on the device sidewalls, which can also form leakage paths between the gate and drain, thereby affecting device performance.

[CH.6] Overhang Defects

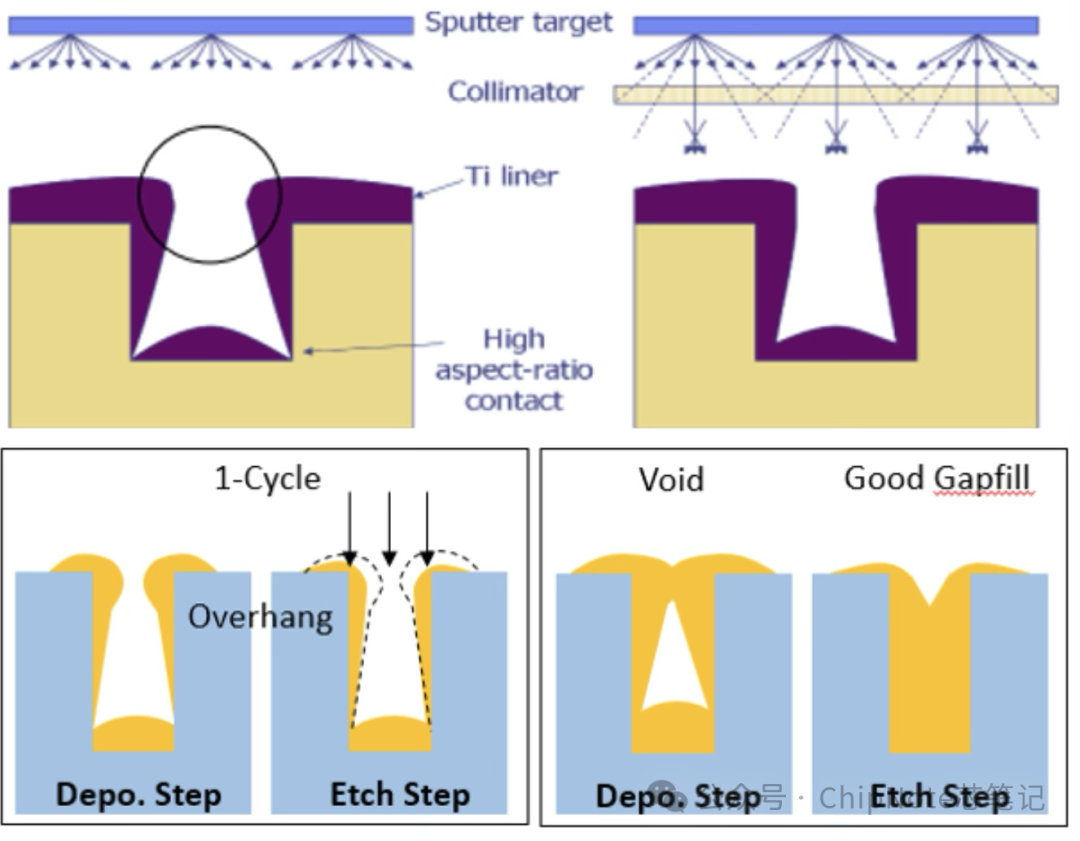

When overhang occurs, it can lead to the formation of voids below in severe cases. In the PVD process, collimators are typically used to improve overhang issues. However, during collimated sputtering, particles can deposit on the collimator, leading to a decrease in deposition rate, necessitating regular replacement. In CVD processes, HDPCVD (High-Density Plasma Chemical Vapor Deposition) is often used to address overhang issues, typically implemented through a Depo-Sputtering 1-Cycle method, which is commonly applied in trench processes. However, due to excessively high plasma density, defects caused by plasma damage may arise, potentially leading to hump phenomena and variations in device characteristics and mismatches. Therefore, to make the STI (Shallow Trench Isolation) films denser, densification treatments are necessary in subsequent processes.

[CH.7] Poor Step Coverage Defects

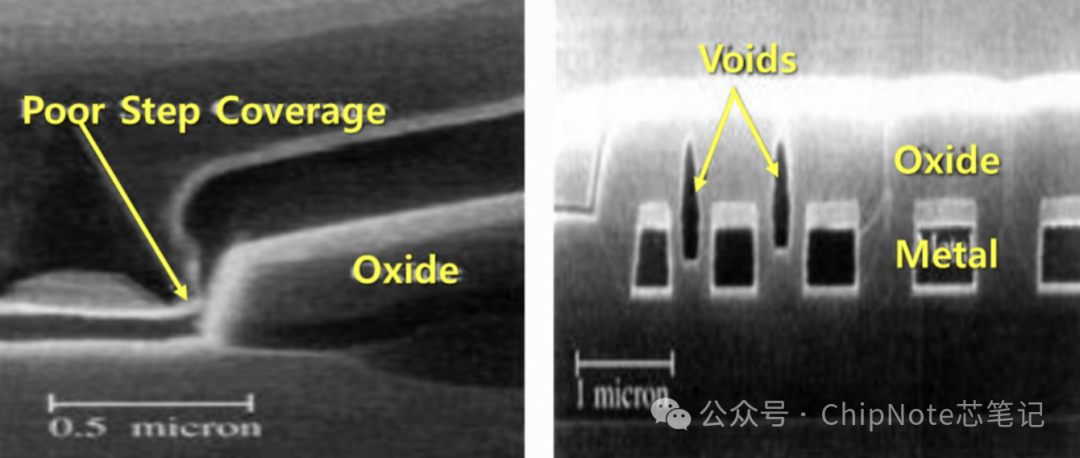

It is necessary to enhance step coverage by reassessing the deposition recipe for interlayer dielectric (ILD) films and replacing materials to achieve void-free processes.

[CH.8] Cracking Defects in Insulating Films

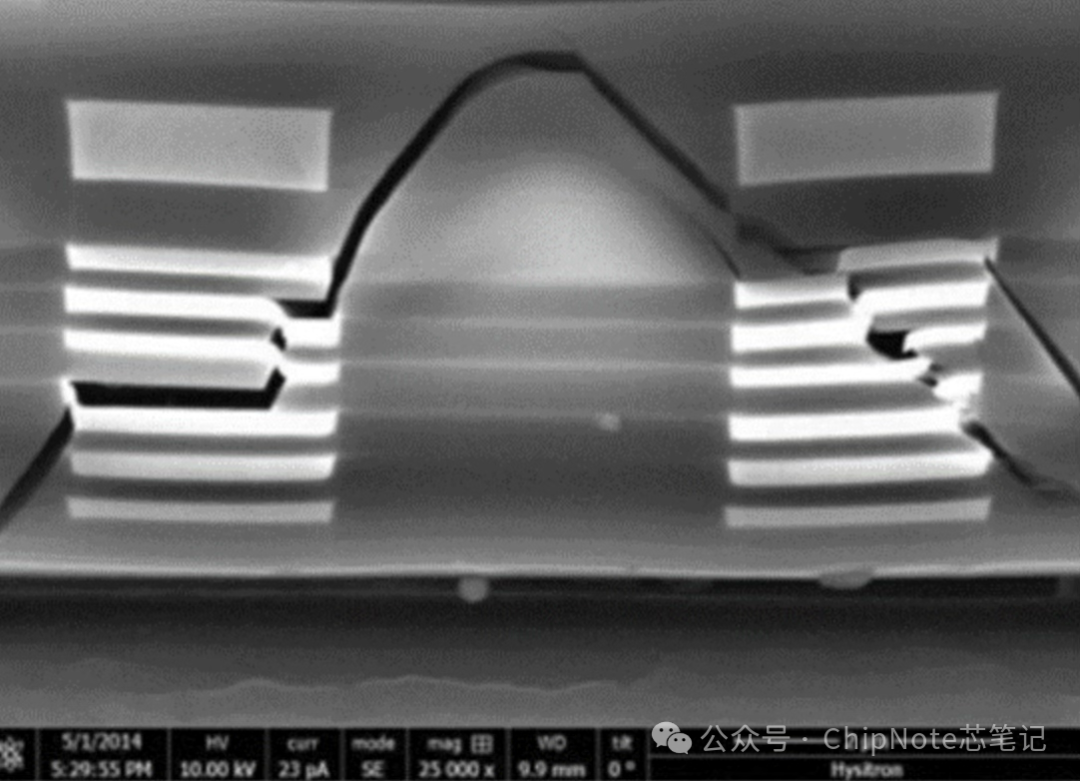

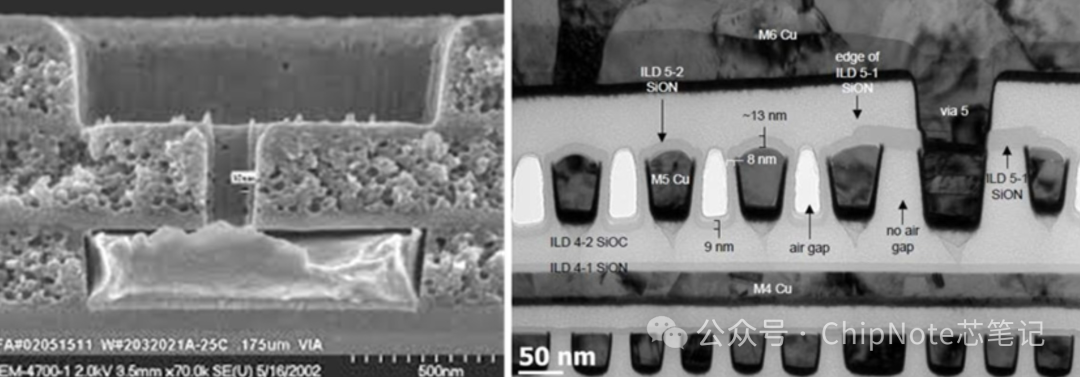

Insulating films play a crucial role in inter-device isolation. Especially with the development of fine processes, low-k materials are adopted in ILD/IMD layers to reduce RC delay in metal line signal transmission. These materials achieve low dielectric constants by doping carbon or artificially forming porous structures or even airgaps. However, due to the presence of porous structures, these materials are mechanically fragile and prone to cracking defects.

[CH.9] Gate Oxide Thinning Defects

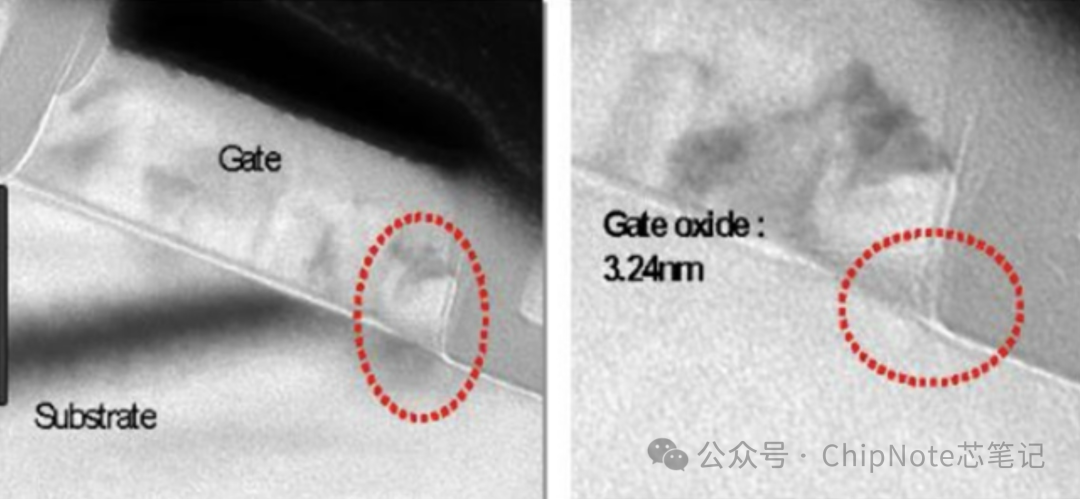

The thickness of the Gate Oxide is one of the critical parameters determining the device’s Gox BV (Breakdown Voltage), reliability, and Vth (Threshold Voltage) characteristics. As mentioned above, localized thinning of the Gate Oxide during specific LOT processes requires strict inspection for abnormalities before and after the process. (Due to its critical impact on device characteristics, this will inevitably affect the normal operation of the product.)

[CH.10] Not Open Defects

Not Open defects are one of the typical types of hard failures in semiconductor chips. When a specific contact exhibits a Not Open phenomenon, various potential causes must be considered, including particle factors, photolithography alignment issues, deposition uniformity, and etching uniformity. To prevent such hard failures in layout design, it is advisable to avoid single contact/via holes and instead form double or multiple contact/via holes to improve yield loss caused by hard failures. However, increasing a single contact/via to multiple ones may lead to an increase in chip size, thereby reducing design competitiveness.
