Core Board Support for Connecting USB 2.0 and 3.0 Devices Based on MTK MediaTek/Unisoc Platforms and Their Transfer Rates

Core Board Support for Connecting USB 2.0 and 3.0 Devices Based on MTK MediaTek/Unisoc Platforms and Their Transfer Rates

MTK MediaTek Platform

4G Android Core Board:

XY6739CW (Based on MT6739):SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY8766(Based on MT8766):SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY6762(Based on MT6762/Helio P22):SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY8768(Based on MT8768):SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY6765CA(Based on MT6765/Helio P35):SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY6771CZ(Based on MT6765/Helio P60):SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY8788WA-F(Based on MT8788/I500P)：SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY6785CD(Based on MT6785/Helio G95)：SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY6769(Based on MT6769):SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY8786(Based on MT8786): SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY6789 (Based on MT6789/Helio G99): SupportsUSB 2.0High-Speed Mode; Supports USB OTG

5G Android Core Board:

XY6853ZA(Based on MT6853 Dimensity 720):SupportsUSB 3.0DEVICE mode, maximum transfer rate of 5.0GBPS, supports USB 2.0 OTG

XY6833ZA(Based on MT6833 Dimensity 700):SupportsUSB 3.0DEVICE mode, maximum transfer rate of 5.0GBPS, supports USB 2.0 OTG

XY6877ZA(Based on MT6877 Dimensity 900):SupportsUSB 3.0DEVICE mode, maximum transfer rate of 5.0GBPS, supports USB 2.0 OTG

XY6897(Based on MT6897 Dimensity 8300):SupportsUSB 3.0, supports USB 2.0 OTG mode

XY8390(Based on MT8390/Genio 700)：Supports1*USB 3.1, 2*USB 2.0

Unisoc Platform

4G Android Core Board:

XY310(Based on Tiger T310)：SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY610(Based on Tiger T610)：SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY616(Based onTiger T616)：SupportsUSB 2.0High-Speed Mode; Supports USB OTG

XY618(Based on Tiger T618)：SupportsUSB 2.0High-Speed Mode; Supports USB OTG

5G Android Core Board:

XY820(Based onT820/T9100)：SupportsUSB 3.0 or USB 2.0 OTG mode

USB Versions

USB 1.0 version, USB LS (Low Speed), speed 1.5Mbps;

USB 1.1 version, USB FS (Full Speed), speed 12Mbps;

USB 2.0 version, USB HS (High Speed), speed 480Mbps;

USB 3.0 version, USB SS (Super Speed), speed 5Gbps. Also known as USB 3.1 Gen 1 or USB 3.2 Gen 1;USB 3.1 version, USB SS (Super Speed), speed 10Gbps. Also known as USB 3.2 Gen 2;

USB 3.2 is a renaming of the USB 3.0 and USB 3.1 standards. USB 3.2 version, USB SS (Super Speed), speed 20Gbps;

USB 3.2 Gen 1: Also known as USB 3.0 or USB 3.1 Gen 1, transfer speed of 5Gbps;

USB 3.2 Gen 2: Also known as USB 3.1 Gen 2, transfer speed of 10Gbps;

USB 3.2 Gen 2×2:Currently, only Type C supports this protocol, transfer speed up to 20Gbps;

USB 4:Transfer speed up to 40Gbps, the latest USB4 standard currently only supports Type-C interface, and USB4 adopts the Thunderbolt protocol.

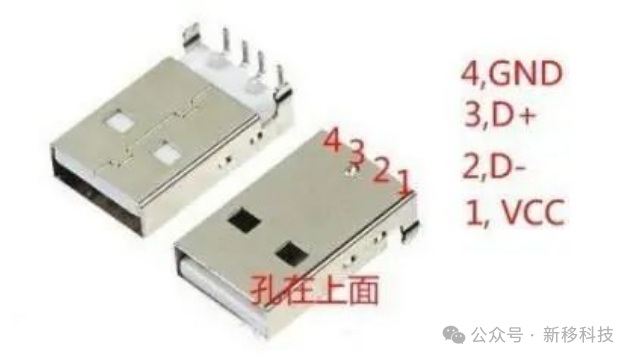

USB 2.0 Pin Definitions

USB 2.0 uses a design with four pins in a single row

Pin Name Description
1

VBUS

Power Voltage +5V
2

D-

2.0 Data Signal
3

D+

2.0 Data Signal
4

GND

Ground

Core Board Support for Connecting USB 2.0 and 3.0 Devices Based on MTK MediaTek/Unisoc Platforms and Their Transfer Rates

USB 3.0 Pin Definitions

USB 3.0 uses a design with two rows of nine pins

Pin

A Type Connector

B Type Connector

 Description
1

VBUS

VBUS

Power, +5V
2

D-

D-

2.0 Data Differential Pair, Data-
3

D+

D+

2.0 Data Differential Pair, Data+
4

GND

GND

Power Ground, GND
5

StaA_SSRX-

StaB_SSRX-

High-Speed Data Differential Pair, RX-
6

StaA_SSRX+

StaB_SSRX+

High-Speed Data Differential Pair, RX+
7

GND_DRAIN

 N/A Signal Ground
8

StaA_SSTX-

StaB_SSTX-

High-Speed Data Differential Pair, TX-
9

StaA_SSTX+

StaB_SSTX+

High-Speed Data Differential Pair, TX+

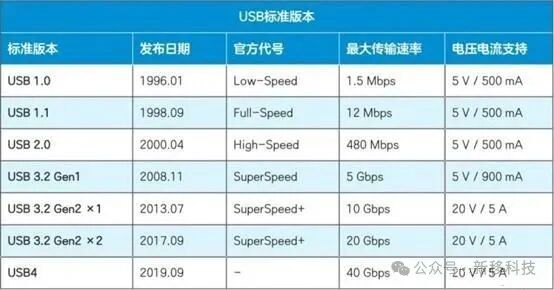

USB Power Supply Support
