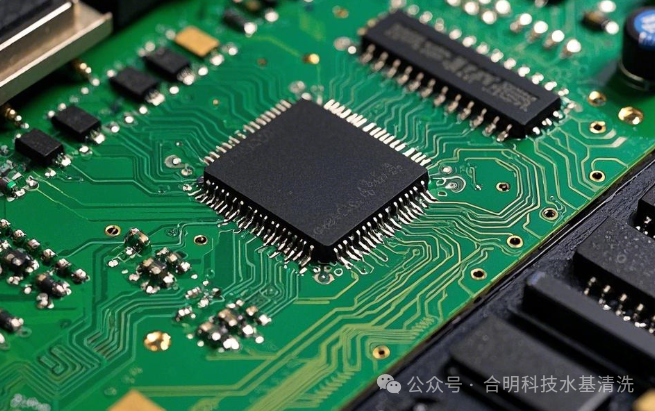

Consequences of Inadequate Cleaning of Electronic Circuit Boards

The residues from soldering electronic integrated circuit boards that are not thoroughly cleaned can lead to serious consequences in multiple aspects, mainly involving electrical performance, chemical corrosion, and mechanical reliability. The specific analysis is as follows:

1. Deterioration of Electrical Performance

1. Short Circuits and Leakage Current Issues The conductive ions (such as halogens and organic acids) in the residues can form electrolytes in humid environments, leading to leakage currents or short circuits between adjacent conductors. For example, the residual organic weak acids in the flux can reduce the insulation resistance (SIR), causing interference in high-frequency circuit signals.

2. Electrochemical Migration (ECM) Residues under humid conditions may trigger the growth of metallic dendrites, resulting in bridging short circuits between conductors. This type of failure is particularly prominent in precision circuits (such as high-impedance networks).

2. Risk of Chemical Corrosion

1. Metal Corrosion Residual acidic activators (such as succinic acid and glutaric acid) can react with metal solder joints or wires, leading to oxidation of solder joints and corrosion of copper foil, ultimately causing open circuits or poor contact.

2. Accelerated Material Aging Residues can absorb moisture and create an acidic environment that accelerates the aging of PCB substrates (like epoxy resin), lowering the glass transition temperature (Tg) and affecting high-temperature stability.

3. Decline in Mechanical Reliability

1. Weakened Solder Joint Strength Residues can form an isolating layer around solder joints, potentially reducing the bonding strength between the solder and substrate, leading to cold solder joints or cracking of solder points.

2. Failure of Conformal Coatings Residues can affect the adhesion of conformal coatings (such as polyurethane or silicone), causing the coating to bubble or peel, losing moisture and salt mist protection.

4. Appearance and Inspection Issues

1. Visible Contamination Residues can form white crystals, discoloration, or sticky substances around solder points, affecting product appearance acceptance standards, especially in the consumer electronics sector, which may lead to returns.

2. Inspection Interference Residues may obscure micro-cracks, cold solder joints, and other defects, increasing the false positive rates in X-ray or Automated Optical Inspection (AOI).

5. Long-Term Reliability Risks

1. Increased Environmental Sensitivity Residues in high-temperature and high-humidity environments (such as 85°C/85%RH) can accelerate failure, shortening product lifespan by 30%-50%.

2. Risks of Miniaturized Components As component spacing shrinks to 01005 levels, residues are more likely to accumulate under mini solder joints, leading to localized corrosion or insulation breakdown.

Recommended Solutions

1. Cleaning Process Optimization: Choose isopropanol, water-based cleaners, or semi-water-based cleaning processes based on the type of flux (rosin/ no-clean/water-soluble), combined with ultrasonic or spray equipment to enhance cleaning efficiency.

2. Control of Inspection Standards: Monitor ionic contamination levels (≤1.56μg/cm² NaCl equivalent) using ion chromatography (IC) to ensure compliance with standards such as IPC-A-610.

Inadequate cleaning poses greater risks than not cleaning at all, especially in no-clean processes, where partially removed residual resin exposes more active substances. Therefore, strict adherence to cleaning validation processes is essential to ensure the long-term stability of high-reliability products.

Introduction to PCBA Circuit Board/Cleaning Agent W3000

PCBA circuit board/cleaning:

To ensure the high reliability, electrical performance stability, and longevity of PCBA, improve the quality and yield of PCBA components, and avoid contamination and the resulting electro migration and electrochemical corrosion that can lead to circuit failures, it is necessary to clean residues of solder paste, flux, oil, dust, pad oxidation layers, fingerprints, organic contaminants, and particles after the PCBA soldering process.

Homing Technology provides you with professional circuit board cleaning process solutions.

Application of PCBA Circuit Board/Cleaning Agent:

Mainly used to remove solder paste or flux residues from electronic assemblies, 4G5G optical modules, 5G power boards, 5G microwave boards, 5G antennas, energy storage circuit boards, electronic components, BMS battery management system PCBA circuit boards, 5G electronic product PCBA circuit boards, module cleaning, BGA high-tech components cleaning, FPC circuit board cleaning, automotive electronic circuit board cleaning, ECU engine management system PCBA circuit boards.
