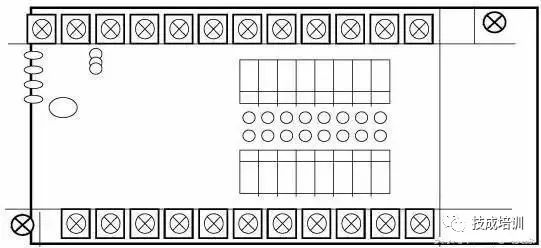

PLC is a new generation of general industrial control devices based on microprocessors, integrating computer technology, automatic control technology, and communication technology. It uses user-oriented “natural language” programming for control processes, making it suitable for industrial environments, easy to understand, user-friendly, and highly reliable.PLC is developed based on relay sequential control and is a general automatic control device centered around microprocessors.1. Definition of PLCA Programmable Logic Controller (PLC) is a digital operation electronic system specifically designed for application in industrial environments.It utilizes programmable memory to internally store instructions for executing logical operations, sequential control, timing, counting, and arithmetic operations, and controls various types of machinery or production processes through digital and analog inputs and outputs.Both the PLC and its related peripheral devices should be designed to easily integrate into an industrial control system and facilitate functional expansion.2. Classification of PLCsThere are many types of PLC products, each with different specifications and performance. PLCs are generally classified based on structural form, functional differences, and the number of I/O points.2.1 Classification by Structural FormAccording to the structural form of PLCs, they can be divided into two categories: integrated and modular.(1) Integrated PLCAn integrated PLC consolidates components such as power supply, CPU, and I/O interfaces into a single chassis, characterized by compact structure, small size, and low cost. Small PLCs typically adopt this integrated structure.The integrated PLC consists of a basic unit (also known as the host) with varying I/O points and expansion units. The basic unit contains the CPU, I/O interfaces, expansion ports connected to I/O expansion units, and interfaces connected to programmers or EPROM writers; the expansion unit contains only I/O and power supply, without a CPU. Basic and expansion units are generally connected by flat cables. Integrated PLCs can also be equipped with special function units, such as analog units and position control units, to extend their functionality.

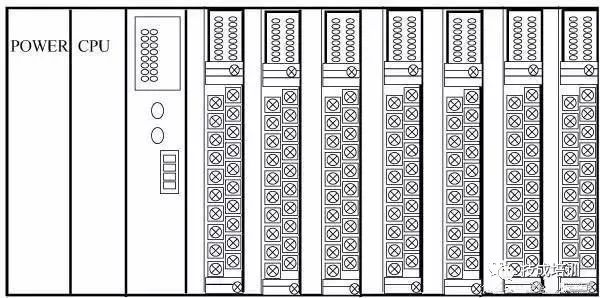

(2) Modular PLCA modular PLC consists of several separate modules for each component, such as CPU modules, I/O modules, power supply modules (some included in the CPU module), and various functional modules. Modular PLCs consist of a frame or baseboard and various modules, which are inserted into sockets on the frame or baseboard, as shown in the figure.The characteristic of modular PLCs is flexible configuration, allowing for the selection of different system scales as needed, and they are easy to assemble, expand, and maintain. Medium and large PLCs generally adopt a modular structure.
Some PLCs combine the characteristics of both integrated and modular types, forming what is known as a stacked PLC. The CPU, power supply, and I/O interfaces of a stacked PLC are also independent modules, but they are connected by cables and can be stacked layer by layer. This not only allows for flexible system configuration but also enables a compact design.2.2 Classification by FunctionBased on different functions, PLCs can be classified into three categories: low-end, mid-range, and high-end.(1) Low-end PLCLow-end PLCs have basic functions such as logical operations, timing, counting, shifting, self-diagnosis, and monitoring, and may also have a small number of analog inputs/outputs, arithmetic operations, data transfer, comparison, and communication functions. They are mainly used for logic control, sequential control, or single machine control systems with limited analog control.(2) Mid-range PLCMid-range PLCs possess all the functions of low-end PLCs, along with stronger analog input/output capabilities, arithmetic operations, data transfer, comparison, number system conversion, remote I/O, subroutine, and communication networking functions; some may also add interrupt control, PID control, etc., suitable for complex control systems.(3) High-end PLCHigh-end PLCs include all the functions of mid-range PLCs, plus additional capabilities for signed arithmetic operations, matrix operations, bit logic operations, square root operations, and other special function calculations, tabulation, and table transfer functions. High-end PLCs have stronger communication networking capabilities and can be used for large-scale process control or form distributed network control systems, thus achieving factory automation.2.3 Classification by I/O PointsAccording to the number of I/O points, PLCs can be classified into small, medium, and large categories.(1) Small PLCSmall PLCs have fewer than 256 I/O points, with a single CPU and an 8-bit or 16-bit processor, and a user memory capacity of less than 4KB.(2) Medium PLCMedium PLCs have 256 to 2048 I/O points, with dual CPUs and a user memory capacity of 2 to 8KB.(3) Large PLCLarge PLCs have more than 2048 I/O points, with multiple CPUs and 16-bit or 32-bit processors, and a user memory capacity of 8 to 16KB.Globally, PLC products can be divided into three major schools based on region: American products, European products, and Japanese products. The PLC technologies in the US and Europe were developed independently in isolation, resulting in significant differences between American and European PLC products. Japanese PLC technology was introduced from the US, inheriting certain aspects of American PLC products, but Japan primarily focuses on small PLCs. The US and Europe are known for medium and large PLCs, while Japan is renowned for small PLCs.2. Functions and Application Areas of PLCsPLCs are designed and developed to integrate the advantages of relay contactor control with the flexibility and convenience of computers, giving PLCs many characteristics that other controllers cannot match.1. Functions of PLCPLC is a general industrial automatic control device developed based on microprocessors, integrating computer technology, automatic control technology, and communication technology. It has a series of advantages such as high reliability, small size, strong functionality, simple and flexible program design, and easy maintenance, making it widely used in metallurgy, energy, chemical, transportation, and power industries, becoming one of the three pillars of modern industrial control (PLC, robots, and CAD/CAM). Based on the characteristics of PLCs, their functional forms can be summarized into the following types.(1) Switch Logic ControlPLCs have powerful logical operation capabilities, enabling various simple and complex logic controls. This is the most basic and widely used application area of PLCs, replacing traditional relay contactor control.(2) Analog ControlPLCs are equipped with A/D and D/A conversion modules. The A/D module can convert field analog quantities such as temperature, pressure, flow, and speed into digital quantities, which are then processed by the PLC’s microprocessor (which can only process digital quantities), and then control; or converted back into analog quantities via the D/A module to control the object being regulated, thus achieving PLC control over analog quantities.(3) Process ControlModern medium and large PLCs are generally equipped with PID control modules for closed-loop process control. When a variable in the control process deviates, the PLC can calculate the correct output according to the PID algorithm, thereby controlling and adjusting the production process to maintain the variable at the set value. Currently, many small PLCs also have PID control functionality.(4) Timing and Counting ControlPLCs have strong timing and counting capabilities, providing users with dozens or even hundreds or thousands of timers and counters.The timing duration and counting values can be set by users when writing user programs or by operators on-site through programmers, thus achieving timing and counting control. If users need to count high-frequency signals, they can choose high-speed counting modules.(5) Sequential ControlIn industrial control, PLC step instruction programming or shift register programming can be used to achieve sequential control.(6) Data ProcessingModern PLCs can perform arithmetic operations, data transfer, sorting, and table lookup operations, and can also perform data comparison, data conversion, data communication, data display, and printing, demonstrating strong data processing capabilities.(7) Communication and NetworkingMost modern PLCs adopt communication and networking technologies, with RS-232 or RS-485 interfaces for remote I/O control. Multiple PLCs can network and communicate with each other, and external devices can exchange programs and data with one or more programmable controllers’ signal processing units, such as program transfers, data document transfers, monitoring, and diagnostics. Communication interfaces or processors complete program and data transfers according to standard hardware interfaces or proprietary communication protocols.2. Application Areas of PLCsCurrently, PLCs are widely used in various industries such as steel, petroleum, chemical, electric power, building materials, machinery manufacturing, automotive, light textile, transportation, environmental protection, and cultural entertainment, with usage generally summarized into the following categories.(1) Logic Control of Switch QuantitiesThis is the most basic and widely used application area of PLCs, replacing traditional relay circuits to achieve logic control and sequential control; it can be used for controlling single devices as well as multi-machine group control and automated assembly lines, such as injection molding machines, printing machines, stapling machines, combination machine tools, grinding machines, packaging production lines, and electroplating lines.(2) Analog ControlIn industrial production processes, many continuously varying quantities, such as temperature, pressure, flow, liquid level, and speed, are analog quantities. To enable PLCs to process analog quantities, A/D and D/A conversions must be implemented. PLC manufacturers produce matching A/D and D/A conversion modules for analog control.(3) Motion ControlPLCs can be used for controlling circular or linear motion. In terms of control configuration, early PLCs directly used switch quantity I/O modules to connect position sensors and actuators; now, dedicated motion control modules are generally used to drive stepper motors or servo motors for single-axis or multi-axis position control.Almost all major PLC manufacturers’ products have motion control capabilities, widely used in various machinery, machine tools, robots, elevators, and other applications.(4) Process ControlProcess control refers to closed-loop control of analog quantities such as temperature, pressure, and flow, with very wide applications in metallurgy, chemical, heat treatment, and boiler control. As an industrial control computer, PLCs can compile various control algorithm programs to complete closed-loop control. PID regulation is a commonly used method in general closed-loop control systems, and medium and large PLCs have PID modules; currently, many small PLCs also have this functional module. PID processing generally runs dedicated PID subroutines.(5) Data ProcessingModern PLCs have mathematical operations (including matrix operations, function operations, logical operations), data transfer, data conversion, sorting, table lookup, and bit operations, enabling data collection, analysis, and processing. This data can be compared with reference values stored in memory to complete certain control operations; it can also be transmitted to other intelligent devices using communication functions or printed and tabulated. Data processing is generally used in large control systems, such as unmanned flexible manufacturing systems; it can also be used in process control systems, such as large control systems in papermaking, metallurgy, and food industries.(6) Communication and NetworkingPLC communication includes communication between PLCs and communication between PLCs and other intelligent devices. With the development of computer control, factory automation networks have rapidly evolved, and PLC manufacturers have placed great emphasis on PLC communication functions, each launching their own network systems.Recently produced PLCs all have communication interfaces, making communication very convenient. Each has launched their own network systems. Recently produced PLCs all have communication interfaces, making communication very convenient.3. Basic Structure and Working Principle of PLCsAs an industrial control computer, PLCs have a structure similar to that of ordinary computers; however, due to different usage scenarios and purposes, there are some structural differences.1. Hardware Composition of PLCThe basic structural block diagram of the PLC hardware system is shown in the figure.

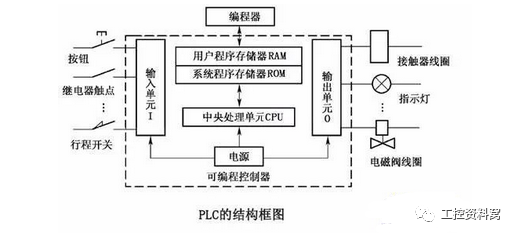

In the figure, the PLC host consists of the CPU, memory (EPROM, RAM), input/output units, peripheral I/O interfaces, communication interfaces, and power supply. For integrated PLCs, all these components are housed within the same casing.For modular PLCs, each component is independently packaged, referred to as modules, and connected together via a rack and cables.All parts within the host are connected via power buses, control buses, address buses, and data buses, and certain external devices are equipped according to the actual control objects to form different PLC control systems.Common external devices include programmers, printers, EPROM writers, etc. PLCs can be configured with communication modules to communicate with host computers and other PLCs, forming distributed control systems.Below, each component of the PLC and its functions are introduced to help users further understand the control principles and working processes of PLCs.(1) CPUThe CPU is the control center of the PLC, coordinating the work of various devices on-site in an orderly manner under the control of the CPU, thus achieving control over all field devices. The CPU consists of a microprocessor and a controller, capable of performing logical and mathematical operations, coordinating the work of various parts within the control system.The controller’s role is to ensure that all components of the microprocessor work in an orderly manner, with its basic function being to read instructions from memory and execute them.(2) MemoryPLCs are equipped with two types of memory: system memory and user memory. System memory is used to store system management programs, which users cannot access or modify.User memory is used to store compiled application programs and working data states. The portion of user memory that stores working data states is also known as the data storage area, which includes input/output data image areas, timer/counter preset values and current values, and buffers for storing intermediate results.The memory of PLCs mainly includes the following types.(1) Read-Only Memory(2) Programmable Read-Only Memory(3) Erasable Programmable Read-Only Memory(4) Electrically Erasable Programmable Read-Only Memory(5) Random Access Memory(3) Input/Output (I/O) Modules① Switch Quantity Input ModuleSwitch quantity input devices include various switches, buttons, sensors, etc. The input types of PLCs can typically be DC, AC, and AC/DC. The power supply for the input circuit can be provided externally, and some can also be supplied internally by the PLC.② Switch Quantity Output ModuleThe output module’s function is to convert the control signals output by the CPU executing the user program into signals required by the production site that can drive specific devices, thus driving the actions of actuators.(4) ProgrammerThe programmer is an important external device for PLCs, allowing users to send user programs to the PLC’s user program memory, debug programs, and monitor the execution process. Programmers can be structurally divided into the following three types.(1) Simple Programmer(2) Graphic Programmer(3) General Computer Programmer(5) Power SupplyThe power supply unit’s function is to convert external power (220V AC power) into internal working voltage. The externally connected power supply is converted into the working power required by the PLC’s internal circuits (DC 5V, ±12V, 24V) through a dedicated switch-mode power supply within the PLC, and provides a 24V DC power supply for external input components (for input endpoints only). The power supply driving the PLC load is provided by the user.(6) Peripheral InterfacesThe peripheral interface circuit is used to connect handheld programmers or other graphic programmers, text displays, and can form the PLC control network through peripheral interfaces. PLCs can connect to computers via RS-485 interfaces using PC/PPI cables or MPI cards, enabling programming, monitoring, networking, and other functions.2. Software Composition of PLCThe software of PLCs consists of system programs and user programs.The system program is designed and written by the PLC manufacturer and stored in the PLC’s system memory, which users cannot directly read or modify. The system program generally includes system diagnostic programs, input processing programs, compilation programs, information transfer programs, and monitoring programs.The user program of the PLC is the program compiled by users using the PLC’s programming language according to control requirements. In PLC applications, the most important aspect is to write user programs using the PLC’s programming language to achieve control objectives.Since PLCs are specially developed devices for industrial control, their main users are electrical technicians. To meet their traditional habits and capabilities, the main programming languages of PLCs are relatively simple, easy to understand, and visually oriented compared to computer languages.1. Graphical Instruction Structure2. Clear Variable Constants3. Simplified Program Structure4. Simplified Application Software Generation Process5. Enhanced Debugging Means3. Basic Working Principle of PLCThe working mode of PLC scanning is mainly divided into three stages: input sampling stage, user program execution stage, and output refresh stage. As shown in the figure:

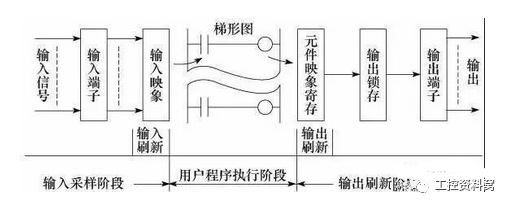

1. Input Sampling StageIn the input sampling stage, the PLC sequentially reads all input states and data in a scanning manner and stores them in the corresponding units in the I/O image area. After the input sampling is completed, it transitions to the user program execution and output refresh stages. During these two stages, even if the input states and data change, the states and data in the I/O image area do not change.Therefore, if the input is a pulse signal, the width of that pulse signal must be greater than one scanning cycle to ensure that the input can be read under any circumstances.2. User Program Execution StageIn the user program execution stage, the PLC always scans the user program (ladder diagram) in a top-down order. When scanning each ladder diagram, it first scans the control circuits composed of contacts on the left side of the ladder diagram and performs logical operations on the control circuits composed of contacts in the order of left to right and top to bottom; then, based on the results of the logical operations, it refreshes the state of the corresponding bit in the system RAM storage area for that logic coil, or refreshes the state of the corresponding bit in the I/O image area for that output coil, or determines whether to execute the special function instructions specified by the ladder diagram.During the user program execution process, only the input points’ states and data in the I/O image area do not change, while the states and data of other output points and soft devices in the I/O image area or system RAM storage area may change, and the execution results of the ladder diagrams above will affect those below that use these coils or data; conversely, the states or data of the refreshed logic coils in the ladder diagrams below can only affect those above in the next scanning cycle.3. Output Refresh StageAfter the user program scanning is completed, the PLC enters the output refresh stage. During this period, the CPU refreshes all output latch circuits according to the states and data in the I/O image area, and then drives the corresponding external devices through the output circuits. This is when the PLC’s actual output occurs.Input/Output Lag PhenomenonFrom the working process of the PLC, the following conclusions can be drawn:1. The program is executed in a scanning manner, and there is a theoretical lag in the logical relationship between input/output signals. The longer the scanning cycle, the more severe the lag.2. The scanning cycle includes not only the time occupied by the three main working stages (input sampling stage, user program execution stage, output refresh stage) but also the time occupied by system management operations. The execution time of the program is related to the length of the program and the complexity of the instruction operations, while other factors remain relatively constant. The scanning cycle is generally in the nanosecond range.3. During the nth scanning execution of the program, the input data relied upon is the sampled value X from the sampling stage of that scanning cycle, while the output data can be based on the previous scanning’s output value Y(n-1) and the current output value Yn; the signal sent to the output terminals is the final result Yn after executing all calculations this time.4. Input/output response lag is not only related to the scanning method but also to the arrangement of program design.
