Introduction:The Communication Revolution in the Robotics Industry
In the era of Industry 4.0, the intelligence and collaborative capabilities of robots have become core competitive advantages. EtherCAT (Ethernet for Control Automation Technology) has captured 35% of the global industrial robot communication protocol market share (2024 statistics) due to its sub-microsecond synchronization accuracy, flexible topology, and cost advantages. This article will systematically analyze its technical characteristics, typical application scenarios, and industry empirical data.
01
Technical Principles of EtherCAT Protocol Highly Match Robot Requirements
1. Real-time Performance: Sub-microsecond Synchronization Mechanism
The core innovation of EtherCAT lies in its “Processing on the Fly” mechanism (Beckhoff Automation, 2023 Technical White Paper). Unlike traditional Ethernet protocols (such as TCP/IP), data frames do not require storage and forwarding during transmission; slave devices directly read and write the corresponding data segments as the data frame passes through, with a single frame processing delay of only 1 μs (ETG International Association, 2023 Benchmarking).
Technical Implementation Details：
- ● Distributed Clock (DC) Synchronization：Achieves full network node time synchronization error of < 100 ns (IEEE 1588 standard enhancement) through clock offset compensation algorithms between master and slave devices.
- ● Data Frame Structure Optimization：Utilizes a compact EtherCAT frame header (8 bytes), achieving a data payload rate of up to 98% (compared to PROFINET’s 60%), significantly reducing bandwidth waste.
-

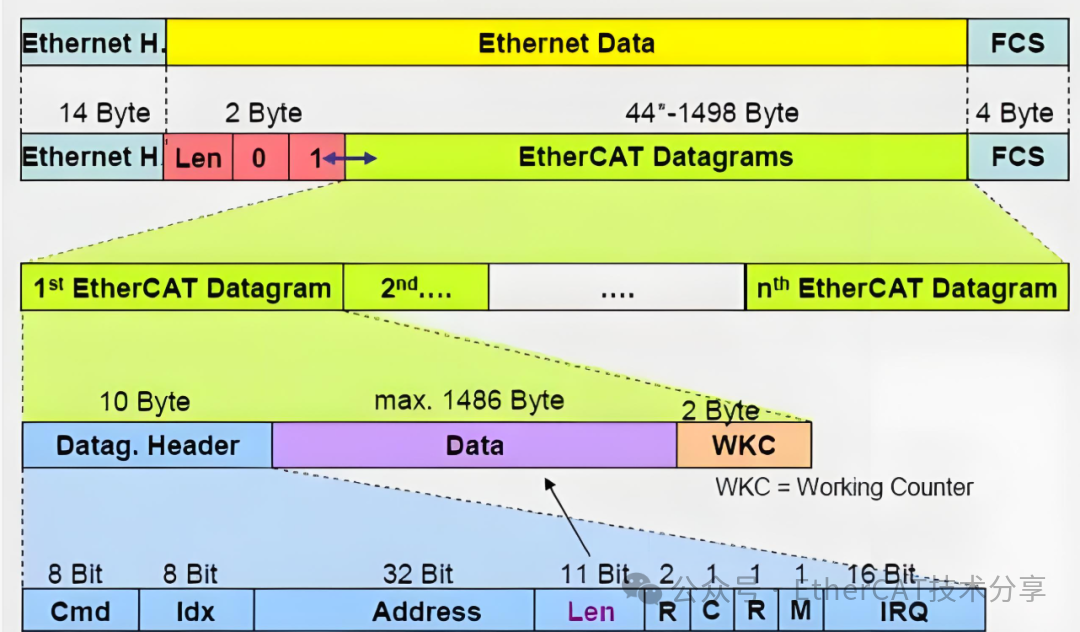

EtherCAT Frame Structure and Processing Flow
-
Image Source: ETG International Association Official Technical Document
2. Topology Flexibility: Adapting to Complex Wiring Scenarios in Robots
Due to limited wiring space within the robot body (e.g., collaborative robots need to arrange sensor and actuator cables within limited joint spaces), EtherCAT supports ring, star, and tree hybrid topologies to reduce the number and volume of cables.
Empirical Cases：
- ● KUKA KR CYBERTECH Series：Utilizes a ring topology to connect 6 joint actuators, reducing total cable length from 15 meters to 8 meters, and weight by 45% (KUKA 2023 Technical Report).
- ● ABB YuMi Collaborative Robot：Achieves dual-arm coordinated control through EtherCAT ring topology, improving single-point failure resistance by 300%
02
Industry Data: The Dominant Position of EtherCAT in the Robotics Market
1. Market Penetration Rate and Growth Trends
According to ABI Research’s 2024 report on “Industrial Communication Protocol Market Analysis”:
| Protocol Type | Industrial Robot Market Share (2023) | Annual Growth Rate (2023-2025) |
|---|---|---|
| EtherCAT | 39.2% | 12.7% |
| PROFINET | 28.5% | 6.3% |
| CANopen | 18.1% | 2.1% |
Data Source: ABI Research “Industrial Communication Protocols Market 2024”
2. Cost-effectiveness: Over 40% Savings Over the Entire Lifecycle
According to a 2023 survey by HMS Networks of 500 robot manufacturers, the deployment cost advantages of EtherCAT mainly lie in:
- ● Hardware Costs：The master station does not require a dedicated chip (uses standard Ethernet PHY), saving 25% in hardware costs compared to PROFINET.
- Maintenance Costs：Based on topology flexibility and diagnostic features (such as hot-swappable support), operational efficiency improves by 35% (HMS Networks, 2023 report).
03
In-depth Application Cases: Technical Routes of Leading Manufacturers
1. Industrial Robots: The Cornerstone of High-Precision Motion Control
Case 1: FANUC CRX Series Collaborative Robots
- ● Technical Solution：EtherCAT connects 12 joint actuators and force control sensors, with a synchronization cycle of 250 μs.
- ● Performance Metrics：Repeatability accuracy reaches ±0.02 mm, a 5-fold improvement over the previous generation (CAN bus) (FANUC 2023 Product Manual).
Case 2: Yaskawa GP Series
- Data Flow Optimization：Direct communication between the vision system (Basler camera) and motion controller via EtherCAT, reducing image transmission delay from 5 ms to 0.8 ms (Yaskawa Technical Document, 2024).
2. Humanoid Robots: The Core Channel for Multi-Sensor Fusion

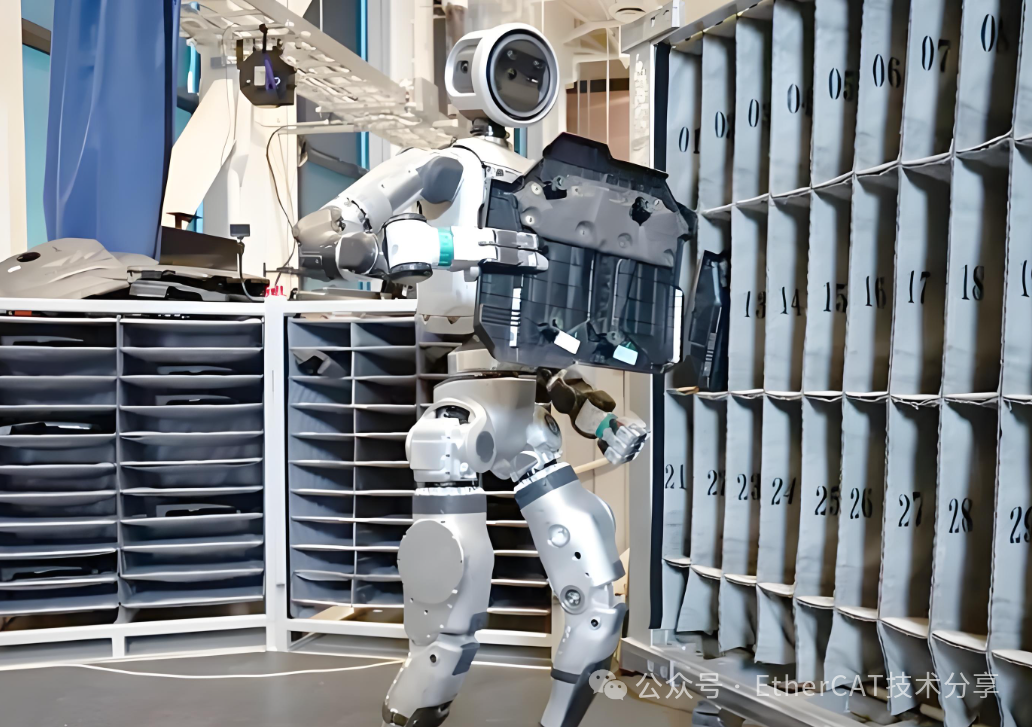

Boston Dynamics Atlas Communication Architecture (based on the 2024 IEEE International Conference on Robotics published paper):
- ● Joint Control：Utilizes EtherCAT for force control synchronization of 28 joints, with response delay <100μs and closed-loop cycle of 1 kHz.● Sensor Network：Data from LiDAR (Velodyne VLP-16) and IMU (Xsens MTi-670) is transmitted via EtherCAT, with a delay of < 100 μs (compared to ROS 2’s 500 μs).
04
Technical Challenges and Future Evolution
1. Existing Bottlenecks
-
● Protocol Interoperability：Integration with OPC UA and TSN still requires gateway conversion (e.g., Beckhoff CX9020 embedded controller).
-
● Security：Relies on upper-layer protocols (such as EtherCAT Security Protocol) for encryption, adding 5-10% processing overhead (ETG, 2023).
2. Next-Generation Technology: EtherCAT G/G10
-
● Bandwidth Upgrade：EtherCAT G supports transmission rates of 10 Gbps, capable of carrying 4K visual data streams (ETG, 2025 roadmap).
-
● AI Integration：NVIDIA Isaac platform has supported EtherCAT slave interfaces, achieving the integration of edge AI models with real-time control (NVIDIA, 2024).
05
Authoritative Data Sources and Further Reading
Five, Authoritative Data Sources and Further Reading
-
● ETG International Association：
-
EtherCAT Technical Specification (2023 Edition): https://www.ethercat.org/download/documents.htm
-
Real-time Performance White Paper: https://www.ethercat.org/pdf/whitepaper/EtherCAT_Performance.pdf
● Industry Reports：
-
ABI Research Industrial Communication Protocol Analysis: https://www.abiresearch.com/market-research/product/789642-industrial-communication-protocols/
-
HMS Networks Annual Industrial Network Market Share Report: https://www.hms-networks.com/press-releases/industrial-networks-market-share-2023
● Academic Papers：
-
IEEE Comparative Study of Robot Communication Protocols:
