In the daily use of smart speakers, there is a high reliance on wireless connectivity, with WiFi and Bluetooth modules serving as the foundation for remote control, voice interaction, and multi-device collaboration. However, these high-frequency communication modules are extremely sensitive to electrostatic discharge (ESD), which can directly lead to module failure, causing connection interruptions and data transmission errors. The design of ESD protection directly affects the reliability and lifespan of the entire device.
Today, we will take ESD protection chips as a clue to dissect the protection schemes for Bluetooth and WiFi modules in smart speakers, exploring how to safeguard wireless communication.
Necessity of ESD Protection for Wireless Modules
Whether for Bluetooth or WiFi modules, the core component is a high-frequency wireless chip that operates by processing RF signals in the 2.4GHz band. These chips have a very high level of circuit integration and small pin spacing, making them sensitive to static electricity: even minor electrostatic discharges, such as those generated when a person touches the speaker’s casing, can break down the semiconductor devices inside the chip, leading to communication interruptions or even permanent damage to the module.
At the same time, the two key links of wireless modules—the power link and the signal link—are responsible for ensuring stable power supply to the chip and transmitting serial data or RF signals, respectively, and are the main pathways for ESD intrusion. Therefore, the core logic of ESD protection is to match dedicated protection chips to the characteristics of different links, blocking the path of static electricity transmission..
The figure illustrates the working principle of a smart speaker.
ESD Protection Schemes for Wireless Modules
The microphone and speaker are the key carriers for achieving “input-output” acoustic interaction in smart speakers. Both have the commonality of “direct contact with the external environment”—the microphone collects sound through a pickup hole, while the speaker transmits audio through an output hole. This installation characteristic makes them high-risk components for static electricity attacks: static electricity generated when a person touches the speaker surface or static electricity suspended in the environment can invade the internal circuits through the openings. Once subjected to static interference, it can lead to distortion in microphone audio capture, noisy speaker sound quality, or even burn out internal components, causing permanent failure of the parts. Therefore, it is crucial to configure reliable ESD protection measures for the microphone and speaker.
Key Points of ESD Protection for Bluetooth ModulesFocusing on “Power + Serial” Dual Link Protection
The Bluetooth module is the core for achieving short-range wireless connectivity in smart speakers, operating in the 2.4GHz frequency band, with a working voltage of 3.3V and a maximum power of 4dB. It communicates with the main control MCU via UART serial, where the stability of the power supply and the integrity of the serial signal directly determine the reliability of the connection.

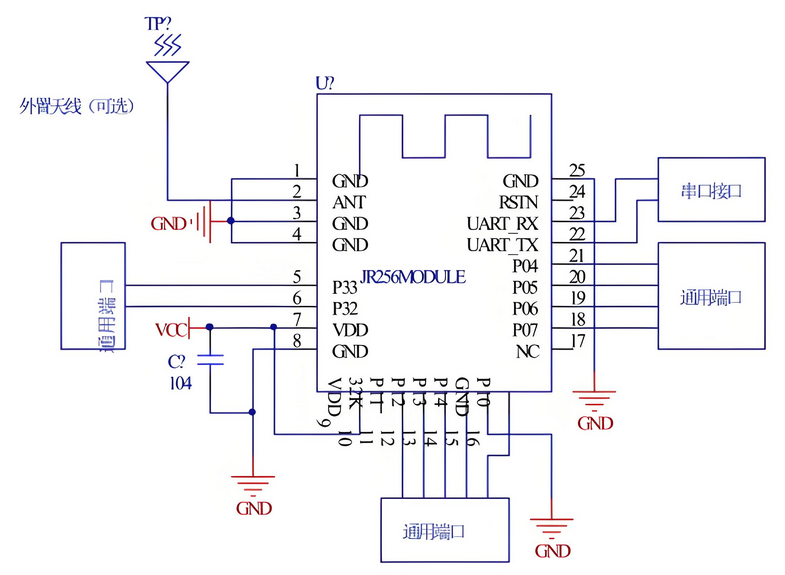

The above figure shows the composition of the Bluetooth module.

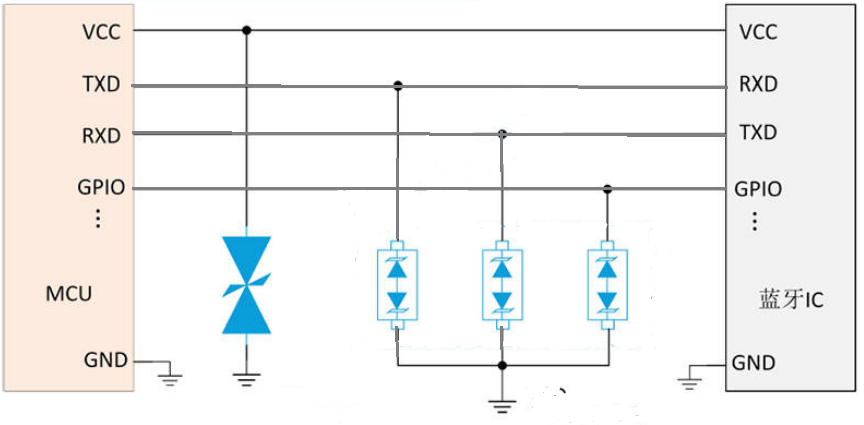

The above figure illustrates the ESD protection schematic for the Bluetooth module.
Power Link Protection: TT0501PD

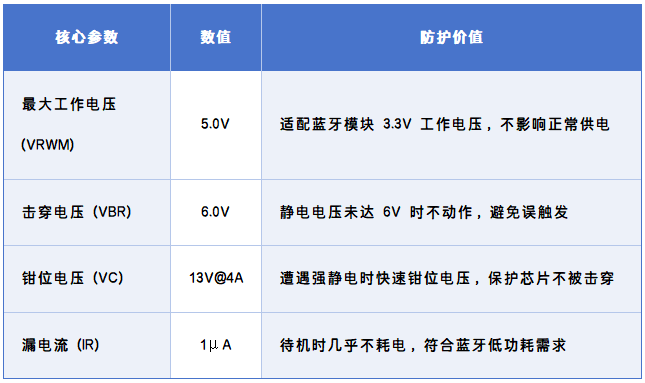

The power supply is a “disaster area” for ESD intrusion; if static electricity enters the power supply end, it can directly cause abnormal power supply to the Bluetooth chip. TT0501PD is a protection chip designed specifically for low-voltage power supplies, with the following core parameters and advantages:
Serial Signal Link Protection: TT0501SA
The Bluetooth module communicates with the MCU via RXD (receive) and TXD (transmit) serial ports, where the signals are low-frequency digital signals that must avoid interference from the protection chip during signal transmission. TT0501SA is a low-capacitance protection chip designed for signal links, with core advantages focused on “low interference”:
-
Extremely low input capacitance (Cj=0.25pF): The attenuation of low-frequency signals on the serial port is negligible, not affecting data transmission rate and integrity;
-
Precise clamping (VC=11V@1A): Quickly suppresses pulses during static intrusion, protecting the serial port chip from damage;
-
Small package (DFN0603): Suitable for the compact PCB layout inside smart speakers, not occupying excessive space.
Key Points of ESD Protection for WiFi Modules
Targeted Solutions for “Power + RF” Sensitivity Issues
The WiFi module is responsible for the networking function of smart speakers, consisting of wireless chips, antennas, and RF front ends. In addition to the power link, the RF signal link of the antenna transceiver is a key protection focus—RF signals are extremely sensitive to capacitance values, and excessive capacitance can lead to signal attenuation and reduced communication distance.

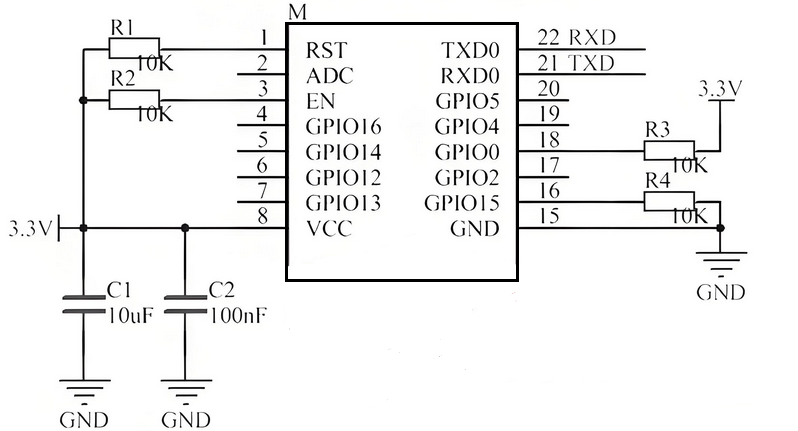

The above figure shows the external circuit of the internal chip of the WiFi module.

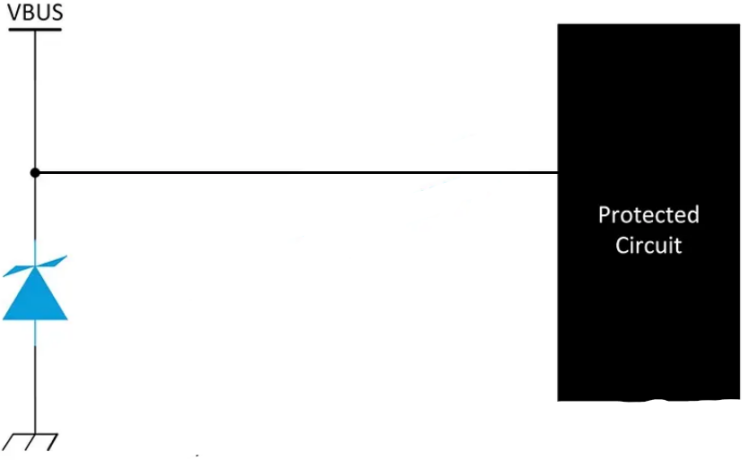

The above figure illustrates the ESD protection schematic for the WiFi module’s power supply.
Power Link Protection: TS0511LE
The working current of the WiFi module can be up to 0.8A higher than that of the Bluetooth module, requiring even greater stability in the power supply. TS0511LE is a highly adaptable power protection chip, with the following core advantages:
-
Low clamping voltage (VC=9.8V@5A): Supports larger discharge currents, providing more reliable protection against strong static electricity;
-
Ultra-low leakage current (IR=0.1μA): Almost no power current is consumed, ensuring the WiFi module operates continuously and stably;
-
SOD323 small package: Suitable for high-density layouts inside the module.
Antenna Transceiver Protection: TT0501SA
The antenna transceiver is responsible for converting chip signals into RF signals, and every increase of 0.1pF in capacitance can affect signal quality. The previously used TT0501SA for Bluetooth serial ports, due to its “0.25pF ultra-low capacitance,” has become the best choice for RF links:
-
Does not attenuate 2.4GHz RF signals, ensuring WiFi transmission distance and stability;
-
5V working voltage adapts to the antenna front-end circuit, quickly clamping during static intrusion to protect the RF chip.

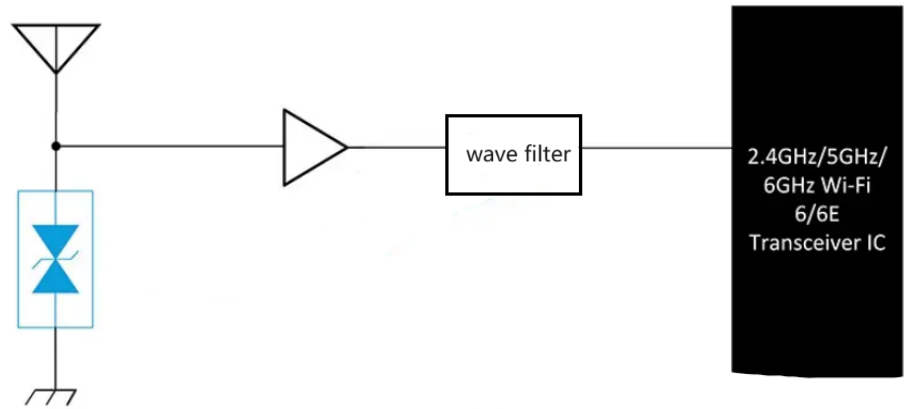

The above figure illustrates the ESD protection schematic for the antenna transceiver.

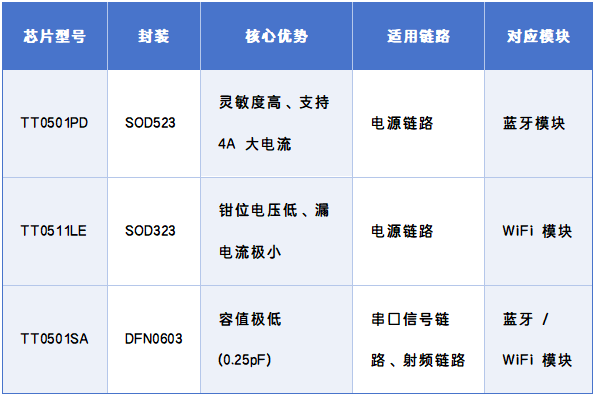

A Table to Understand Selection Logic
To better understand the applicable scenarios of different chips, we have organized the key parameters and application links of three core protection chips, as shown in the table below:
Key Principles of ESD Protection for Wireless Modules
-
Link Adaptation: For power links, prioritize “high current, low clamping” chips; for signal links, prioritize “low capacitance, low interference” chips;
-
Parameter Matching: The maximum working voltage (VRWM) of the protection chip must be higher than the module’s working voltage to avoid false triggering during normal operation;
-
Scene Segmentation: The same chip can be reused but must match the characteristics of the link.
In the design of smart speakers, ESD protection for WiFi and Bluetooth modules cannot be overlooked. Selecting protection chips with low capacitance and low clamping voltage, and accurately placing them along the power and signal paths, is key to enhancing the device’s anti-static capability. In the future, as interface integration continues to increase, ESD protection will also trend towards miniaturization and multi-channel integration, providing more comprehensive protection for high-density wireless modules.
Through chip-level fine protection, not only can the reliability of smart speaker products be significantly improved, but it also provides users with a consistently stable experience.
