Features
Next-Generation High-Quality Sound Using High-Performance LSI
AiX Professional Sound Source Provides High-Quality Tones and Rich Expressiveness
The CT-X series is equipped with the AiX professional sound source, which can produce high-quality sounds, accurately representing the characteristics of each tone from bass to treble. The exceptional computing power of the high-performance LSI reproduces the natural charm of instrument sounds, such as piano tones, making it feel as if you are playing a meticulously tuned 9-foot grand piano in a concert hall; when playing the flute, trumpet, or saxophone, you can hear the natural breath and vibrato. All of this is brilliantly presented by Casio’s professional AiX sound source.
The high-speed digital signal processor is also suitable for every type of sound, such as melodies, supporting drums and bass, or organs. Even for automatic accompaniment parts, different sounds are provided for each instrument.
High Output Amplifier and High-Performance Bass Reflex Speakers
The output amplifier of up to 15W + 15W provides strong volume output and rich bass for the electronic keyboard, and even without connecting to amplification equipment, the newly designed bass reflex speakers can deliver powerful sound.
Feature-Rich to Support Your Performance
Brand New Music Scene Accompaniment
235 built-in accompaniment modes cover a wide range of music genres, including Chinese folk style, pop music, jazz, and modern electronic music.

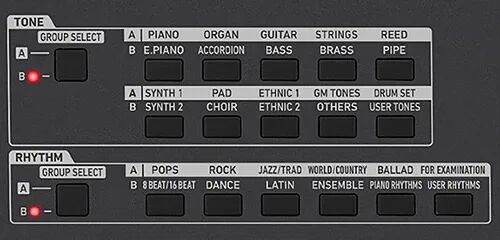

User-Friendly Operating Interface
Each function key is arranged in a tiled format. The simple and intuitive operation allows anyone to execute actions more easily.
The direct selection buttons allow you to quickly choose the most suitable tones and rhythms, especially suitable for live performances.
High-Performance DSP and System Effects
100 preset types of DSP effects allow you to change sounds to make them sound exactly as you imagine. This includes reverb, chorus, and delay system effects. Effects can be adjusted at any time during a performance, allowing you to fully express your music in live performance effects.
Rich Registration Memory Function to Save Your Favorite Settings
Up to 128 detailed registration memory settings can be saved, including tones, rhythms, and tempos. These can be loaded immediately when needed and settings can be switched at any time for captivating stage performances.
Record Phrases and Use Phrase Pads for Playback
Record phrases to use them at critical moments, simply press a button to play them instantly. By playing back songs recorded on four phrase pads, you can easily achieve performances that would be difficult for one person to complete, such as band or ensemble performances.
Complete Production Functions for Music Creation
17-Track MIDI Recording to Record Your Original Music
The CT-X5100 is equipped with 16 audio tracks + 1 system track for MIDI recording, allowing you to record up to 10 original songs, each with approximately 40,000 notes. It also supports step recording and editing of recorded data. With multitrack recording, you can record individual instrument parts on different tracks before combining the entire song.
42-Channel Mixer to Combine Multiple Parts Freely
The CT-X5100 features a multi-channel mixer, especially suitable for mixing. Control the tone and effects on a per-channel basis to optimize performance during the process or fine-tune the music.
User-Created Rhythms
You can create original accompaniment patterns with up to 8 parts. The electronic keyboard also has complete editing functions, such as simple editing features to create your own rhythms from built-in rhythms; real-time recording features to input and save rhythms directly; or mixer settings to control the balance of each track or effect level.
Expansion
Rich Expansion Ports for Easier Performance, Music Creation, and Editing
The CT-X5100 has many ports to connect to computers and audio devices. You can even play along with music from a connected audio player. There are also assignable jacks for sustain or expression pedals.
WAV Audio Data Playback or Vocal Cancellation
WAV audio files saved to a USB flash drive can be played on the electronic keyboard via the USB device port. The keyboard’s central vocal cancellation feature can eliminate or reduce vocal tracks in the audio.
User Area and Data Manager Software
Recorded song data can be saved in the user area, and you can also save your edited tones and rhythms. Casio’s Data Manager software allows you to transfer data and save it to a computer, so you can load the data onto another CT-X model electronic keyboard.
*Due to model differences, some data may not be loadable on another CT-X series electronic keyboard.
For more details about the Data Manager software, please refer to the page linked below.
Data Manager for CT-X
Parameter Comparison
CT-X CT-X5100 Price 4,799 Yuan |
CT-X CT-X3100 Price 3,699 Yuan |
|---|---|
| Velocity Sensitivity | |
| 3 Levels of Velocity Sensitivity, Can Be Turned Off | 3 Levels of Velocity Sensitivity, Can Be Turned Off |
| Sound Source | |
| AiX | AiX |
| Polyphony | |
| 64 | 64 |
| Number of Tones | |
| 800 Tones Direct Selection Keys: 10×2 Chinese Tones: 39 (Expandable 100 Tones) Indian Tones: 21 Group Buttons: Yes Piano Button: Yes (Direct Selection Tone) Tone Editing: Yes User Tones: 100 | 800 Tones Chinese Tones: 39 (Expandable 100 Tones) Indian Tones: 21 Group Buttons: Yes Tone Editing: Yes User Tones: 100 |
| Number of Keys | |
| 61 Keys | 61 Keys |
| Number of Rhythms/Patterns | |
| 235 Rhythms Direct Selection: 6×2 Chinese Rhythms: 15 (Expandable 100 Rhythms) Indian Rhythms: 13 Variations: 4 Beat Fixed Auto Start: Yes Sync Stop: Yes One-Key Preset: Yes Auto Harmony: Yes Rhythm Editing: Yes (Rhythm Sequencer) User Rhythms: 100 | 235 Rhythms Chinese Rhythms: 15 (Expandable 50 Rhythms) Indian Rhythms: 13 Variations: 4 Beat Fixed Auto Start: Yes Sync Stop: Yes One-Key Preset: Yes Auto Harmony: Yes Rhythm Editing: Yes (Rhythm Sequencer) User Rhythms: 50 |
| Auto Accompaniment | |
| Yes | Yes |
| Built-in Songs | |
| 30 Songs (Expandable 10 Songs) | 30 Songs (Expandable 10 Songs) |
| Demo Songs | |
| 3 Songs | 3 Songs |
| Recording Function | |
| [MIDI Recorder] 17 Tracks (1 System Track + 16 Multitrack), 10 Songs Each with Approximately 40,000 Notes Real-Time Recording, Track Editing, Event Editing, Punch In/Out, Voice Over [Phrase Recorder] 100 Phrases Each Song Approximately 90 Minutes Real-Time Recording, Playback (Recorded to USB Flash Drive, 44.1 kHz Stereo WAV Format) | [MIDI Recorder] 17 Tracks (1 System Track + 16 Multitrack), 10 Songs Each with Approximately 40,000 Notes Real-Time Recording, Track Editing, Event Editing, Punch In/Out, Voice Over [Phrase Recorder] 100 Phrases Each Song Approximately 90 Minutes Real-Time Recording, Playback (Recorded to USB Flash Drive, 44.1 kHz Stereo WAV Format) |
| Speakers | |
| 10cm x 2 (Enhanced); Bass Reflex: Yes; On/Off: Yes | 10cm x 2 |
| Power Supply | |
| [AC Adapter] AD-E24250LW (DC 24V) | 2 Ways [Battery] 6 D-Type Alkaline Batteries Approximately 10 Hours [AC Adapter] AD-A12150LW (DC 12V) |
| Power | |
| 15W | 8W |
| Dimensions | |
| 948 x 384 x 116 mm (Without Music Stand) | 948 x 384 x 116 mm (Without Music Stand) |
| Weight | |
| 7.0 kg | 6.9 kg |
| Accessories | |
| AC Transformer (AD-E24250LW), Music Stand | AC Adapter (AD-A12150LW), Music Stand |
| Effects | |
| Reverb (32 Types) Chorus (12 Types) Delay (20 Types) DSP (100 Types) Main EQ (10 Types + 1 User) | Reverb (24 Types) Chorus (12 Types) Delay (15 Types) DSP (100 Types) Main EQ (10 Types) |
| Layer/Split | |
| Yes | Yes |
| Octave Shift | |
| -3 Octaves ~ 0 ~ +3 Octaves | -3 Octaves ~ 0 ~ +3 Octaves |
| Transpose | |
| -12 Semitones ~ 0 ~ +12 Semitones | -12 Semitones ~ 0 ~ +12 Semitones |
| Tuning | |
| A4 = 415.5 Hz ~ 440.0 Hz ~ 465.9 Hz | A4 = 415.5 Hz ~ 440.0 Hz ~ 465.9 Hz |
| Tuning System | |
| Equal Temperament + 16 Categories, Fine Tuning | Equal Temperament + 16 Categories, Fine Tuning |
| Arpeggiator | |
| 150 Types | 150 Types |
| Music Mode Presets | |
| 310 Presets | 310 Presets |
| Preset Memory | |
| 128 Groups of Memory (8 x 16 Groups), Freeze Function | 128 Groups of Memory (8 x 16 Groups), Freeze Function |
| One-Key Preset | |
| Yes | Yes |
| Auto Harmony | |
| 12 Types | 12 Types |
| Mixer | |
| 42 Channels | 42 Channels |
| Metronome | |
| 0 to 16 Beats; Speed Range: 20 to 255 | 0 to 16 Beats; Speed Range: 20 to 255 |
| Audio Playback | |
| Yes (.wav) | Yes (.wav) |
| LCD Display | |
| LCD Display Size: 108 X 38mm Type: Character Backlight: Yes (White) | LCD Display Size: 108 X 38mm Type: Character Backlight: Yes (White) |
| Bend Wheel | |
| Yes | Yes |
| Vibrato | |
| Yes | |
| Line Output | |
| 2 Types (Left Channel/Mono, Right Channel), Standard Jack | |
| USB Port | |
| Type A (Can Connect to SD Card, SDHC Card), Type B | Type A (Can Connect to SD Card, SDHC Card), Type B |
| Audio Input | |
| Stereo Mini Jack | Stereo Mini Jack |
| Microphone Input | |
| Standard Jack | |
| Headphone/Output | |
| Stereo Standard Jack | Stereo Standard Jack |
| MIDI | |
| Yes (Using USB Port): Compatible with GM Level 1 | Yes (Using USB Port): Compatible with GM Level 1 |
