Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

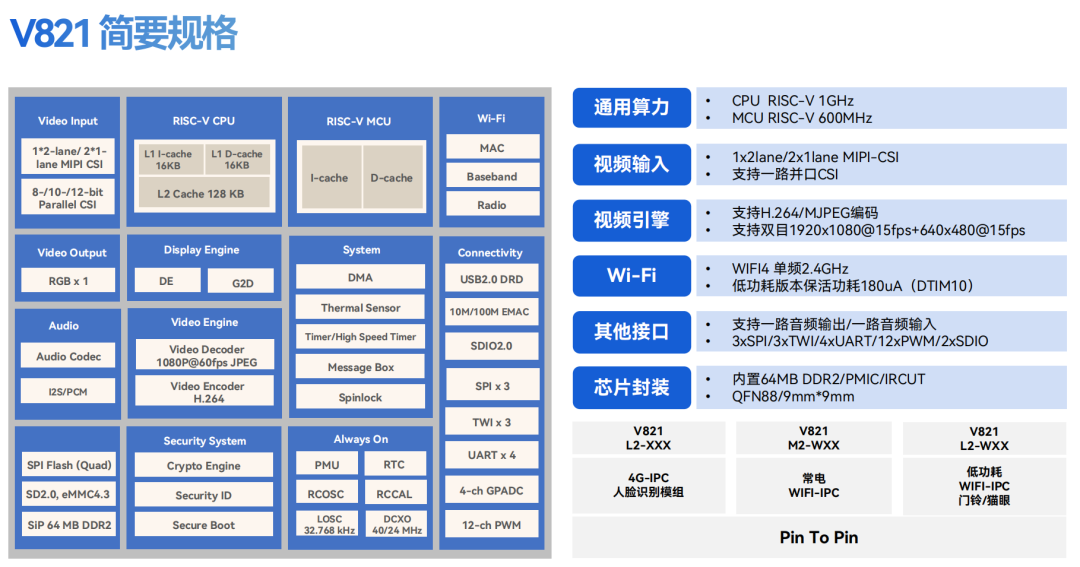

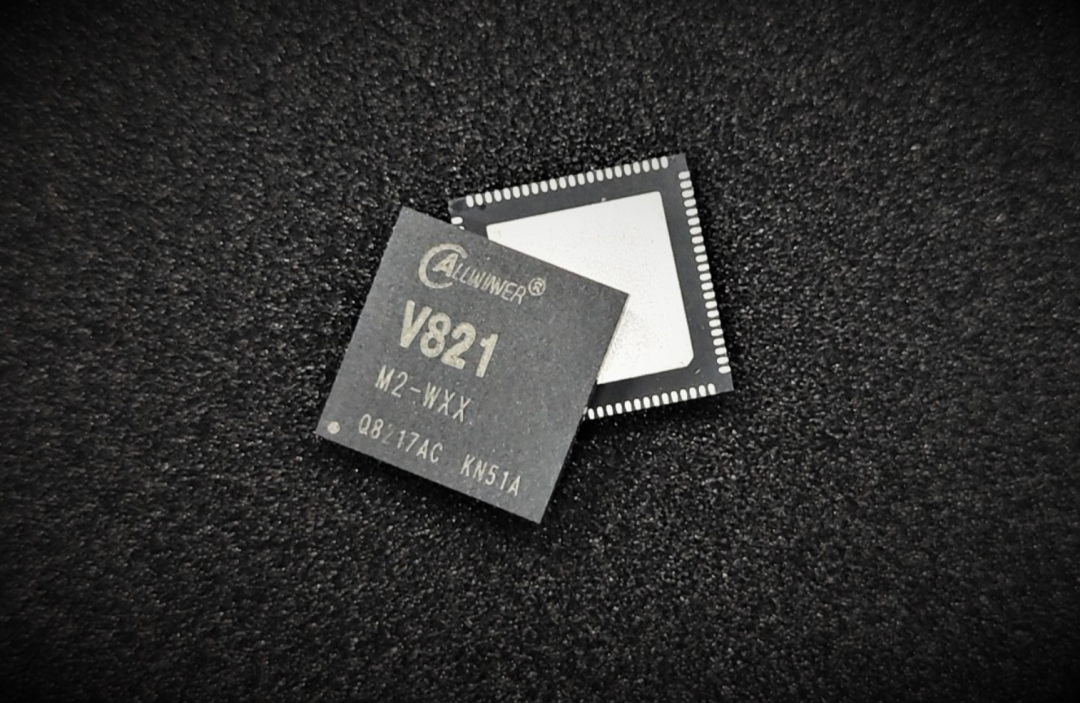

The V821 is a highly integrated, low-power multi-camera IPC SoC launched by Allwinner Technology. The chip integrates dual RISC-V architecture processors, including a RISC-V CPU with a maximum frequency of 1GHz and a RISC-V MCU with a maximum frequency of 600MHz. The chip supports real-time access for two cameras and provides up to 1080P HD video processing capabilities through a high-performance ISP and H.264 hardware encoding unit. Additionally, the V821 integrates Wi-Fi, LDO, IRCUT, and Audiocodec, offering an extremely cost-effective IPC solution. Based on its excellent video encoding capabilities, low power optimization, and high expandability, the V821 can be applied in various product forms such as multi-camera IPCs, low-power doorbells, and smart locks.

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

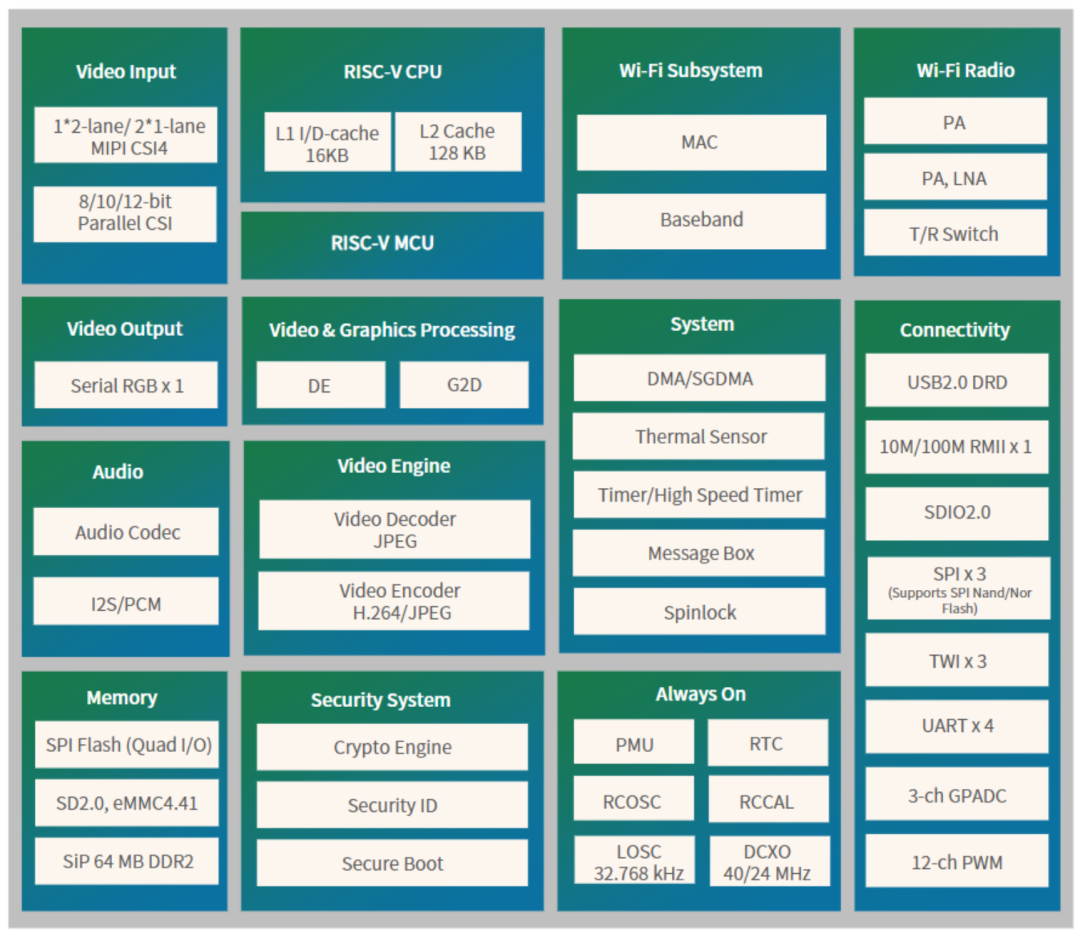

Chip Block Diagram

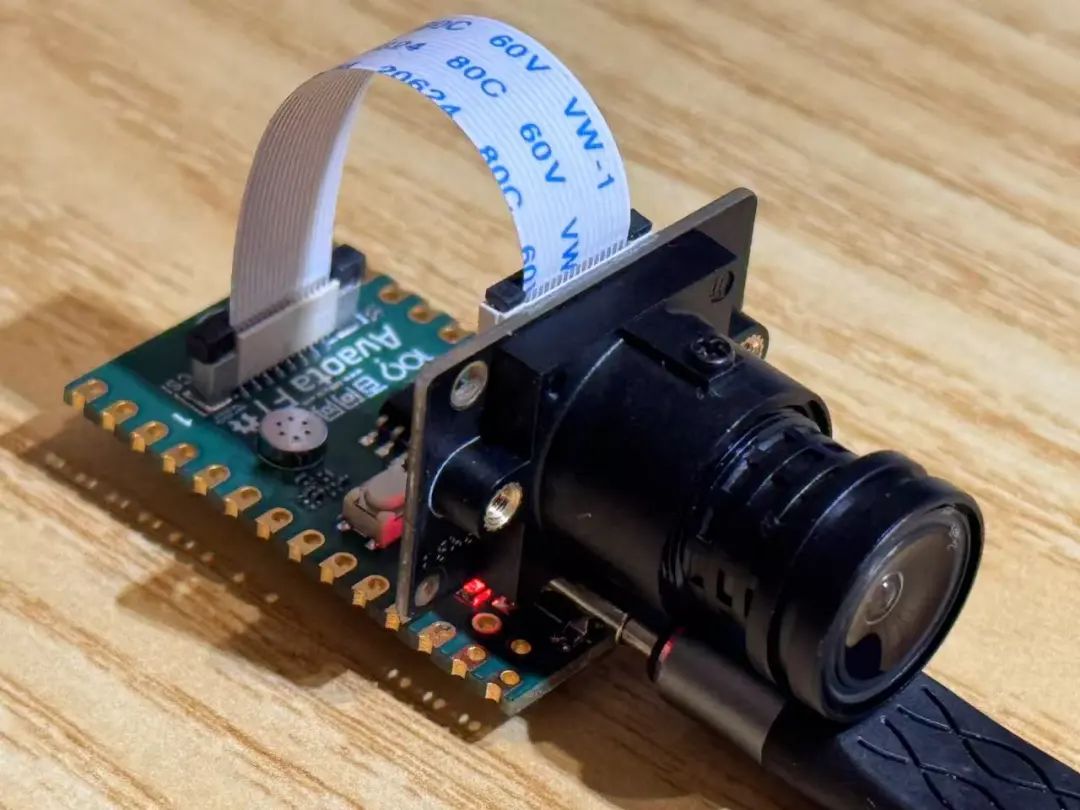

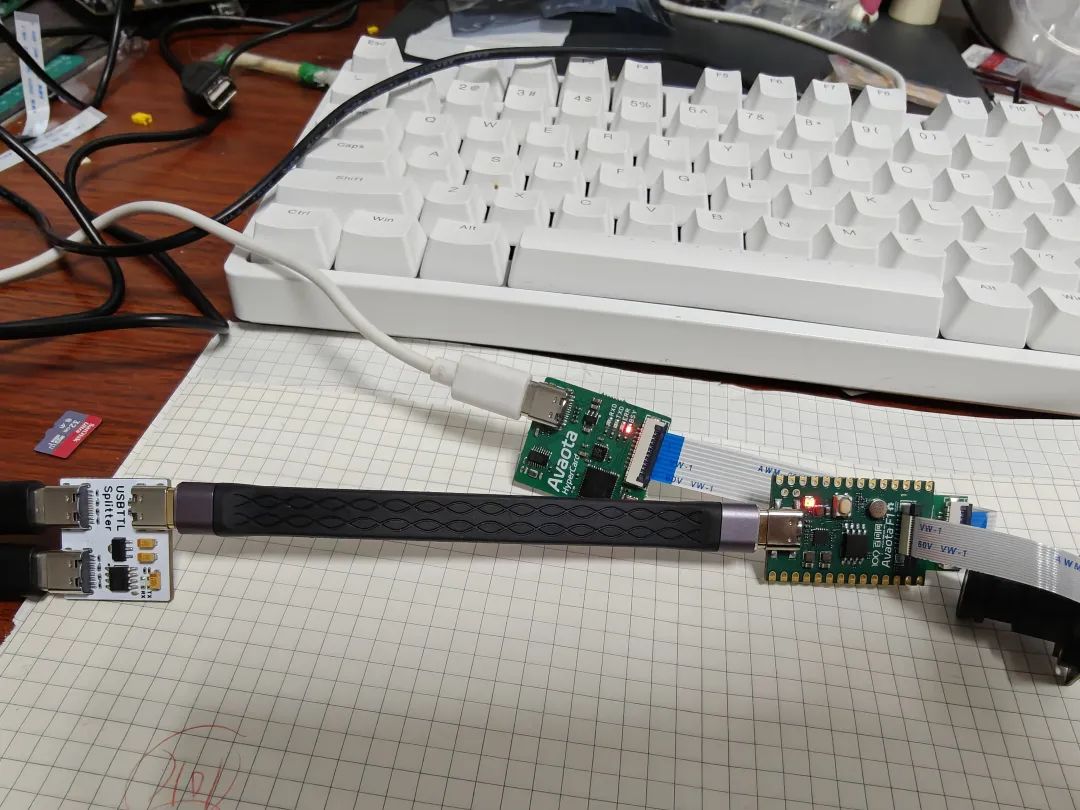

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoCImages of the Development Board

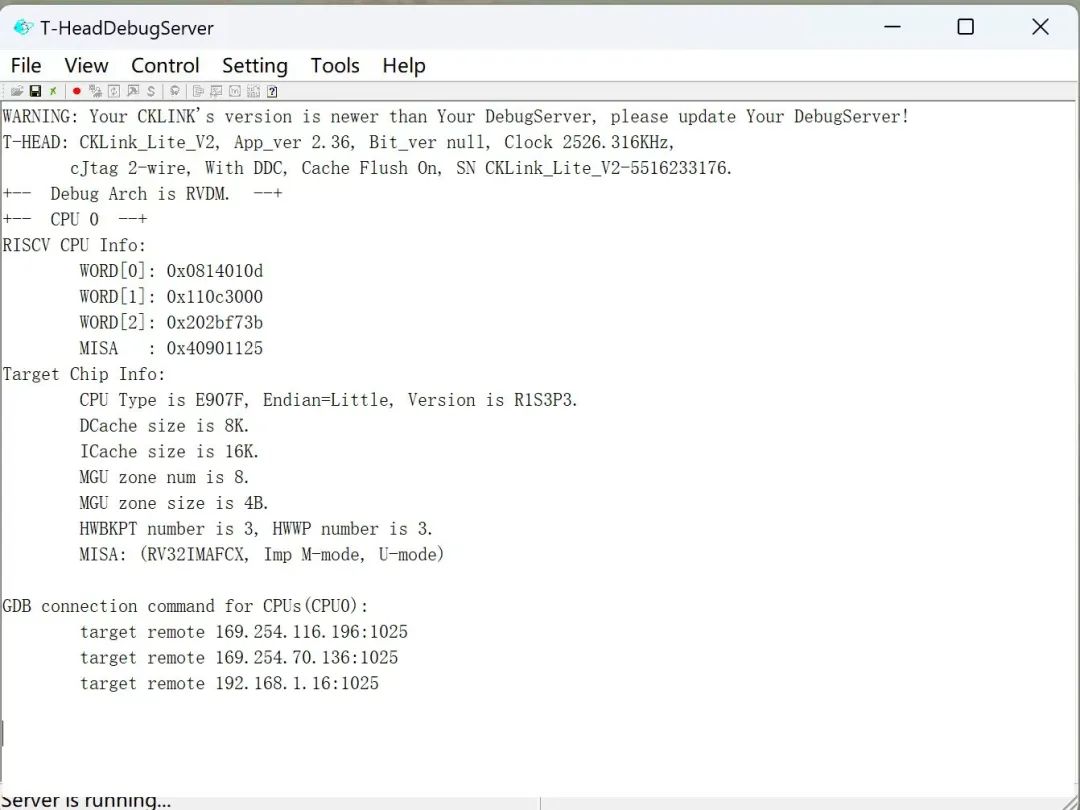

The accompanying CKLINK debugger can be used to debug CPU information and is suitable for debugging RTOS heterogeneous systems with plug-and-play functionality.

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

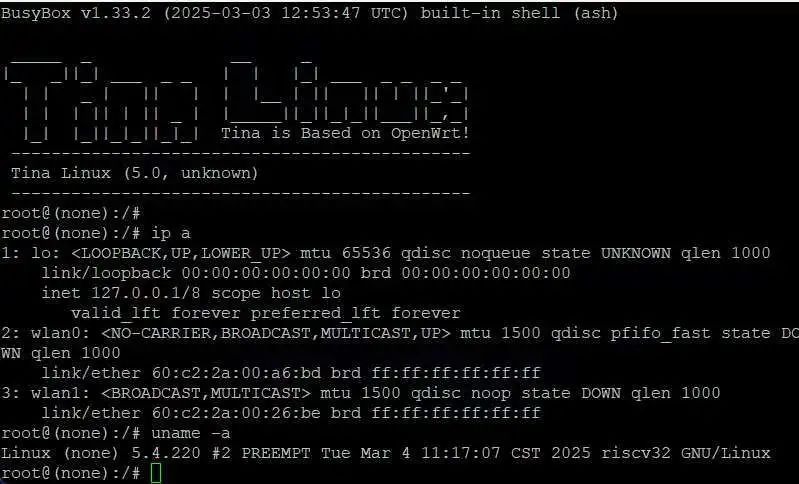

Running the TinaLinux system, the big core runs Linux 5.4

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

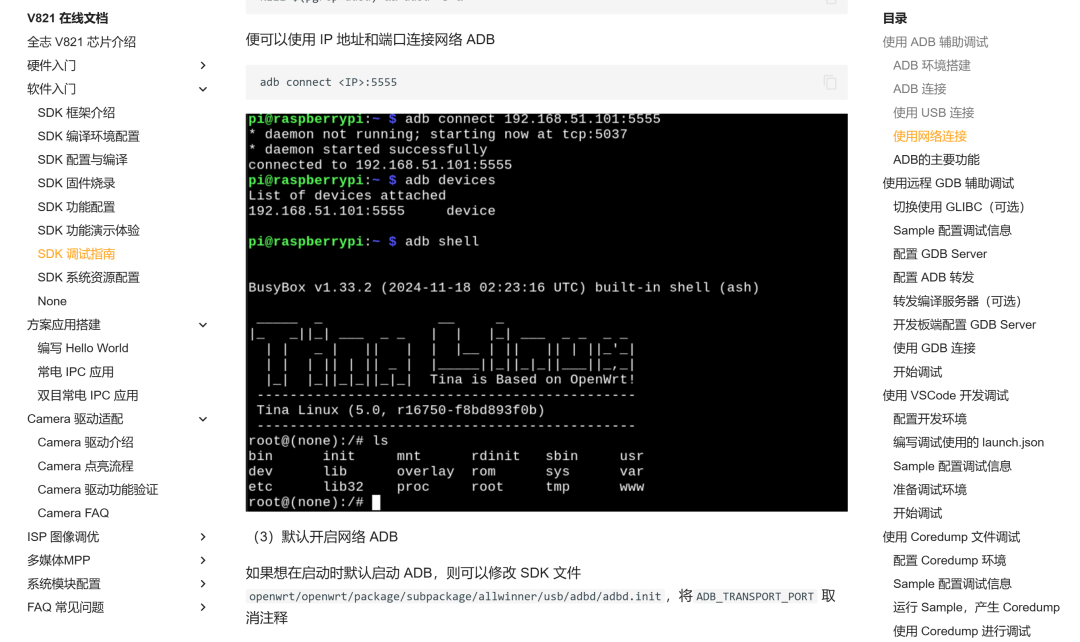

The development kit is currently available for pre-sale, with shipments expected to begin at the end of the month. This time, we have prepared very comprehensive documentation. However, it is not suitable for complete beginners who are encountering Linux for the first time.

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC

If you are interested, feel free to join our QQ group!

Avaota F1 Allwinner V821 Dual-Core RISC-V E907 Fully Domestic New Generation Highly Integrated Vision SoC
