Application of EtherCAT Motion Controller in CNC Handwheel Tracking

Click the above“Motion Assistant”, stay tuned for updates!

This article takes the ZMC408CE motion controller with a dedicated handwheel interface from Motion Technology as an example to introduce the handwheel, its functions and principles, the wiring of the controller’s handwheel interface, and the configuration of the handwheel program.

01
Functions and Principles of the Handwheel
The handwheel, also known as a manual pulse generator, is mainly used for CNC machine tools, 3D processing centers, horizontal processing centers, and gantry processing centers and other CNC equipment.When the handwheel rotates, the encoder generates signals corresponding to the movement of the handwheel, which are used by the CNC system to select coordinates and position them.
The manual pulse generator has a photoelectric code disk with a central axis, which has ring-shaped light and dark markings. After shaking the handwheel, the photoelectric transmitter and receiver read the markings, obtaining two sets of sine wave signals HA and HB, each with a phase difference of 90 degrees.Because the signals HA and HB are 90 degrees out of phase, the direction of rotation can be determined by whether A phase leads or B phase leads, which generates forward or reverse pulses to control the servo motor’s direction.

Application of EtherCAT Motion Controller in CNC Handwheel Tracking

02

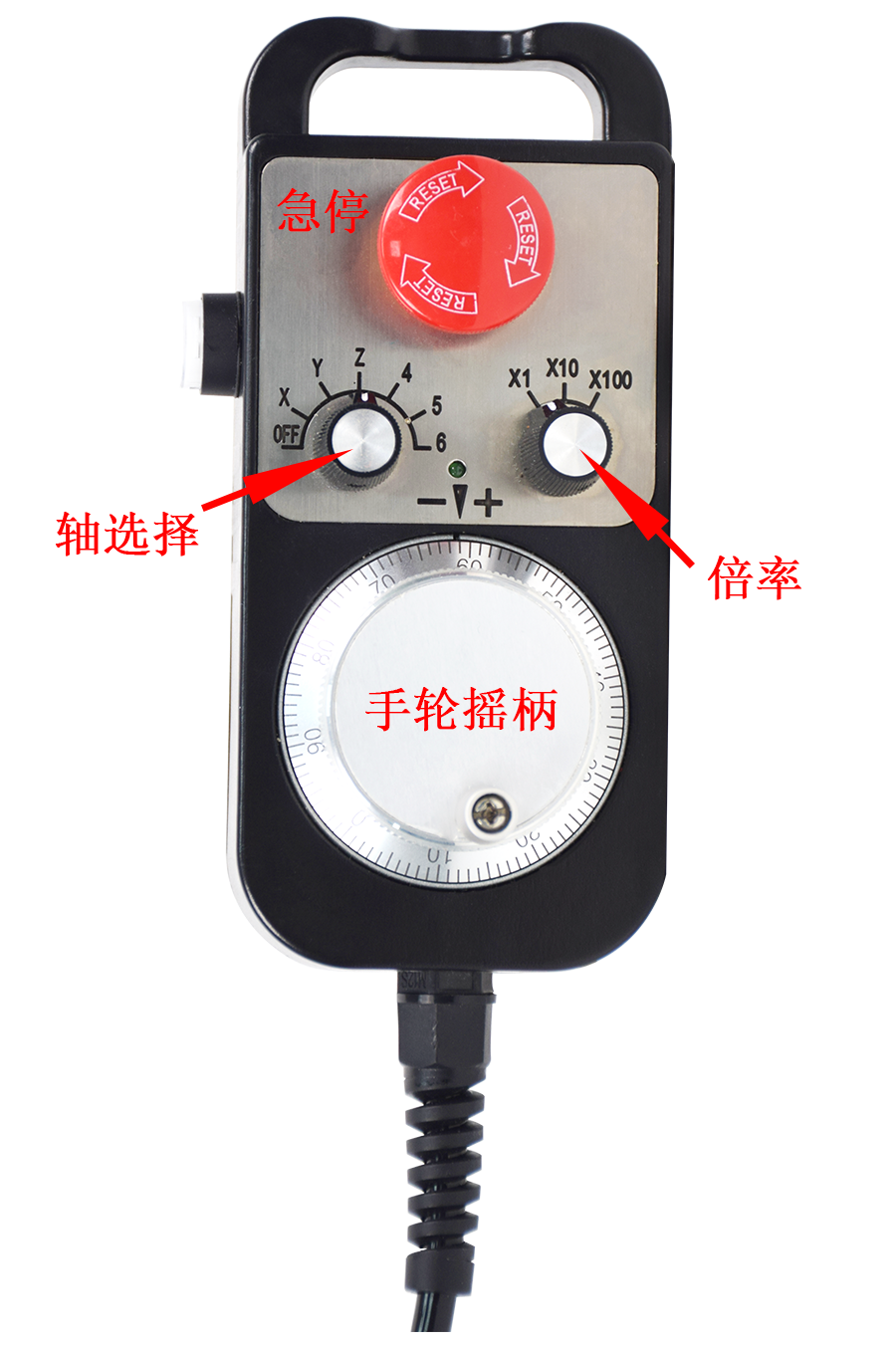

Introduction to the Handwheel
1.Use the “Axis Selection Knob” on the handwheel to select the coordinate axis that needs to be moved;

2.Use the “Magnification Selection Knob” to choose the appropriate movement magnification (×1/×10/×100);

3.Rotate the “handwheel handle” to move the coordinate axis. Clockwise rotation is forward movement, counterclockwise rotation is backward movement, and the speed of rotation can control the speed of the coordinate axis;

4. The “Emergency Stop” button stops the handwheel movement immediately;

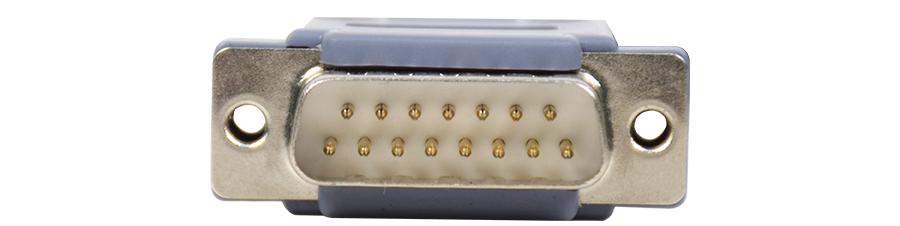

5. The controller’s handwheel interface is a dual-row standard DB15 female connector, requiring the handwheel connector to be a dual-row standard DB15 male connector.

Application of EtherCAT Motion Controller in CNC Handwheel Tracking

Application of EtherCAT Motion Controller in CNC Handwheel Tracking

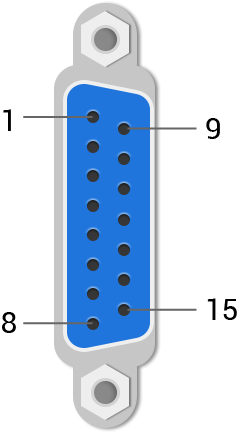

Handwheel interface diagram

03
Wiring of the Controller Handwheel Interface

1. Hardware Introduction

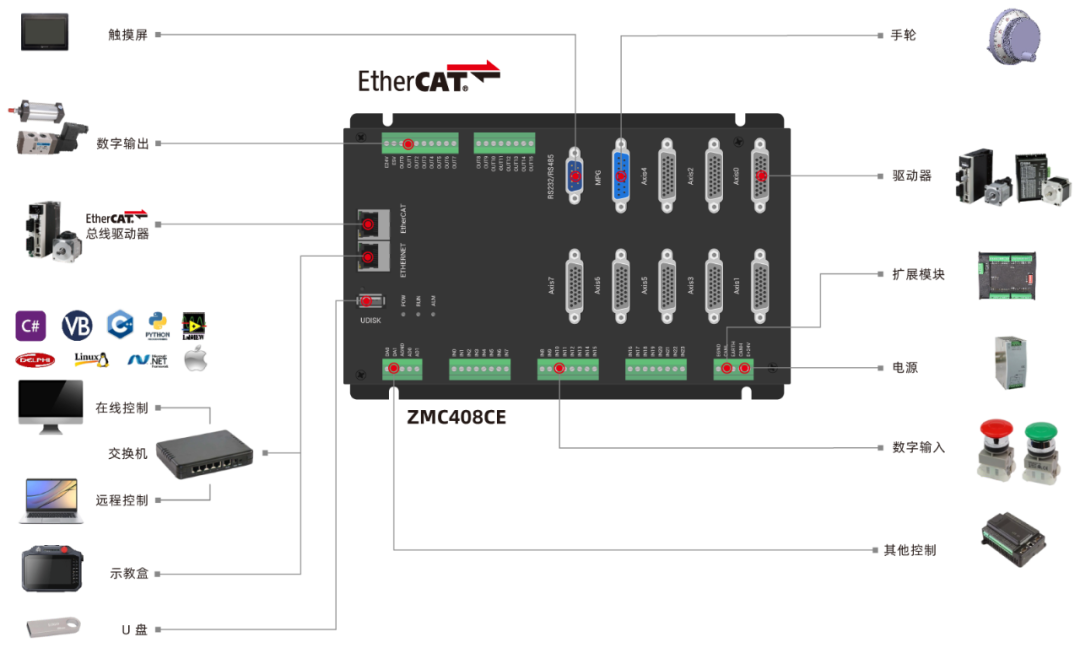

The case uses the ZMC408CE motion controller, which has a dedicated handwheel interface.

Application of EtherCAT Motion Controller in CNC Handwheel Tracking

The ZMC408CE is a high-performance EtherCAT bus motion controller launched by Motion Technology, utilizing advanced FPGA technology for hardware position comparison output and precise output functions, ensuring outstanding performance and stability in continuous trajectory processing, as well as real-time dynamic data capture for more precise control and improved production efficiency and quality.

The ZMC408CE supports EtherCAT bus axes + pulse axis mixed interpolation, can operate offline or online, controls up to 8 motor axes, with special models providing options for 16 or 32 axes, and supports ZDevelop + various advanced upper computer mixed programming, enabling point-to-point motion, electronic cam, linear interpolation, circular interpolation, continuous trajectory processing, and control of 30+ robot models.
ZMC408CE Product Highlights
1. High-performance processor, improving computation speed, response time, and scanning cycle;

2. One-dimensional/two-dimensional/three-dimensional, multi-channel vision flying capture, high-speed and high-precision;

3. Position synchronous output PSO, precise control over glue dispensing and laser energy control during continuous trajectory processing;

4. Multi-axis synchronous control, independent control of multiple coordinate systems;

5. EtherCAT synchronous cycle as fast as 125us;

6. EtherCAT bus and pulse axis mixed interpolation;

7. Linear interpolation, arbitrary space circular interpolation, spiral interpolation, spline interpolation, etc.;

8. Flexible application, can be developed on PC or run independently offline;;

ZMC408CE Video Introduction

2. Definition of Controller Handwheel Interface MPG

Interface

Pin Number

Signal

Description

Application of EtherCAT Motion Controller in CNC Handwheel Tracking

1

H-5V

5V power output positive, dedicated to powering the handwheel

2

HA-

Encoder A phase signal (IN40)

3

HB-

Encoder B phase signal (IN41)

4

HEMGN

Emergency stop signal (IN51)

5

NC

Unused

6

HX1

Select X1 magnification (IN42)

7

HX10

Select X10 magnification (IN43)

8

HX100

Select X100 magnification (IN44)

9

HSU

Axis select 3 (IN48)

10

HSV

Axis select 4 (IN49)

11

EGND

5V power output negative, common signal

12

HSW

Axis select 5 (IN50)

13

HSZ

Axis select 2 (IN47)

14

HSY

Axis select 1 (IN46)

15

HSX

Axis select 0 (IN45)

Note:

1. The 5V power output is only for powering the handwheel, do not use it to power other devices.

2. All signals in this interface are digital input signals, numbered IN (40-51).

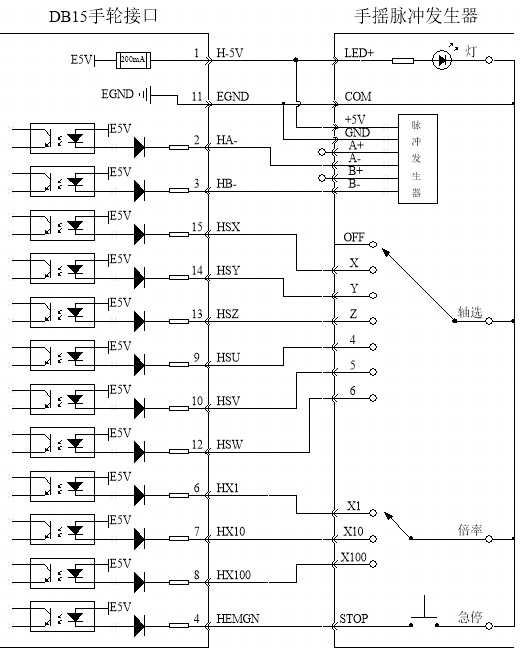

3. Handwheel Wiring Reference

Application of EtherCAT Motion Controller in CNC Handwheel Tracking

4. Precautions
The wiring principle of the handwheel encoder axis interface is shown in the above figure. The designs by handwheel manufacturers vary widely; please check the internal design diagram of the handwheel and confirm with the motion controller before wiring cautiously;Please use twisted shielded cables, especially in harsh environments, and ensure the shielding layer is adequately grounded.
04
Program Configuration
1. Refer to the above handwheel wiring diagram to correctly connect the handwheel and controller;

2. After powering on, please select any of the Ethernet, RS232, or RS485 interfaces to connect to ZDevelop;

3.Configure Axis Number: The controller’s handwheel interface has no available default AXIS axis number (mapping must avoid pulse axis numbers), it must be remapped, the operation steps are as follows:
BASE(目标轴号)     'Remap axis numberATYPE(目标轴号)=0  'Set axis type to 0BASE(8)            'Initial axis number of handwheel interface 8 (invalid)ATYPE(8)=0         'Set initial axis type of handwheel interface to 0AXIS_ADDRESS (目标轴号)= (-1<<16)+8      'Bind initial axis number 8 to target axis numberATYPE(目标轴号)=3     'Set handwheel axis type to orthogonal encoder type
4.Configure IO: Assign axis selection (HSX, HSY, HSZ, HSU) and magnification (HX1, HX10, HX100) and emergency stop (HEMGN) functions as needed; these signals are essentially digital input signals with fixed numbers (refer to the previous section), but have no fixed functions and requireZDevelop development; their names are recommended functional configurations, where axis selection refers to the connected axis for CONNECT synchronous motion, and magnification refers to the CONNECT ratio.
5. Once the above configurations are complete, you can start using the handwheel.

Sample program below, running the program below will enable control of the handwheel.

'Different controller models have different handwheel axis numbers, magnifications, and axis selection IN numbers, refer to the controller's user manual. This example uses the controller model ZMC408CE' Different handwheel control axes can vary; this example controls 6 axes'Axis number settingsglobal const axis_X  = 0    'X axisglobal const axis_Y  = 1    'Y axisglobal const axis_Z  = 2    'Z axisglobal const axis_U  = 3    'U axisglobal const axis_V  = 4    'V axisglobal const axis_W  = 5    'W axisglobal const def_R      = 8    'Default axis number for handwheelglobal const axis_R  = 10    'Remapped axis number for handwheel 'Magnification IN number settingsconst io_Handlow = 42  '1 magnificationconst io_Handmid = 43  '10 magnificationconst io_Handhigh = 44  '100 magnification 'Axis selection IN number settings const io_HandX = 45    'Handwheel X axisconst io_HandY = 46    'Handwheel Y axisconst io_HandZ = 47     'Handwheel Z axisconst io_HandU = 48   'Handwheel U axisconst io_HandV = 49     'Handwheel V axisconst io_HandW = 50   'Handwheel W axis 'Emergency stop signal IN number settingsconst io_HandEMGN = 51   'Emergency stopglobal dim conflag      'Handwheel connected axis flagconflag = -1ATYPE(def_R) = 0 'Restore axis 8 axis typeATYPE(axis_R) = 0 'Restore axis 10 axis typeAXIS_ADDRESS(axis_R) = (-1<<16)+ def_R 'Map MPG handwheel axis address to axis 10ATYPE(axis_R) = 3 'Set handwheel axis type to orthogonal encoder typeUNITS(axis_R) = 1 'Set handwheel axis pulse equivalent pulse to unitWhile 1  if  in(io_handX) = on  then    if in(io_handlow) = on then      connect(1, axis_R) axis(axis_X)  'Link to axis X, magnification 1    elseif in(io_handmid) = on then      connect(10, axis_R) axis(axis_X)  'Link to axis X, magnification 10    elseif in(io_handhigh) = on then      connect(100, axis_R) axis(axis_X)  'Link to axis X, magnification 100    endif    conflag = axis_X  elseif  in(io_handY) = on  then    if in(io_handlow) = on then      connect(1, axis_R) axis(axis_Y)      elseif in(io_handmid) = on then      connect(10, axis_R) axis(axis_Y)      elseif in(io_handhigh) = on then      connect(100, axis_R) axis(axis_Y)      endif    conflag = axis_Y  elseif  in(io_handZ) = on  then    if in(io_handlow) = on then      connect(1, axis_R) axis(axis_Z)    elseif in(io_handmid) = on then      connect(10, axis_R) axis(axis_Z)      elseif in(io_handhigh) = on then      connect(100, axis_R) axis(axis_Z)      end if    conflag = axis_Z  elseif  in(io_handU) = on  then    if in(io_handlow) = on then      connect(1, axis_R) axis(axis_U)    elseif in(io_handmid) = on then      connect(10, axis_R) axis(axis_U)      elseif in(io_handhigh) = on then      connect(100, axis_R) axis(axis_U)      endif    conflag = axis_U  elseif  in(io_handV) = on  then    if in(io_handlow) = on then      connect(1, axis_R) axis(axis_V)    elseif in(io_handmid) = on then      connect(10, axis_R) axis(axis_V)      elseif in(io_handhigh) = on then      connect(100, axis_R) axis(axis_V)      endif    conflag = axis_V  elseif  in(io_handW) = on  then    if in(io_handlow) = on then      connect(1, axis_R) axis(axis_W)    elseif in(io_handmid) = on then      connect(10, axis_R) axis(axis_W)      elseif in(io_handhigh) = on then      connect(100, axis_R) axis(axis_W)      endif    conflag = axis_W  elseif conflag <> -1 then    'Cancel connection    cancel(2) axis(conflag)    conflag = -1  elseif   in(io_HandEMGN) = off  then      RAPIDSTOP(2)  endif Wend

This time, Motion Technology shared the application of the EtherCAT motion controller in CNC handwheel tracking, here.

For more exciting content, please follow the “Motion Assistant” public account. For related development environments and example code, please consult Motion Technology sales engineers: 400-089-8936.

This article is original from Motion Technology. Everyone is welcome to reprint it for mutual learning and to improve China’s intelligent manufacturing level together. The copyright of this article belongs to Motion Technology. If reprinted, please indicate the source.
