Introduction
In the wave of digital transformation, the power industry is undergoing unprecedented changes. The ANet series smart gateways launched by Ankerui Electric Co., Ltd. serve as a data interaction bridge between terminal devices and system platforms, providing strong technical support for the construction of a ubiquitous power IoT. This article will comprehensively analyze the core functions, technical features, and practical applications of the ANet gateway in various typical scenarios.
2
Core Functions of ANet Smart Gateway

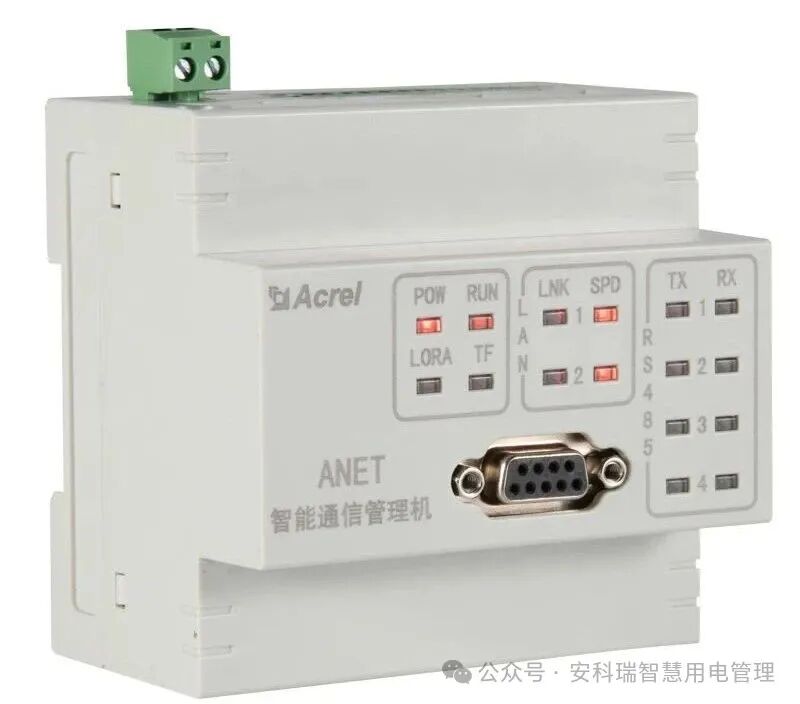

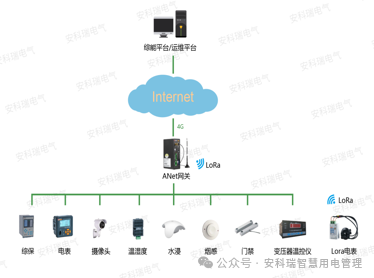

The ANet series gateways, as communication management devices, have four core functions:Data Collection: Supports various interfaces such as serial ports and Ethernet, and can efficiently collect data from various standard protocol meter devices through simple configuration.Remote Management: Provides remote configuration, remote upgrade, and remote monitoring functions, significantly reducing on-site maintenance costs.Data Upload: Supports uploading data to multiple provincial platforms (such as the Shanghai classified energy consumption platform, Ningxia power demand-side platform, Jiangsu comprehensive energy platform, etc.), meeting regulatory requirements in different regions.Edge Computing: Features flexible alarm threshold settings, proactive alarm uploads, data merging calculations, logical control, and other advanced functions, supporting power-off resume transmission and data encryption to ensure data security and reliability.
3
Product Series and Technical Advantages

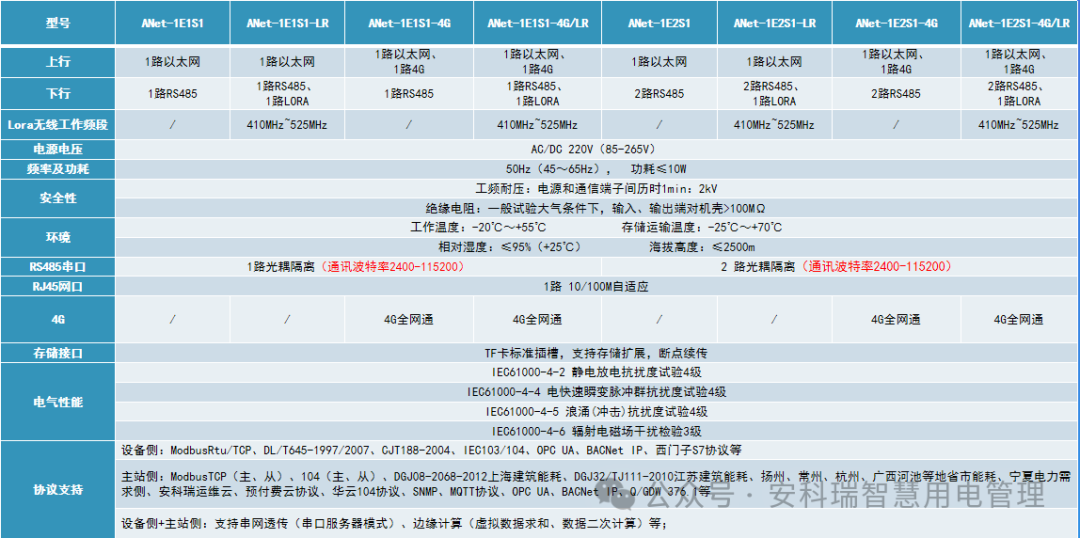

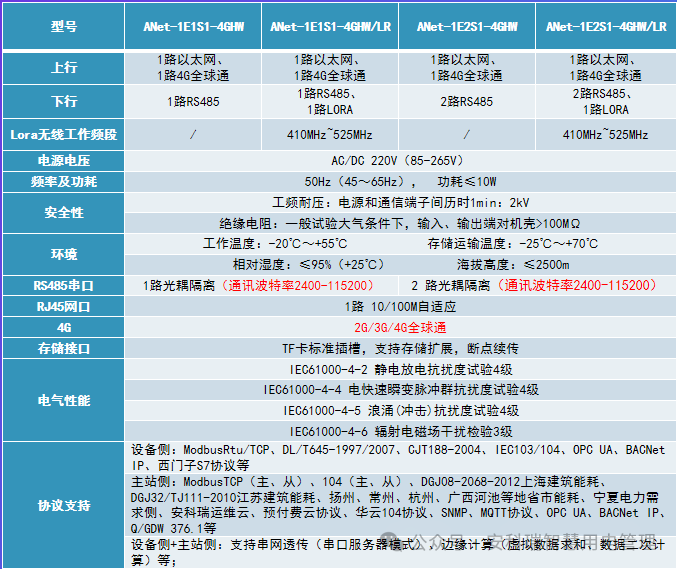

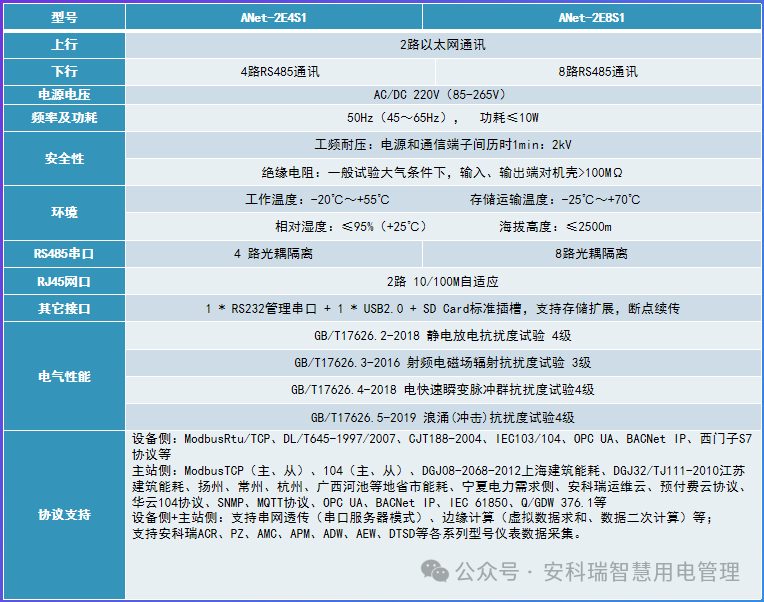

The ANet series includes multiple models to meet different scenario needs:① ANet-1E2S1 series communication management device (including overseas version)

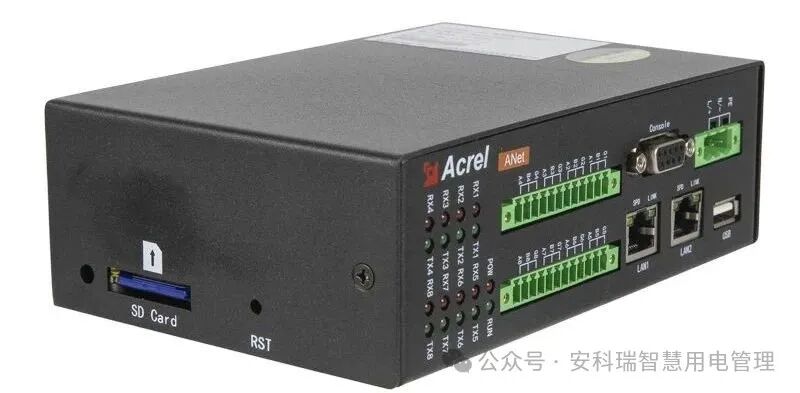

② ANet-2E8S1 series communication management device

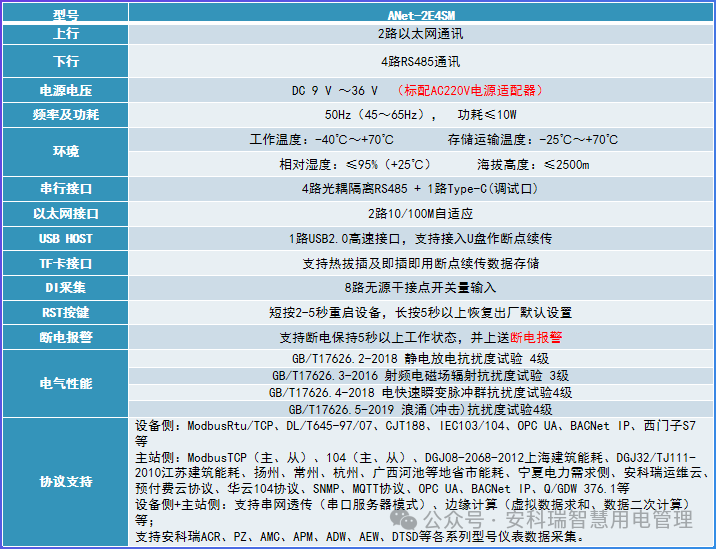

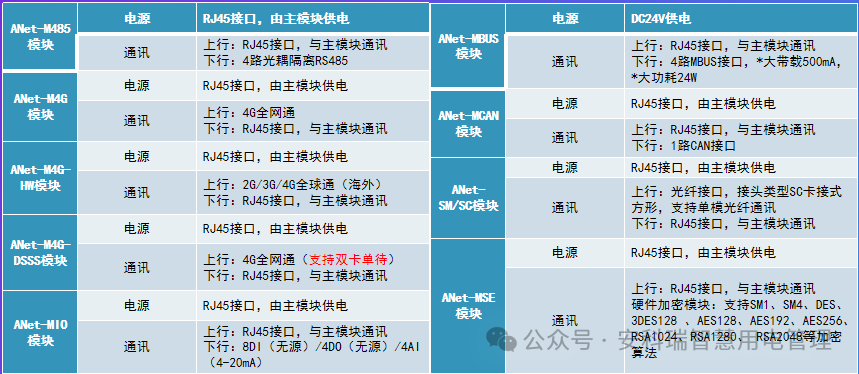

③ ANet-2E4SM modular communication management device (master/slave module)

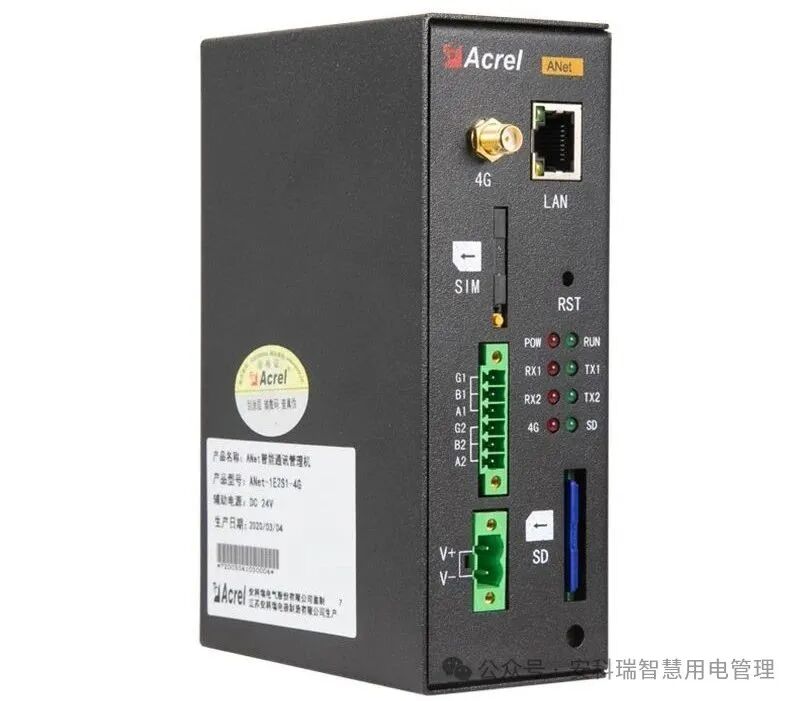

④ ANet-1E2SM communication management device (including WIFI/overseas version)

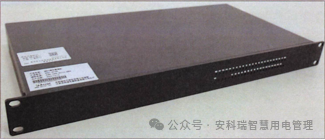

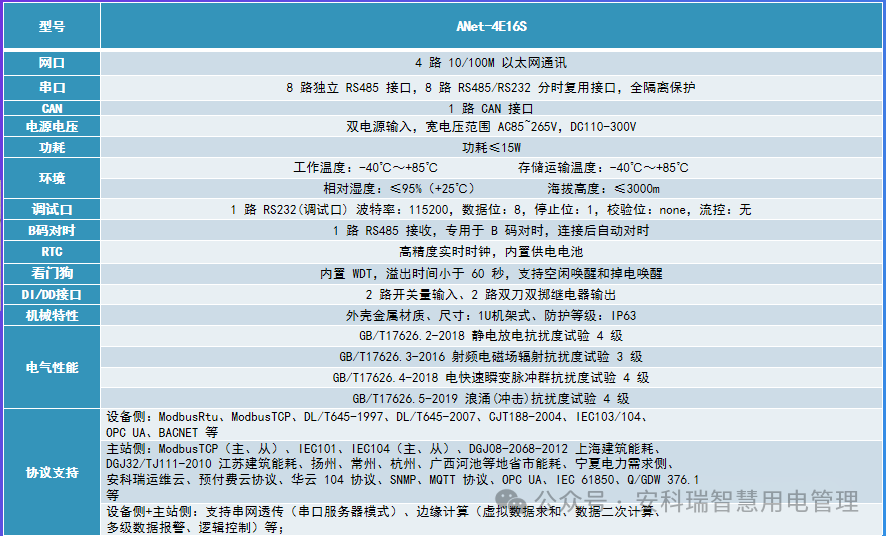

⑤ ANet-4E16S communication management device

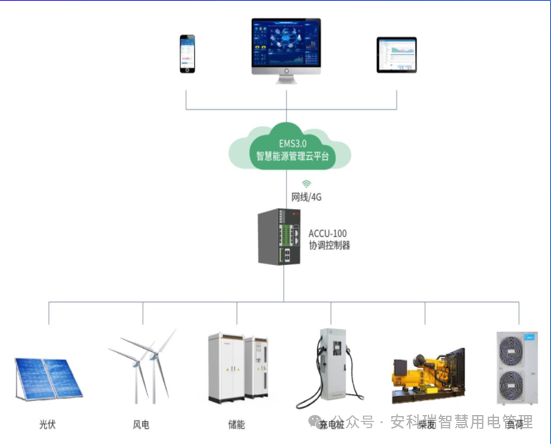

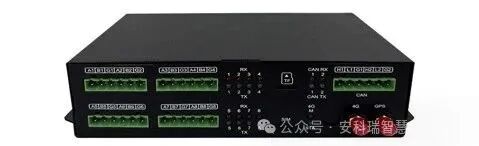

⑥ ACCU-100 microgrid coordination controller
Interface Parameters: 8 channels of 485 serial ports, 2 CAN channels, 1*HDMI, 4*Gigabit Ethernet ports, 6 DI, 6 DO, 4G+GPS;
Strategy Management: Anti-backflow, planned curves, peak shaving and valley filling, demand control, active/reactive control, light-storage coordination, etc., with support for strategy customization;
System Security: User permissions designed based on an untrusted model to prevent unauthorized access; data encryption and security verification technologies are used to achieve data anti-tampering and traceability;
Operational Safety: Collection and analysis of all station signals and measurement data, including battery, temperature control, and fire safety, to achieve operational safety early warning and prediction.
In terms of system security, the ANet gateway adopts a user permission design based on an untrusted model to prevent unauthorized intrusion; through data encryption and verification technology, it achieves data anti-tampering and traceability; it also has operational safety early warning functions, capable of collecting and analyzing signals from batteries, temperature control, and fire safety to ensure safe system operation.
4
Typical Cases
Case 1: Smart Electricity Project in Ningbo, ZhejiangIn the New You (Ningbo) Hangzhou Bay Smart Electricity Project, the ANet gateway successfully connected to the Zhejiang Province Smart Energy IoT platform. This project is part of the national grid’s ubiquitous power IoT construction at the county-level comprehensive demonstration area, requiring enterprise energy consumption data to be uploaded to the provincial platform. The ANet gateway not only achieved data upload via the Huayun 104 protocol but also forwarded it to the energy consumption system and operation and maintenance system, supporting the connection of third-party devices such as temperature control instruments and cameras, demonstrating strong compatibility and expandability.

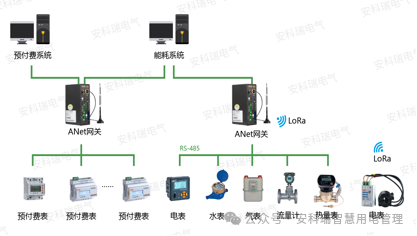

Case 2: Microgrid Project in Shanghai Kangqiao Industrial ParkIn the microgrid project of the Shanghai Kangqiao Advanced Manufacturing Technology Entrepreneurship Park, the ANet gateway collected data and uploaded it in two streams to the energy consumption cloud platform and the prepaid cloud platform. This project integrates photovoltaic power generation, distributed energy storage, and charging piles, optimizing electricity usage plans through electricity data analysis, reducing grid losses by nearly 20%, while implementing a prepaid model of “pay first, then use electricity,” solving the charging difficulties.

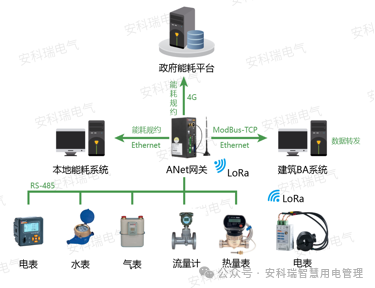

Case 3: Energy Consumption Monitoring at Shanghai Exhibition SquareIn the Zhangjiang Hi-Tech Park’s Exhibition Square project, the ANet gateway uploaded data to the Shanghai Pudong New Area energy consumption monitoring platform while also forwarding it to the Tianan comprehensive energy system. This project showcases the broad application prospects of the gateway in Shanghai, and the ANet gateway has been registered with the Shanghai Academy of Building Research, allowing for large-scale promotion in Shanghai.
Case 4: Beijing Winter Olympics ProjectAs a national key project, the venues for the Beijing Winter Olympics adopted the ANet-2E4SM modular communication management device to monitor the electricity usage, UPS status, environmental parameters, etc., in real-time. Data is transmitted via a 4G APN private network using the 104 protocol to the distribution master station system, achieving real-time collection, online detection, and proactive early warning of equipment operating parameters, providing technical support for the “green Olympics” concept.
5
Conclusion
The ANet series smart gateways, with their powerful data collection, processing, and communication capabilities, have become key devices in the construction of a ubiquitous power IoT. From provincial energy platforms to industrial park microgrids, from commercial complexes to national key projects, the ANet gateway demonstrates broad application prospects and excellent performance. As the construction of the power IoT continues to advance, the ANet gateway will continue to play its important role as a “data interaction bridge,” providing solid support for the digital transformation of energy.
