In today’s deep integration of industrial automation and the Internet of Things, intelligent communication management machines serve as core devices for data acquisition, protocol conversion, and edge computing. Their performance and flexibility directly impact the stability and scalability of the entire system. The ANet-2E4SM modular rail-mounted intelligent communication management machine launched by Anke Rui is a high-performance, high-reliability solution designed to meet this demand.

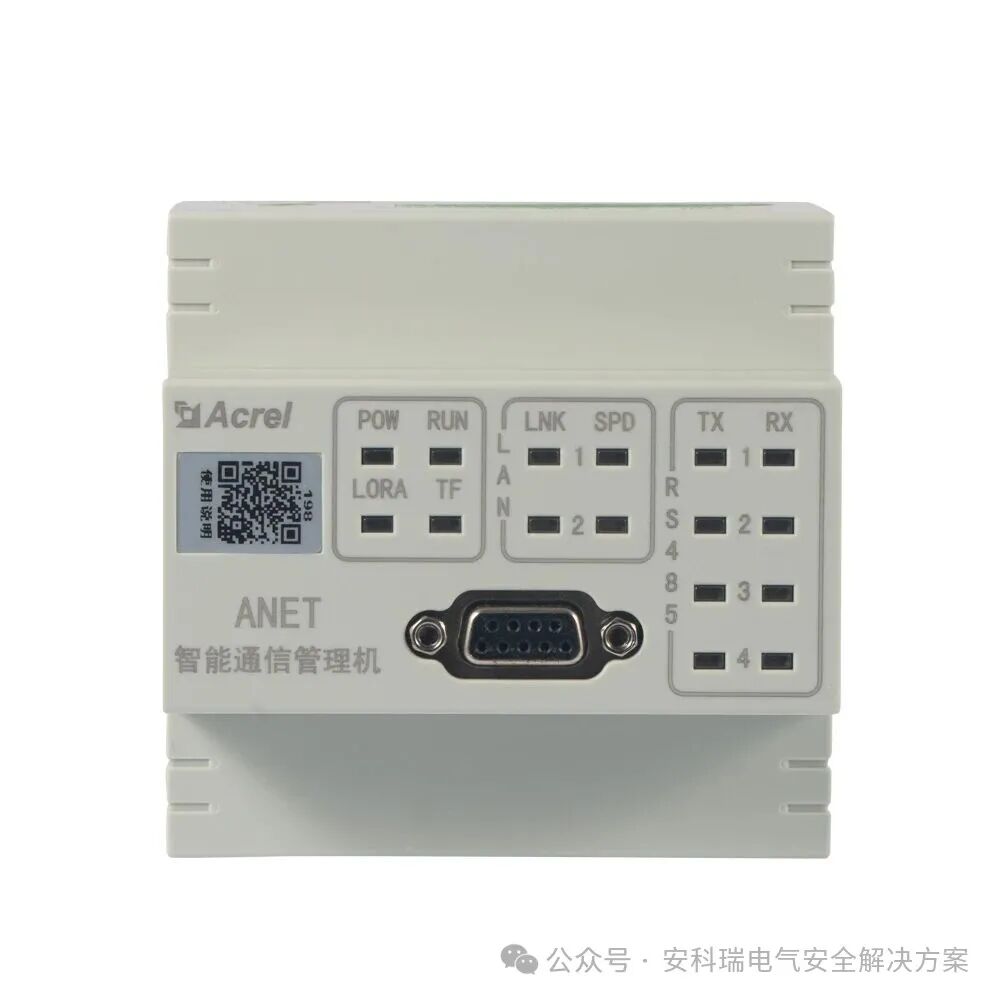

1. Hardware Design: Industrial-Grade Excellence
The ANet-2E4SM utilizes an industrial-grade ARM Cortex-A7 processor, equipped with an embedded Linux system, achieving powerful data processing capabilities while ensuring low power consumption. The entire unit has passed electromagnetic compatibility level 4 testing, and all communication terminals have undergone 2kV power frequency withstand voltage testing, providing excellent anti-interference and electrical isolation performance. The device supports a wide voltage input of DC 9V~36V and features reverse polarity protection, ensuring stable operation even in harsh industrial environments.
Notably, this device can continue to operate for over 5 seconds after a power failure and can trigger a power failure alarm, meeting the real-time response requirements of operation and maintenance systems for abnormal power outages. Additionally, the design includes dual storage interfaces of TF card and USB2.0, supporting plug-and-play and breakpoint resume, facilitating data backup and expansion.
2. Modular Architecture: Flexible Expansion to Meet Diverse Needs
The greatest innovation of the ANet-2E4SM lies in its modular design. The main module features 2 Ethernet ports and 4 serial ports, capable of independent operation or expanded functionality through additional slave modules:
- M485 Module: Expands 4 channels of RS485 communication, supporting more instrument connections;
- M4G Module: Provides 4G universal upload and wireless routing capabilities;
- MIO Module: Supports 8 channels of DI, 4 channels of DO, and 4 channels of AI (4-20mA), enhancing control capabilities;
- MSE Module: Provides hardware encryption support, including encryption modules SM1/SM4.
Users can flexibly select configurations based on actual needs, supporting a maximum combination of 1 M4G module and 3 other slave modules, greatly enhancing the device’s applicability and cost-effectiveness.
3. Software Features: Stable, Efficient, Intelligent Management
In terms of software, the ANet-2E4SM supports data processing capabilities for up to 36,000 information points, with local and remote configuration and maintenance functions. It supports multi-protocol data upload and breakpoint resume, with data available in XML format and supporting AES encryption to ensure data transmission security.
The device is equipped with the ANetOS system, featuring system-level damage protection and automatic recovery capabilities. It supports numerous industrial protocols, including Modbus, DL/T645, CJT188, IEC104, OPC UA, and MQTT, and can connect to the entire series of Anke Rui intelligent instruments, providing an integrated solution for data acquisition, edge computing, and cloud platform integration.
4. Typical Application Scenarios

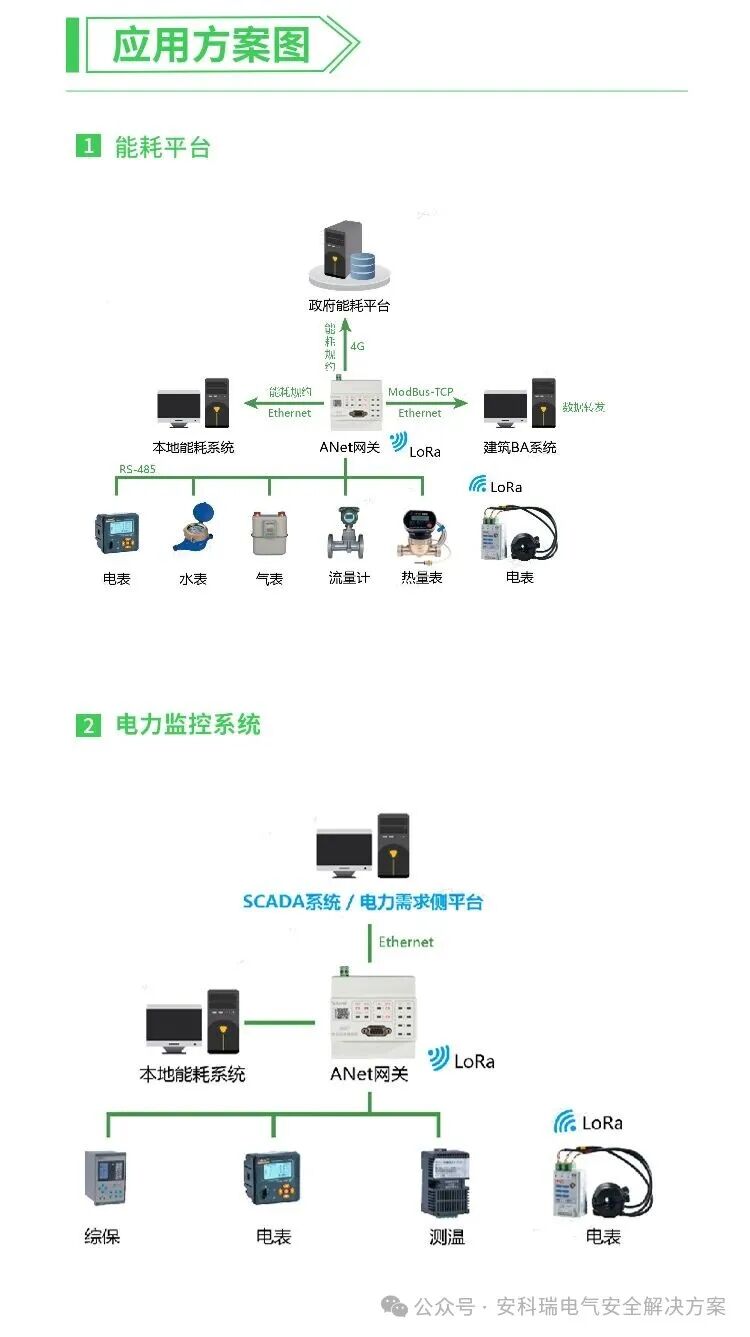

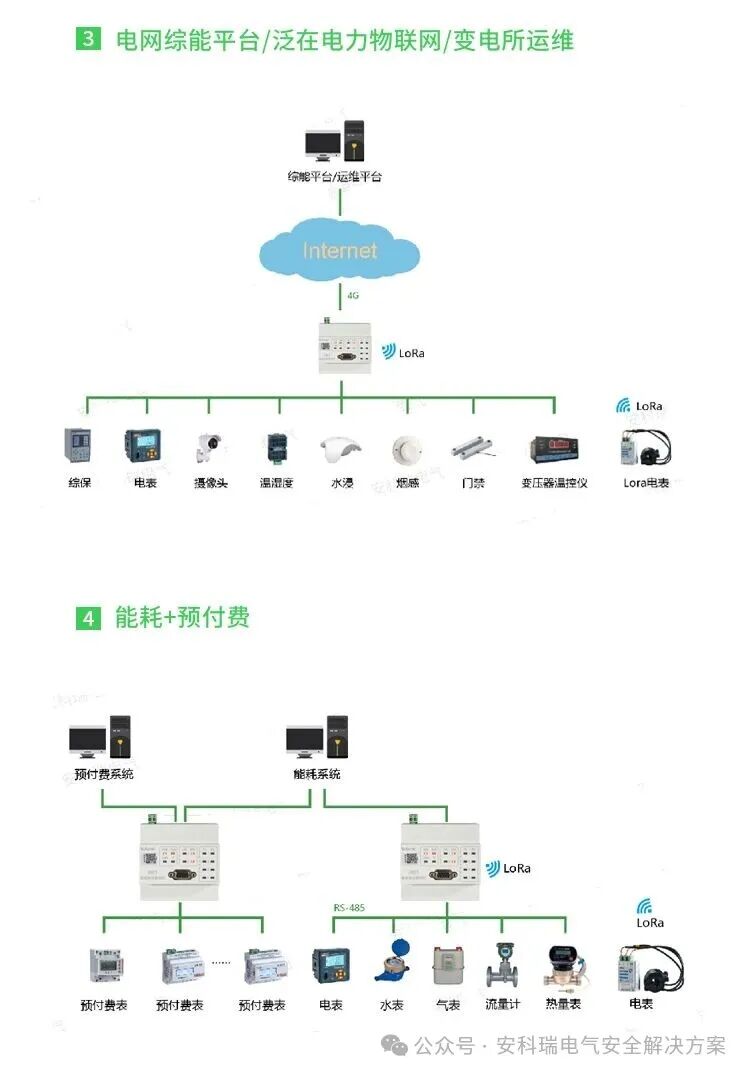

This device is widely used in building energy consumption monitoring, intelligent power distribution, industrial automation, and operation management fields. For example:
- Collecting switch signals such as access control, water immersion, and smoke detection through 8 channels of passive dry contact;
- Realizing remote data transmission and routing functions through the 4G module;
- Connecting multiple RS485 devices such as electric meters, water meters, gas meters, and microcomputer protection devices.
5. Conclusion
The ANet-2E4SM is not just a communication management machine; it is a highly integrated, flexible, and expandable intelligent edge gateway. Its modular design, strong protocol compatibility, reliable security performance, and convenient operation and maintenance management functions make it a highly competitive product in the fields of industrial IoT and smart buildings. Through continuous technological iteration and ecological expansion, the ANet-2E4SM is helping more industries achieve digital and intelligent transformation.
