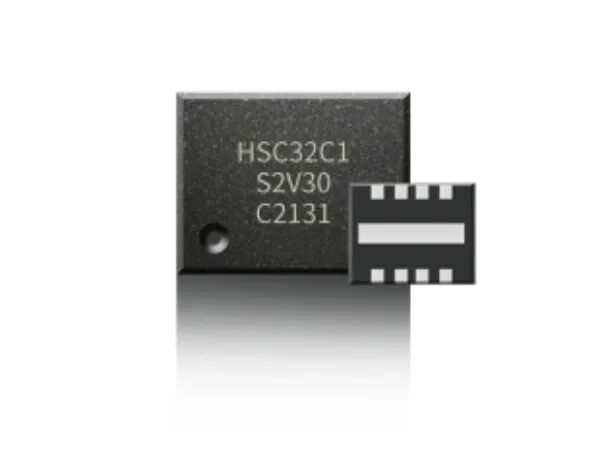

The chip programming leader ACROVIEW Technology recently announced the latest iteration of its programming software, along with a series of newly compatible chip models. In this update, the 32-bit ultra-low power automotive safety chip HSC32C1-S1V30 from HSEC has been supported by the ACROVIEW programmer AP8000.
The HSC32C1-S1V30 safety chip enables identity authentication, data encryption, and secure storage, allowing for the storage of licenses within the chip, effectively preventing device counterfeiting, and achieving bidirectional security authentication between the server and the app, ensuring secure authentication and communication across cloud, terminal, and control ends.
Typical Applications
• Intelligent Transportation
• Internet of Things
• Smart Locks
• Smart Home Appliances
• Copyright Protection
• Industrial Internet
• Smart Security
• Video Surveillance
Features
• Based on ARM M0+ core
• RAM: 12KB
• FLASH: 128KB
• Supports programmable timers and watchdog timers
• Supports SM2/ECC algorithm operations
• Supports SM3/SHA algorithm operations
• Supports SM4/AES/DES algorithm operations
• TRNG true random number generator, compliant with randomness detection specifications and NIST standards
• Supports storage protection and security detection
• Unique chip serial number
• Supports 7816, SPI, I2C, UART communication interfaces
• Supports GPIO
• Operating voltage VCC: supports a wide voltage range of 1.62V-5.5V, IO voltage consistent with VCC
• Power consumption: standby current less than 0.5uA, typical operating current 1mA
• Temperature: Operating temperature: -40℃~+85℃; Storage temperature: -55℃~+125℃
• ESD: 6KV (HBM), 500V (CDM)
• User data storage: at least 100,000 erase cycles
• 7816 interface: compliant with ISO7816-3 specifications
• Environmental grade: lead-free packaging, compliant with RoHS and REACH requirements
• Package types: SOP8, SOP8 (208mil), QFN20, QFN16, DFN8, SOW16
• Chip qualification: Commercial secret level II model: SSX1919

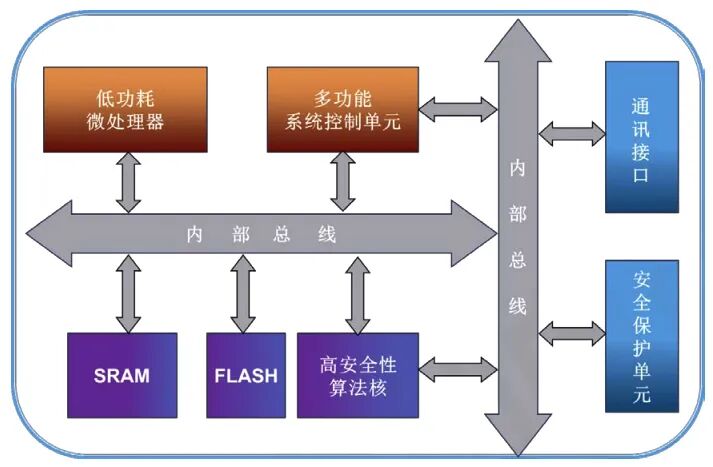

Internal Block Diagram
The AP8000 universal programmer developed by ACROVIEW Technology is a powerful programming solution that supports both online and offline versions with one-to-one and one-to-eight configurations, while also providing dedicated programming solutions for eMMC and UFS, fully meeting the bare chip (offline) and on-board programming needs for all HSEC chip models. The AP8000 consists of three core components: the host, the baseboard, and the adapter, serving as an industry-leading universal programming platform that not only meets the programming needs of various programmable chips on the market but also acts as the core programming platform for ACROVIEW’s automated mother chip programmer IPS5800S, efficiently supporting large-scale programming tasks.
The host supports both USB and NET connections, enabling networking of multiple programmers to synchronize control of multiple programmers for programming operations. The built-in safety protection circuit can instantly detect abnormal situations such as reversed chip placement or short circuits, and immediately cut off power to ensure the safety of the chip and programmer. The host integrates a high-speed FPGA, significantly enhancing data transmission and processing speed. The back of the host features an SD card slot, allowing users to save project files generated by PC software to the root directory of the SD card and insert it into the slot. By using the button on the programmer, users can select, load, and execute programming instructions without relying on a PC, which not only reduces PC hardware configuration costs but also facilitates the rapid construction of the working environment.
The AP8000 enhances the host’s expansion capabilities through the combination design of the baseboard and adapter, currently supporting products from all major semiconductor manufacturers, including TOSHIBA, SILICON LABS, HDSC, GigaDevice, and Joulwatt. The supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and it is compatible with various file formats such as Intel Hex, Motorola S, Binary, and POF.
Company Introduction
About HSEC: HSEC (宏思电子) was established in 1996 and is one of the earliest integrated circuit design companies in China specializing in the development of information security chips, holding a significant leading position in the commercial cryptography field. HSEC’s main products include: digital physical noise source chip series, high-performance dedicated cryptographic algorithm chip series, system-level SOC security chip series, and PCI-E encryption card product series. HSEC’s chip products are widely used in traditional fields such as finance, taxation, government affairs, electric power, public security, transportation, and education, as well as in emerging fields such as the Internet of Things, automotive terminals, smart homes, public safety, copyright protection, industrial control, and consumer electronics.
About ACROVIEW Technology:ACROVIEW Technology is a global leader in semiconductor chip programming solutions, committed to changing the world through technology and driving the future with intelligence, continuously creating value for customers. ACROVIEW’s AP8000 universal programmer platform and the latest IPS5800S automated programming solution provide one-stop solutions for customers in the semiconductor and electronics manufacturing fields, having served leading global clients including Huawei, BYD, and Foxconn.
