As a leader in the chip programming industry, ACROVIEW Technology recently announced the latest update of its programming software and released a list of newly supported chip models. In this update, the automotive-grade microcontroller FM33FG065A from FuDanWei has been supported by the ACROVIEW universal programmer AP8000.

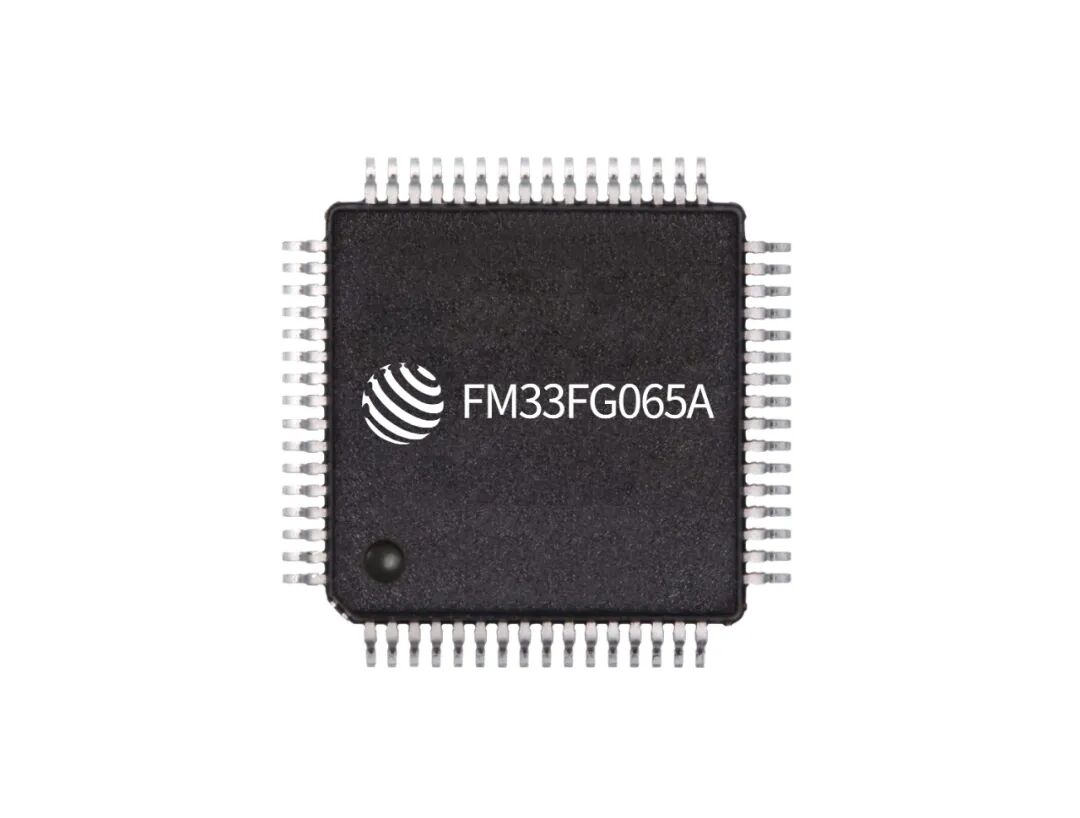

FM33FG065A is a low-power MCU based on the ARM Cortex-M0 architecture, supporting up to 512KB of program flash, 16KB of data flash, and a maximum of 64KB of RAM; it integrates a 12-bit SAR-ADC, DAC, CAN-FD controller, LIN controller, SENT controller, and other rich peripherals; it features an ultra-wide operating voltage range and excellent low-power performance.
FM33FG065A complies with ISO26262 standards and possesses strong safety design capabilities, providing three CAN interfaces, two of which support CANFD, while also being compatible with four LIN and two SENT interfaces. The FM33FG065A comes in various package forms, supporting a maximum LQFP144 package, suitable for automotive components such as BCM, TBOX, digital keys, seat controllers, wireless charging, and air conditioning controllers.
Features
• Wide voltage range: 8~5.5V
• Operating temperature range (TA): -40℃~+125℃ (AEC-Q100 grade 1)
• Processor core
– ARM Cortex-M0
– Supports user/privileged mode
– Supports MPU
– Supports interrupt vector table remapping (VTOR)
– Maximum clock frequency 64MHz
– SWD debugging interface
– 24-bit Systick timer
– Single-cycle multiplier
• Low-power technology platform
– Typical operating power 120uA/MHz@48MHz
– Sleep mode: 5uA
– Deep Sleep mode, RTC running + all RAM retention + CPU core retention: 1.5uA
• Memory
– Maximum 512KB Code Flash w/ ECC, erase/write life: 100,000 times
– Maximum 16KB Data Flash w/ ECC, erase/write life: 500,000 times
– Flash data retention time: 10 years @ 85℃
– User code protection
– Maximum 64KB RAM space, supports ECC
• Rich analog peripherals
– High-reliability, configurable BOR circuit (supports 8-level programmable under-voltage reset threshold)
– Ultra-low power PDR circuit
– Programmable power monitoring module (SVD)
– 2x low-power analog comparators
– 12-bit 2Msps SAR-ADC, up to 31 external input channels
– 10-bit DAC
– Temperature sensor, full temperature range linearity +/-5℃
• General communication interfaces
– UART*6, 4 channels support LIN communication
– LPUART*3
– SPI*4, master/slave mode
– I2C*4, master mode
– I2C_SMBUS*2, master/slave mode
– CAN2.0B *1, CANFD *2
– SENT *2
– 7-channel peripheral DMA
– Programmable CRC check module
• Timing resources
– TAU timer array, containing 16 independent channels
– 16-bit 4-channel general timer*2
– 16-bit basic timer*2
– 24-bit Systick*1
– 16-bit 2-channel low-power timer*2
– Watchdog timer*2
– Low-power real-time clock calendar (RTCC), with digital calibration function, calibration accuracy +/-0.476ppm
• Encryption algorithms
– AES hardware computation unit, 128/192/256-bit
– AES supports ECB/CBC/CTR/GCM/GMAC modes
– True random number generator
• Clock generation circuit
– On-chip configurable high-speed RC oscillator, configurable frequency output 8/16/24/32MHz, factory calibration error +/-0.5%,
– 8/16MHz full temperature range variation less than +/-2%
– Low-power 32768Hz crystal oscillator, with stop vibration detection circuit
– Low-power low-speed RC oscillator, 32KHz, full temperature range +/-3%
– High-frequency crystal oscillator, 4~24MHz
– PLL, maximum output 64MHz
• Package: LQFP144/LQFP100/LQFP64/LQFP48

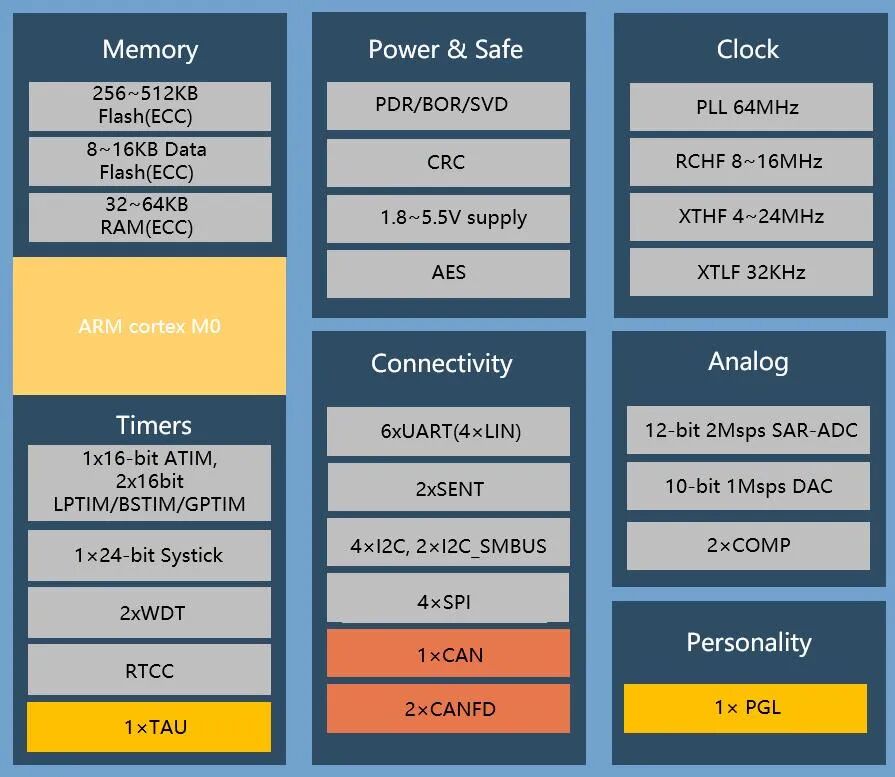

Overall Block Diagram

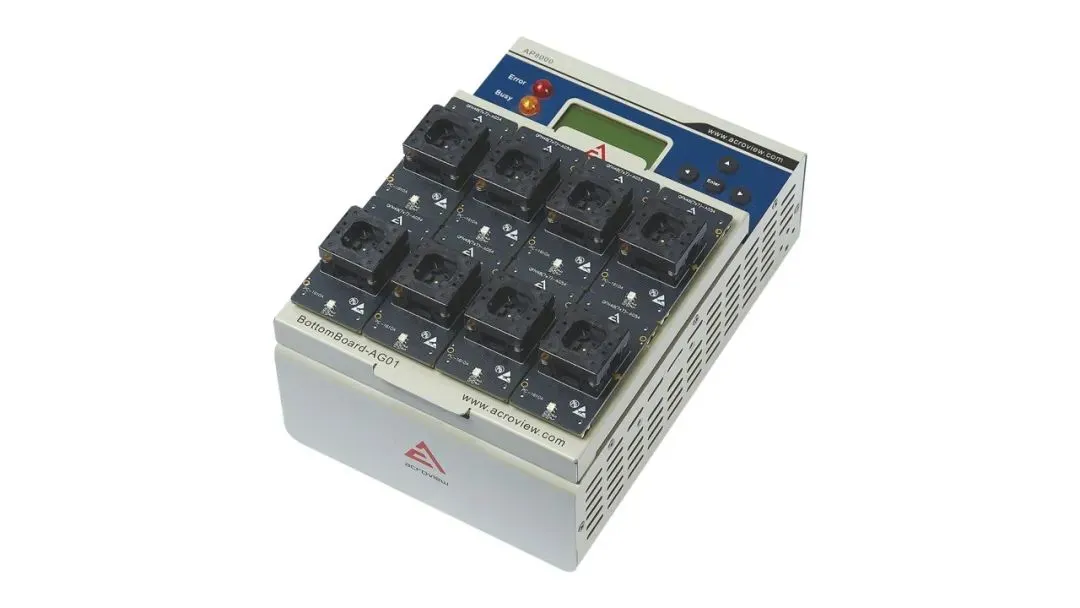

The ACROVIEW self-developed universal programmer AP8000 (one-to-one online/offline programming), (one-to-eight online/offline programming) and eMMC programming, UFS programming support all chip models of FuDanWei for bare chip (offline) programming and on-board programming. The AP8000 universal programmer consists of three main parts: host, baseboard, and adapter. Additionally, the AP8000 serves as a universal programming platform in the industry, capable of supporting the programming of all programmable chips available on the market, and is also the core programming platform for ACROVIEW’s automated batch programming machine IPS5800S.
The host supports USB and NET connections, allowing multiple programmers to be networked, achieving simultaneous control of multiple programmers for concurrent programming. The built-in chip safety protection circuit ensures that even if the chip is inserted incorrectly or other reasons cause a short circuit, it can be immediately detected and power cut to ensure the safety of the chip and programmer. The embedded high-speed FPGA greatly accelerates data transmission and processing. The back of the host has an SD card slot, allowing project files created by PC software to be placed in the root directory of the SD card and inserted into this slot. Commands for selecting, loading, and executing programming files can be performed via buttons on the programmer, enabling operation without a PC, significantly reducing PC hardware configuration costs and facilitating rapid adaptation to working environments.
The AP8000 enhances the host’s expandability through the baseboard and adapter, currently supporting all mainstream semiconductor manufacturers’ devices, including Silan, QUECTEL, BEKEN, CHIPONE, ESPRESSIF, etc. Supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and support for file formats including Intel Hex, Motorola S, Binary, POF, etc.
Company Introduction
About FuDanWei: FuDanWei was established in 1998 and has developed four mature product lines and system solutions in security and identification, smart meters, non-volatile memory, and smart appliances, with products sold in over 30 countries and regions. Its security and identification products are widely used in finance, social security, urban public transportation, electronic certificates, mobile payments, and anti-counterfeiting traceability.
About ACROVIEW Technology: ACROVIEW Technology is a global leader in semiconductor chip programming solutions, committed to changing the world through technology and driving the future with intelligence, continuously creating value for customers. ACROVIEW’s AP8000 universal programming platform and the latest IPS5800S automated programming solution provide one-stop solutions for customers in the semiconductor and electronic manufacturing fields, having served leading global clients including Huawei, BYD, and Foxconn.
