The FDM320RV335 is a high-performance 32-bit floating-point DSP processor optimized for real-time control applications. This chip is based on Zhongke Benyuan’s self-developed RISC-V architecture DSP core, SpringCore1.0, with a working frequency of 150MHz. It integrates high-precision ADC, high-resolution PWM, eCAP, and eQEP interfaces on-chip, enabling high-performance motor control and power control. Application scenarios include industrial control, new energy, electric vehicles, and power electronics.
Main product features are as follows:
-
High-performance digital signal processing technology
– Up to 150MHz– Peak performance of 150MIPS
-
High-performance 32-bit SpringCore1.0 core
– IEEE 754-2008 single-precision floating-point unit (FPU), RNE, RTZ, RDN, RUP, RMM rounding modes– 16×16 and 32×32 multiply-accumulate operations (MAC), 40-bit MR register (Multiply-accumulate Register)– 16×16 dual multiply-accumulate operations (MAC)– Harvard bus architecture– Fast interrupt response and processing, enhanced implementation of RISC-V interrupt standards– Unified memory programming model
-
6-channel DMA processor
-
16-bit or 32-bit external interface
– Address range exceeding 4M×8
-
On-chip memory
– 512K×8 flash memory, 16K×8 SARAM– 4K×8 one-time programmable (OTP) ROM
-
Boot ROM (16K×8)
– Supports software boot mode– Standard mathematical lookup table
-
Clock and system control
– Supports dynamic phase-locked loop ratio changes– On-chip oscillator– Safety device timer module
-
GPIO0 to GPIO63 pins can connect to one of eight external core interrupts
-
Supports peripheral interrupt expansion for all 58 peripheral interrupts
-
128-bit security key/lock
– Protects flash/OTP/RAM modules– Prevents firmware reverse engineering
-
Enhanced control peripherals
– Up to 18 pulse-width modulation (PWM) outputs– Up to 6 high-resolution PWM outputs with 150ps micro-edge positioning resolution– Up to 6 event capture inputs– Up to two quadrature encoder interfaces– Up to 8 32-bit timers (6 eCAP and 2 eQEP)– Up to 9 32-bit timers (6 PWM and 3 XINTCTR)
-
Three 32-bit CPU timers
-
Serial port peripherals
– Up to 2 controller area network (CAN) modules– Up to 3 SCI (UART) modules– Up to 2 McBSP modules (configurable as SPI)– One SPI module– One internal integrated circuit (I2C) bus
-
12-bit analog-to-digital converter (ADC), 16 channels
– 80ns conversion rate– 2 × 8-channel input multiplexer– Two sample-and-hold– Single/synchronous conversion– Internal or external reference
-
Up to 88 programmable GPIO pins with input filtering capability
-
Supports RISC-V Debug 0.13.2 debugging standard
-
Advanced simulation features
– Analysis and breakpoint functionality– Real-time debugging with hardware assistance
-
Development support includes
– ANSI C/C++ compiler/assembler/linker– Digital motor control and digital power software libraries
-
Low power modes and energy-saving modes
– Supports IDLE, STANDBY, HALT modes– Can disable independent peripheral clocks
-
Byte order: Little-endian mode
-
Package options:
– Lead-free, green packaging– Plastic quad flat package with 176 pins (LQFP176)

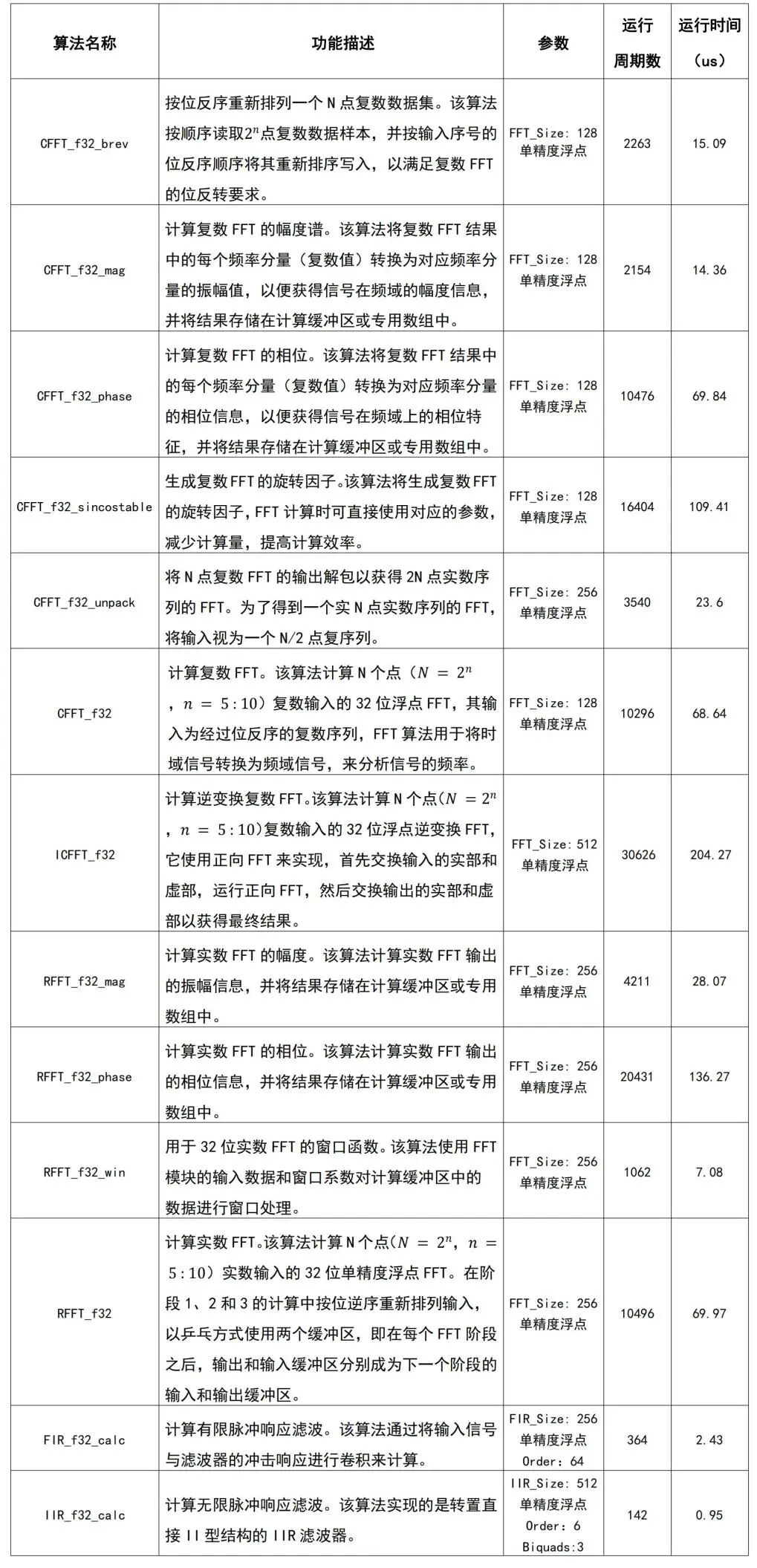

Product performance:
About the SpringCore1.0 DSP Processor Core
SpringCore1.0 is a high-efficiency, low-cost 32-bit floating-point DSP processor core developed independently by Zhongke Benyuan based on the RISC-V architecture. It adopts the RV32IMFC-Ext instruction set architecture, is divided into 8 pipeline stages, and operates at a frequency of 150MHz, primarily targeting high-performance real-time signal processing fields such as digital power and motor control.
Main features include:
-
Based on RISC-V architecture, RV32IMFC-Ext instruction set;
-
Static single-issue, supports instruction prefetch;
-
Operating frequency of 150MHz
-
Supports 16-bit compressed instructions;
-
37 signal processing extension instructions;
-
8-stage pipeline, with 3 stages for instruction fetch and 5 stages for decode and execute;
-
32-bit addressable space;
-
Supports fixed-point and floating-point data type calculations;
-
Supports 32 integer general-purpose registers X0-X31;
-
Supports 32 floating-point general-purpose registers F0-F31;
-
Supports hardware RAW and WAR dependency checks;
-
Fast context switching enhances real-time processing response speed;
-
Supports RISC-V Debug 0.13.2 debugging standard, allowing for breakpoint setting, single-stepping, and other operations;

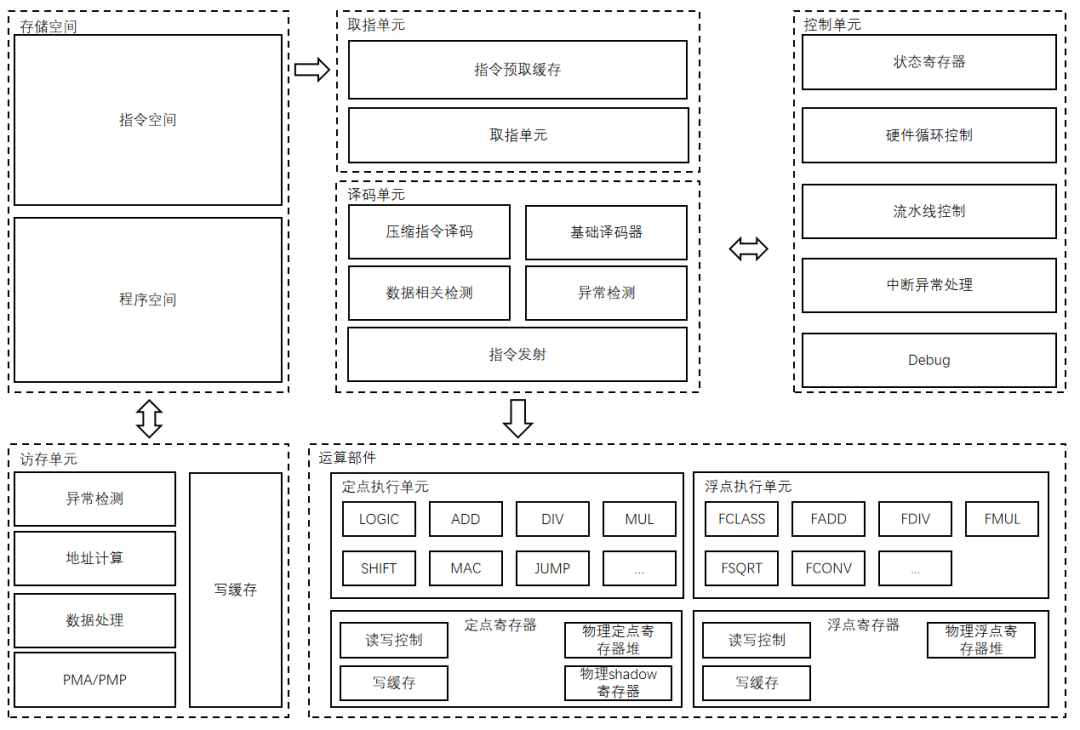

The structural block diagram of SpringCore is shown below:
