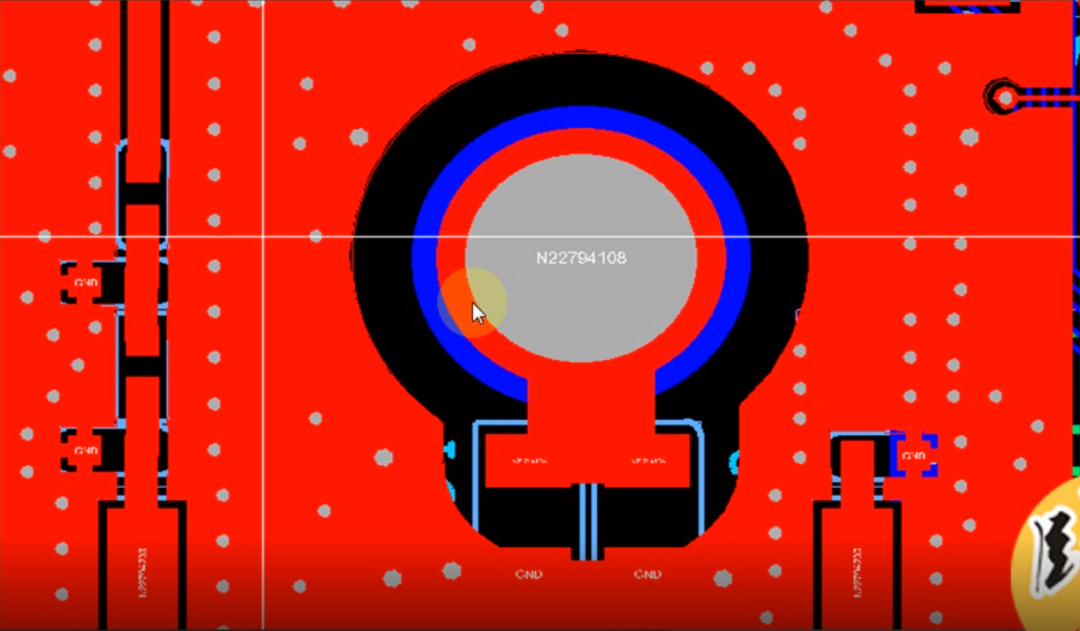

The chassis is made of metal, with a screw hole in the middle, which connects to the ground. Here, a 1M resistor is connected in parallel with a 1nF capacitor to the circuit board ground. What are the benefits of this configuration?In metal chassis devices, the PCB GND (signal ground) is connected to the chassis GND (chassis ground) throughthe parallel connection of a resistor and capacitor (referred to as RC grounding), which is a classic design that balanceselectrical safety,EMC performance, andsignal integrity. What are the advantages of this approach?
Basic Principles
1. Function of the Capacitor: Low Impedance Path for High-Frequency Noise
-
Bypass for High-Frequency Noise:
The metal chassis is prone to coupling external electromagnetic interference (such as RF noise and switching power supply noise). The capacitor (typically 1nF to 100nF) provides a low impedance path for high-frequency noise, directing the interference into the chassis (Faraday cage effect), thus preventing it from affecting the internal circuits;
-
Suppressing EMI Radiation:
The capacitor can reduce the high-frequency noise from the circuit board from leaking out through radiation or conduction, helping to pass EMC tests;
2. Function of the Resistor: Low-Frequency Isolation and Safety Current Limiting
-
Blocking Ground Loop Currents:
If the PCB GND is directly shorted to the chassis, the potential difference between different grounding points can create ground loop currents (such as 50Hz power frequency interference). The resistor (typically 1MΩ to 10MΩ) can block low-frequency loops, avoiding common-mode noise.
-
Safety Protection:
The resistor limits leakage current (such as leakage current from AC mains devices), preventing the risk of electric shock and meeting safety standards (e.g., IEC 60950 requires leakage current < 0.1mA).
-
If there is static electricity or high voltage outside, it can also effectively reduce the current, preventing damage to the chips inside the circuit.
3. Synergistic Effect of RC Parallel Connection
Avoid low-frequency noise introduced by ground loops (such as the “hum” in audio equipment), while not obstructing the return path for high-frequency signals. The capacitor is generally chosen to be 1nF to 100nF, and the resistor is typically 1MΩ to 10MΩ. The RC network should be placed as close as possible to the PCB grounding point, with short and thick capacitor leads, and the chassis grounding point should have low impedance (such as conductive foam).
-
At low frequencies: The resistor dominates (high impedance), blocking ground loops;
-
At high frequencies: The capacitor dominates (low impedance), discharging noise.
-
Balancing Safety and EMC: This approach avoids the risks of direct shorting while addressing the EMI issues caused by complete floating grounds.

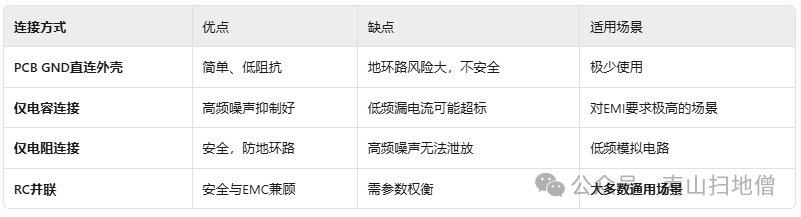

Comparison with Other Grounding Solutions:
