In the PCB industry, “the same FR-4 material has vastly different quotes” is a common confusion among many customers. In fact, the difference is not in the “material name” but in the meticulous control of structural ratios, process management, and material selection. Shenzhen Prin Circuit firmly believes that excellent quality stems from a rigorous attention to every production detail.
Choosing the Right Substrate to Avoid Risks from the Source

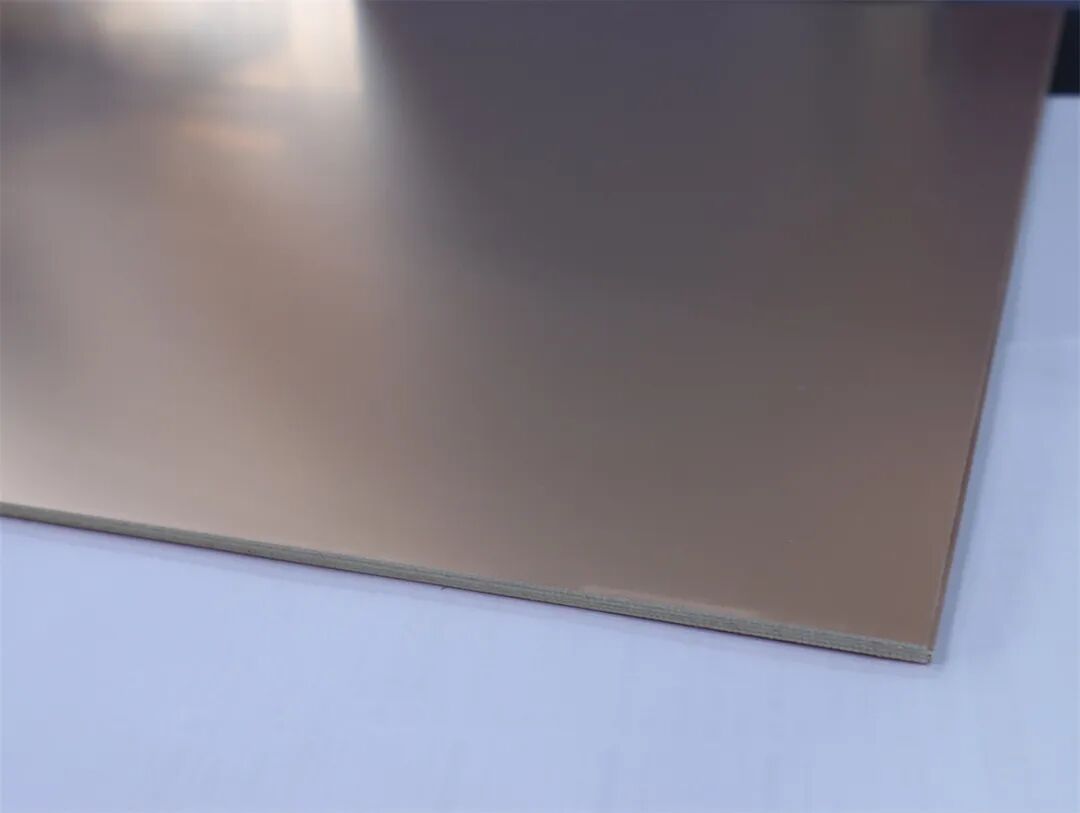

Many manufacturers choose niche brand materials to reduce costs, overlooking their core defects: uneven glass fiber thickness and insufficient resin content can cause the substrate surface to exhibit a noticeable grid pattern, with a rough hole wall exceeding 30% after drilling, leading to potential leakage (CAF issues) during subsequent use, resulting in scrapping and claims;Shenzhen Prin Circuit insists on using high-quality copper-clad laminates from first-line brands, ensuring substrate uniformity through strict selection of copper foil purity, resin content, and glass fiber density. This type of copper-clad laminate, after hot pressing, allows the resin to fully fill the gaps between glass fibers, controlling the roughness of the hole walls to within half of the industry standard, thereby reducing leakage risk by over 90% from the source, especially suitable for high-precision scenarios such as industrial control, automotive electronics, and AI computing.
Material Structure Ratio: The “Hidden Costs” of FR-4
Why do seemingly identical FR-4 materials have such a large price difference? The core lies in the structural differences in copper foil thickness, resin content (RC value), and prepreg (PP) configuration.
Conventional FR-4 often uses 1oz copper foil + low RC value resin, but frequently encounters CAF short circuit issues and poor signal transmission stability;
Shenzhen Prin Circuit, addressing high-end demands, selects high-purity copper foil + high RC value resin, paired with customized PP sheets, resulting in material costs that are 1.5 times higher than conventional options, but with more stable dielectric performance, meeting the 8Gbps high-frequency signal transmission requirements;
In multilayer board production, precise control of glue flow (RF%) increases interlayer bonding strength by 40%, improving yield from the industry average of 85% to over 98%, significantly reducing rework losses.
Meticulous Process: Precision Control of Small Holes + Plating Upgrades, Details Determine Accuracy
The core of PCB accuracy lies in the “holes” and “plating” processes, and Shenzhen Prin Circuit’s control standards far exceed industry norms:
Small Hole Processing: Shortened Lifespan and Increased Grinding, Tolerance Locked at ±1mil
As electronic devices become smaller, micro-holes of 0.15-0.3mm have become a high-frequency demand, and the lifespan of drill bits and the number of grindings directly determine hole diameter accuracy. Most factories on the market extend drill bit lifespan to 3000 holes to reduce material costs, with grinding times reaching 3 times or more—however, each additional grinding increases the concentricity deviation of the drill bit by 0.008mm, leading to a 22% probability of exceeding the hole diameter deviation after continuous use, severely affecting the reliability of component soldering.

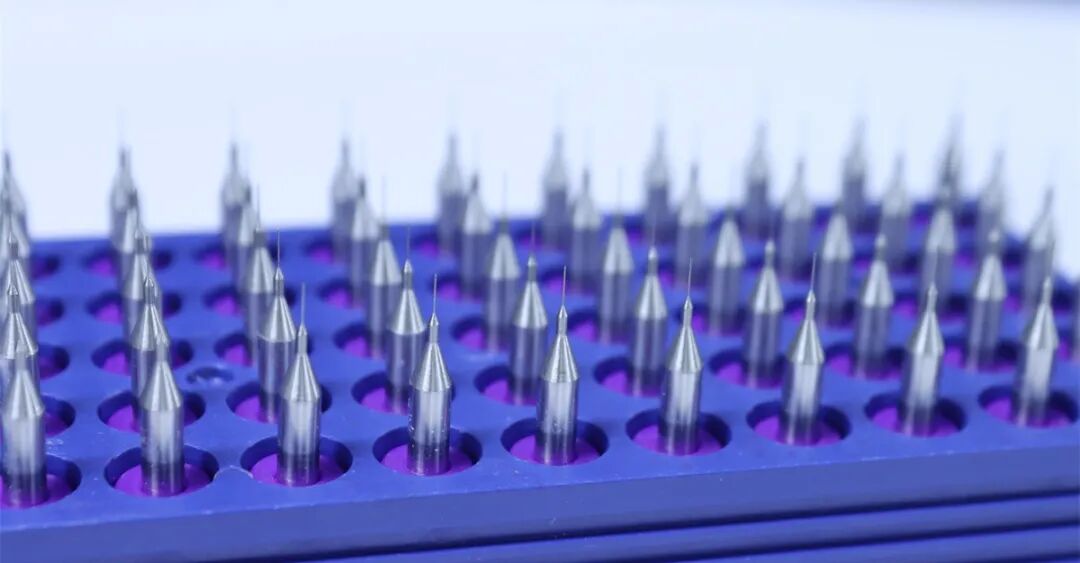

Shenzhen Prin Circuit takes the opposite approach, strictly controlling drill bit lifespan to within 2000 holes, with only 2 grinding times. Through a combination strategy of “short lifespan + less grinding” and real-time hole diameter monitoring systems, micro-hole tolerances are accurately locked at ±0.01mm, far exceeding the industry standard of ±0.03mm, with small hole processing yield stabilized at over 99.5%, providing core assurance for the stable operation of high-density PCBs.
Plating Process: First-Line Chemicals Ensure Uniformity in Deep Hole Coating, Leading the Industry
Plating is key to the electrical conductivity and corrosion resistance of PCBs, and the quality of chemicals and deep hole plating capabilities directly determine final performance. Some manufacturers on the market choose low-cost plating chemicals to cut costs, resulting in coatings that are prone to pinholes and blisters, and when faced with a high difficulty hole depth ratio of 8:1, the uniformity of the hole wall coating often falls below 60%, leading to local overheating and burning due to uneven current distribution during use.
Shenzhen Prin Circuit insists on using first-line brand plating chemicals, whose special additive formulas effectively improve the crystallization state of the coating. Shenzhen Prin Circuit can stabilize the uniformity of hole wall coatings at over 85%, with coating thickness deviation ≤8μm, achieving a hole diameter ratio of 20:1, and salt spray test corrosion resistance lasting over 96 hours, far exceeding the industry standard of 48 hours, ensuring stable conductivity even in harsh environments.
From Details to the Big Picture: Shenzhen Prin Circuit’s Quality Obsession
There are no shortcuts to PCB quality; every material choice and precise control of process parameters is a response to customer trust. Shenzhen Prin selects first-line brands for everything from substrates to drill bits to plating chemicals, while strictly adhering to standard parameters, transforming structural ratios, process details, and material selections into quantifiable quality advantages.
For customers pursuing long-term stability, the value of PCBs is not about “low prices” but about “fewer problems and long-term reliability.” Shenzhen Prin Circuit controls quality through details and safeguards cooperation with professionalism, ensuring that every PCB becomes a “reliable foundation” for customer products.
