3D Printing
The working steps of a 3D printer are as follows: use CAD software to create an object. If you already have a model, such as an animal model, a character, or a miniature building, you can use that as well. Then, copy it to the 3D printer via an SD card or USB drive, set up the printing parameters, and design a complete three-dimensional model on the computer before printing it out.
3D Printing
Similar to laser forming technology, 3D printing uses layered processing and additive manufacturing to complete the 3D solid printing. The printing process of each layer consists of two steps. First, a layer of special glue is sprayed onto the area that needs to be formed. The glue droplets are very small and do not spread easily. Then, a layer of uniform powder is sprayed. The powder quickly solidifies and bonds upon contact with the glue, while the areas without glue remain loose. In this way, alternating layers of glue and powder will ‘print’ the solid model. Once printing is completed, simply remove the loose powder to ‘carve’ out the model, and the remaining powder can be recycled.
3D Printing Seems Complex, But It’s Quite Simple
After watching many videos and models of 3D printing, you will be amazed by its magical cloning ability; it is truly astonishing, like a magical cloning machine. So how does this high technology actually work?
When it comes to its principle, it is not complicated at all. Its operating principle is fundamentally the same as that of traditional printers, using a nozzle to ‘grind’ the material layer by layer. However, instead of ink, 3D printing uses liquid or powder as the ‘printing material’, employing techniques like photopolymerization and layer stacking for rapid prototyping. Controlled by a computer, the ‘printing material’ is stacked layer by layer, ultimately turning the blueprint from the computer into a physical object.
The working steps are as follows: use CAD software to create an object. If you have a ready-made model, such as an animal model, a character, or a miniature building, you can copy it to the 3D printer via an SD card or USB drive. After setting up the printing parameters, the printer can print them out. The decomposition diagram of its working structure is shown below. The working principle of a 3D printer is fundamentally the same as that of a traditional printer, consisting of control components, mechanical components, print heads, consumables, and media. The printing principle is identical. The 3D printer primarily designs a complete three-dimensional model on the computer before proceeding to print it out.

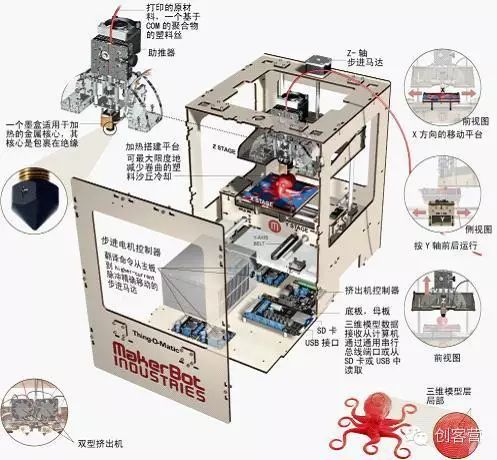

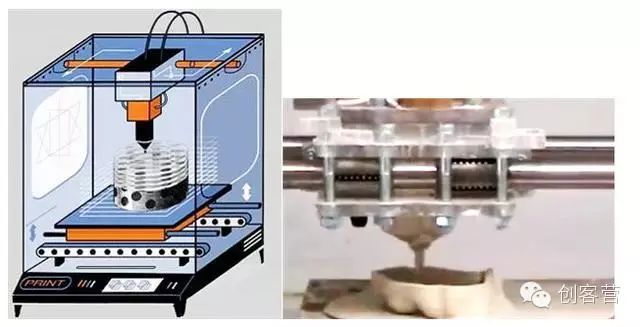

Structure Anatomy and Working Principle Diagram of 3D Printers
Similar to laser forming technology, 3D printing uses layered processing and additive manufacturing to complete the 3D solid printing. The printing process of each layer consists of two steps. First, a layer of special glue is sprayed onto the area that needs to be formed. The glue droplets are very small and do not spread easily. Then, a layer of uniform powder is sprayed. The powder quickly solidifies and bonds upon contact with the glue, while the areas without glue remain loose. In this way, alternating layers of glue and powder will ‘print’ the solid model. Once printing is completed, simply remove the loose powder to ‘carve’ out the model, and the remaining powder can be recycled.

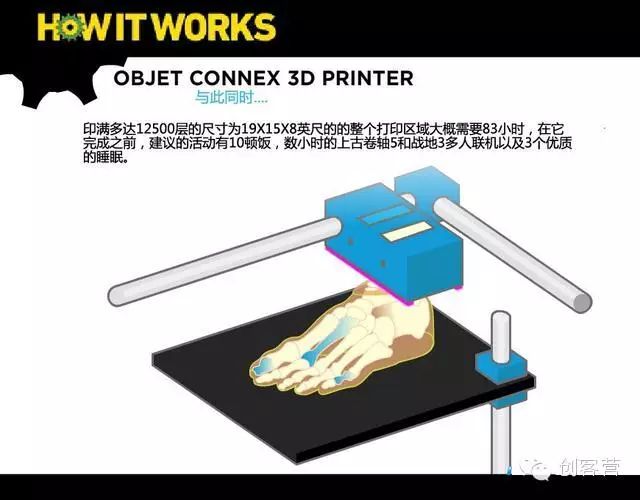

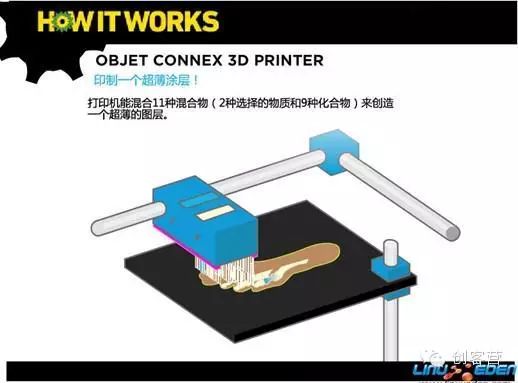

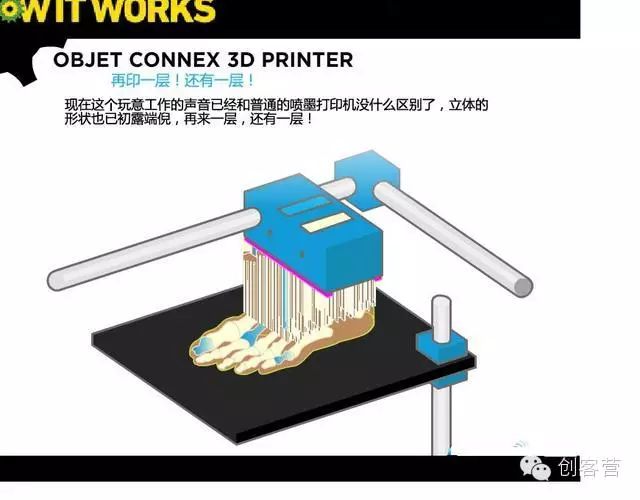

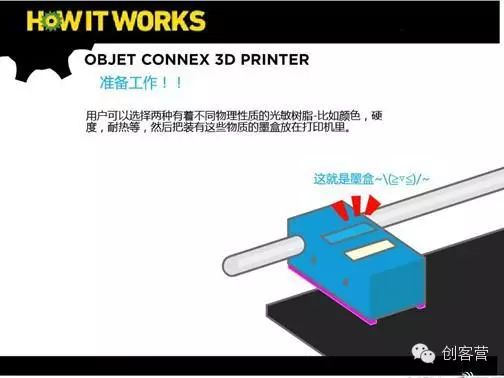

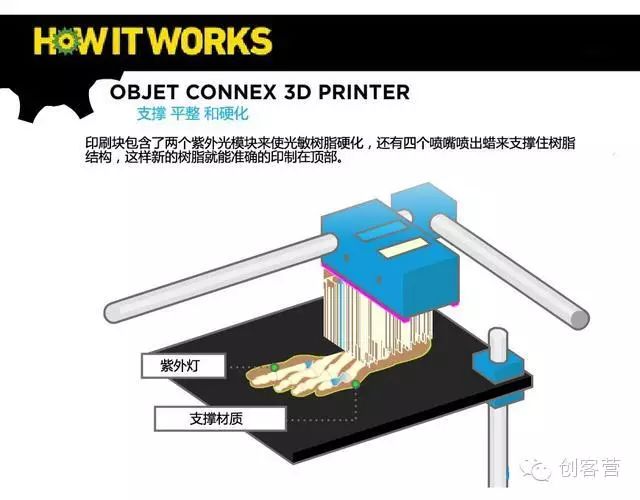

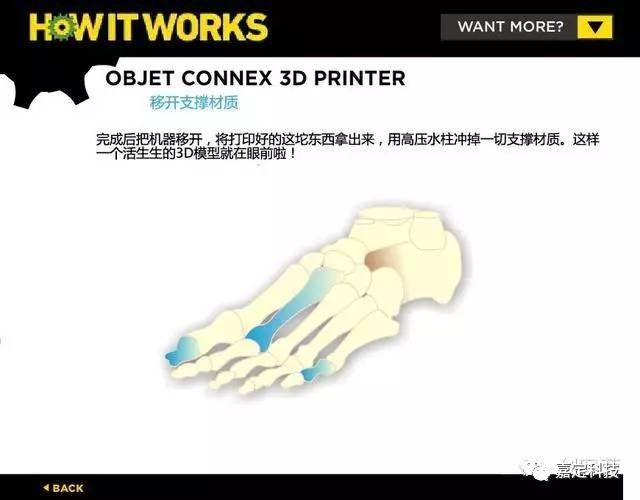

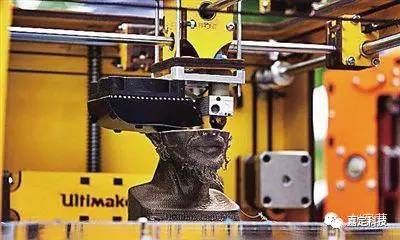

Now, let’s take a look at the actual process of 3D printing:
Source: Science Society
