Introduction
In the world of PLC programming, do you often encounter the frustration of completing the same task in a day while others finish it in half a day? In fact, aside from differences in software proficiency, the correct methods and tool usage habits are often the key to efficiency gaps. Today, we will share 4 practical tips in TIA Portal software to help you significantly improve programming and debugging efficiency, making your work much more effective!

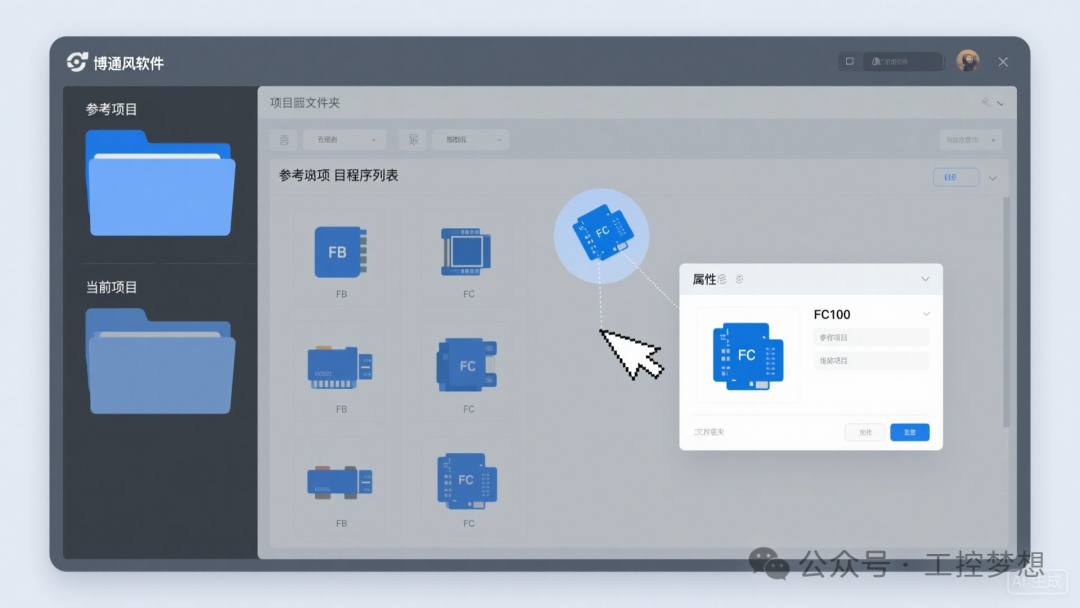

Tip 1: Reference Projects – Programming on the Shoulders of Giants
When you need to write a program with similar functionality, there is no need to start from scratch. The “Reference Projects” feature in TIA Portal allows you to directly reuse mature code from existing projects, greatly reducing repetitive work.
Steps:
- Open TIA Portal software, right-click on “Add Reference Project” in the project manager
- Select the project file you want to reference and click “Open”
- In the left project tree, drag and drop the program blocks (such as FC, FB) from the reference project into the current project
Why is it efficient?
- Avoid rewriting the same logic, saving over 60% of basic development time
- Reuse verified mature code, reducing debugging risks
- Especially suitable for developing programs for highly standardized equipment

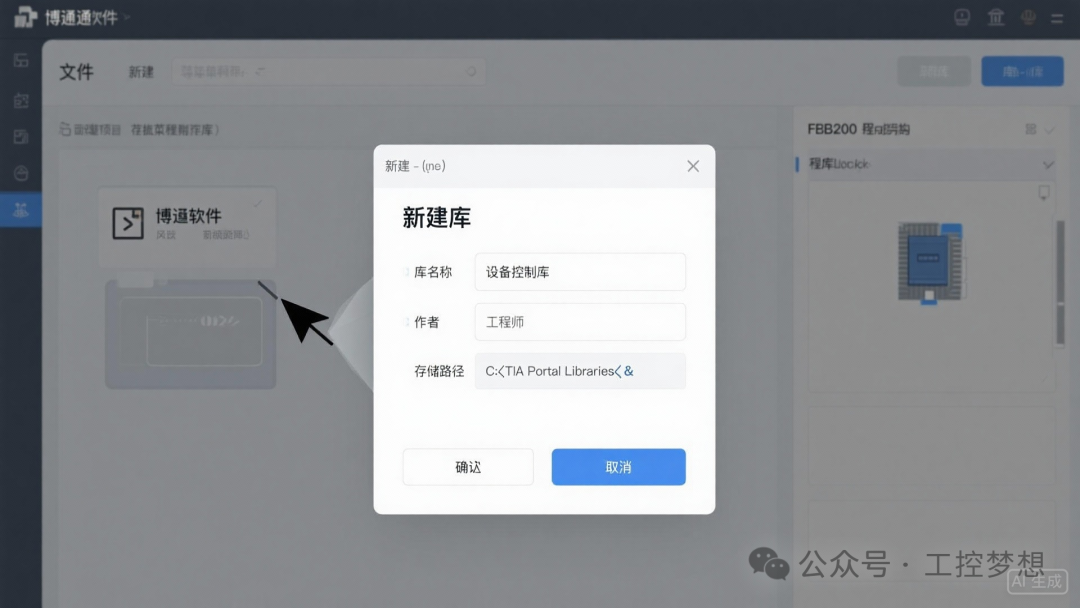

Tip 2: Project Library – Build Your Own Program Asset Library
Well-written standardized program blocks (such as cylinder control, analog processing, servo drive) should not be limited to a single project. Use the “Project Library” feature to encapsulate these modules into reusable assets, achieving knowledge retention and iterative optimization.
Steps:
- Click the menu bar **”File” → “New” → “Library”**, to open the new library dialog
- Enter the library name (e.g., “Device Control Standard Library”), select the storage path, and click “OK”
- Drag and drop the written FB/FC program blocks directly into the global library folder
- When using in other projects, load it through the “Open Library” feature
Practical Scenarios:
- Establish a company-level standardized program library to unify programming specifications
- Create dedicated function libraries for specific industry processes (such as packaging, machine tools)
- Support version iteration, benefiting all subsequent projects with each optimization

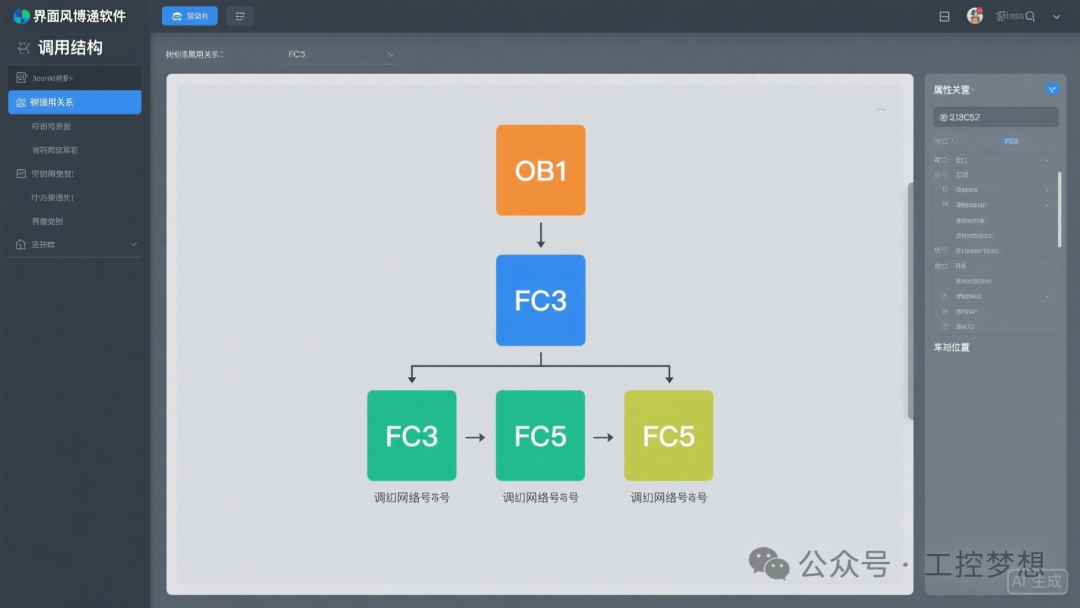

Tip 3: Call Structure – Clarify Complex Program Frameworks in 5 Minutes
When the number of program blocks exceeds 20, manually sorting out the calling relationships can become exceptionally difficult. The “Call Structure” feature can automatically generate a program block call tree, allowing you to see the entire project’s logical framework at a glance.
How to Use:
- Select the organizational block (such as OB1) you need to analyze in the project tree
- Click the menu bar **”View” → “Call Structure”**
- The system automatically generates a tree call relationship diagram, clearly displaying the hierarchical calling relationships
Debugging Value:
- Quickly locate faulty blocks: trace back the source of the problem through the calling path
- Optimize program architecture: identify redundant calls and circular dependencies
- When newcomers take over a project, they can understand the overall logic in the shortest time

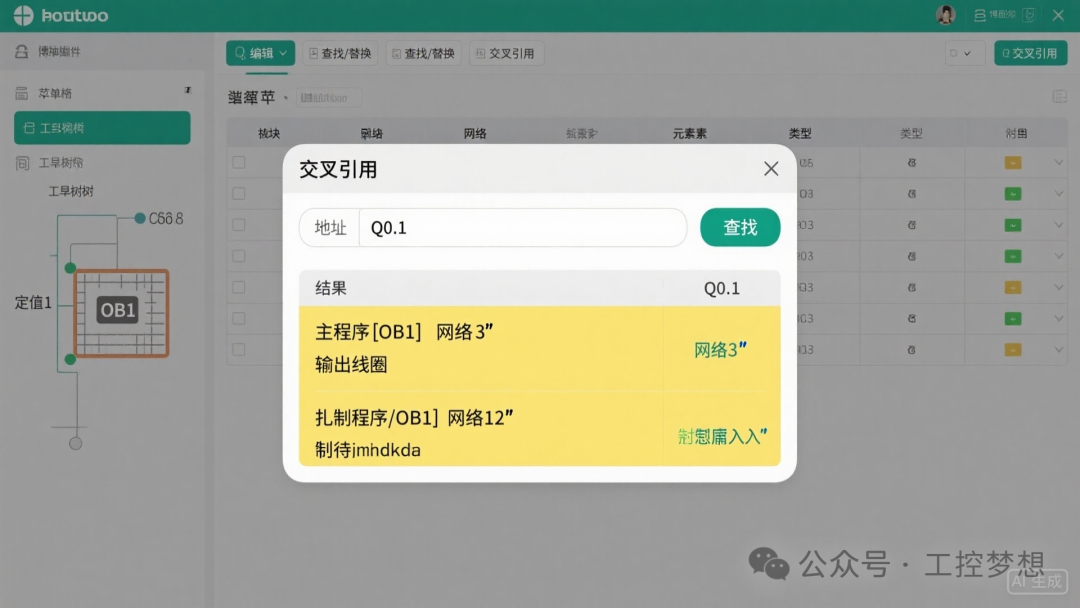

Tip 4: Cross Reference – Locate All Usage Locations of a Variable in 30 Seconds
Can’t find where a certain address (like Q0.1) is used during debugging? The “Cross Reference” feature allows you to say goodbye to the needle-in-a-haystack search and accurately locate all associated program segments of the variable.
Steps:
- Select the target variable or address (like Q0.1)
- Right-click and select **”Cross Reference” → “Show”**
- The system automatically lists all program blocks, network numbers, and instruction types that use that address
Typical Applications:
- When modifying variable addresses, ensure all associated program segments are updated simultaneously
- Investigate faults related to “address being unexpectedly rewritten”
- Clean up redundant variables to optimize program memory usage
Conclusion
The four features of TIA Portal software – Reference Projects, Project Library, Call Structure, Cross Reference – may seem simple but can lead to a qualitative leap in efficiency. Truly efficient PLC engineers not only understand programming logic but also know how to leverage tool features. Starting today, try to incorporate these tips into your daily work, and you will find that programming can be so much easier!
