Simulation Design of a Remote Water Level Monitoring System Based on Microcontroller

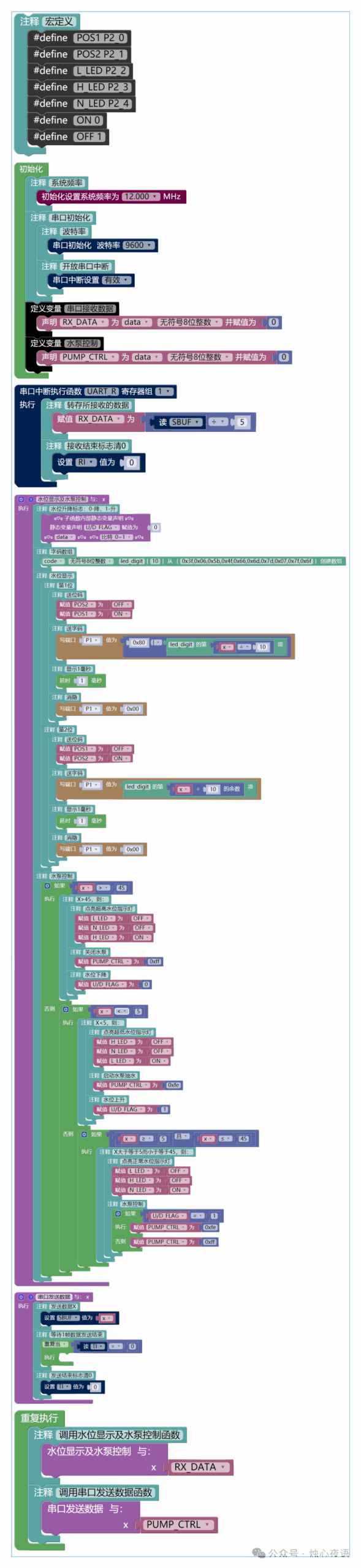

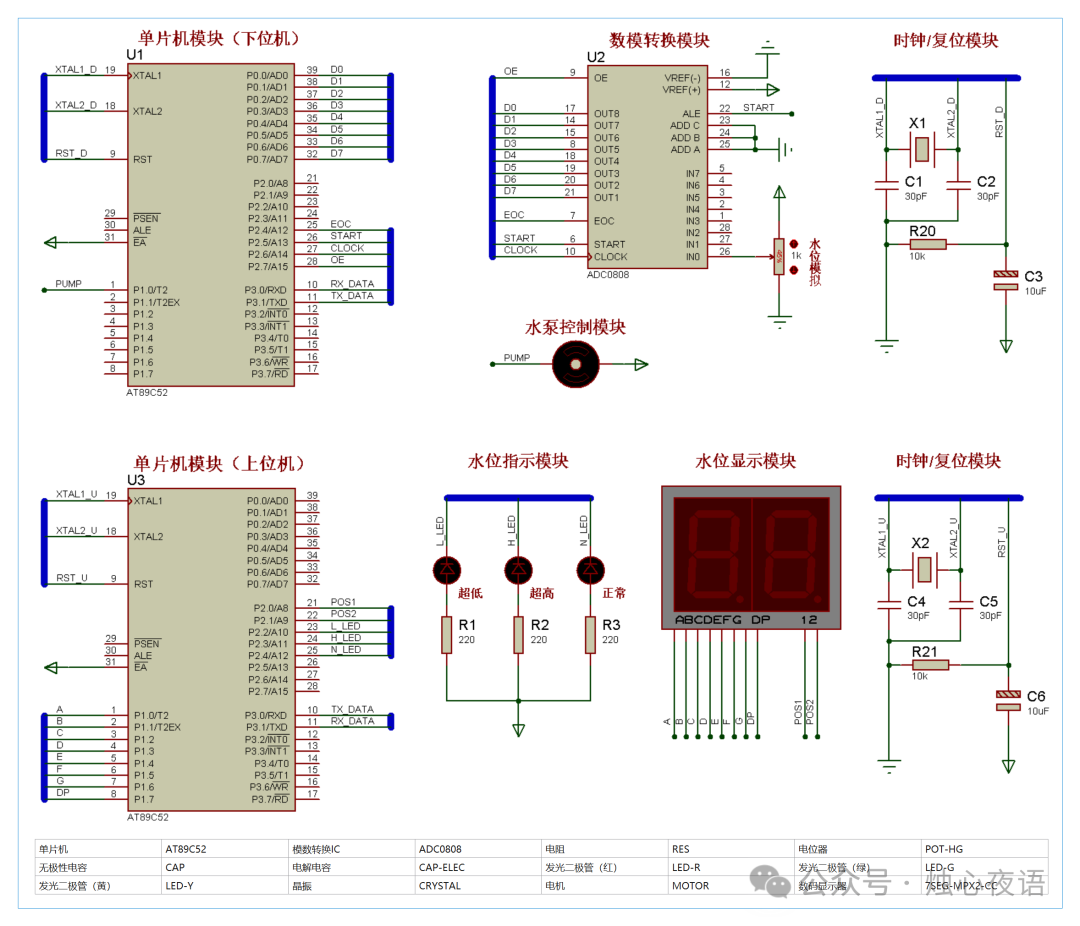

1. Control Requirements1. When the water level in the water tower exceeds 4.5 meters, an ultra-high water level warning is triggered, the ultra-high water level alarm light is turned on, and the water pump operation is immediately stopped;2. When the water level in the water tower is below 0.5 meters, an ultra-low water level warning is triggered, the ultra-low water level alarm light is turned on, and the water pump is started to begin drawing water;3. When the water level in the water tower is between 0.5 meters (inclusive) and 4.5 meters (inclusive), it is determined to be a normal water level, and the normal water level indicator light is turned on.In addition, the water pump operation rules are as follows: the water pump will only continue to operate and draw water when the water level rises from the ultra-low level to the normal level range; in all other cases, the water pump remains in a stopped state.2. Simulation CircuitSimulation Design of a Remote Water Level Monitoring System Based on Microcontroller3. Control Program1. Host Control ProgramSimulation Design of a Remote Water Level Monitoring System Based on Microcontroller2. Slave Control ProgramSimulation Design of a Remote Water Level Monitoring System Based on Microcontroller
