Release of Zephyr SDK Glue v0.5.0

Dear friends following HPMicro, the Zephyr v3.7.0 (LTS) version and hpm_sdk v1.6.0 version of Zephyr SDK Glue v0.5.0 has been officially released.

The repository link is: https://github.com/hpmicro/zephyr_sdk_glue

Zephyr Development Package for HPMicro MCU

Zephyr is a general-purpose embedded real-time operating system with good scalability.Zephyr SDK Glue (abbreviated as ZSG) is an open-source software package developed by HPMicro Semiconductor based on the Zephyr project, covering all adaptation support files for HPMicro chips aimed at Zephyr project development, supporting development on Microsoft Windows, Linux, and macOS platforms.

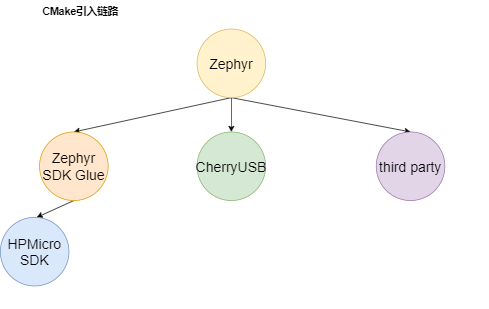

HPM_SDK IntegrationZSG utilizes the extensibility features of Zephyr, packaging itself as a Zephyr submodule to be included in the overall build of the project. Meanwhile, HPM_SDK is introduced by ZSG, forming the build chain of Zephyr - ZSG - HPM_SDK.

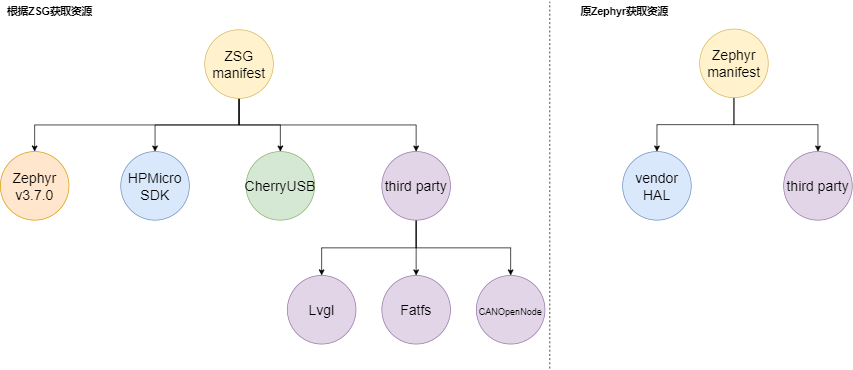

ZSG also serves as a manifest repository for Zephyr, linking to the main Zephyr repository and obtaining verified Zephyr resources, compatible with most Zephyr applications and instances. The build order of the ZSG workspace differs from that of a typical Zephyr project, where the main Zephyr repository fetches the driver files for the SoC and various authorized third-party software libraries, with the driver abstraction layer included in the main Zephyr repository. ZSG builds its workspace starting from itself, fetching the main Zephyr repository and the required third-party software libraries, with the HPMicro driver abstraction layer files included in ZSG.

Zephyr VersionZSG is currently under incremental development and long-term maintenance on Zephyr v3.7.0 LTS. The version of Zephyr bound to ZSG will be updated with the release of new LTS versions.

Zephyr Third PartyZSG introduces third-party libraries from Zephyr, such as CANOpenNode, Lvgl, and Fatfs. In addition, it also includes additional libraries and drivers developed by HPMicro, such as SDCard.

Integration of CherryUSB In addition to implementing Zephyr’s USB driver (UDC), ZSG also provides the CherryUSB protocol stack and integration for HPMicro products, assisting users in developing USB HOST and DEVICE.

ScalabilityZSG supports user-created component integration, suitable for projects and applications of various scales and complexities.

Providing a Simplified Directory As a large open-source project, Zephyr contains a vast amount of code, with various vendors adding extensive code for the characteristics of their chips, which is unnecessary for a specific chip or development board. The chip description files for Zephyr are numerous and scattered across different folders, requiring developers to discern the ownership of files, increasing the development threshold. ZSG provides a mechanism to avoid the above issues, with HPMicro chips having their development files for Zephyr as a separate library, reducing the amount of code downloaded and making files clear at a glance.

Open Source Like Zephyr, ZSG is released as open-source software under the Apache-2.0 License.

Supported Development Boards

HPM6750EVK2
HPM6800EVK

Main Features Provided

Adaptation for the following components and drivers

Communication peripherals: UART, I2C, SPI, PWM, UDC, Ethernet, CAN
Analog peripherals: ADC12, ADC16
Memory peripherals: SDHC
Graphics peripherals: MIPI, LVDS, RGB, Camera
Component classes: CANOpenNode, GUI LVGL, CherryUSB Device/Host, FatFs

Provided the following examples

HPM6750EVK2: GPIO, CAN, Ethernet, PWM, USB, I2C, Video
HPM6800EVK: GPIO, Ethernet, USB, I2C, Display, Video_MIPI

Development Environment

It is recommended to use the Ubuntu system for project building, compiling, and flashing, and the Windows system for code writing and serial port printing.

If you need to support file sharing and editing between Linux and Windows, please install and configure common software such as Samba and Vim appropriately on the Linux device.

Setting Up the Ubuntu Development Environment

Recommended Ubuntu 20.04 64-bit or higher version

Installing Software Dependencies

Install the required software

sudo apt install --no-install-recommends git cmake ninja-build gperf
      ccache dfu-util device-tree-compiler wget\
      python3-dev python3-pip python3-setuptools python3-tk python3-wheel xz-utils file\
      make gcc gcc-multilib g++-multilib libsdl2-dev libmagic1

Confirm the minimum version levels of the tools, mainly for CMake and DTC; if the versions are insufficient, they need to be upgraded.

◦ CMake

・3.20.5

◦ Python

・3.8

◦ Device Tree Compiler

・1.4.6

Building the Work Environment

Install West, add ~/.local/bin to bashrc, ensuring that the terminal has this path in the PATH when starting up.

pip3 install --user -U west
echo 'export PATH=~/.local/bin:"$PATH"' >> ~/.bashrc
source ~/.bashrc

Create the ${workspace} directory and obtain the source code

mkdir ${workspace}
cd ${workspace}
west init -m https://github.com/hpmicro/zephyr_sdk_glue.git --mr main

Obtain the source code of the required repository, defaulting to GitHub; to switch to a domestic source, please enter the first command

west config manifest.file west_gitee.yml
west update

Configure CMake variables

west zephyr-export

Install the Python dependencies required by Zephyr

pip3 install --user -r ~/${workspace}/zephyr/scripts/requirements.txt

Resolve some naming conflicts and add HPM_SDK related patches

west supply

Installing the Zephyr Toolchain Package

Download the Zephyr compilation tools, link: https://github.com/zephyrproject-rtos/sdk-ng/tags/
Command line installation

cd ${workspace}
wget https://github.com/zephyrproject-rtos/sdk-ng/releases/download/v0.16.5/zephyr-sdk-0.16.5_linux-x86_64.tar.xz
wget -O - https://github.com/zephyrproject-rtos/sdk-ng/releases/download/v0.16.5/sha256.sum | shasum --check --ignore-missing
tar xvf zephyr-sdk-0.16.5_linux-x86_64.tar.xz

Configure necessary variables for the toolchain

cd zephyr-sdk-0.16.5
source setup.sh

Downloading and Installing OpenOCD

It is recommended to compile from source, using the default installation path /usr/local/bin/openocd
Download link: https://github.com/hpmicro/riscv-openocd/releases/tag/hpm_xpi_v0.2.0
After extracting, please place the openocd path in /usr/local/bin/openocd for script invocation.

Project Compilation

Viewing the Project

View supported hardware devices

west boards | grep hpm

Compiling Samples

Compile the button sample for hpm6750evk2, the build directory can be placed anywhere in the workspace, recommended to be placed under the Zephyr directory.

◦ -p option, always recompiles, auto does incremental compilation.

cd ${workspace}/zephyr
west build -p always -b hpm6750evk2 samples/basic/button

Flashing and Debugging

1. Firmware flashing

west flash

2. Firmware debugging

west debug

Modifying Software Configuration

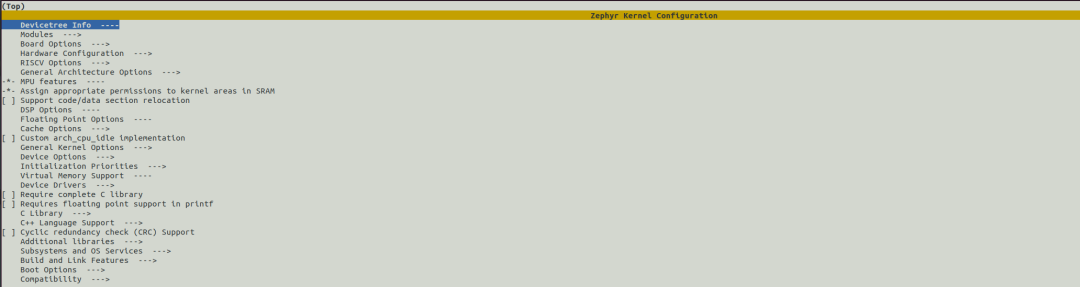

Zephyr configures software options through the Kconfig system, which can be modified through a graphical interface.

west build -t menuconfig

Resource Links

Zephyr Official Documentation Centerhttps://docs.zephyrproject.org/3.7.0/
HPMicro Code Repositoryhttps://github.com/hpmicro

Contact

If you have any questions during development, please ask in the repository [issues] https://github.com/hpmicro/zephyr_sdk_glue/issues .
