As Bluetooth versions continue to evolve, most users prefer Bluetooth 5.0, and major chip manufacturers have successively launched stable versions of Bluetooth 5.0 chips..
Introduction to TI CC2652RB
01

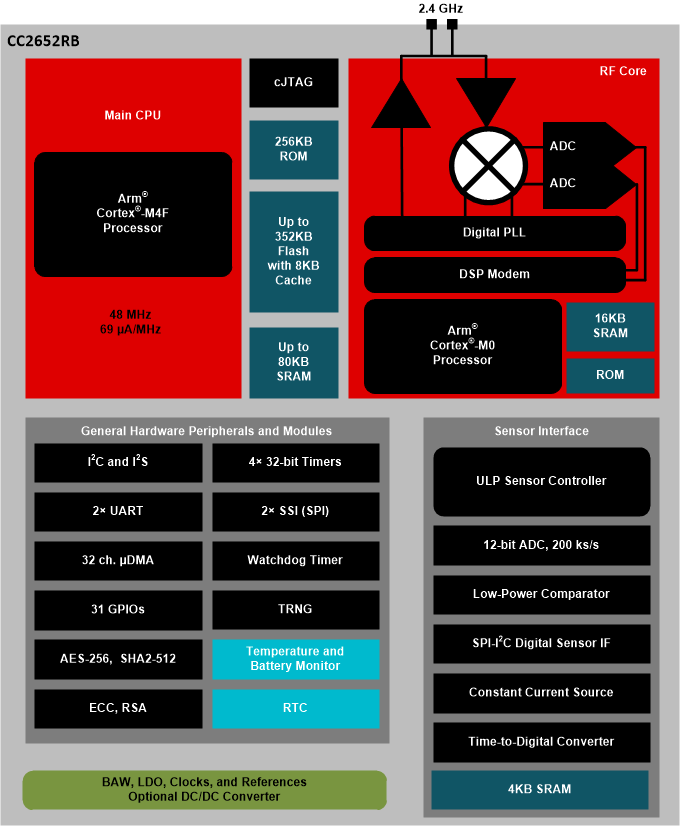

The CC2652RB from TI (Texas Instruments) is a multi-protocol wireless 2.4GHz MCU that supports Thread, Zigbee®, Bluetooth® Low Energy 5.1, IEEE 802.15.4, and IPv6 smart objects (6LoWPAN), along with concurrent multi-protocol operation driven by the Dynamic Multi-Protocol Manager (DMM) software driver. The integrated BAW resonator technology eliminates the need for an external crystal oscillator without affecting latency or frequency stability. The CC2652RB device is optimized for low-power wireless communication and advanced sensing in building security systems, HVAC systems, medical devices, power tools, wired networks, portable electronics, home theater and entertainment, as well as interconnect peripherals.
02
1. Extremely low active RF and MCU currents, with sleep currents below 1µA and up to 80KB of parity-protected RAM retention capability, provide excellent battery life, supporting long-term operation in energy harvesting applications relying on small button batteries.
2. Combines a flexible ultra-low-power RF transceiver with a powerful 48MHz Arm® Cortex®-M4F CPU on a platform that supports multiple physical layers and RF standards.
3. Features an integrated BAW (Bulk Acoustic Wave) resonator for generating RF carriers, eliminating the need for an external 48MHz crystal.
TI 2652RB Features
-
Microcontroller:
a) Powerful 48MHz Arm® Cortex®-M4F processor
b) EEMBC CoreMark® score: 148
c) 352KB of in-system programmable flash memory
d) 256KB ROM for protocols and library functions
e) 8KB cache SRAM (also available as general-purpose RAM)
f) 80KB ultra-low-leakage SRAM. SRAM is protected by parity, ensuring highly reliable operation.
g) Dual-pin cJTAG and JTAG debugging
h) Supports over-the-air (OTA) upgrades
-
RoHS compliant packaging:
a) 7mm × 7mm RGZ VQFN48 (31 GPIO)
-
Low Power:
a) Wide power supply voltage range: 1.8V to 3.8V
b) Active mode RX: 7.3mA
c) Active mode TX: 7.9mA
d) Active mode MCU 48MHz (CoreMark):
e) 3.4mA (71µA/MHz)
f) Sensor controller, low power mode, 2MHz, running infinite loop current: 30.8µA
g) Sensor controller, active mode, 24MHz, running infinite loop current: 808µA
h) Standby current: 0.9µA (RTC running, 80KB RAM and CPU retained)
Modular Wireless Solutions
Shengrun Technology, as an industry-leading wireless solution provider, has launched the Bluetooth 5.0 module HY-52RB01 C based on the TI CC2652RB Bluetooth chip. It features excellent performance, low power consumption, high reception sensitivity, long transmission distance, and supports SPI/UART/TWI communication protocols, with a compact package. The product can be well integrated into customer products while meeting the rapid reprogramming needs for Bluetooth products. It can be widely used in wearable devices, smart homes, industrial applications, and IoT devices.

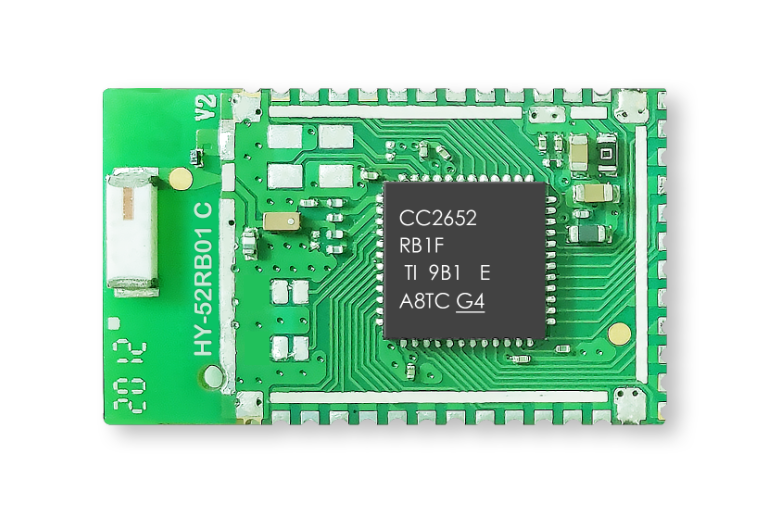

▲Shengrun Technology HY-52RB01 C
HY-52RB01 C is a next-generation Bluetooth 5.0 module independently developed by Shengrun Technology, backward compatible with Bluetooth 4.2 and Bluetooth 4.0 protocols, with serial Bluetooth data transparent transmission, and the main control chip uses the TI CC2652RB Bluetooth 5.0 chip.
The software advantages of HY-52RB01 C are based on the Bluetooth 5.0 protocol architecture, significantly improving data transmission speed and encryption capabilities. Developers can modify the module name through AT commands, enter and exit AT command mode, set the module broadcast period, serial transmission baud rate, query the module MAC address, check connection signal strength, and query the module’s underlying software version, making it very convenient for developers to create their own products based on their needs.
The hardware advantages of HY-52RB01 C include an ultra-compact Bluetooth module package. With ultra-low power consumption, it maximizes the use of limited battery resources for extended usage time. Its ultra-small package size saves PCB space for developers. An industrial-grade Bluetooth module with a wide operating temperature range of -40℃ to +85℃, suitable for various harsh application environments.
HY-52RB01 C supports connections with Android, iOS devices through apps, mini-programs, etc., and can be widely applied in 2.4G low-power Bluetooth systems for data collection, transmission, and control, improving operational reliability, and solving control and data collection issues for different electronic products, thus maximizing battery life.
Functions and Applications
● Serial data transparent transmission;
● Lowest power consumption, suitable for battery-powered devices, maximizing battery life;
● Minimal packaging, saving design space for customers;
● Industrial-grade, -40℃ to +85℃, wide operating temperature range, suitable for various harsh application environments.
Bluetooth 5.0 has higher data transmission rates and lower system power consumption compared to Bluetooth 4.2, while also optimizing navigation functions, offering stronger anti-interference capabilities, which can lead to lower system implementation costs and greater market potential. Compared to Wi-Fi transmission, the advantages of Bluetooth transmission are energy efficiency, high security, high compatibility, longer effective range, and lower costs, hence Bluetooth 5.0 will maintain stronger competitiveness in the coming years.
The Shengrun Bluetooth 5.0 module HY-52RB01 C can be widely used in smart homes, smart medical, consumer electronics, street lamp lighting, flower cultivation, automotive electronics, charging/replacement piles, and various other fields. Users needing more Bluetooth 5.0 technical support can visit the Shengrun Technology official website to download or consult online customer service for assistance from professional engineers in selecting models!
*Shengrun HY-52RB01 Module*
