Main Functions of the Motor Soft Starter SSD1-100-E/C

The motor soft starter SSD1-100-E/C is a high-tech electrical device specifically designed for motor startup. It achieves a smooth startup by gradually increasing the voltage and current during motor initiation, thereby reducing mechanical shock and load on the power grid. Below is a detailed analysis of the SSD1-100-E/C motor soft starter:

Model Analysis

  • SSD1: This may be the manufacturer’s identifier or series name.
  • 100: Indicates the rated power of the motor, referring to 100 kilowatts (kW).
  • E/C: This may indicate the rated voltage of the motor and special functions or configurations.

Technical Parameters

  1. Rated Power: The SSD1-100-E/C soft starter is suitable for motors with a rated power of 100kW.

  2. Rated Voltage: E/C may indicate the rated voltage of the motor, which needs to be determined based on the actual model, possibly 380V, 460V, etc.

  3. Starting Characteristics: The soft starter may provide various starting curves, such as S-curve, J-curve, etc., to adapt to different load conditions and starting requirements.

  4. Protection Features: It may include overload protection, short circuit protection, undervoltage protection, and various other protective functions.

Functional Features

  • Smooth Start: Achieves a smooth motor startup by gradually increasing voltage and current, reducing mechanical shock during startup.

  • Energy Saving: The soft starter can reduce the peak current during motor startup, thereby lowering energy consumption.

  • Extended Motor Life: Reduces mechanical stress during startup, extending the motor’s lifespan.

  • Grid Protection: Reduces grid impact during startup, protecting grid stability.

  • Easy Installation and Maintenance: Simple design, convenient installation, and straightforward maintenance.

Application Scenarios

  • Industrial Production: Suitable for factories, workshops, and other industrial production environments to control the startup of various industrial motors.

  • Commercial Buildings: Suitable for shopping malls, office buildings, and other commercial buildings to control the startup of motors for air conditioning, elevators, etc.

  • Agricultural Sector: Suitable for agricultural machinery, such as pumps, fans, and other motor startups.

Precautions

  • Installation: Follow the manufacturer’s installation guidelines to ensure correct connections.

  • Configuration: Select appropriate starting curves and protection parameters based on the motor’s rated power and load characteristics.

  • Maintenance: Regularly check the status of the soft starter to ensure its normal operation.

Conclusion

The SSD1-100-E/C motor soft starter is a startup control device suitable for medium to large motors, providing a smooth and energy-efficient startup process. Electrical engineers and equipment managers should ensure that its specifications match the motor’s rated parameters and follow correct installation and maintenance procedures when using the SSD1-100-E/C. By using a soft starter, the efficiency and safety of motor startups can be improved while reducing damage to the power grid and the motor.

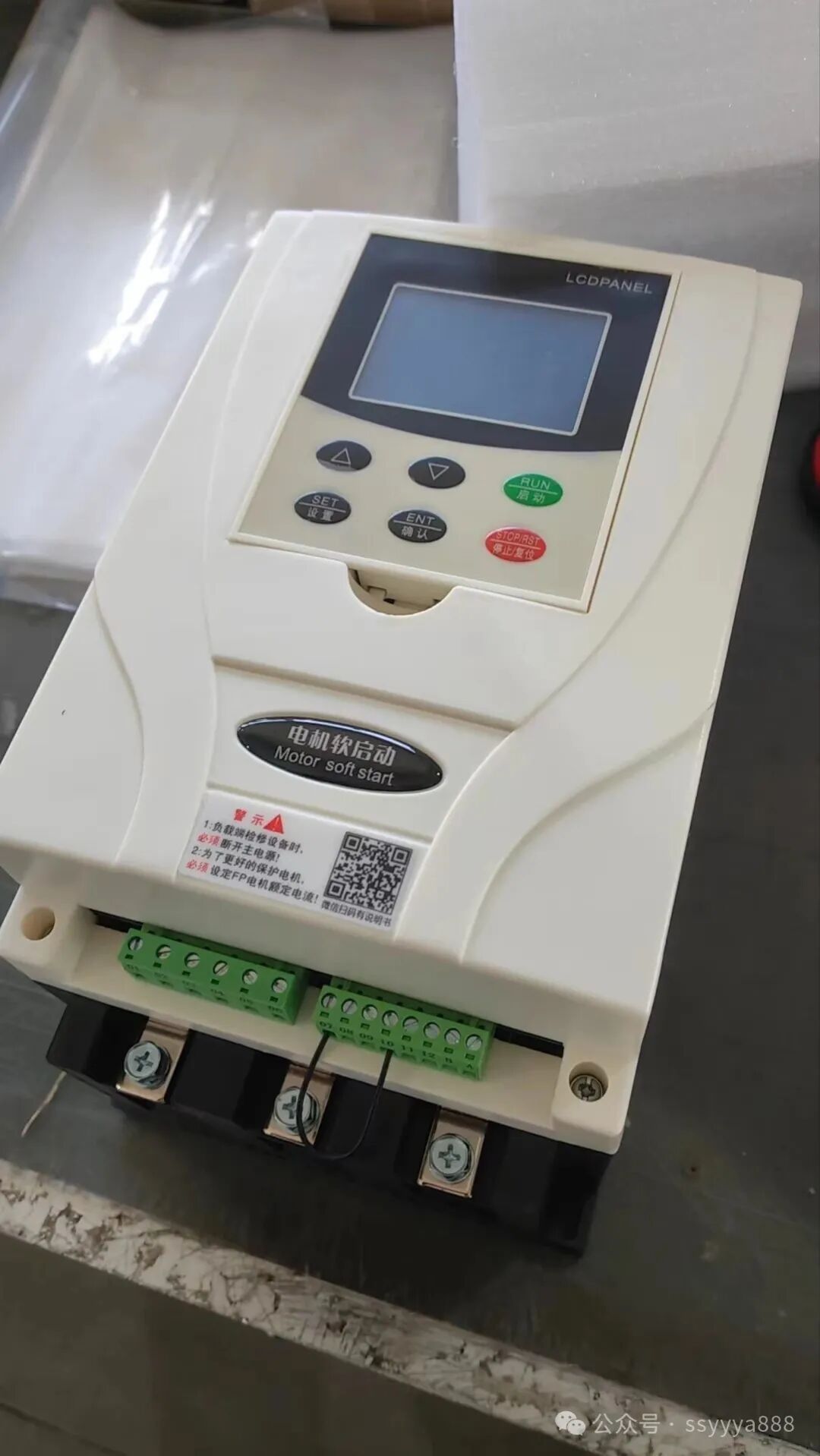

Main Functions of the Motor Soft Starter SSD1-100-E/C
