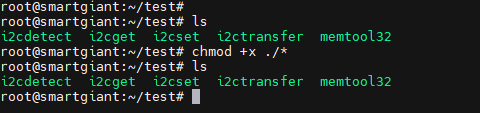

1. First, download the i2c-tool and memtool32 tools directly to the development board for use:
2. i2cdetect command: This command is used to scan for devices on the i2c bus of the board

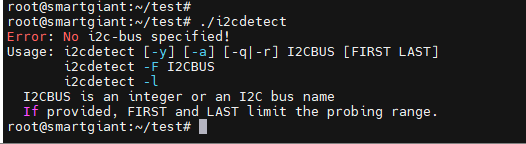

Input ./i2cdetect to display the syntax operation instructions for the i2cdetect command
Parameter Description:
Parameter y: Disable interactive mode; when using this parameter, no warning messages will be prompted.
Parameter a: Scan all devices on the bus.(I generally use -y instead of -a to scan devices)
Parameter q: Use the SMBus ‘quick write’ command for detection; this parameter is not recommended.
Parameter r: Use the SMBus ‘receive byte’ command for detection; this parameter is not recommended.
Parameter i2cbus: Specify the number of the i2c bus
Parameters first, last: Address range to scan

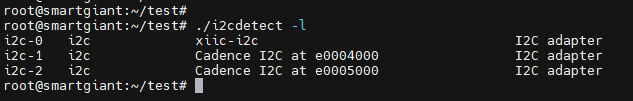

Input ./i2cdetect -l to scan how many i2c devices are mounted on the board, as shown below, there are 3 i2c devices

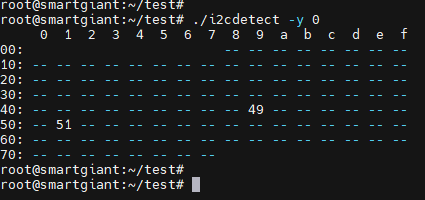

Input ./i2cdetect -y 0, which indicates that there are two devices mounted under /dev/i2c-0, with addresses 0x49 and 0x51 respectively
3. i2cget command: Read the value of a specific register; the register address can only be 8-bit.

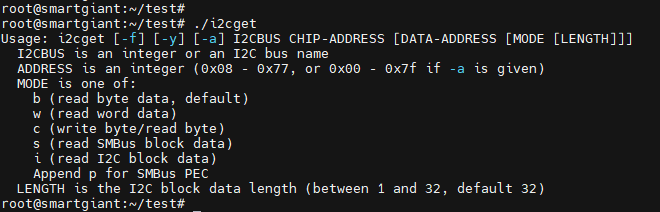

Input command ./i2cget to display the syntax operation instructions for the i2cget command
Parameter Description:
Parameter f: Force access to the device.
Parameter y: Disable interactive mode; when using this parameter, no warning messages will be prompted.
Parameter i2cbus: Specify the number of the i2c bus
Parameter chip-address: The i2c device address
Parameter data-address: The address of the device’s register
Parameter mode: Specify the size to read, which can be b, w, s, or i, corresponding to byte, word, SMBus block, I2C block.
Input ./i2cget -f -y 0 0x49 0x00, which indicates reading the value of the 0x00 register at the device address 0x49 on the /dev/i2c-0 bus
4. i2cset command: Write a value to a specific register; the register address can only be 8-bit
Input ./i2cset -f -y 0 0x49 0x00, which indicates writing the value 0x00 to the 0x00 register at the device address 0x49 on the /dev/i2c-0 bus
5. i2ctransfer command: Can read and write multi-byte register addresses. i2ctransfer can replace i2cset and i2cget

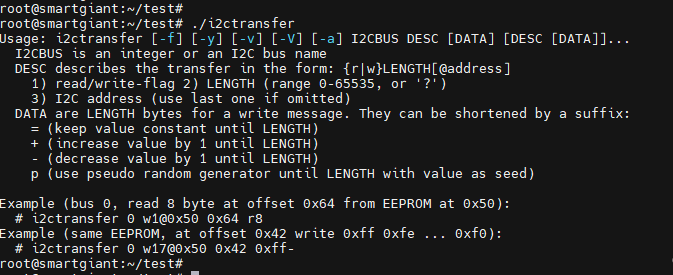

Input command ./i2ctransfer to display the syntax operation instructions for the i2ctransfer command
Parameter Description:
Parameter f: Force access to the device.
Parameter y: Disable interactive mode;
Parameter v:
Parameter a: Allow addresses 0x00-0x07 and 0x78-0x7f
Parameter i2cbus: Specify the number of the i2c bus
……
6. Using the memtool tool to directly manipulate register values through addresses:

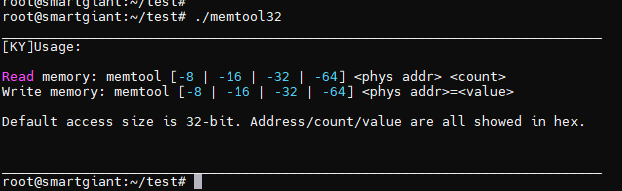

Input ./memtool32 to display the syntax operation instructions for the memtool32 command

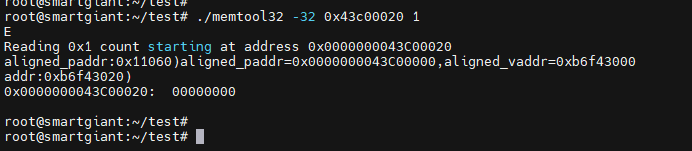

Input ./memtool32 -32 0x43c00020 1, which indicates reading the value of the register address 0x20 under the device base address 0x43c00000.
(At this time, the value read is from back to front; for example, if the value read is 03020100, then the value of 0x20 is 0x00, the value of 0x21 is 0x01, and so on…)
Input ./memtool32 -32 0x43c00020=0x00, which indicates writing the value 0x00 to the register address 0x20 under the device base address 0x43c00000. The value written is a 32-bit data; if you want to write a value of a different data width, just modify it accordingly in front.
