1. Introduction

Process state is an integer within task_struct; Running: the process is in the scheduling queue, and its state is running; Blocked: waiting for a device or resource to be ready. A process is a queue, and a device is also a queue. When we read from the disk or network card, if the corresponding device is not ready, the process must block and wait. One manifestation of process state changes is the flow between different queues, which is essentially about adding, deleting, querying, and modifying data structures!

Understanding Kernel Linked Lists

Linux Process States (Zombie Processes, Orphan Processes), Priority and Scheduling Mechanisms — Insert image description here

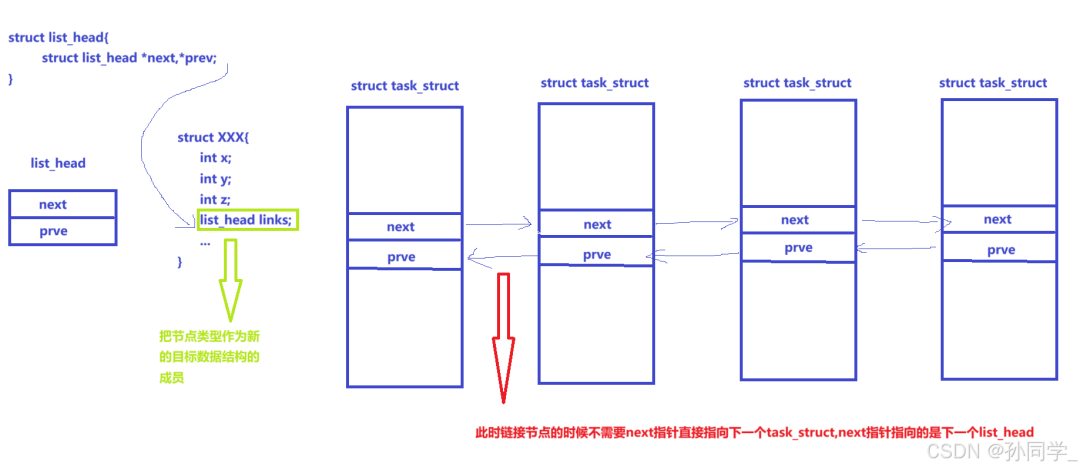

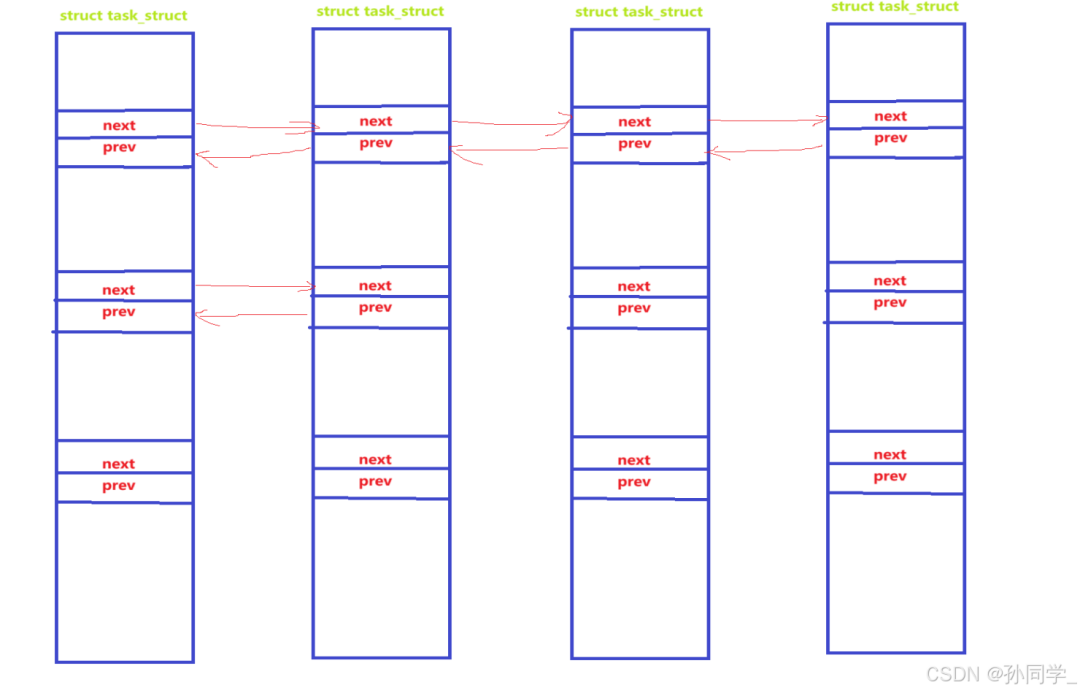

If a class has multiple next and prev, then any task_struct can belong to both the run queue and the global linked list, and can also be placed in a binary tree, etc.

2. Process States

A process can have several states (in the Linux kernel, a process is sometimes also called a task).

The following states are defined in the kernel source code:

/*
*The task state array is a strange "bitmap" of
*reasons to sleep. Thus "running" is zero, and
*you can test for combinations of others with
*simple bit tests.
*/
static const char *const task_state_array[] = {
    "R (running)", /*0 */
    "S (sleeping)", /*1 */
    "D (disk sleep)", /*2 */
    "T (stopped)", /*4 */
    "t (tracing stop)", /*8 */
    "X (dead)", /*16 */
    "Z (zombie)", /*32 */
};

R Running or Runnable

State Description: The process is executing on the CPU or waiting in the run queue for scheduling.

Trigger Scenario: The process is active, executing or ready to execute.

S Interruptible Sleep

State Description: The process is waiting for an event to complete (such as I/O operations, signals), and can be interrupted by signals.

Trigger Scenario: For example, when calling sleep(), read(), and other blocking operations.

D Uninterruptible Sleep

State Description: The process is waiting for an uninterruptible operation (such as hardware I/O), and does not respond to signals.

Trigger Scenario: Commonly occurs during disk I/O or certain kernel operations that require waiting for completion.

T Stopped

State Description: The process is paused by a signal (such as SIGSTOP, SIGTSTP) and needs SIGCONT to resume.

Trigger Scenario: Manually pausing the process (such as pressing Ctrl+Z) or during debugging.

Z Zombie

State Description: The process has terminated, but the parent process has not called wait() to reclaim resources.

Trigger Scenario: The parent process fails to properly handle the exit of the child process, resulting in a lingering process descriptor.

t Tracing Stop

State Description: The process is paused while being traced by a debugger (such as gdb), which is a type of stopped state.

Trigger Scenario: When the debugger sets breakpoints or steps through the code.

X Dead

State Description: After the child process ends, before the parent process retrieves the child process information.

Trigger Scenario: The parent process has reclaimed the child process state, briefly existing before disappearing.

2.1 Viewing Process States

Command:ps aux / ps axj

a: Used to display processes for all users, including those of other users (requires appropriate permissions). By default, ps only shows processes for the current user. For example:ps a

x: Used to display processes without a controlling terminal. These processes are usually background daemon processes. For example:ps x Typically, the ax options are used together to display all processes for all users, regardless of whether they have a controlling terminal. For example:ps ax

j: Used to display information related to job control, including process group ID (PGID), session ID (SID), parent process ID (PPID), and job number (if any). For example:ps j This is helpful for understanding how processes are grouped and job control.

u : Used to display process information in a user-centric format. It provides detailed information for each process, such as user, CPU usage, memory usage, virtual memory size, resident memory size, controlling terminal, process state, start time, CPU time, and command line. For example:ps u Typically, the u option is used with aux to display detailed process information for all users. For example:ps aux

2.2 Zombie Processes

A zombie state(Zombies) is a special state. When a process exits and the parent process (using the wait() system call) has not read the exit code of the child process, a zombie process is created.
A zombie process remains in the process table in a terminated state and will continue to wait for the parent process to read the exit status code.
As long as the child process exits, the parent process is still running, but if the parent process does not read the child process status, the child process enters the Z state.

2.3 Dangers of Zombie Processes

The exit status of a process must be maintained because it needs to inform the concerned process (the parent process) how well the task you assigned to me has been completed. If the parent process does not read it, the child process will remain in the Z state? Yes!
Maintaining the exit status itself requires data maintenance, which is also part of the basic information of the process, so it is stored in task_struct(PCB). In other words, the <code>Z state will not exit, and the PCB must always be maintained? Yes!
If a parent process creates many child processes and does not reclaim them, will it lead to a waste of memory resources? Yes! Because the data structure object itself occupies memory, defining a structure variable (object) in C requires allocating space in memory, which can lead to memory leaks? Yes! How to avoid this? We will discuss later.

2.4 Orphan Processes

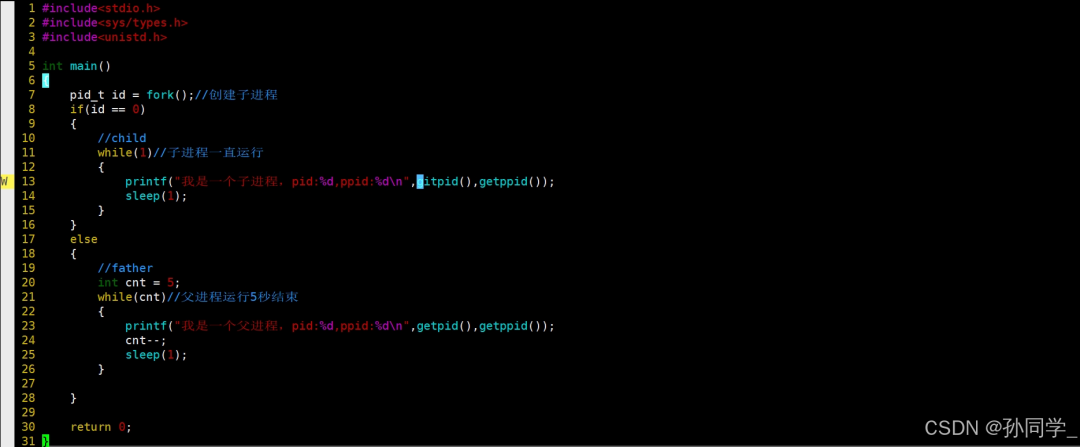

Let’s first create a piece of code

Insert image description here
After the code runs, the child process continues to run, while the parent process exits after 5 seconds

Insert image description here

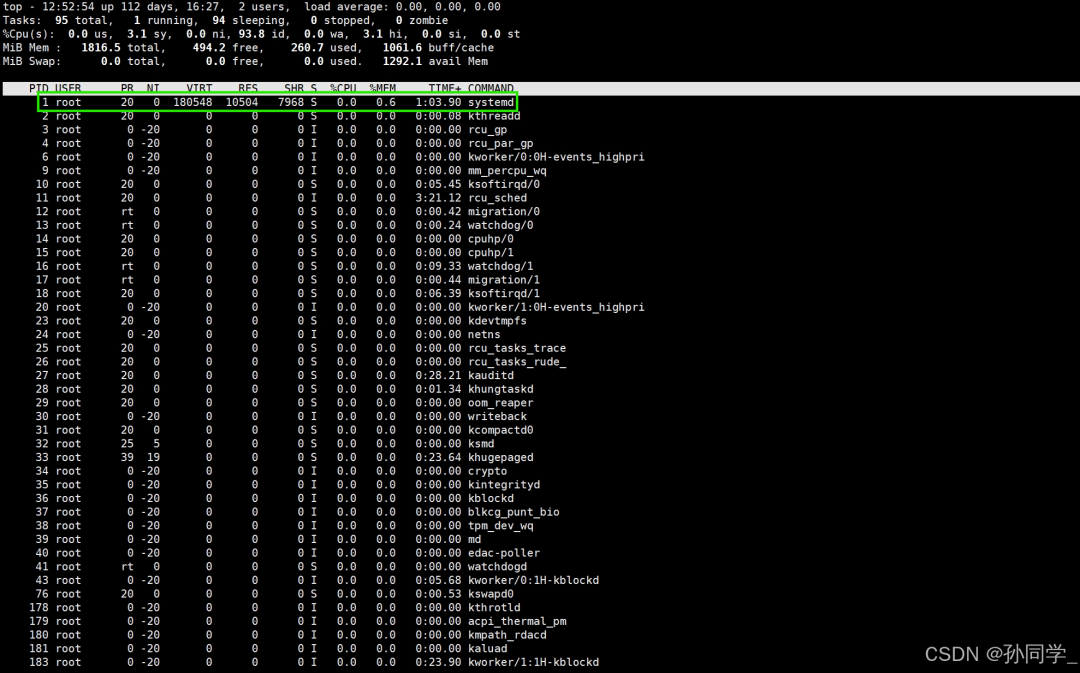

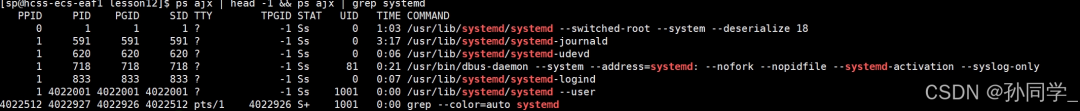

Who is this 1 process? Let’s check with top, and we can see it is systemd

Insert image description here
Let’s continue to check this systemd

Insert image description here
Why does the child process get adopted by the 1 (systemd) process? What happens if it is not adopted? The answer is that if it is not adopted, then this child process will become a zombie process, which may cause memory leaks.
Why does the parent process not become an orphan or zombie process? The answer is that the parent process also has its own parent process, and the parent process’s parent process is bash.
Once a process becomes an orphan, it will be adopted by the 1 process, becoming a background process. At this point, Ctrl+c will not kill it; we can only use kill to terminate it.

3. Process Priority

3.1 Concept

CPU resource allocation order refers to the process priority.
Target resource scarcity leads to the need to confirm who comes first based on priority.
Processes with higher priority have the right to execute first. Configuring process priority is very useful in a multitasking environment like Linux, as it can improve system performance.
It is also possible to run processes on specific CPUs, thus assigning less important processes to a certain CPU can greatly improve overall system performance.
Priority vs Permission: Priority is about resource allocation order, while permission is about whether resources can be accessed.

✏️ Priority is actually a number, which is an attribute in task_struct. The lower the numerical value, the higher the priority. In a time-slice based time-sharing operating system, the priority may change in the future, but the change cannot be too large.

3.2 Viewing System Processes

Command ps -al, where a indicates all, and l indicates detailed information.
In the previous code, if the parent process does not exit, and both parent and child processes continue to run, run the code again.

Insert image description here

In the Linux system, each user has a <code>UID, and in <code>Linux, users are identified by their <code>UID.

UID: Represents the identity of the executor
PID: Represents the code of this process
PPID: Represents which process this process is derived from, i.e., the code of the parent process
PRI: Represents the executable priority of this process, with smaller values being executed earlier. The default process priority is:80
NI: Represents the adjustment data for this process’s priority, nice value✏️ The real priority of the process = PRI (default) + NI✏️ PRI(new) = PRI(old) + nice
Therefore, adjusting the process priority in Linux means adjusting the process's <code>nice value.
nice can take values from -20 to 19, a total of 40 levels. The range of process priorities in Linux is [60,99]

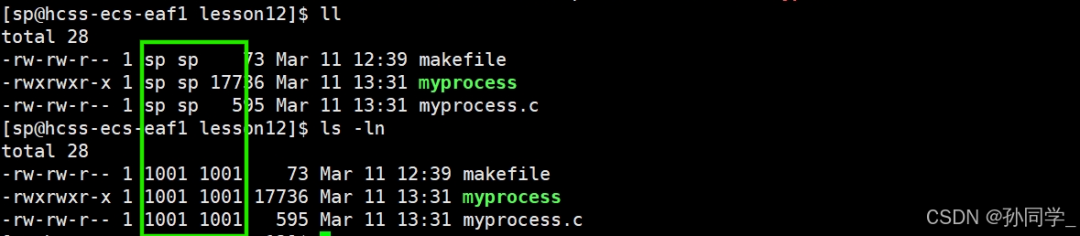

Check UID, command ls -ln

Insert image description here

sp The corresponding UID for the user is 1001, and when a file is created, this UID is saved to indicate who created the file. When a process is created, this UID is also saved to indicate who created the process.📌 So when we access a file, how does the system recognize us as the owner, the group, or other? When we access a file, it is essentially the process accessing the file. How does the process know who we are? The answer is that it knows the UID of the person who started this process, and the UID of the file that was created, so a process will compare its UID with the file’s UID. If they are equal, it is the owner; if not, it checks the next one. If both are not equal, it is other.✏️In the <code>Linux system, accessing any resource is done by processes, and processes represent users.

3.3 Commands to View Process Priority

Use the top command to change the nice value of an existing process:

top
After entering top, press "r" → enter the process PID → enter the nice value
Other commands to adjust priority:nice, renice
Linux system calls for adjusting priority

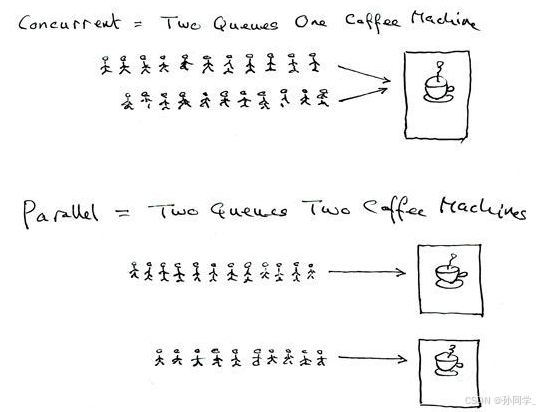

3.4 Supplementary Concepts – Competition, Independence, Parallelism, Concurrency

Competition: There are many system processes, but only a small amount of CPU resources, even just one, so processes have competitive attributes. To efficiently complete tasks and compete for related resources more reasonably, priorities are established.
Independence: Multiple processes need to run independently, requiring exclusive access to various resources, and do not interfere with each other during execution.
Parallelism: Multiple processes run simultaneously on multiple CPUs, which is called parallelism.
Concurrency: Multiple processes use process switching on a single CPU to advance multiple processes within a certain time frame, which is called concurrency.

Insert image description here

4. Process Switching

First, let’s discuss two issues:

How does a process in an infinite loop run? Normally, when we write a while(1) infinite loop in vs, once it runs, we will find that the system becomes sluggish but does not freeze.a. Once a process occupies the CPU, will it run its code to completion? No! (Unless the code is very short) Each process is allocated a time slice by the system. Therefore, each process’s access to CPU resources is not permanent but temporary.b. An infinite loop process will not kill the process because it does not continuously occupy the CPU!

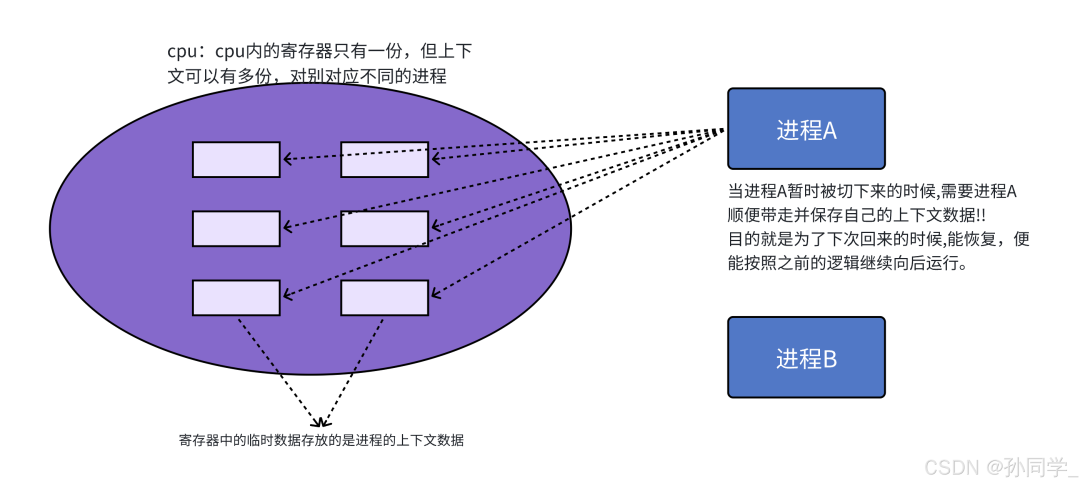

CPU, registers When the CPU executes a process, it is not closely related to the PCB. The CPU focuses on accessing the process's code and data, so the CPU will access the current process's code and data. To handle each line of code and data, the CPU contains many registers, each of which has the task of temporarily storing data. Therefore, when the process runs, the registers will be filled with temporary values, such as calculation results, and whether there are errors in floating-point calculations.Conclusion: a. Registers are temporary spaces within the CPU. b. Registers != Data in registers

How does process switching occur? CPU context switching: its actual meaning is task switching, or CPU register switching. When a multitasking kernel decides to run another task, it saves the current state of the running task, which is the entire content of the CPU registers. This content is saved in the task’s own stack, and after the stack operation is completed, the current state of the next task to be run is reloaded from that task’s stack into the CPU registers and starts running the next task. This process is called context switch.

The core of process switching is to save and restore the current process’s hardware context data, namely the contents of the CPU registers.

Where is it saved? Saved in the process’s task_struct.
How to distinguish new processes from already scheduled processes? By adding a flag in the task_struct.

5. Linux 2.6 Kernel O(1) Scheduling Queue

Each CPU has a runqueue

If there are multiple CPUs, the load balancing issue of the number of processes must be considered.

Priority

Normal priority: 100-139 (we are all of normal priority, think about the range of nice values, which can correspond to this!)
Real-time priority: 0-99 (not concerned)

Active Queue

All processes whose time slices have not yet expired are placed in this queue according to priority.
nr_active: Total number of processes in the running state
queue[140]: Each element is a process queue, and processes of the same priority are scheduled according to the FIFO rule, so the array index corresponds to the priority!
From this structure, how is the most suitable process selected? a. Start traversing from index 0 in queue[140]. b. Find the first non-empty queue, which must be the highest priority queue. c. Take the first process from the selected queue and start running; scheduling is complete! d. Traversing queue[140] has a time complexity of constant! But it is still too inefficient!

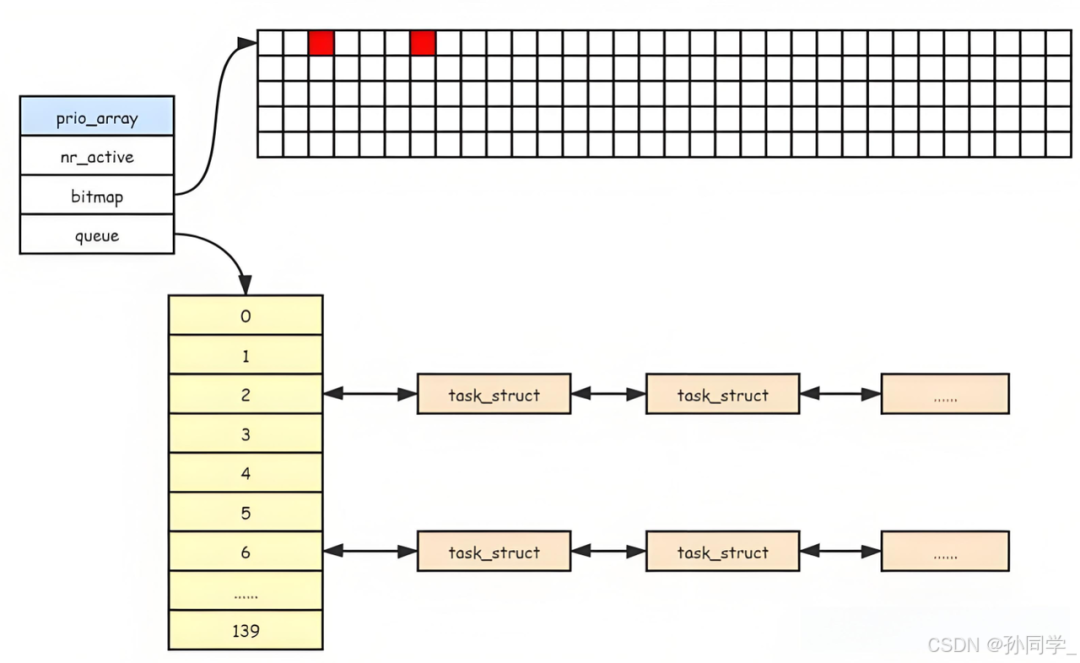

bitmap[5]: There are a total of 140 priorities and 140 process queues. To improve the efficiency of finding non-empty queues, we can use 5*32 bits to indicate whether the queue is empty, which greatly improves search efficiency.

Insert image description here

Expired Queue

The expired queue has the same structure as the active queue.
Processes placed in the expired queue are those whose time slices have expired.
After all processes in the active queue have been processed, the processes in the expired queue will have their time slices recalculated.

Active Pointer and Expired Pointer

active pointer always points to the active queue.
expired pointer always points to the expired queue.
Processes in the active queue will decrease, while processes in the expired queue will increase, as processes’ time slices expire.
At the right time, as long as we can swap the contents of the active pointer and the expired pointer, it is equivalent to having a new batch of active processes!

Linux truly implements algorithm scheduling: O(1) scheduling algorithm. Re-understanding the nice value: The nice value is to ensure that the priority of old processes is not forcibly changed. The original priority of the process does not change, and when a nice value is added, when this scheduling is completed and reinserted into the expired queue, the priority is updated and linked to the specified position.

Link: https://blog.csdn.net/2301_81290732/article/details/146156088?spm=1001.2100.3001.7377&utm_medium=distribute.pc_feed_blog_category.none-task-blog-classify_tag-8-146156088-null-null.nonecase&depth_1-utm_source=distribute.pc_feed_blog_category.none-task-blog-classify_tag-8-146156088-null-null.nonecase

(Copyright belongs to the original author, please delete if infringed)
