Virtualization integrates underutilized servers, eliminating the need to purchase additional hardware for new projects, thereby reducing capital costs while streamlining the number of data center servers, which can proportionally reduce operational costs related to power, cooling, and space.
By utilizing advanced virtualization management and cloud operations management software, a secure and auditable data center environment is established, providing business units with a lower-cost, higher-service-level infrastructure, allowing for quick responses to business unit needs.
Through virtualization management and cloud operations management software, centralized management of data center IT infrastructure is fully realized, which not only streamlines IT operations and improves management efficiency but also simplifies monitoring, management, reporting, and remote access operations.
The original x86 architecture is not suitable for virtualization.

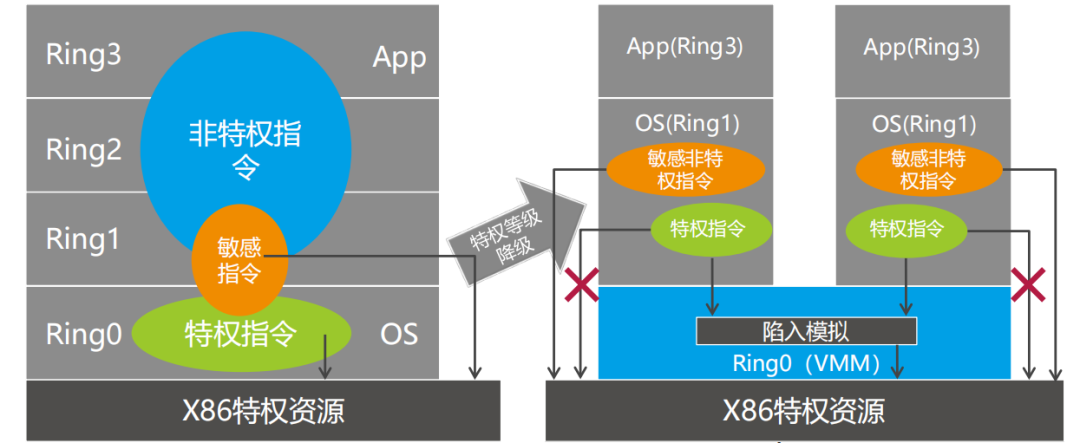

The x86 architecture has 17 sensitive non-privileged instructions that do not generate exceptions at runtime; executing these instructions on the guest operating system will compromise the entire system.
Solution 1: Para-Virtualization

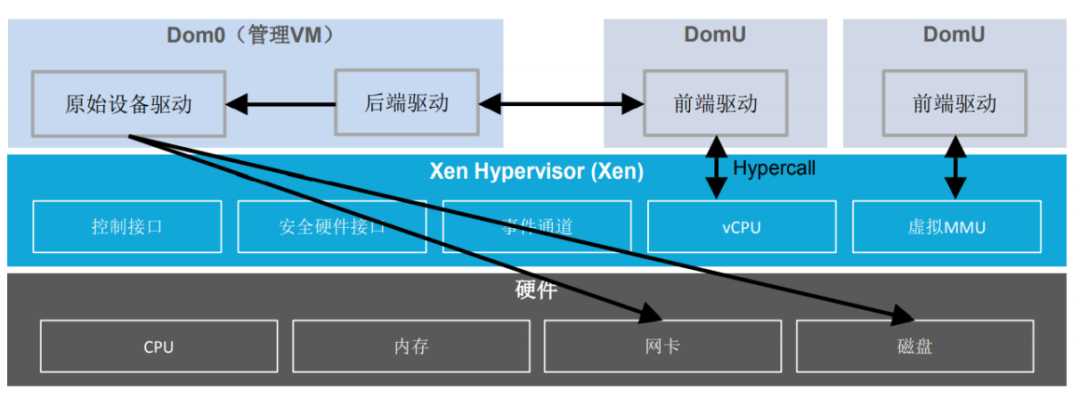

Xen Para-Virtualization architecture

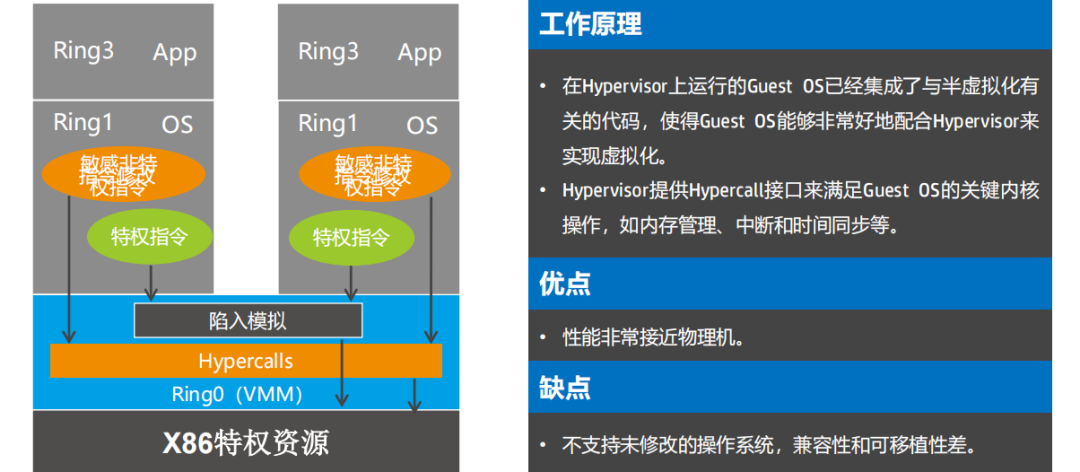

The Guest OS running on the Hypervisor has integrated code related to para-virtualization, allowing the Guest OS to work very well with the Hypervisor to achieve virtualization.
The Hypervisor provides a Hypercall interface to meet the critical kernel operations of the Guest OS, such as memory management, interrupts, and time synchronization.
Solution 2: BT (Binary Translation)
Full Virtualization

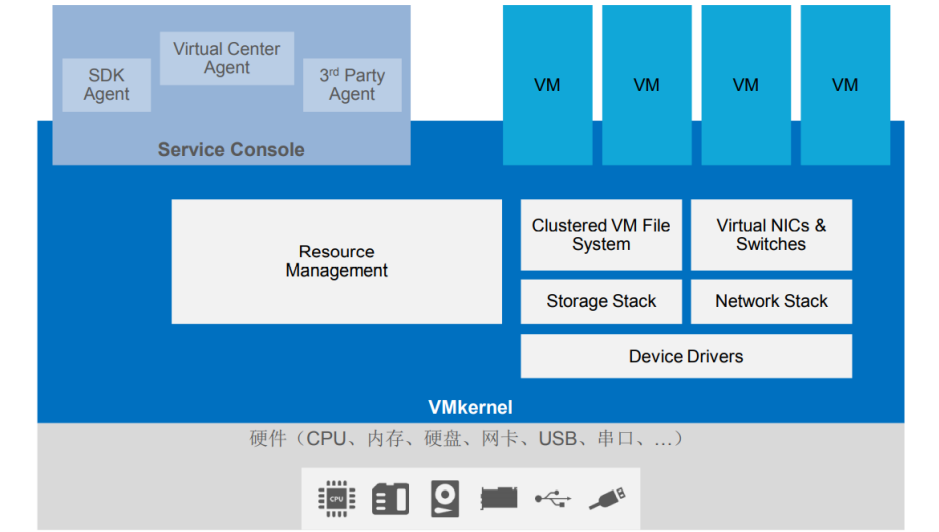

VMware ESX software system architecture

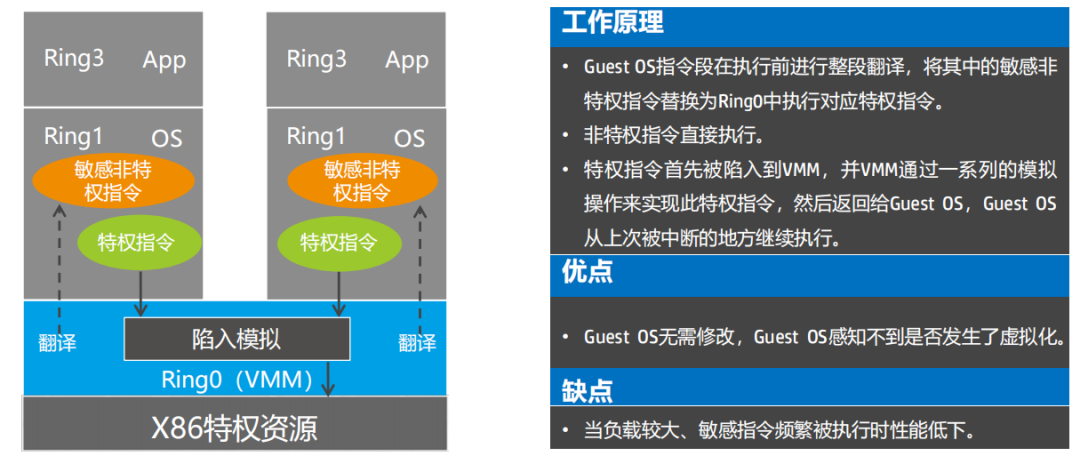

Guest OS instruction segments are translated before execution, replacing sensitive non-privileged instructions with corresponding privileged instructions executed in Ring0.
Non-privileged instructions are executed directly.
Privileged instructions first trap to the VMM, and the VMM simulates this privileged instruction through a series of emulation operations before returning to the Guest OS, allowing the Guest OS to continue execution from where it was last interrupted.

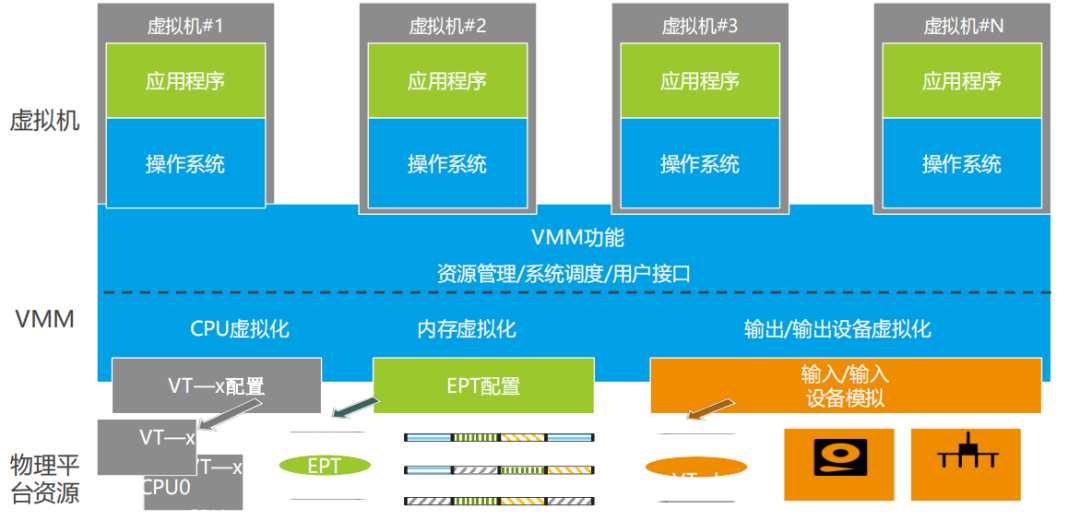

Hardware-assisted virtualization

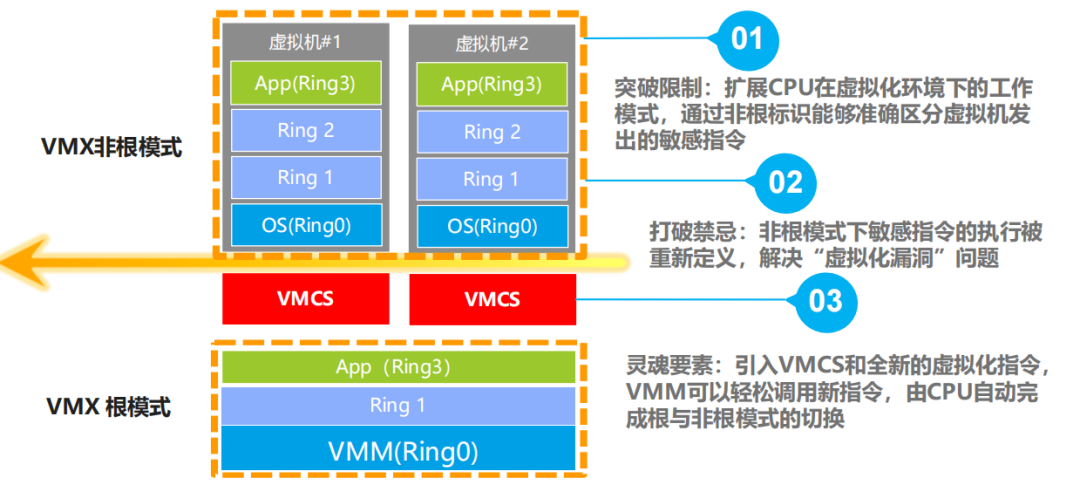

Hardware-assisted virtualization – CPU

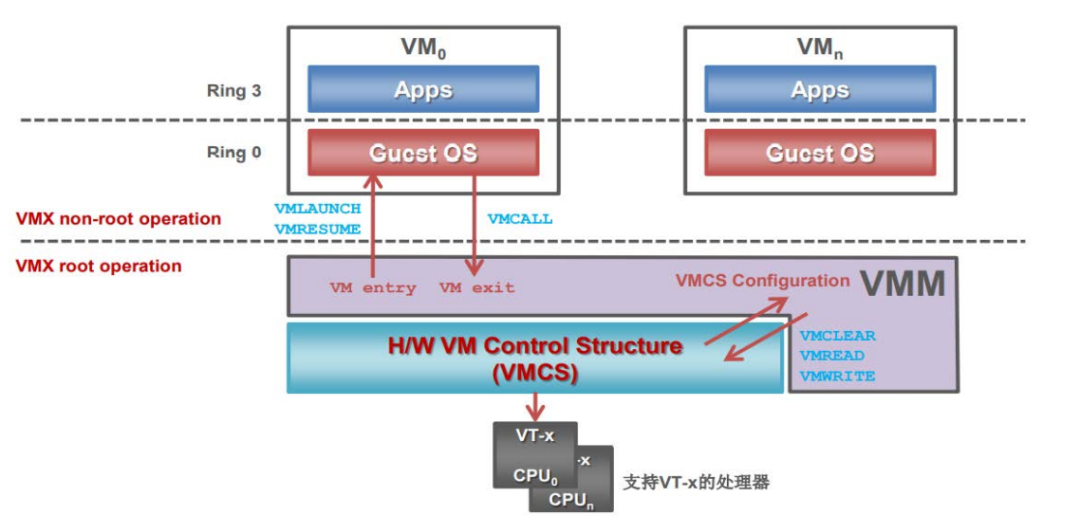

CPU hardware virtualization — Intel VT-i

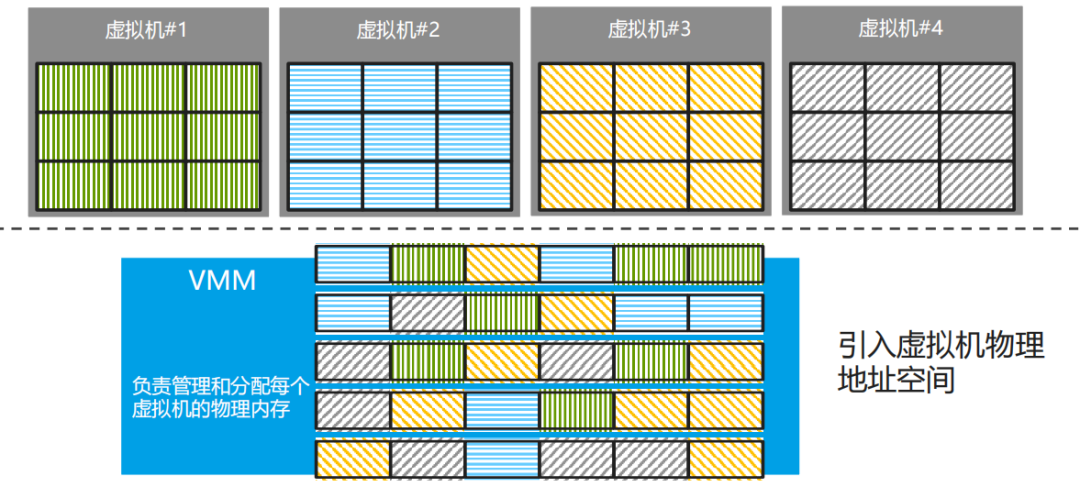

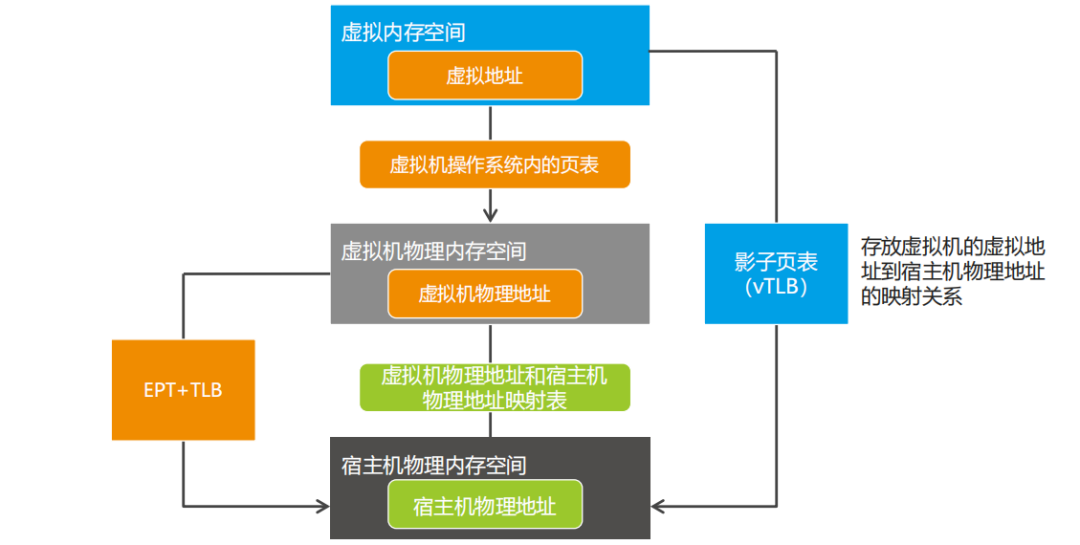

Hardware-assisted virtualization — memory
I/O virtualization

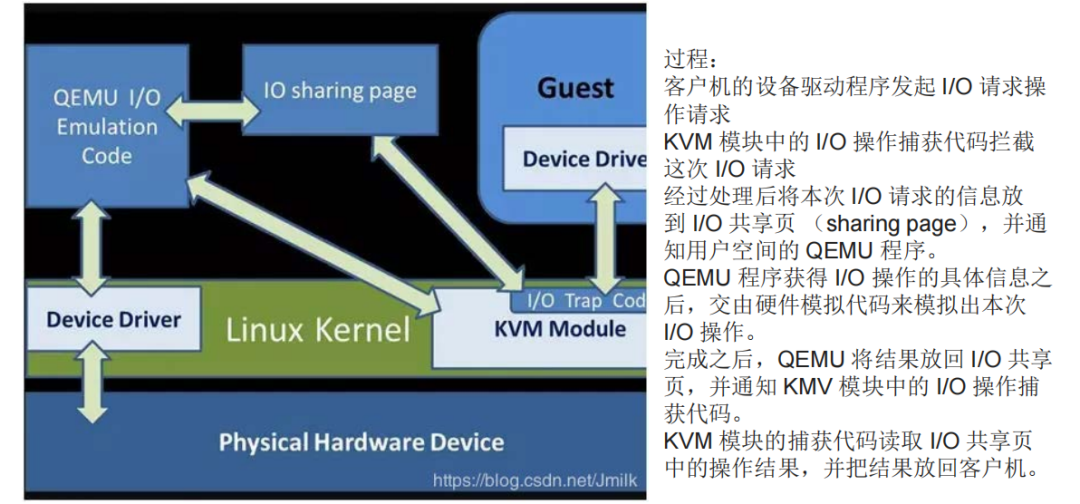

The device driver of the client initiates an I/O request operation, and the I/O operation capture code in the KVM module intercepts this I/O request.
After processing, the information of this I/O request is placed in the I/O sharing page, and the user space QEMU program is notified.
After the QEMU program obtains the specific information of the I/O operation, it hands it over to the hardware emulation code to simulate this I/O operation.
Once completed, QEMU places the result back into the I/O sharing page and notifies the I/O operation capture code in the KVM module.
The capture code of the KVM module reads the operation result from the I/O sharing page and returns the result to the client.

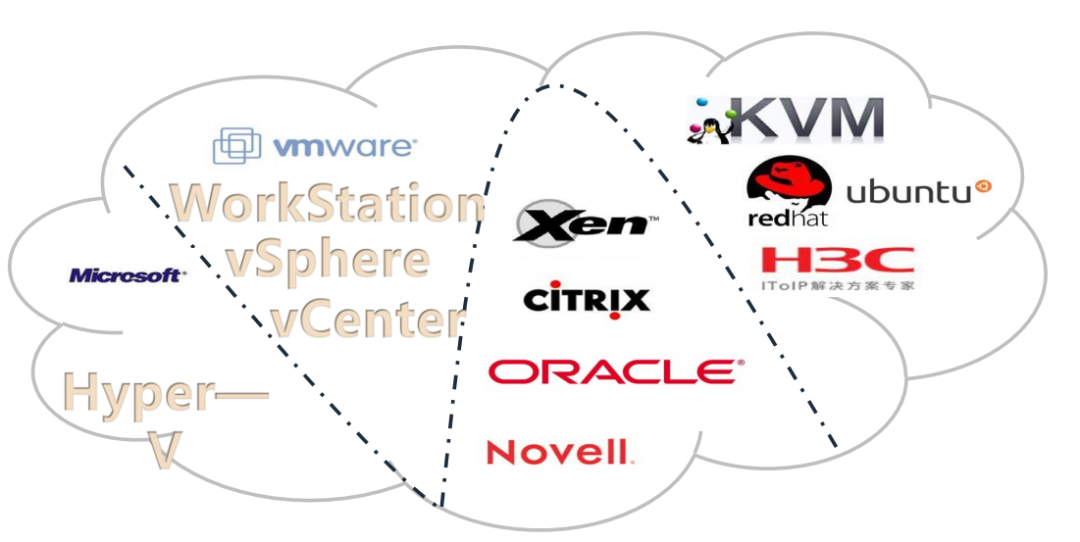

Leading Hypervisor products
ARM processor mode — virtualization mode
In the x86 architecture, the non-root mode corresponds to the root mode, which includes the traditional CPU modes with permission levels from Ring 0 to Ring 3; in the root mode, there are also corresponding permission levels from Ring 0 to Ring 3. This means that root mode and non-root mode are parallel.
In ARM, the virtualization mode is parallel to the existing modes, but the virtualization mode has a higher privilege level than the management mode.

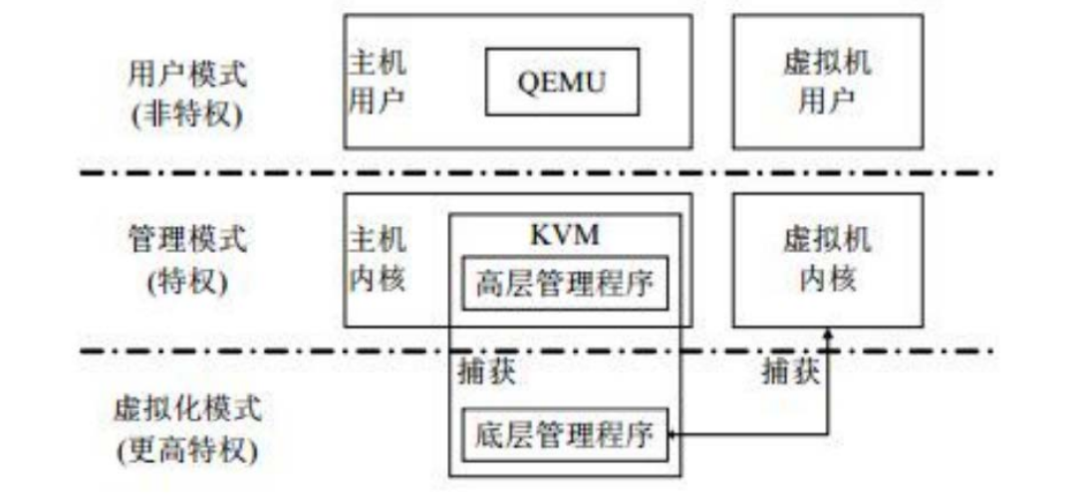

KVM/ARM virtualization technology principles
