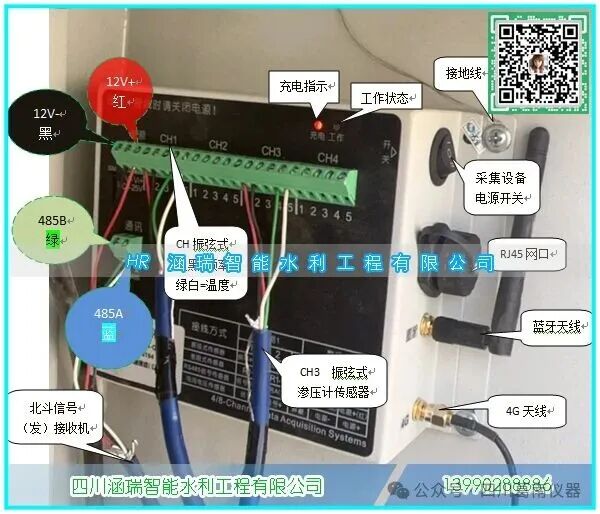

The Beidou-3 short message data transmission terminal interfaces with the MCU-X type automation equipment for signal transmission. The MCU automation collection device supports multi-channel signal transmission, primarily supporting RS485, 4G LTE-FDD/LTE-TDD, Bluetooth BLE5.0, Ethernet, Lora, and WiFi communication methods, with optional Lora, NB-IOT, Ethernet port, bridge, data transmission radio, and Beidou terminal transmission.
The Beidou-3 short message data transmission terminal meets the signal transmission requirements of the MCU-X type automation equipment, and the Beidou-3 short message data transmission terminal device has the following features:

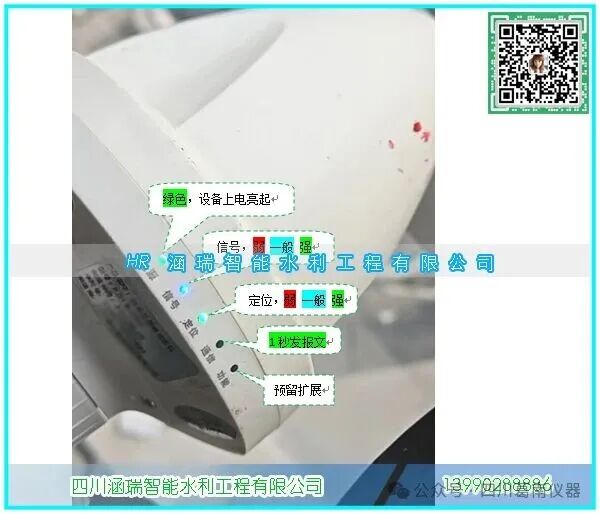

(1) All-weather Beidou two-way message communication, as well as Beidou/GPS dual-mode positioning functionality.

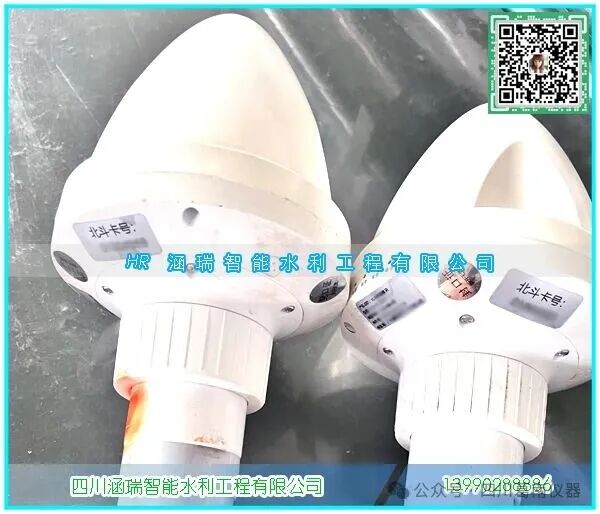

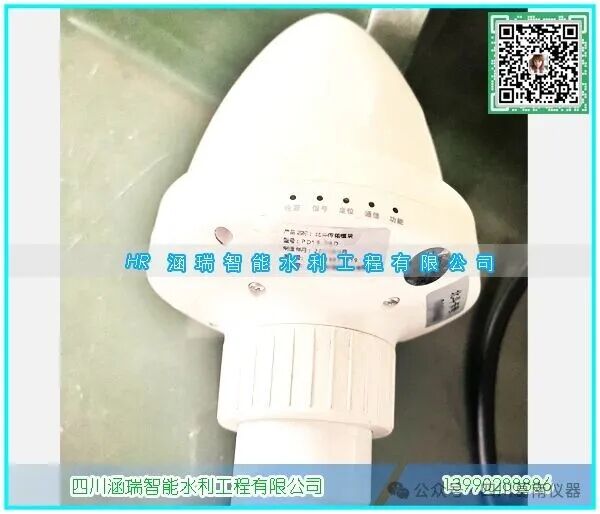

(2) High integration, with the receiving and transmitting antenna and RDSS module integrated into one unit.
(3) Transmission power output of 5W.
(4) Protection level: IP67.

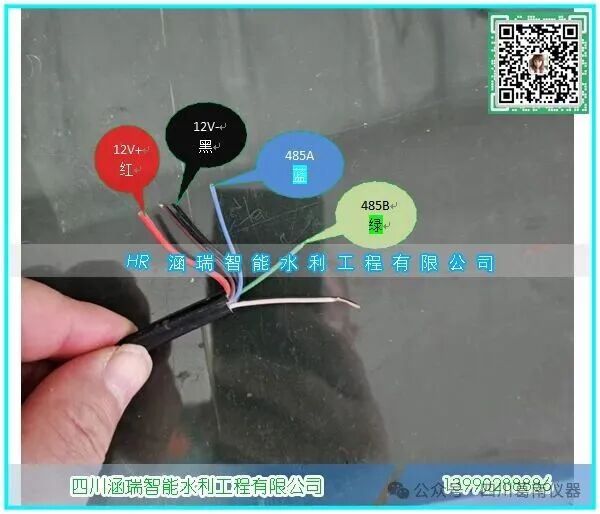

(5) Data interface: RS232 (default); should be set to the RS485 communication port for MCU reception.
The MCU automation collection device encrypts the collected values from each channel and transmits them directly to the Beidou-3 short message data transmission terminal via the transmission protocol, which are then parsed and read by the receiving host and data tool software on the collection platform.
