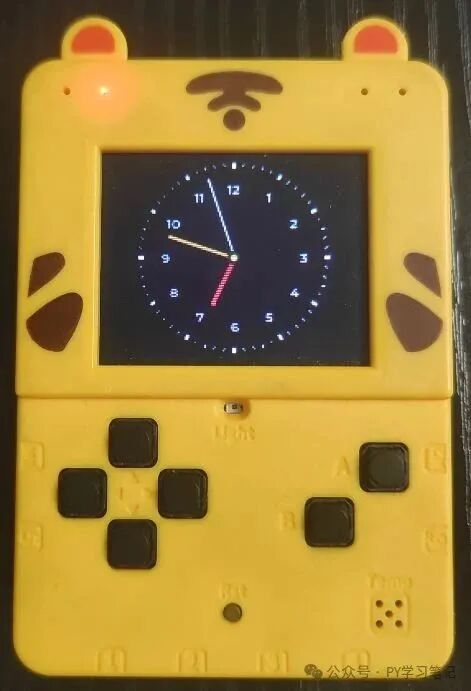

Previously, we introduced how to flash the <span>LVGL-Micropython</span> firmware onto the Little Cat handheld device, showcasing effects such as displaying GIF images, bar graphs, line graphs, zooming and rotating images, and simple dashboards. This note will continue to share how to implement a clock dial based on <span>LVGL-Micropython</span>.
1. Development Board Introduction
This handheld device is a custom development board for the Xueersi children’s programming course, with the MCU being <span>ESP32-WROVER-B</span>, equipped with a case, battery, 1.8-inch LCD screen, 6 buttons, buzzer, light sensor, thermistor, etc., and supports external sensors.
For details, see ESP32 Development Board Under 50 Yuan, with Case, Battery, 1.8-inch LCD, Buttons, and Other Modules.
2. LVGL-Micropython Firmware
Referring to Compiling an LVGL-Micropython Firmware in Three Simple Steps, we compiled the <span>LVGL-Micropython</span> firmware suitable for the Little Cat handheld device.
Due to the complexity of the screen driver for LVGL-Micropython, we encapsulated it into a driver module <span>screen.py</span>. This module allows for easier initialization of the display, thereby simplifying the development process.
Download link: QQ group or https://gitee.com/py2012/xueersi-eps32-handheld-device
LVGL version: 9.2.2
Micropython version: 1.24.1
3. Example Code
In the previous article, Implementing a Simple Dashboard on the ESP32 Handheld Device Using LVGL, we found that the pointer exhibited tearing issues.
According to the official documentation of LVGL-Micropython, we modified the <span>screen.py</span> file to add a double buffering module. This improvement can significantly reduce display tearing and flickering issues. The specific modified code can be found in the <span>screen2.py</span> file on Gitee.
The reference code is as follows:
import screen2
import time
import lvgl as lv
from machine import Pin, ADC, Timer
# Initialize screen
scrn = lv.screen_active()
scrn.set_style_bg_color(lv.color_hex(0x000000), 0)
class AnalogClock:
def __init__(self, parent):
self.scale = None
self.second_hand = None
self.minute_hand = None
self.hour_hand = None
# Get current time
now = time.localtime()
self.hour = now[3] % 12 # Convert to 12-hour format
self.minute = now[4]
self.second = now[5]
self.create_clock(parent)
self.start_timer()
def create_clock(self, parent):
"""Create analog clock component"""
# Create clock face (maintain size 120x120)
self.scale = lv.scale(parent)
self.scale.set_size(120, 120)
self.scale.set_mode(lv.scale.MODE.ROUND_INNER)
# Set clock face style
self.scale.set_style_bg_opa(lv.OPA._60, 0)
self.scale.set_style_bg_color(lv.color_hex(0x222222), 0)
self.scale.set_style_radius(lv.RADIUS_CIRCLE, 0)
self.scale.set_style_clip_corner(True, 0)
self.scale.center()
# Configure scale system
self.scale.set_label_show(True)
hour_labels = ["12", "1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", None]
self.scale.set_text_src(hour_labels)
self.scale.set_style_text_font(lv.font_montserrat_8, 0)
self.scale.set_total_tick_count(61)
self.scale.set_major_tick_every(5)
# Main tick style
style_indicator = lv.style_t()
style_indicator.init()
style_indicator.set_text_color(lv.color_hex(0xFFFFFF))
style_indicator.set_line_color(lv.color_hex(0xFFFFFF))
style_indicator.set_length(3)
style_indicator.set_line_width(2)
self.scale.add_style(style_indicator, lv.PART.INDICATOR)
# Minor tick style
style_minor = lv.style_t()
style_minor.init()
style_minor.set_line_color(lv.color_hex(0xAAAAAA))
style_minor.set_length(2)
style_minor.set_line_width(1)
self.scale.add_style(style_minor, lv.PART.ITEMS)
# Clock face border style
style_main = lv.style_t()
style_main.init()
style_main.set_arc_color(lv.color_hex(0x222222))
style_main.set_arc_width(2)
self.scale.add_style(style_main, lv.PART.MAIN)
# Set range and angle (remain unchanged)
self.scale.set_range(0, 60)
self.scale.set_angle_range(360)
self.scale.set_rotation(270)
# Create second hand (white, length 45px, thin line)
self.second_hand = lv.line(self.scale)
self.second_hand.set_style_line_width(1, 0) # Thinner line width
self.second_hand.set_style_line_rounded(True, 0)
self.second_hand.set_style_line_color(lv.color_hex(0xFFFFFF), 0)
# Create minute hand (orange, length 40px)
self.minute_hand = lv.line(self.scale)
self.minute_hand.set_style_line_width(2, 0)
self.minute_hand.set_style_line_rounded(True, 0)
self.minute_hand.set_style_line_color(lv.color_hex(0xFFA500), 0)
# Create hour hand (red, length 30px)
self.hour_hand = lv.line(self.scale)
self.hour_hand.set_style_line_width(3, 0)
self.hour_hand.set_style_line_rounded(True, 0)
self.hour_hand.set_style_line_color(lv.color_hex(0xFF0000), 0)
# Add center point
center = lv.obj(self.scale)
center.set_size(8, 8) # Slightly reduce center point size
center.center()
center.set_style_radius(lv.RADIUS_CIRCLE, 0)
center.set_style_bg_color(lv.color_hex(0xFFD700), 0)
center.set_style_bg_opa(lv.OPA.COVER, 0)
self.update_hands()
def update_hands(self):
"""Update all hand positions"""
# Second hand (length 45px)
lv.scale.set_line_needle_value(self.scale, self.second_hand, 50, self.second)
# Minute hand (length 40px)
lv.scale.set_line_needle_value(self.scale, self.minute_hand, 40, self.minute)
# Hour hand (length 30px), considering minute offset
hour_value = self.hour * 5 + (self.minute // 12)
lv.scale.set_line_needle_value(self.scale, self.hour_hand, 30, hour_value)
def timer_callback(self, timer):
"""Timer callback (updates every second)"""
# Get current time
now = time.localtime()
self.hour = now[3] % 12
self.minute = now[4]
self.second = now[5]
self.update_hands()
def start_timer(self):
"""Start hardware timer (triggers every second)"""
self.timer = Timer(-1)
self.timer.init(period=1000, mode=Timer.PERIODIC, callback=self.timer_callback)
# Create clock instance
clock = AnalogClock(scrn)
# Main loop
while True:
lv.timer_handler()
time.sleep_ms(5)
