Clarifying What Chip Programming Is
Integrity
Innovation
Professionalism
Progress
Definition of Chip Programming

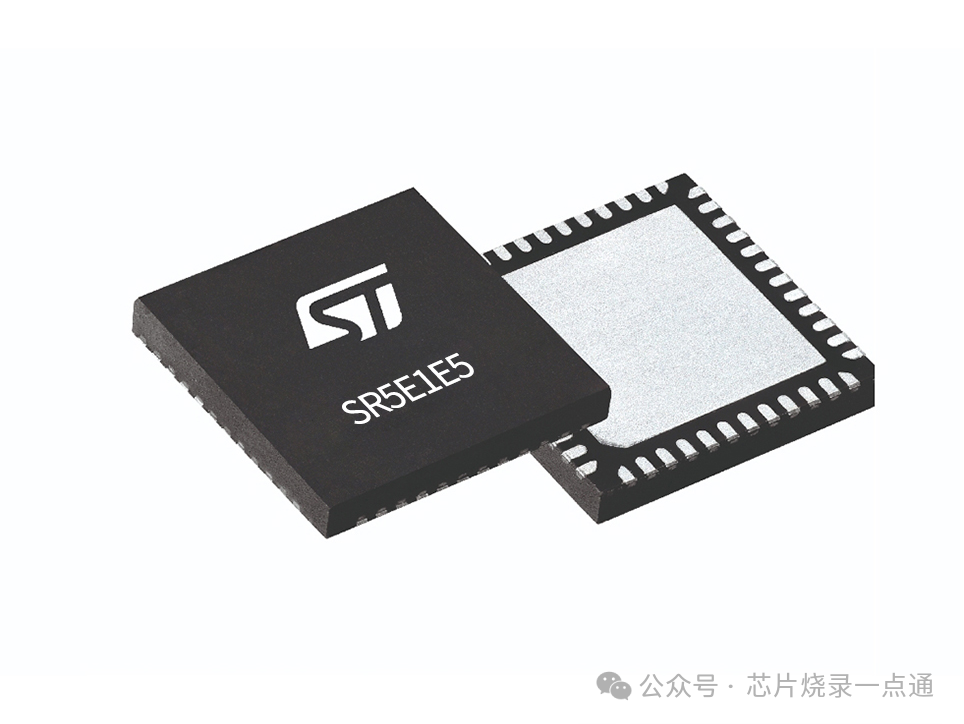

Chip programming is the action of writing the programs or data that the chip needs to run into the chip’s storage area using a programmer. Once programmed, the chip can execute the program burned into it, thus gaining the ability to perform specific functions.
The types of chips that can be programmed mainly include: MCU (Microcontroller Unit, commonly known as microcontroller), DSP chips, FPGA chips, and various types of memory chips (such as: EPROM, EEPROM, EMMC chips, UFS chips, Nor Flash, Nand Flash, etc.).
Two Main Programming Methods

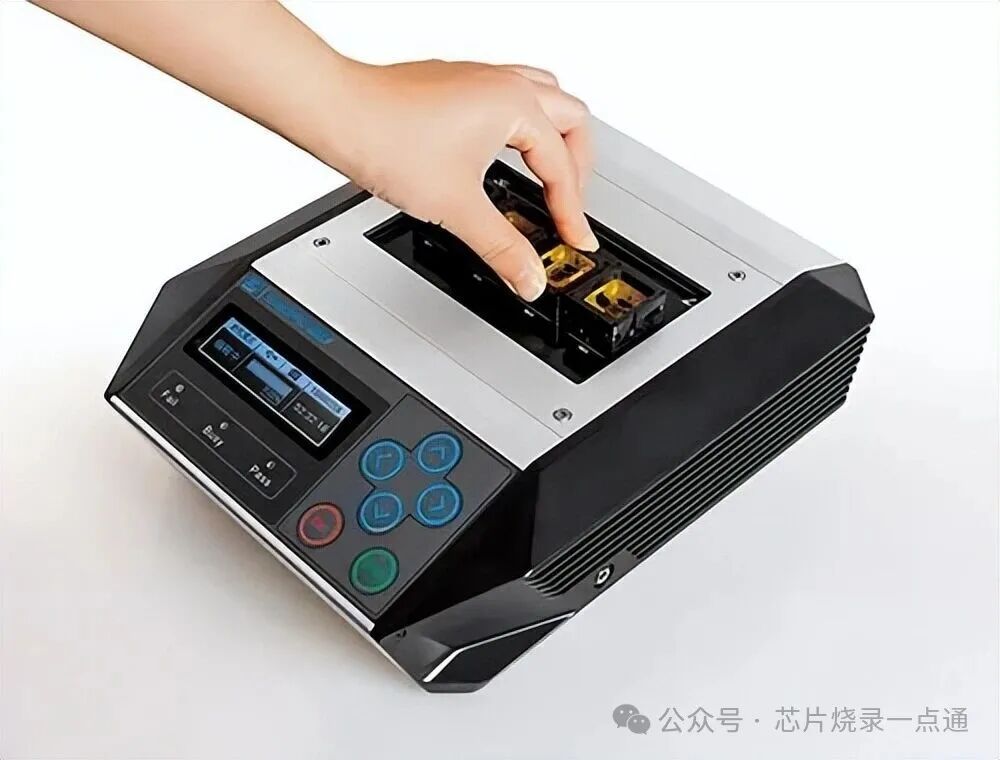

1.Offline Programming:

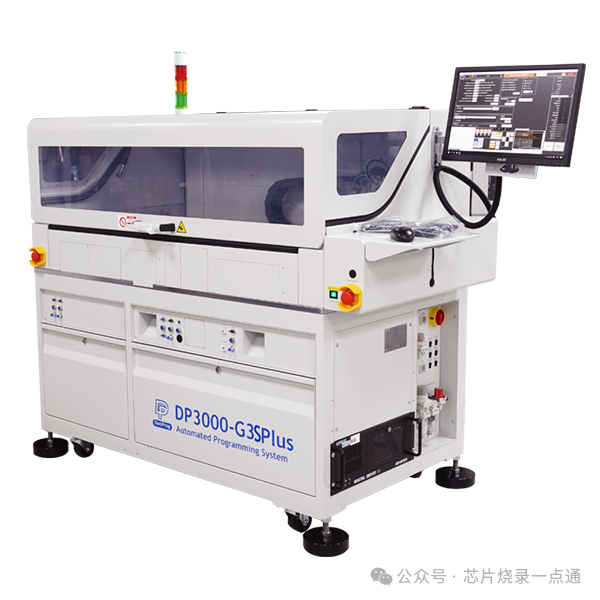

Offline programming usually refers to the method of programming the bare chip directly before it is mounted on the PCB.
Advantages of Offline Programming:
1. Programming can be done outside the production line, allowing for pre-programming without affecting the normal production schedule.
-
Outsourcing programming can reduce the initial investment cost of chip programming.
Disadvantages of Offline Programming:
-
Different packaging or models of chips require purchasing different programming sockets, increasing costs.
-
Chips need to be placed in the programming socket, and misalignment can cause damage to the chip.
Application scenarios for offline programming: It is used in almost any field that requires programmable chips, especially in consumer electronics where large-scale programming and programming of chips with large capacities are common.
2.Online Programming:

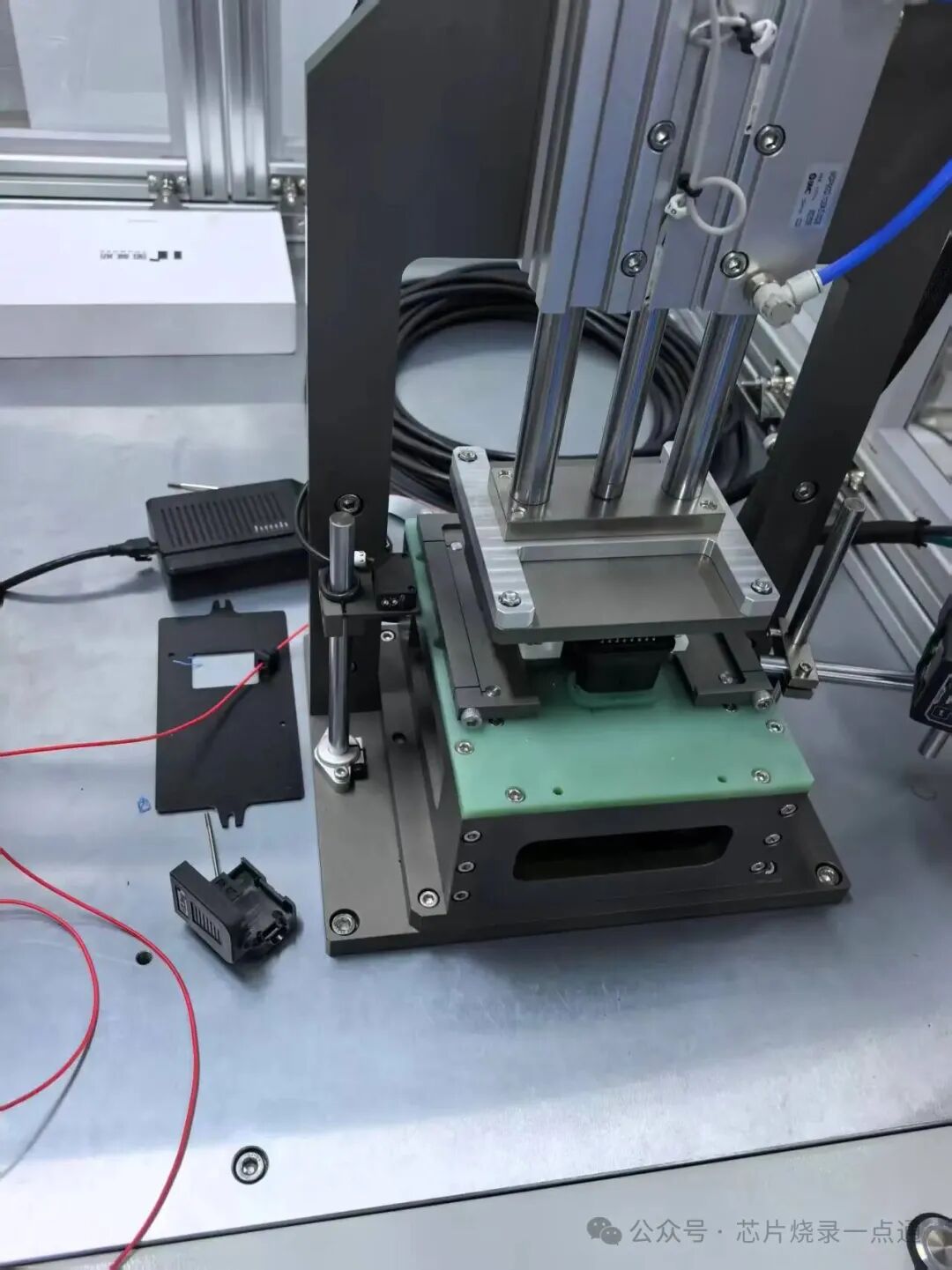

Online programming refers to the method of programming the chip after it has been mounted on the PCB, using the interface on the PCB to program the chip.
Advantages of Online Programming:
-
Programming is flexible, allowing for easy switching of source files to be programmed into the chip. If a mistake is made, it can be easily reprogrammed.
-
Programming is done directly through the PCB interface or test points, eliminating the need to purchase programming sockets, thus saving on investment costs.
Disadvantages of Online Programming:
-

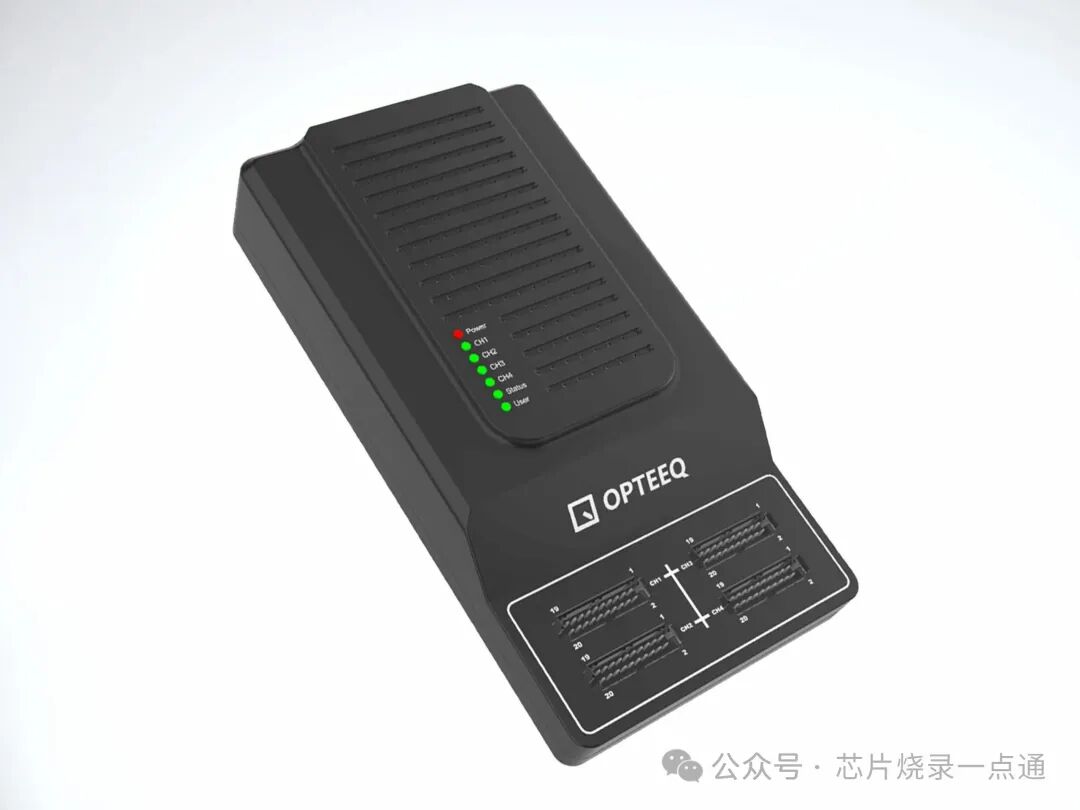

In online programming, the programming signal passes through interfaces or probes, which can lead to signal interference, causing instability in programming. For mass production, specialized online programmers need to be purchased.
-
If the chip capacity increases, the programming time will also increase, which can become a bottleneck in the production line cycle time.
Application scenarios for online programming: Mainly used in automotive electronics, medical electronics, and other fields where product quality requirements are particularly high, as well as in areas where the source file content to be programmed is complex.
