1 Overview
**1 Basic Principles of Particle Swarm Optimization (PSO)** Particle Swarm Optimization is a group intelligence-based optimization algorithm that simulates the collective behavior of birds or fish. Each particle represents a potential solution in the solution space, searching for the optimal solution through individual experience and group cooperation. Particles adjust their search direction through velocity and position update formulas. **2 Modeling of Energy Cost Optimization Problem** The energy cost optimization problem in power grids typically aims to minimize total generation costs while satisfying load demands and generator output constraints. The objective function can be expressed as:
\[ ext{min} \\sum_{t=1}^{T} \\sum_{i=1}^{N} C_i(P_{i,t}) \] where \(C_i(P_{i,t})\) is the generation cost function of the \(i\)-th generator at time \(t\), \(P_{i,t}\) is the output, \(T\) is the total number of time periods, and \(N\) is the number of generators. **3 PSO Solution Process for Energy Cost Optimization** **Initialize Particle Swarm** Randomly generate a set of particles, where each particle’s position vector represents a combination of generator outputs, and the velocity vector is randomly initialized. Set parameters such as particle swarm size, maximum number of iterations, and inertia weight. **Fitness Calculation** Calculate the fitness value (i.e., total generation cost) for each particle based on the objective function and check if it meets the constraints (e.g., power balance, output limits). Particles violating constraints must be handled using penalty functions. **Update Individual and Global Bests** Record each particle’s historical best position (\(pbest\)) and the global best position of the swarm (\(gbest\)). If the current fitness is better than the historical value, update \(pbest\); if it is better than the global best, update \(gbest\). **Velocity and Position Update** Update particle velocity and position according to the following formulas:
\[ v_{id}^{k+1} = w \cdot v_{id}^k + c_1 r_1 (pbest_{id} – x_{id}^k) + c_2 r_2 (gbest_d – x_{id}^k) \]
\[ x_{id}^{k+1} = x_{id}^k + v_{id}^{k+1} \] where \(w\) is the inertia weight, \(c_1, c_2\) are learning factors, and \(r_1, r_2\) are random numbers. **Termination Condition Check** Repeat iterations until the maximum number of iterations is reached or convergence conditions are met (e.g., \(gbest\) changes less than a threshold). **4 Constraint Handling and Improvement Strategies** **Penalty Function Method** Add the constraint violation amount to the objective function:
\[ F(x) = f(x) + \lambda \sum_{j=1}^{m} \max(0, g_j(x))^2 \] where \(f(x)\) is the original objective function, \(g_j(x)\) are the inequality constraints, and \(\lambda\) is the penalty factor. **Dynamic Parameter Adjustment** Use linearly decreasing inertia weight:
\[ w = w_{max} – \frac{(w_{max} – w_{min}) \cdot k}{K} \] where \(k\) is the current iteration number and \(K\) is the total number of iterations. **Discretization Handling** For mixed-integer programming problems (e.g., unit startup and shutdown), binary PSO or hybrid coding strategies can be used.
2 Code and Running Steps
2.1 Partial Code2.2 Running Steps
(1) Directly run main.m to generate the graph with one click

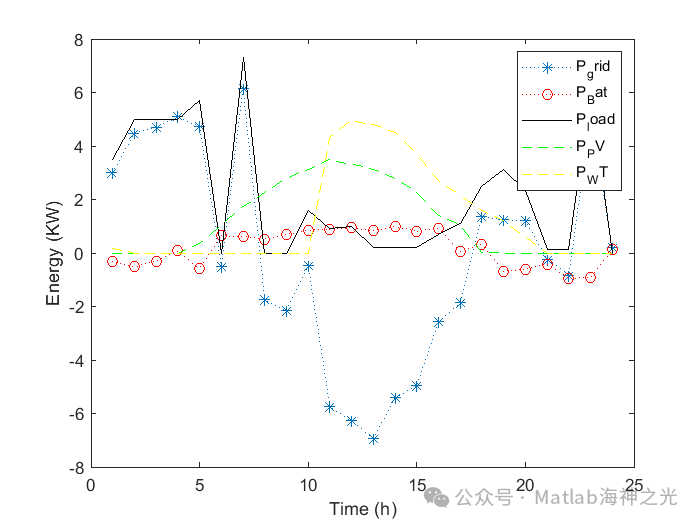

3Running Results
4MATLAB Version and References
1 MATLAB Version
2019b
2 References
[1] Liu Gang, Wang Huimin. Vehicle Scheduling Optimization Based on Simulated Annealing Genetic Algorithm [J]. Science and Technology Innovation. 2010
3 Notes
This section is excerpted from the internet for reference only. If there is any infringement, please contact for removal.
