Introduction

Previously, a colleague asked if I had a test APK for the version of bypassing certificate validation I shared earlier. I mentioned I would write a demo, and today I have finally completed part of it. I will continue to update this based on feedback, and I welcome everyone to follow along.

APK Demo

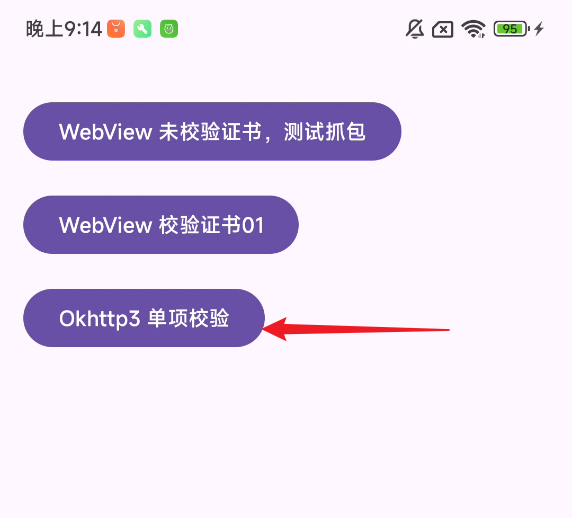

I have created a simple demo, and here is the APK download link: Download APK

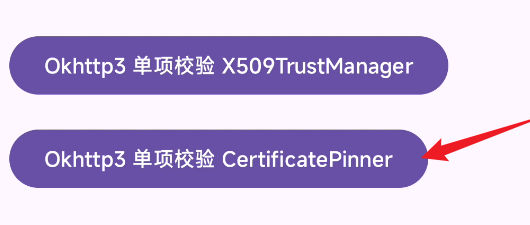

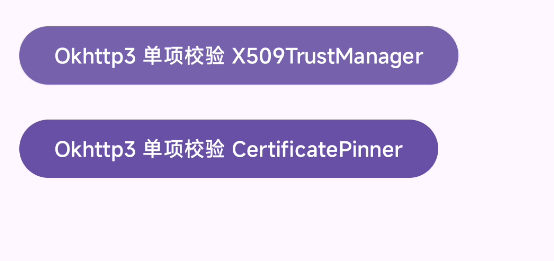

The first corresponds to the X509TrustManager certificate binding. The second corresponds to the CertificatePinner certificate binding.

CertificatePinner Certificate Binding

You can test this with the app.

You can also use the test below; the Frida scripts are the same as below. Since I wrote the notes first and then this demo, I won’t change it.

Source of the case: Source APK

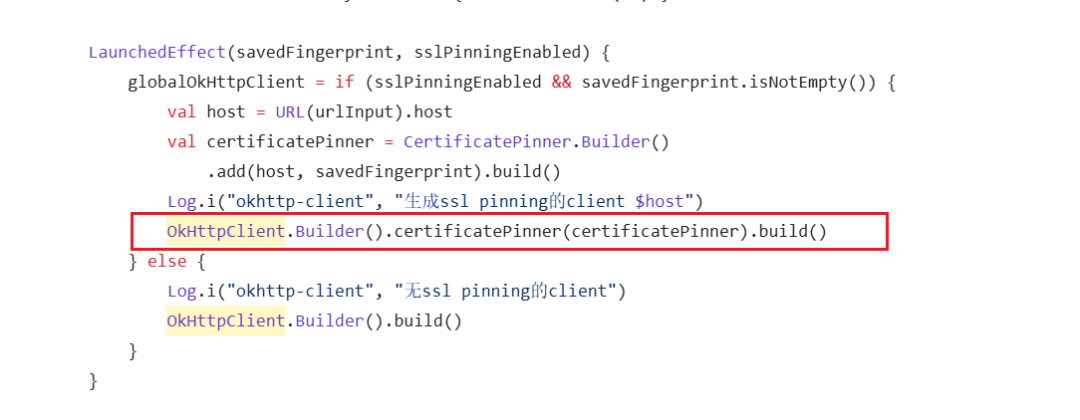

Source code: written in Kotlin

    LaunchedEffect(savedFingerprint, sslPinningEnabled) {
        globalOkHttpClient = if (sslPinningEnabled && savedFingerprint.isNotEmpty()) {
            val host = URL(urlInput).host
            val certificatePinner = CertificatePinner.Builder()
                .add(host, savedFingerprint).build()
            Log.i("okhttp-client", "Generated ssl pinning client $host")
            OkHttpClient.Builder().certificatePinner(certificatePinner).build()// Certificate binding
        } else {
            Log.i("okhttp-client", "Client without ssl pinning")
            OkHttpClient.Builder().build()
        }
    }

By the way, the CertificatePinner.Builder().add performs the certificate binding for a CertificatePinner configured with www.baidu.com‘s certificate. When requesting www.baidu.com, certificate pinning checks will be performed; however, when requesting www.google.com, no certificate pinning checks will be performed, but regular SSL/TLS certificate validation will occur.

Requests to URLs outside the host configured in CertificatePinner will not perform certificate pinning checks but will conduct regular SSL/TLS certificate validation.

Frida Script

frida -H 192.168.1.9:27123 -f  com.frida_analykit.ssl_log_secret -l bypass_no_proxy.js

/**
 * Create an empty CertificatePinner
 */
function okhttp3_empty_CertificatePinner() {
    Java.perform(function () {
        const CertificatePinner = Java.use("okhttp3.CertificatePinner");
        const Builder = Java.use("okhttp3.CertificatePinner$Builder");

        Builder.build.overload().implementation = function () {
            console.log("[+] CertificatePinner build() intercepted");
            // Directly use Builder to create an empty CertificatePinner
            const emptyBuilder = Builder.$new();
            return emptyBuilder.build();
        }
    });
}
okhttp3_empty_CertificatePinner()

• • Overriding the Builder.build method to return an empty build() when this method is called, instead of the build with a bound CertificatePinner.

X509TrustManager Certificate Binding

Principle

X509TrustManager is an interface in Java used to manage and validate X.509 certificates. When a client establishes an SSL/TLS connection with a server, the server sends its certificate chain to the client, and the client’s X509TrustManager is responsible for verifying whether these certificates are valid, issued by a trusted Certificate Authority (CA), and match the expected certificate.

Validation Code

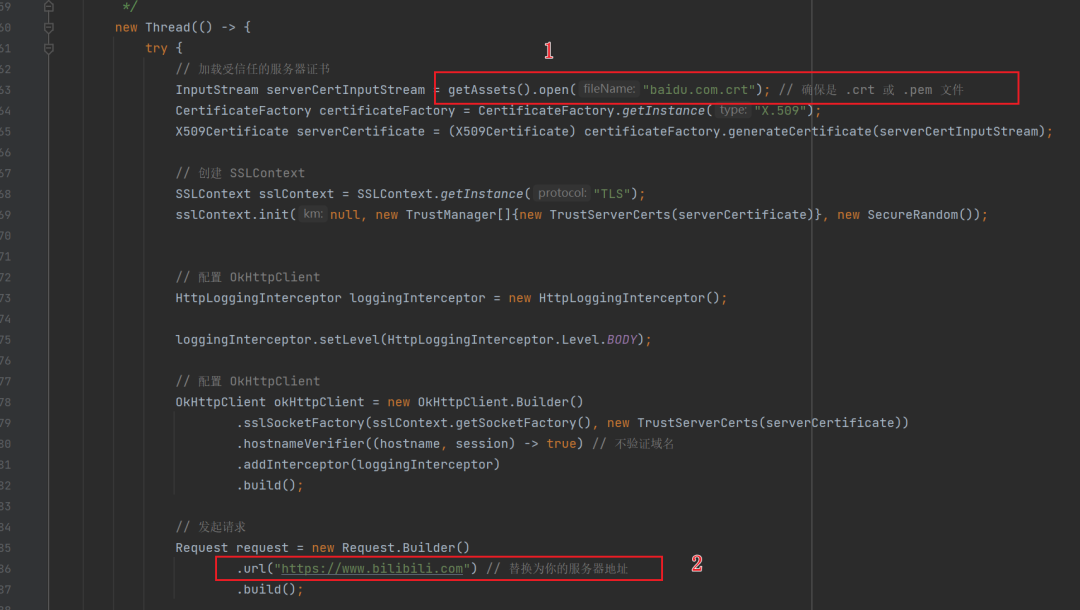

First, load the CRT certificate for Baidu. Second, initiate a request to Bilibili.

Since the certificates are different, it will prompt that the certificate is incorrect.

Display

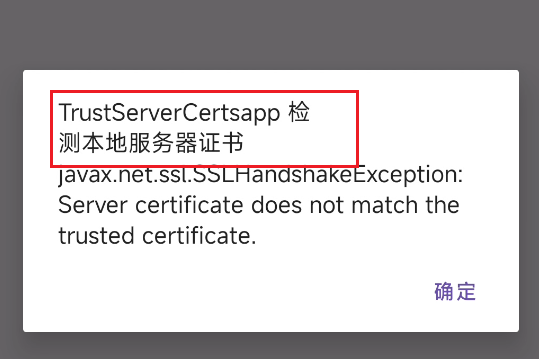

Detected incorrect certificate

Frida Hook

function instead_factory() {
    Java.perform(function () {
        var TrustAllCerts = Java.registerClass({
            name: 'com.example.TrustAllCerts',
            implements: [Java.use('javax.net.ssl.X509TrustManager')],
            methods: {
                checkClientTrusted: function (chain, authType) {
                },
                checkServerTrusted: function (chain, authType) {
                },
                getAcceptedIssuers: function () {
                    return [];
                }
            }
        });

        var SSLContext = Java.use('javax.net.ssl.SSLContext');
        var context = SSLContext.getInstance("TLS");
        context.init(null, [TrustAllCerts.$new()], null);

        var OkHttpClientBuilder = Java.use('okhttp3.OkHttpClient$Builder');
        OkHttpClientBuilder.sslSocketFactory.overload('javax.net.ssl.SSLSocketFactory', 'javax.net.ssl.X509TrustManager').implementation = function (sf, tm) {
            // Replace with a factory that trusts all certificates
            return this.sslSocketFactory(context.getSocketFactory(), TrustAllCerts.$new());
        };

    });
}

instead_factory()

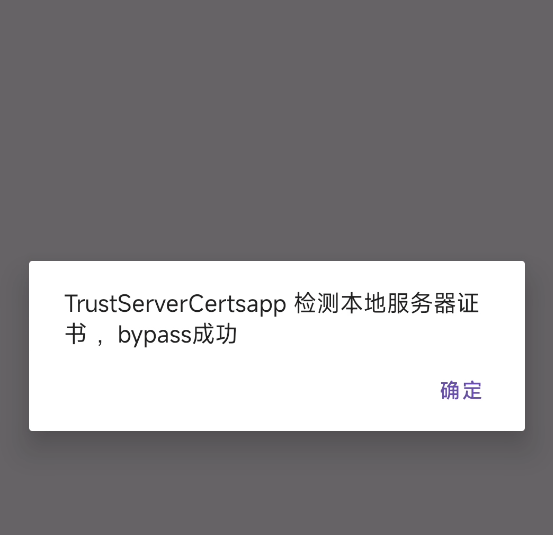

You can see that the bypass was successful, and the request to Bilibili was made.

References

• • OkHttp Certificate Binding Process SSL Pinning Analysis Link
• • Android Security Protection — Volley/OkHttp SSL Pinning Link
