In recent years, machine vision technology has rapidly developed and is widely used in various fields such as industrial automation, smart manufacturing, security monitoring, and smart retail. Traditional machine vision solutions are mostly based on X86 architecture paired with a dedicated GPU for image acquisition and AI inference processing, this “heterogeneous computing” model, while powerful, also brings issues of high power consumption, high cost, and large size.

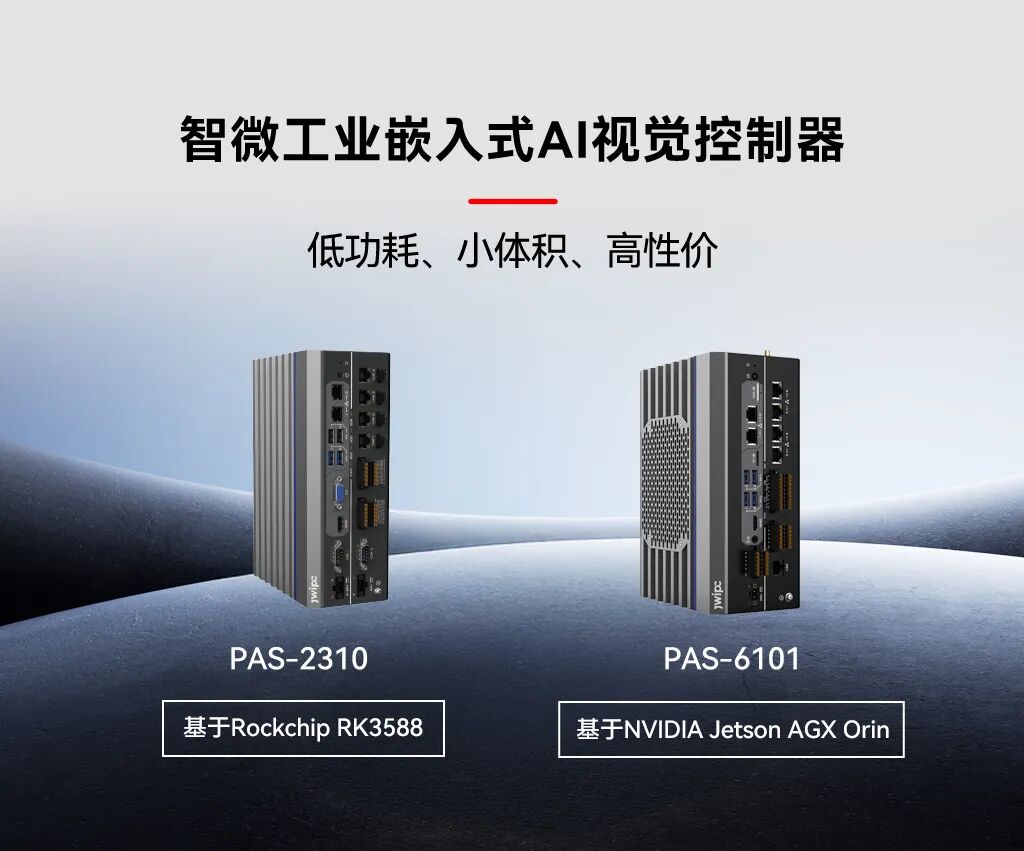

With the continuous maturity of embedded technology, ARM architecture has gradually emerged, providing low power consumption, small size, and high cost-effectiveness as a new approach. Zhiwei Industrial has launched two representative products— PAS-2310 (based on Rockchip RK3588) and PAS-6101 (based on NVIDIA Jetson AGX Orin), two embedded AI vision controllers, providing optimized solutions for industrial automation, smart manufacturing, and other fields.
01

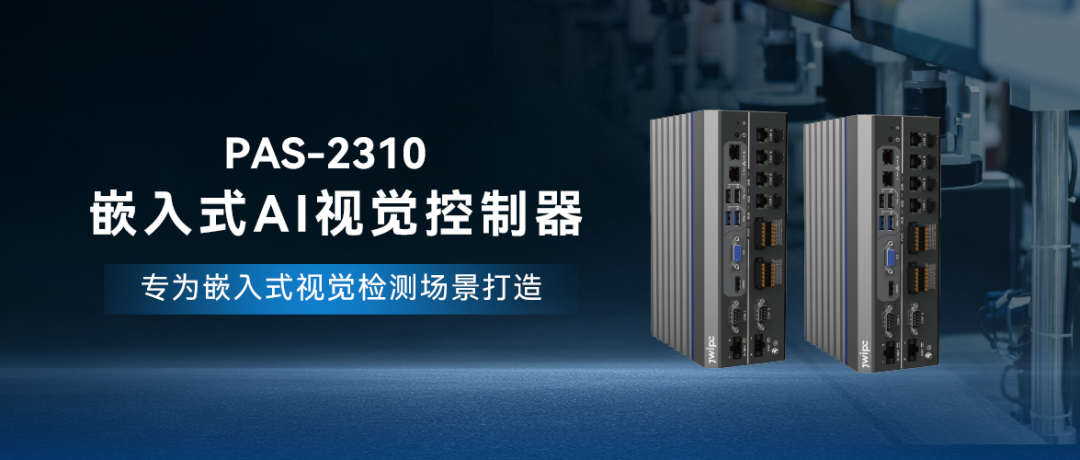

PAS-2310: Lightweight AI Vision Controller

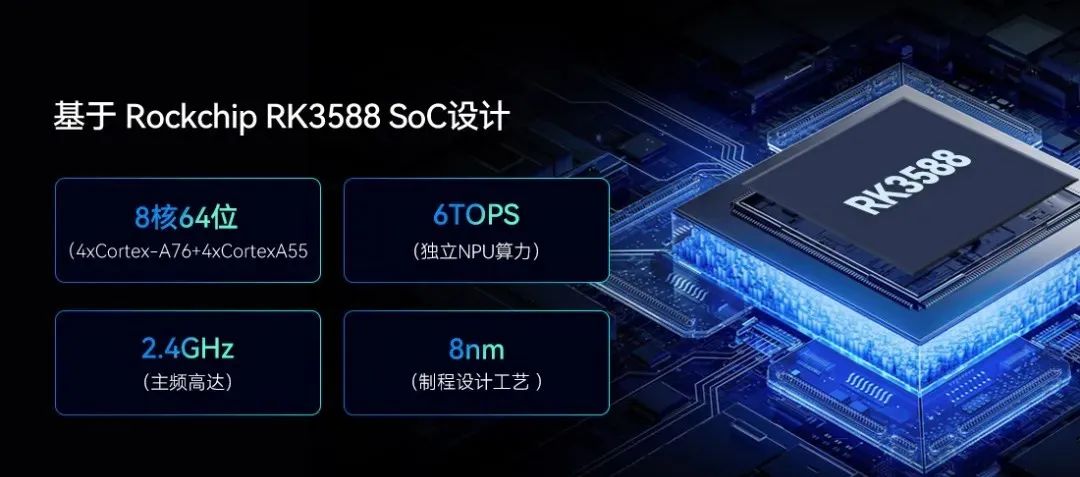

PAS-2310 is designed based on the Rockchip RK3588 SoC, equipped with an octa-core high-performance processor and 6 TOPS NPU, supporting the deployment of traditional vision algorithms and AI deep learning models, capable of independently completing complex visual recognition and computation tasks without the need for an external graphics card. With its high computing power, low power consumption, and high cost-effectiveness, PAS-2310 can handle various embedded visual inspection applications, injecting strong momentum into industrial intelligence.
#
Powerful Computing Performance
Octa-core 64-bit high-performance processor + 6 TOPS NPU, supports local deployment of algorithms and inference acceleration; equipped with 8GB/16GB large capacity memory, ensuring stable and smooth system operation.
#
Flexible Storage Configuration
Offers 64GB/128GB eMMC storage options and is equipped with an M.2 slot or a 2.5-inch expandable hard drive bay to meet diverse data needs.
#
Excellent Camera Compatibility
4 independent channel I210AT network ports, supporting stable access to gigabit industrial cameras; optional Zhiwei Industrial self-developed PoE power supply module, equipped with an intelligent control chip, can automatically detect and classify the connected devices, providing up to 15W power supply for each port.
#
Innovative Light Source Control
Built-in 4-channel light source controller, equipped with ARM Cortex-M4 main control, low-latency response for precise exposure control, supporting brightness adjustment from 0 to 100 levels and strobe mode, meeting high-precision imaging requirements.
#
Comprehensive Control Interfaces
Integrates 16-bit opto-isolated digital I/O (8 in, 8 out), compatible with NPN/PNP modes and dry/wet node inputs, allowing flexible control of various peripherals.
02
PAS-6101: High-Performance Machine Vision Controller

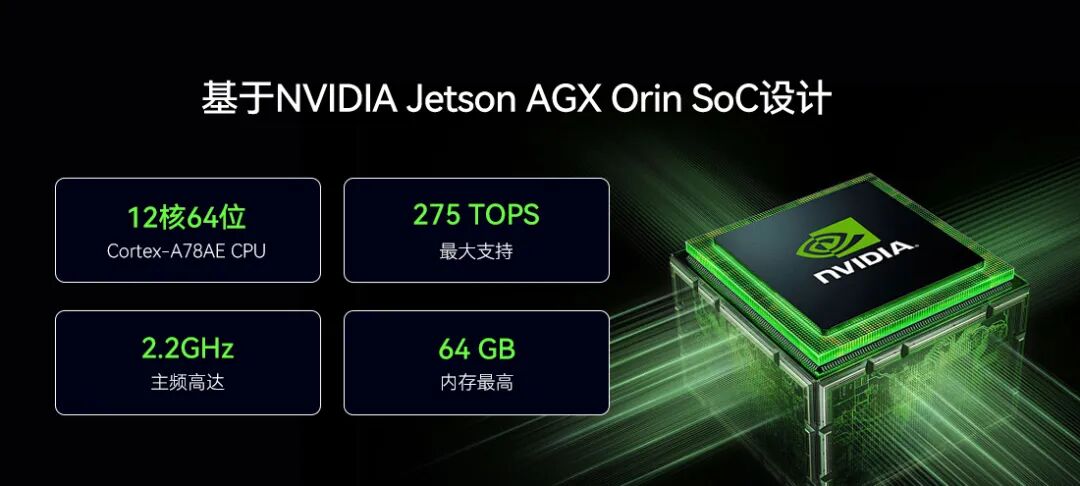

PAS-6101 is aimed at high-performance needs, based on NVIDIA Jetson AGX Orin, providing up to 275 TOPS of AI computing power, supporting complex tasks such as deep neural networks and large model recognition. The product is equipped with 6 GbE network ports, rich industrial communication interfaces, and supports TPM hardware encryption and GPS positioning functions, meeting the needs for multi-channel image concurrent processing and high-precision recognition.
#
Superb AI Performance
Supports Jetson AGX Orin 32GB (200TOPS) and 64GB (275TOPS) configurations, adapting to different scene requirements.
#
Full Interface Coverage
Equipped with 6 GbE network ports, high-speed USB3.0, RS232/RS485/CAN and other industrial communication interfaces, meeting the access needs of various sensors and devices.
#
Strong Expansion Capability
Equipped with M.2 NVMe SSD expansion slot, TF card slot, and 64G eMMC storage, supporting WIFI/BT modules and 4G/5G wireless communication.
#
High Security
Supports TPM/TCM hardware encryption, secure boot, and optional GPS positioning module, suitable for edge positioning and tracking applications.
#
Industrial-Grade Design
Aluminum alloy shell, combined with active and passive cooling, ensures stable operation of the device in high-temperature and high-load environments.
Zhiwei Industrial’s release reflects the technological trend of edge intelligence evolving towards “faster, smaller, and stronger”. For manufacturing enterprises, the new products can significantly reduce overall power consumption and procurement costs, simplifying the system deployment process; for system integrators, the flexible and combinable hardware solutions and diverse AI model adaptation capabilities will greatly shorten project cycles and enhance solution delivery capabilities.
Zhiwei Industrial is promoting embedded AI vision controllers to become the core support of the next generation of intelligent manufacturing systems through a product strategy of software and hardware collaboration, providing more economical and efficient machine vision solutions for users in various industries.
Welcome to contact the Zhiwei Industrial sales team for more information!
