Previously, I worked with microcontrollers and various models of frequency inverters including Mitsubishi D700, Siemens G120, Omron 3G3JZ, Panasonic VF200, Delta VFD-M, Xinjie VB3, Yonghong FID-B10, ChuanDian IS7, Huichuan MD500, Inovance Goodrive10, Schneider ATV12, Haiwei E, HoliTime HGD303, Tai’an F510, Hexin F2A, Rockwell PowerFlex-4, Fuji FRENIC-VP, Boke CV20, Yaskawa A1000, and Weichuang Artrich-AR60T. Most of the microcontroller communication programs were verified with the physical frequency inverters, while the remaining programs were verified through simulation methods. I am sharing the Modbus communication register allocation table for frequency inverters.

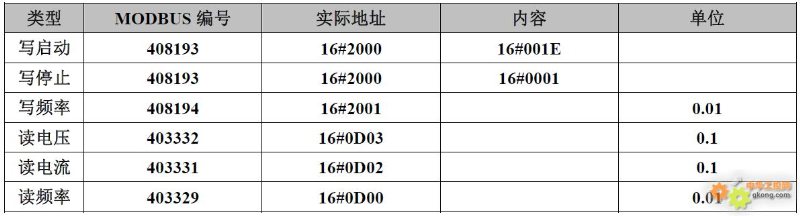

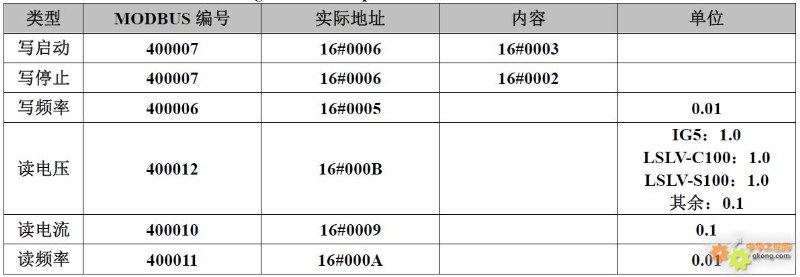

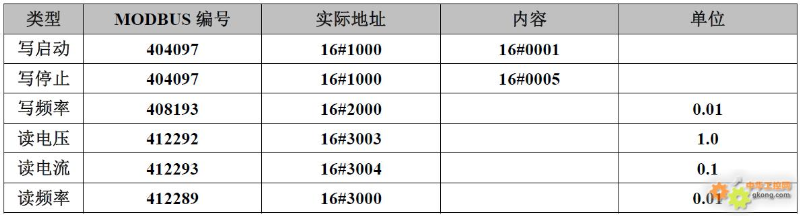

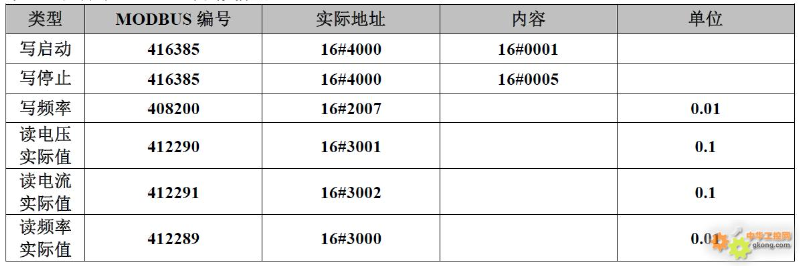

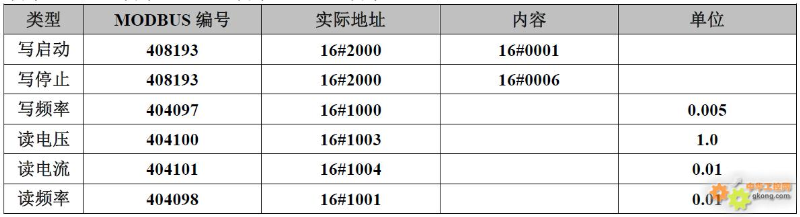

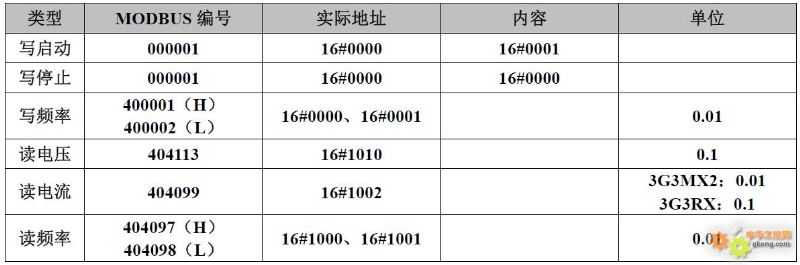

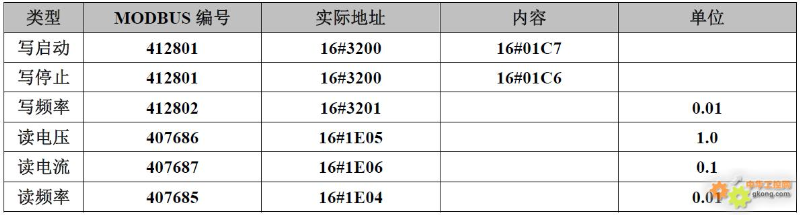

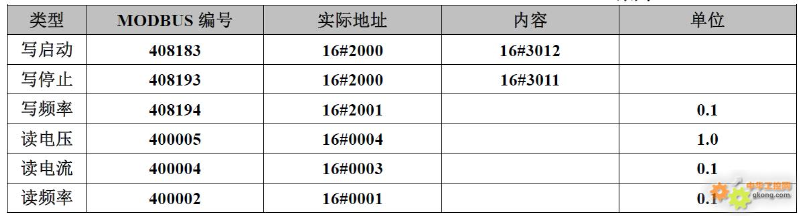

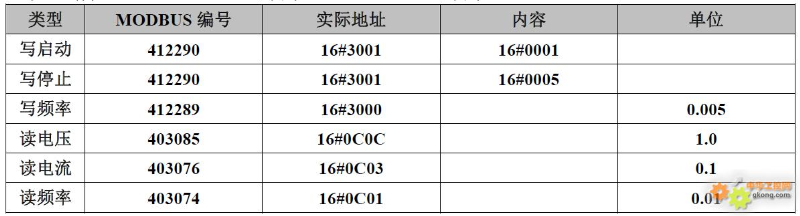

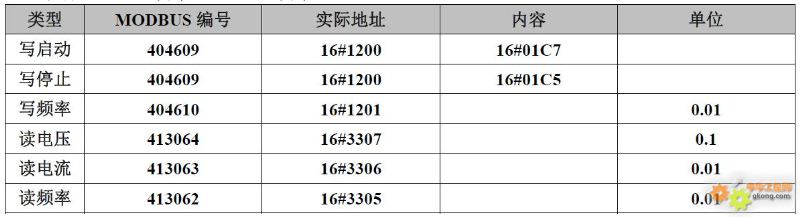

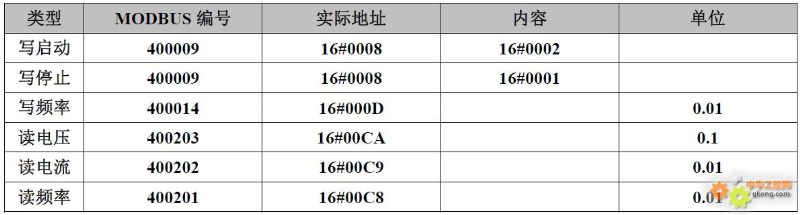

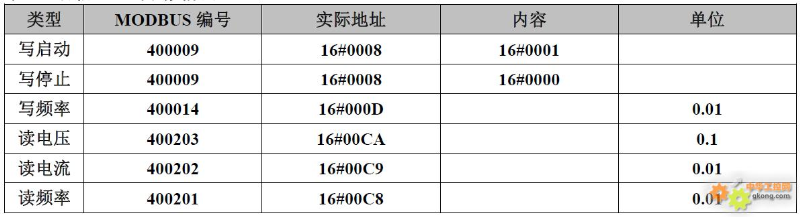

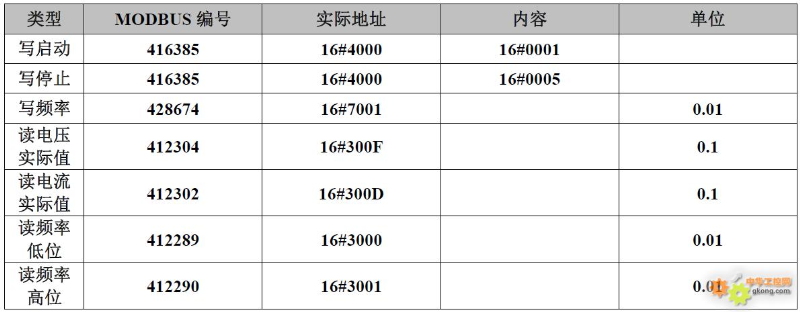

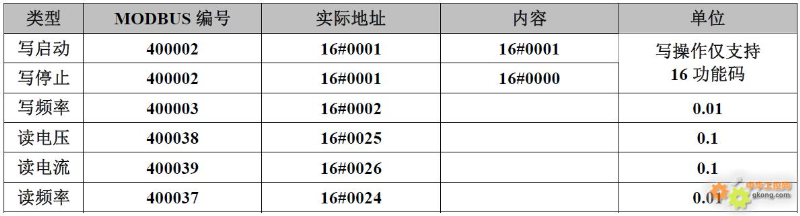

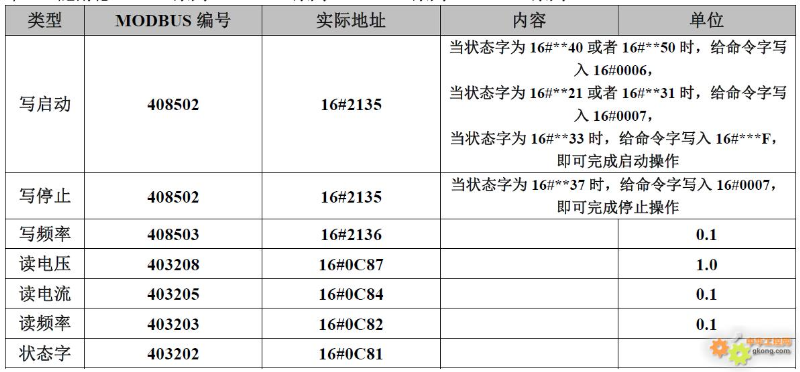

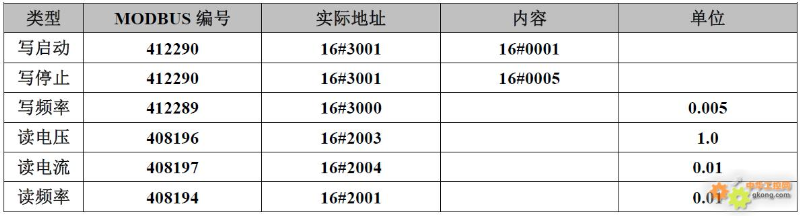

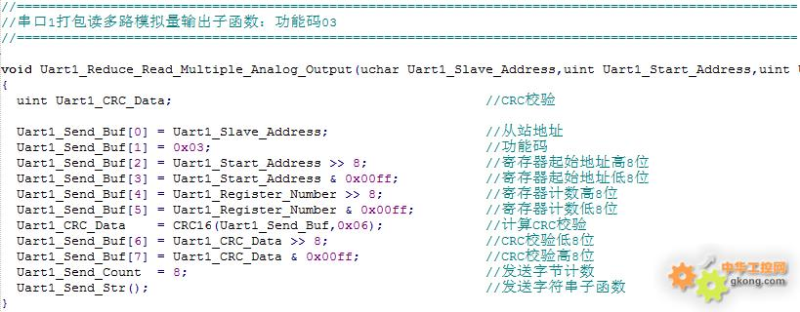

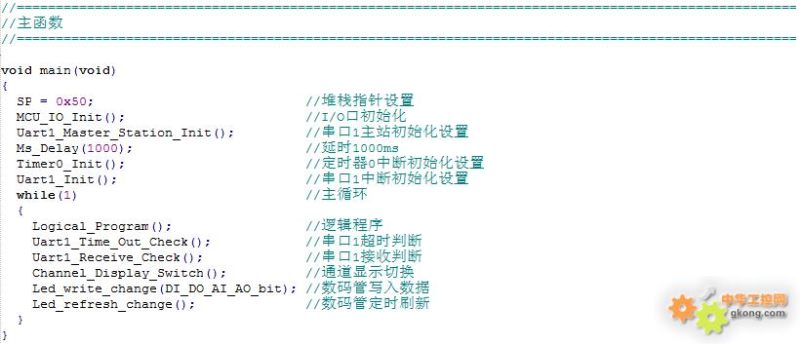

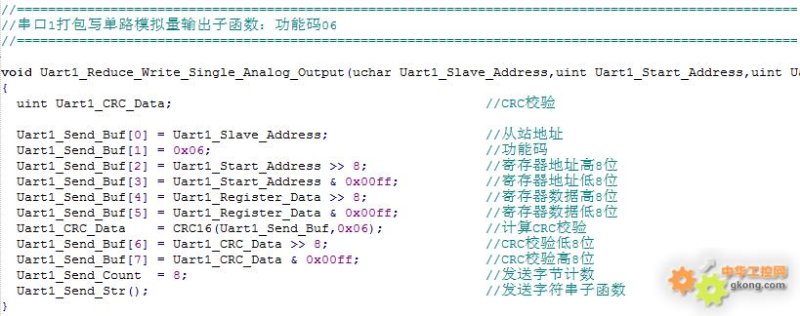

Microcontroller Program Screenshots:

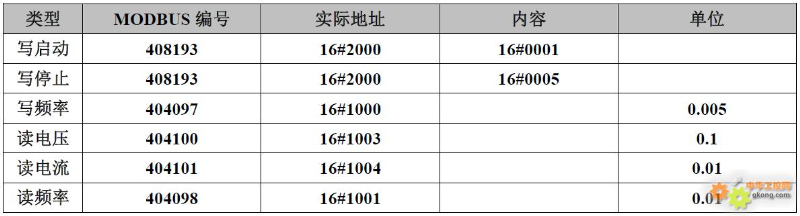

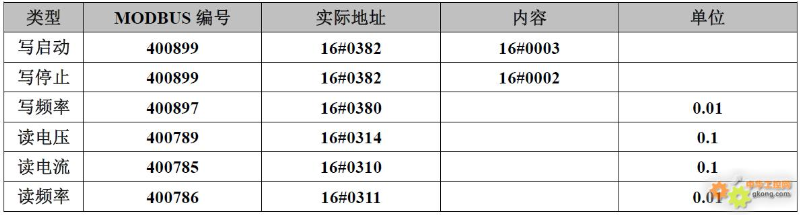

1. Mitsubishi A700, D700 Series, E700 Series, F700 Series, L700 Series, A800 Series, F800 Series:

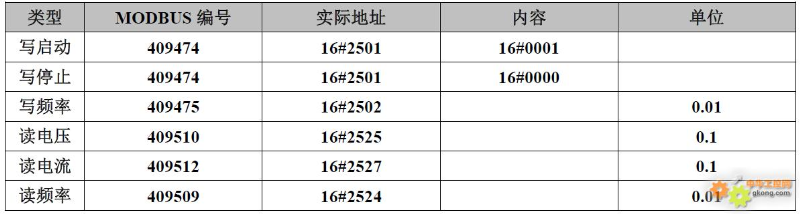

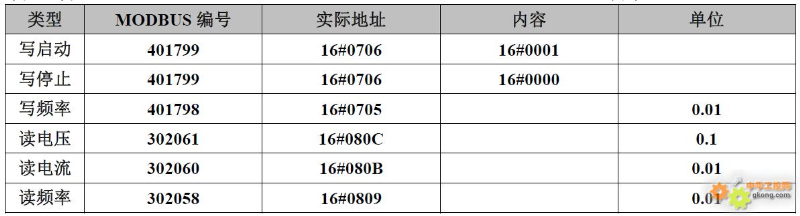

2. Siemens G120 Series:
3. Omron 3G3JZ Series, 3G3MZ-ZV2 Series:
4. Omron 3G3MX2-ZV1 Series, 3G3RX Series:
5. Panasonic VF100 Series, VF200 Series:
6. Panasonic MK300 Series:

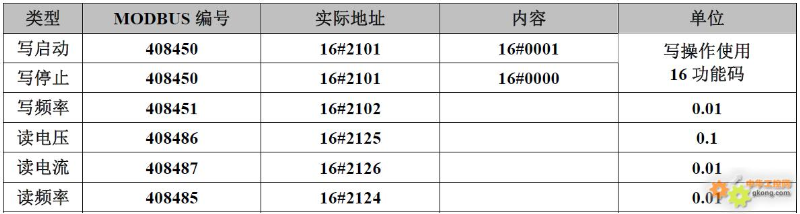

7. Delta VFD-E Series, VFD-EL Series:
8. Delta VFD-F Series, VFD-FE Series:

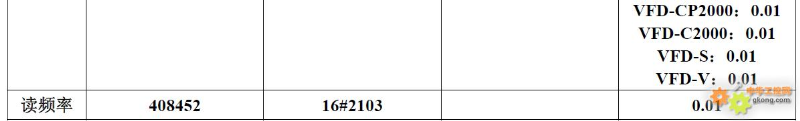

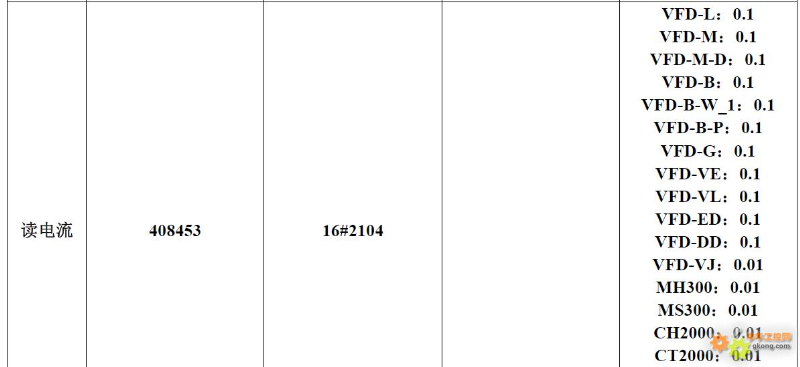

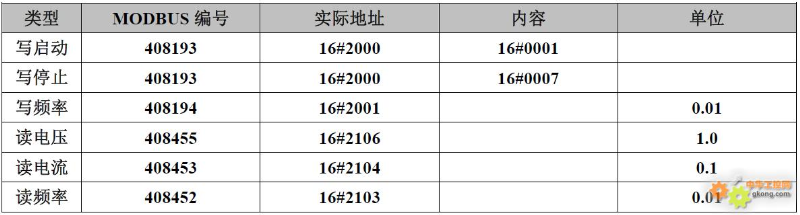

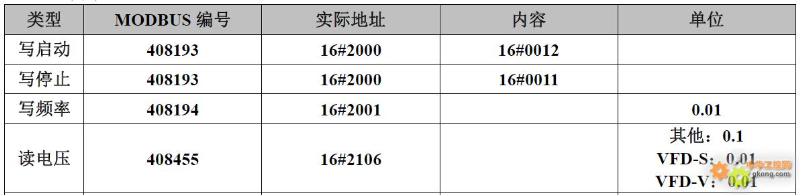

9. Delta VFD-L Series, VFD-M Series, VFD-M-D Series, VFD-B Series, VFD-B-W_1 Series, VFD-B-P Series, VFD-G Series, VFD-VE Series, VFD-VL Series, VFD-ED Series, VFD-DD Series, VFD-VJ Series, MH300 Series, MS300 Series, CH2000 Series, CT2000 Series, VFD-CP2000 Series, VFD-C2000 Series, VFD-S Series, VFD-V Series:

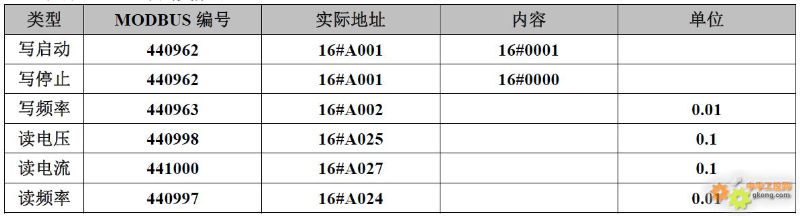

10. Xinjie VB3 Series, VB5 Series, V5 Series, VB5N Series, VD4 Series:
11. Xinjie VH3 Series:
12. Yonghong FID-B10 Series, FID-B30 Series:
13. Yonghong FID-N1 Series:
14. Yonghong FID-N10 Series:
15. Yonghong FID-E1 Series, FID-S1 Series:
16. Yonghong FID-E10 Series:
17. ChuanDian Starvert-iG5, iG5A, igX, IGXA, ip5a, Is5; LSLV-C100, LSLV-S100 Series:
18. ChuanDian IS7 Series:

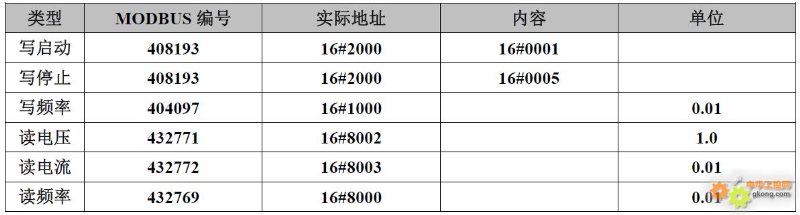

19. Huichuan MD200 Series, MD202 Series, MD210 Series, MD290 Series, MD310 Series, MD320 Series, MD380 Series, MD400 Series, MD480 Series, MD500 Series:

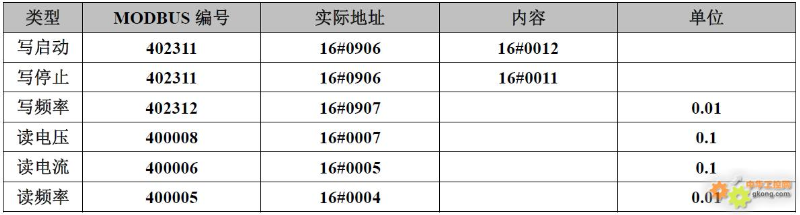

20. Inovance Goodrive10, 20, 35, 200A, 300, 800, 1000, 2000, 3000 Series:

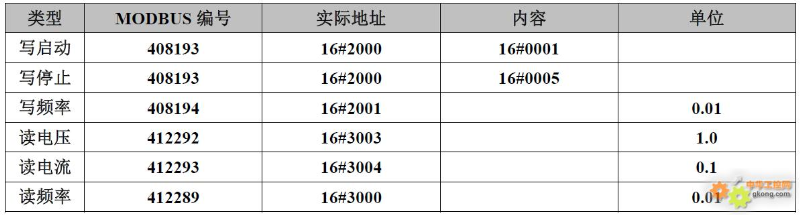

21. Schneider ATV12 Series, ATV310 Series:
22. Schneider ATV312 Series:

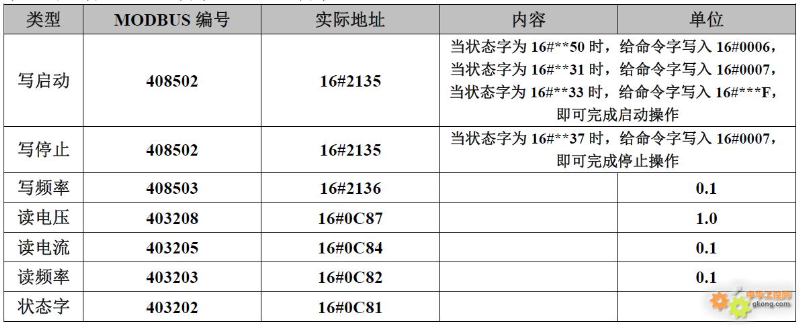

23. Schneider ATV32 Series, ATV320 Series, ATV340 Series, ATV610 Series:
24. Haiwei E Series, H Series:
25. HoliTime HGD303 Series:
27. HoliTime HGD100 Series:
28. Tai’an F510 Series:
29. Hexin F2A Series:
30. Rockwell PowerFlex-4M, PowerFlex-4, PowerFlex-40, PowerFlex-40P, PowerFlex-400 Series:
31. Fuji FRENIC-Mini, FRENIC-VP, FRENIC-Multi, FRENIC-MEGA Series:
32. Boke CV20 Series, CV100 Series, FV100 Series, SV100 Series:
33. Yaskawa A1000 Series, E1000 Series, H1000 Series, J1000 Series, L1000A Series, T1000V Series, U1000 Series, V1000 Series, W1000 Series, CH700 Series, GA700 Series:
34. Weichuang Artrich-AR60T Series, Artrich-AR80i Series, Artrich-AR200iL Series:
35. Weichuang Artrich-AR100L Series, Artrich-AR200L Series:
This article is reprinted from the Industrial Control Forum. All rights belong to the original author. If there is any infringement, please contact for deletion!
