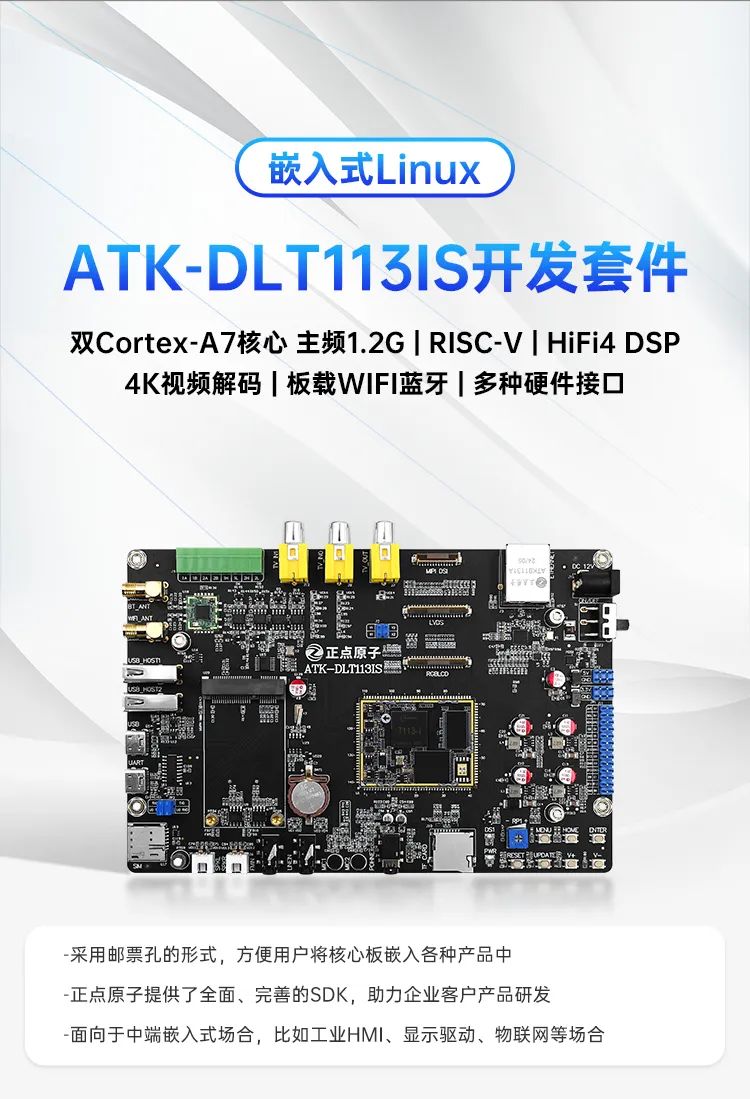

The ATK-DLT113IS development board is a product developed by Zhongdian Atom based on the Allwinner T113-i processor, designed for the embedded Linux field. It features high performance, high reliability, low cost, and a rich set of interface resources, making it suitable for embedded system development!
T113-i

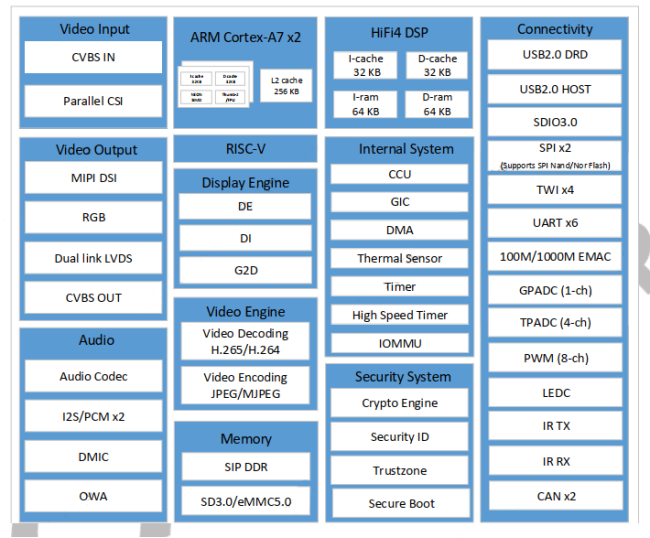

Chip Framework

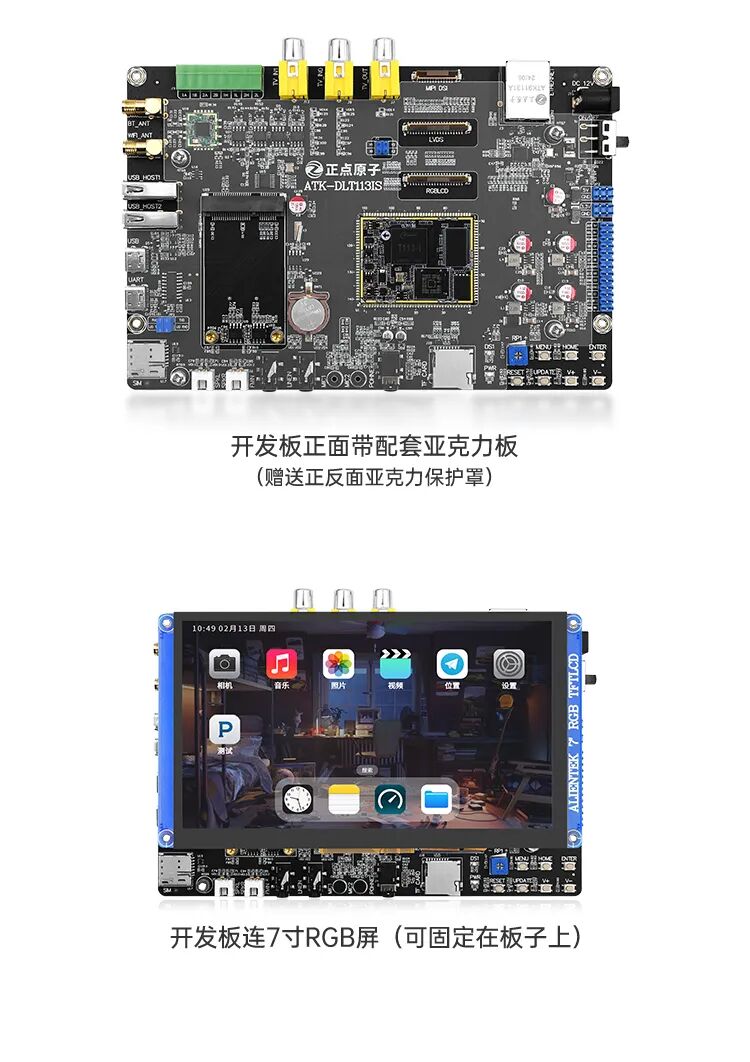

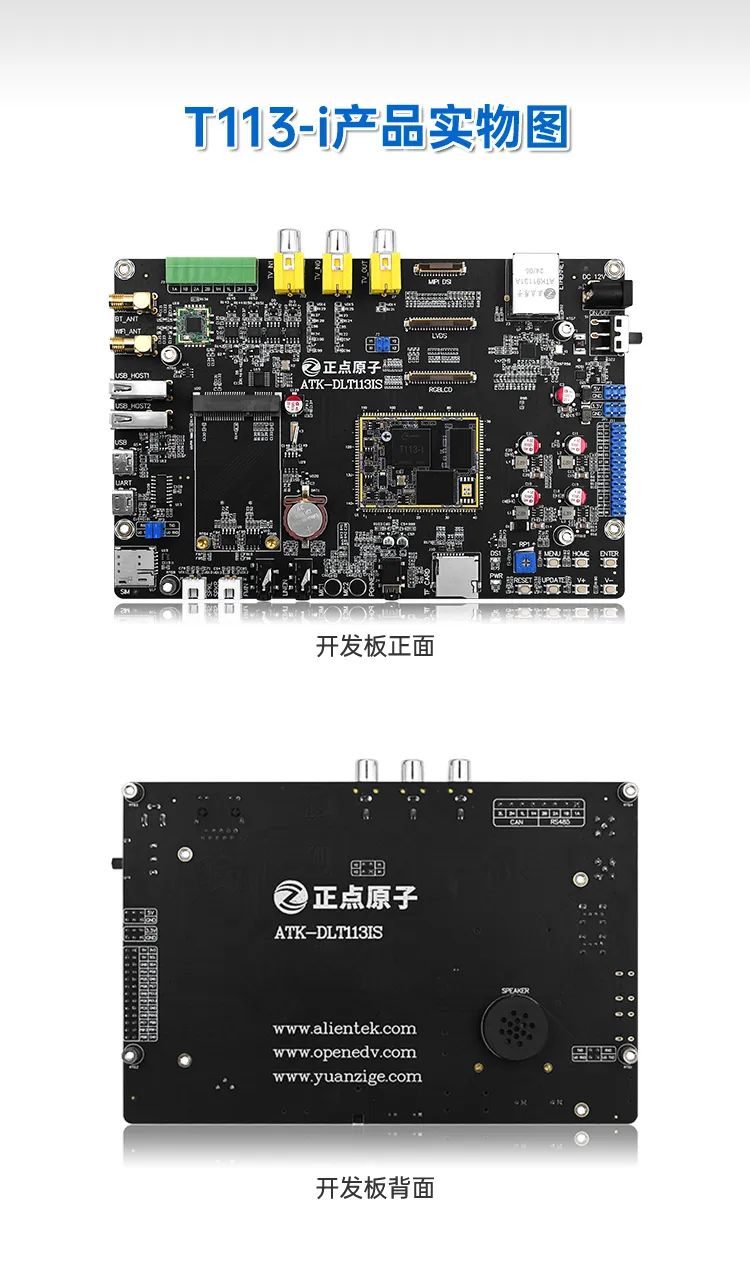

T113-i Development Board
Video Introduction
Function demonstration of the Zhongdian Atom T113-i development board (click to watch)
01
Introduction to T113IS Development Board
1. Multi-core heterogeneous main control
The Allwinner T113-i chip is a SoC designed specifically for embedded and IoT applications, featuring a dual-core Arm Cortex-A7 processor core, along with an integrated C906 RISC-V core and HiFi4 DSP. It supports a rich set of multimedia processing capabilities, including high-definition video decoding and encoding, as well as hardware-level 2D graphics acceleration. It supports 1080P@60fps JPEG/MJPEG video hardware encoding, 4K@30fps H.265, and 4K@24fps H.264 video hardware decoding. Additionally, the T113-i processor has abundant peripheral resources, supporting commonly used interfaces in industrial control such as TWI, SPI, CAN, EMAC, SMHC, UART, RGB, LVDS, MIPI DSI, USB, ADC, and more.
2. Various memory/storage combinations
The T113-i core board has three configurations: 256M DDR3 + 256M NAND, 256M DDR3 + 4GB eMMC, and 512M DDR3 + 8GB eMMC, meeting the capacity needs of most development boards.

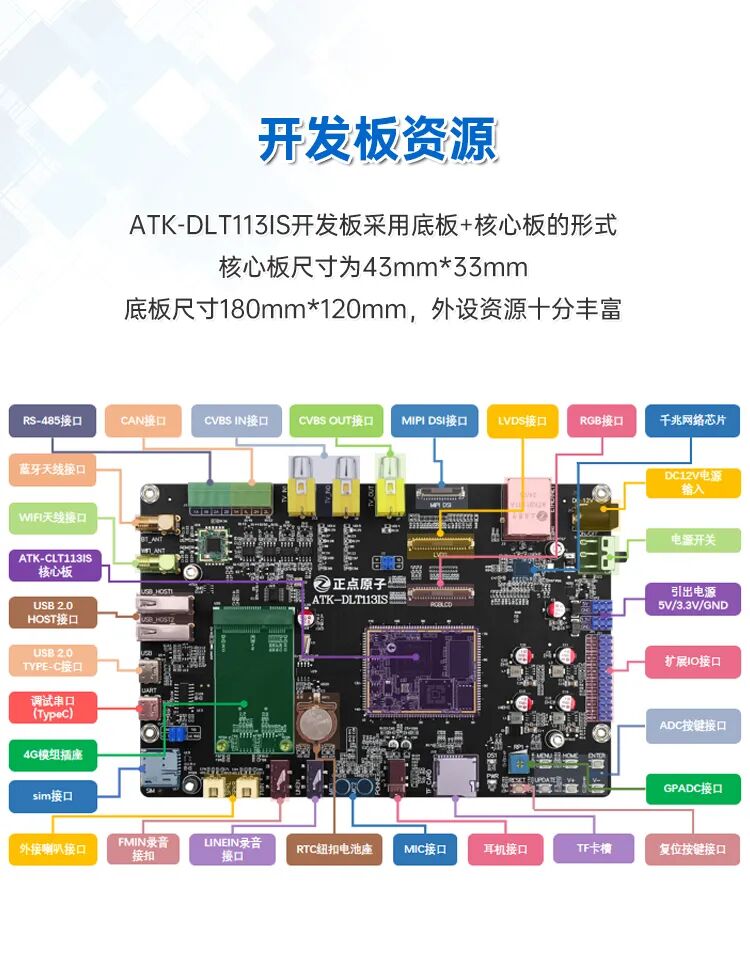

3. Rich peripheral interfaces
The board features two RS485 ports, two CAN ports, one Gigabit Ethernet port, two USB2.0 ports, one MIPI DSI display interface, one RGB display interface, one LVDS display interface, one WIFI & BT module, one onboard microphone, and one 4G module interface, catering to various application scenarios.

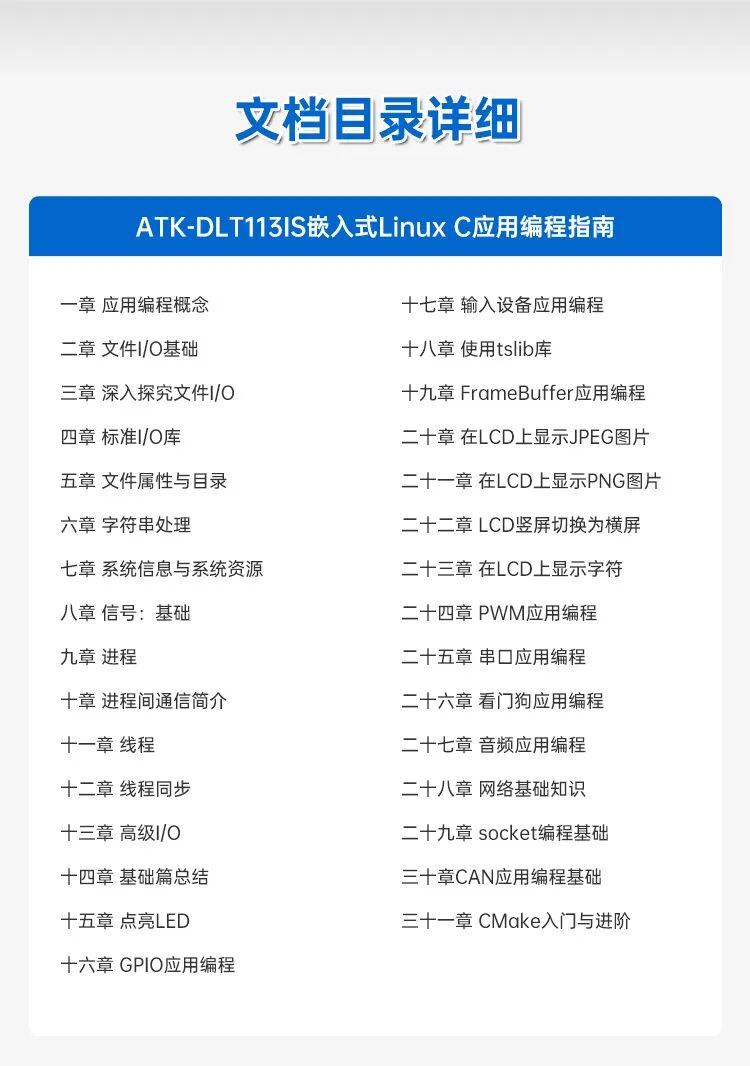

4. Detailed development materials

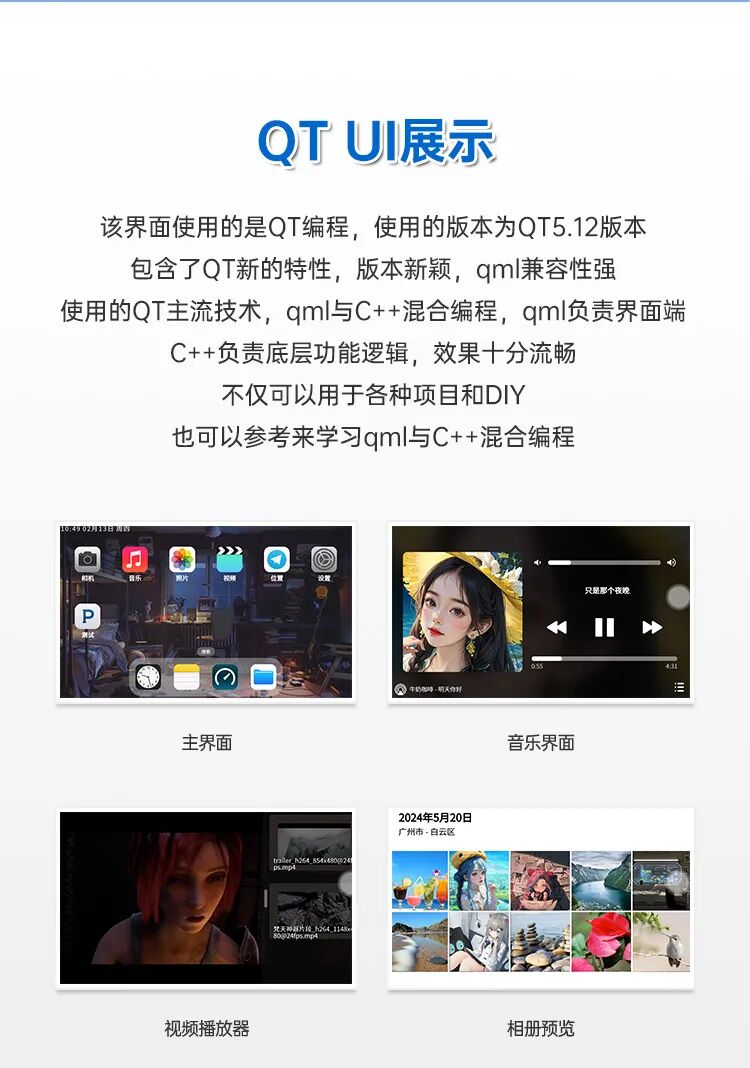

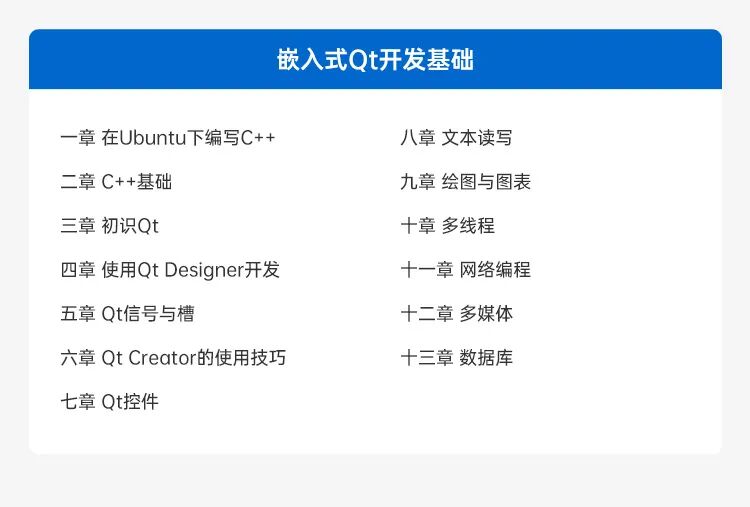

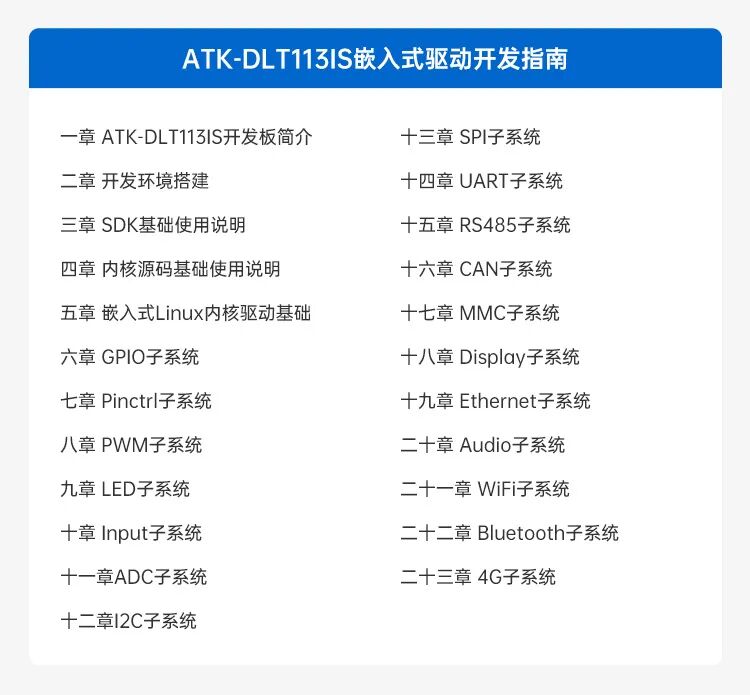

Comprehensive development board tutorial documents are provided, covering everything from beginner to advanced guidance. It includes system SDK source code and QT source code to help you quickly get started and deeply customize your development.
ATK-DLT113IS
Detailed Introduction
