I recently tested the operating power consumption of an M0+ MCU. The test code used the simplest method, which is to run an empty loop while(1) in the main function. The measured current was 1.11mA, using the KEIL MDK IDE with optimization level 0.
When I inserted 3 NOP instructions before the while(1), the measured current changed to 0.89mA.
What is going on here? Is it a measurement error, or is it really the case? This is a difference of over 200uA! To investigate further, I conducted several comparative experiments.
|
Test Conditions |
Power Consumption |
|
Optimization Level 0, no NOP before while(1) |
1.11mA |
|
Optimization Level 0, insert 1 NOP before while(1) |
0.90mA |
|
Optimization Level 0, insert 2 NOPs before while(1) |
1.11mA |
|
Optimization Level 0, insert 3 NOPs before while(1) |
0.89mA |
|
Optimization Level 0, insert 4 NOPs before while(1) |
1.12mA |
|
Optimization Level 0, insert 5 NOPs before while(1) |
0.91mA |
|
Optimization Level 0, insert 6 NOPs before while(1) |
1.11mA |
|
Optimization Level 0, insert 7 NOPs before while(1) |
0.88mA |
|
Optimization Level 0, insert 8 NOPs before while(1) |
1.11mA |
From the above experiments, a clear pattern can be observed: whenever an odd number of NOPs are inserted before while(1), the power consumption is relatively lower (around 0.9mA), while an even number of NOPs results in higher power consumption (around 1.11mA).

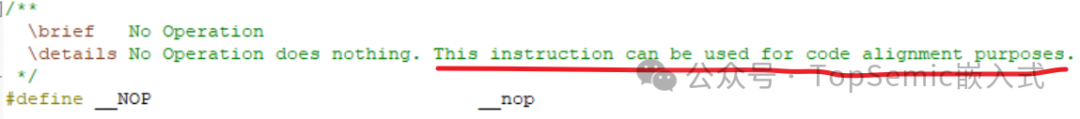

At this point, we need to understand the NOP instruction. My previous understanding of the NOP instruction was limited to its use for software delays, but it also has an important role in achieving instruction alignment.

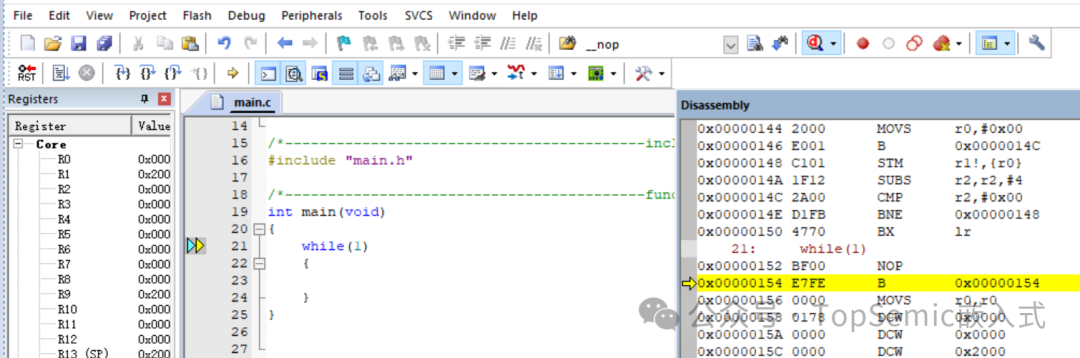

In the debugging window, let’s take a look at the assembly code.
The C code’s while(1) is compiled into 2 instructions, namely NOP and B, with the jump instruction B automatically inserting a NOP before it. The while(1) actually executes a NOP instruction first, followed by the B instruction, which jumps to its own address, achieving an infinite loop effect. At this point, the address of the NOP instruction in while(1) is 0x00000152 (decimal 338), and the address of the B instruction is 0x00000154 (decimal 340).

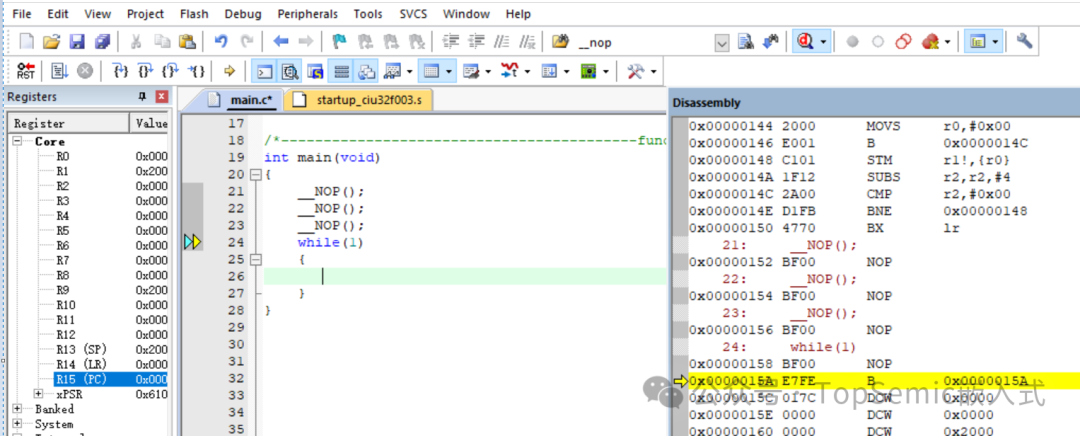

When an odd number of NOP instructions are inserted before while(1), the corresponding instruction address of while(1) changes.
Why does the change in instruction address affect power consumption? This brings us to the CPU’s instruction execution process.

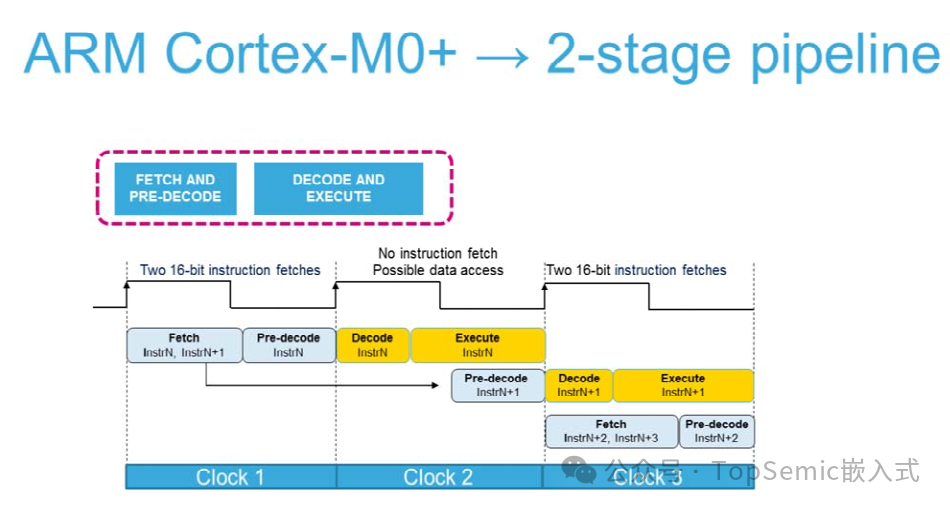

The CPU continuously executes the process of Fetch (fetching instructions) –> Decode (decoding instructions) –> Execute (executing instructions).
When the CPU fetches instructions during program execution, it reads 32-bit instructions from Flash in a 4-byte aligned manner. If an even (including 0) number of NOP instructions are inserted before while(1), the CPU needs to read 32-bit content from Flash twice to decode and execute while(1). If an odd number of NOP instructions are inserted before while(1), the CPU only needs to read 32-bit content from Flash once. This difference in operation leads to a difference in power consumption, as the former requires more operations, resulting in slightly higher power consumption.

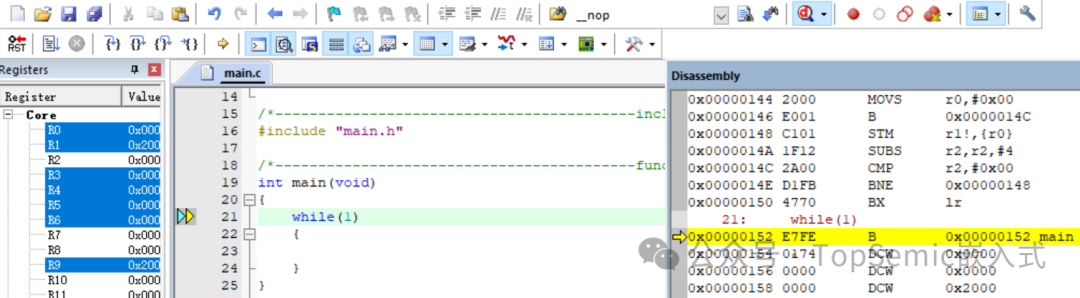

Additionally, if no NOP is added before while(1) but the optimization level is set to the highest, the B instruction will not have a NOP inserted before it, and the address of the B instruction will be 0x00000152. This effect is similar to not having optimization and inserting an odd number of NOPs before while(1), resulting in lower power consumption. The reasoning is the same, as the execution of while(1) only requires fetching from address 0x150 once.
Finally, I conducted another experiment where I placed the program in RAM. Regardless of how many NOPs were added before while(1), the power consumption remained the same at 0.58mA. When the program is in RAM, there is no need to read from Flash, resulting in lower power consumption.Using differences in power consumption for cracking behavior follows a similar principle.The above analysis is merely speculation, as I do not fully understand the internal workings of the MCU. If there are any inaccuracies, I welcome corrections from everyone.
