Voice modulation chip, music recording chip, one-time programmable 30-second recording IC, OTP playback chip
The voice modulation chip, music recording chip, one-time programmable 30-second recording IC, and OTP playback chip are voice solutions that have comprehensive requirements for recording quality, voice modulation effects, cost control, production convenience, and reliability in consumer electronics and entertainment products. Its core is an OTP voice recording and playback chip with high integration, built-in microphone amplifier, audio ADC/DAC, and power amplifier, enabling one-time recording and storage (up to 30 seconds), and optionally integrating voice modulation algorithms (such as pitch shifting), providing simple, reliable, and fun single-instance voice customization features for toys, gifts, and promotional items.
As a PCBA solution provider with a wealth of mature solutions and strict quality control in the consumer electronics and voice chip fields, we are very familiar with these requirements. We can provide you with complete PCBA solutions for voice products based on OTP recording and playback chips, featuring clear sound quality, production convenience, and high cost-effectiveness.
**Core Solution: One-Stop PCBA Solution for OTP Playback Chip (Clear Sound Quality, Production Convenience, High Cost-Effectiveness)

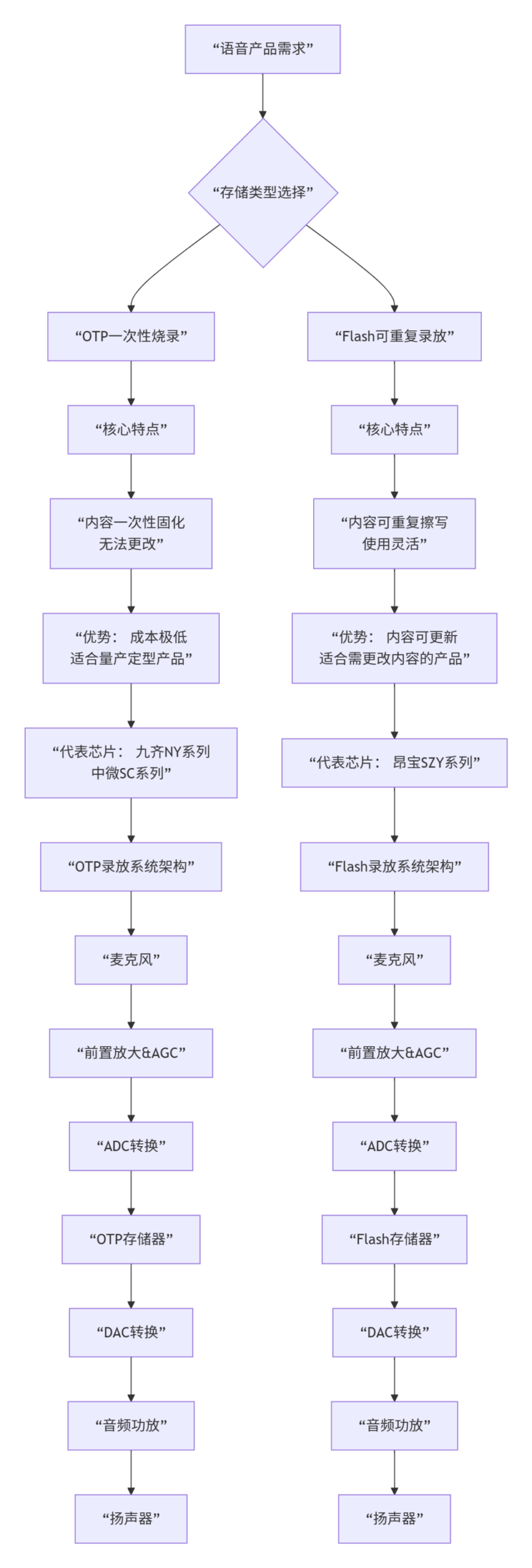

To help you quickly understand the technical path, the following diagram clearly shows the core differences and solution architecture between OTP playback chips and recordable playback chips:
1. Technical Solution Details (Recording, Storage, Playback)
1. High-Fidelity Recording System (Core Technology)
-
Audio Capture: Uses high-performance audio ADC, adjustable sampling rate of 8-16kHz, ensuring sound quality.
-
Signal Conditioning: Built-in microphone amplifier and AGC, stabilizing recording volume.
2. Reliable Storage System
-
Storage Medium: OTP memory, content is programmed once, cannot be changed, high reliability.
-
Storage Duration: up to 30 seconds (sampling rate adjustable).
3. High-Quality Playback System
-
Audio Amplifier: Built-in low-power amplifier, can directly drive speakers.
-
Sound Quality Performance: clear sound quality.
2. Key Performance Indicators (Industrial Grade)
|
Performance Parameters |
High-Quality Specifications |
Economical Specifications |
Testing Conditions |
|---|---|---|---|
|
Recording Duration |
up to 30 seconds |
up to 30 seconds |
sampling rate adjustable |
|
Sampling Rate |
16kHz |
8kHz |
affects sound quality and duration |
|
SNR |
> 50dB |
> 40dB |
sound quality standard |
|
Operating Voltage |
2.0V-5.5V |
2.0V-5.5V |
wide voltage operation |
|
Static Power Consumption |
< 10μA |
< 10μA |
long battery life |
3. Advantages of the Solution
-
Clear Sound Quality: high sampling rate, good sound quality.
-
Production Convenience: one-time programming, suitable for mass production.
-
Low Cost: OTP chip, high cost-effectiveness.
-
High Reliability: content is fixed, will not be lost.
4. Design Points
-
Acoustic Design: the sound chamber of the microphone and speaker affects sound quality.
-
Power Filtering: power supply needs filtering capacitors, to prevent noise.
5. Recommended Chip Solutions (High Cost-Effectiveness)
|
Chip Platform |
Features |
Applicable Products |
|---|---|---|
|
Jiuqi NY Series |
high cost-effectiveness, low power consumption |
economical recording products |
|
Zhonge SC Series |
strong anti-interference, good stability |
mainstream recording products |
6. Specific Requirements for Your Confirmation
To provide you with the most accurate solution and quotation, please clarify the following details:
|
Customization Items |
Details for Your Confirmation |
|---|---|
|
1. Performance Parameters |
What are the requirements for recording duration, sound quality, and power consumption? |
|
2. Functional Requirements |
What functions are needed (e.g., voice modulation effects, multi-segment playback)? |
|
3. Target Cost |
Do you have a rough expectation for the target cost per PCBA board? |
We look forward to your detailed requirements! We will create a user-friendly recording product for you.
Model Number:SZY42F
Package Specifications:SSOP
Application Field:Consumer Grade
Packaging Method:Reel
Mounting Type:Panel Mount
Output Current:20MA
Order Number:SZY42F
Batch Number:2023
