Understanding HTTP Proxies: Theory and Practice

https://mp.weixin.qq.com/s/9H7aWD-nXdpnh-etIb2o0Q

• Part One: Discussing the application scenarios and basic theoretical knowledge of HTTP proxies.
• Part Two: Introducing a case from the author’s project where a local proxy service is used to proxy WebView traffic, enabling access to internal applications from the external network.
• Part Three: Introducing some source code implementations of the proxy module in Chromium.

1. In company or school networks, access to the Internet may require a proxy server.
2. To protect privacy, users may use proxy servers to hide their IP addresses.
3. To bypass geographical restrictions, users may use proxy servers located in specific countries/regions to access certain websites or services.
4. Developers may use proxy servers to debug HTTP requests and responses.

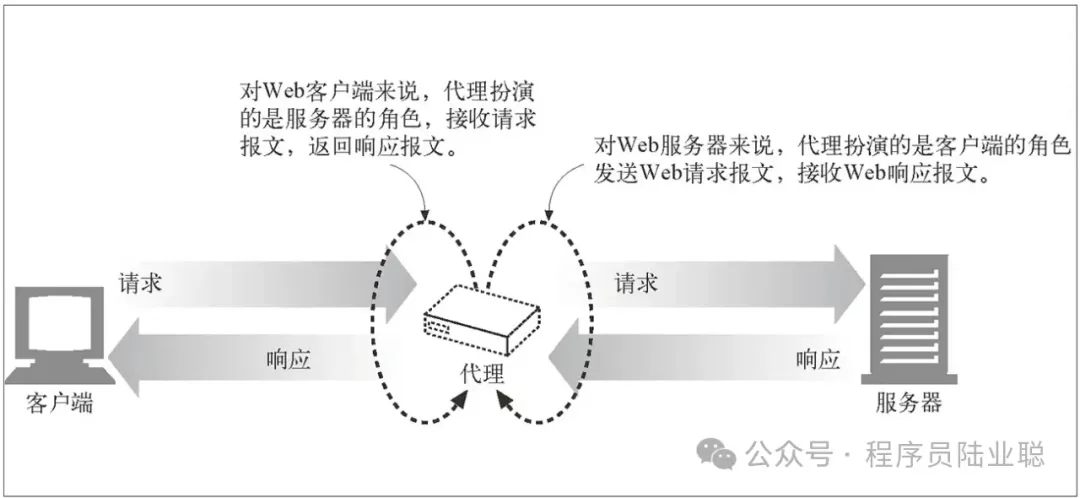

1. The proxy server can modify the client’s requests and the target server’s responses, such as adding, deleting, or modifying HTTP headers.
2. The proxy server can cache responses from the target server to improve access speed and reduce network bandwidth consumption.
3. The proxy server can filter and audit HTTP requests, implementing access control and security policies.

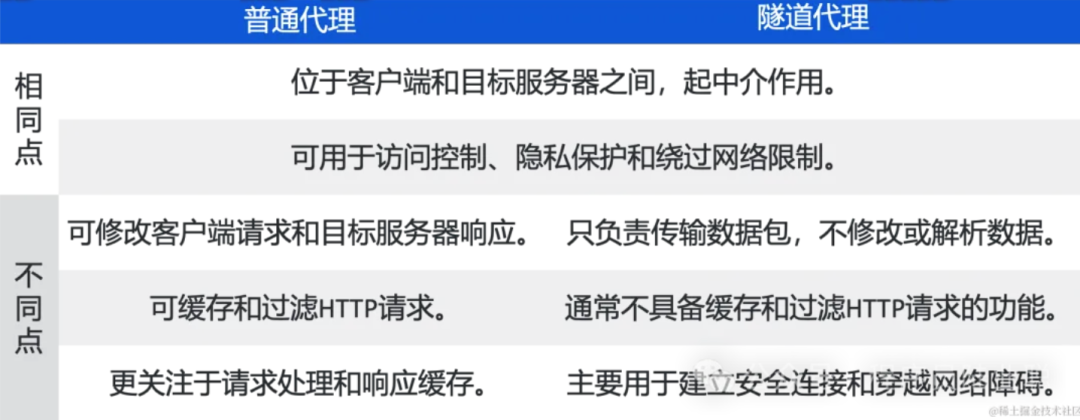

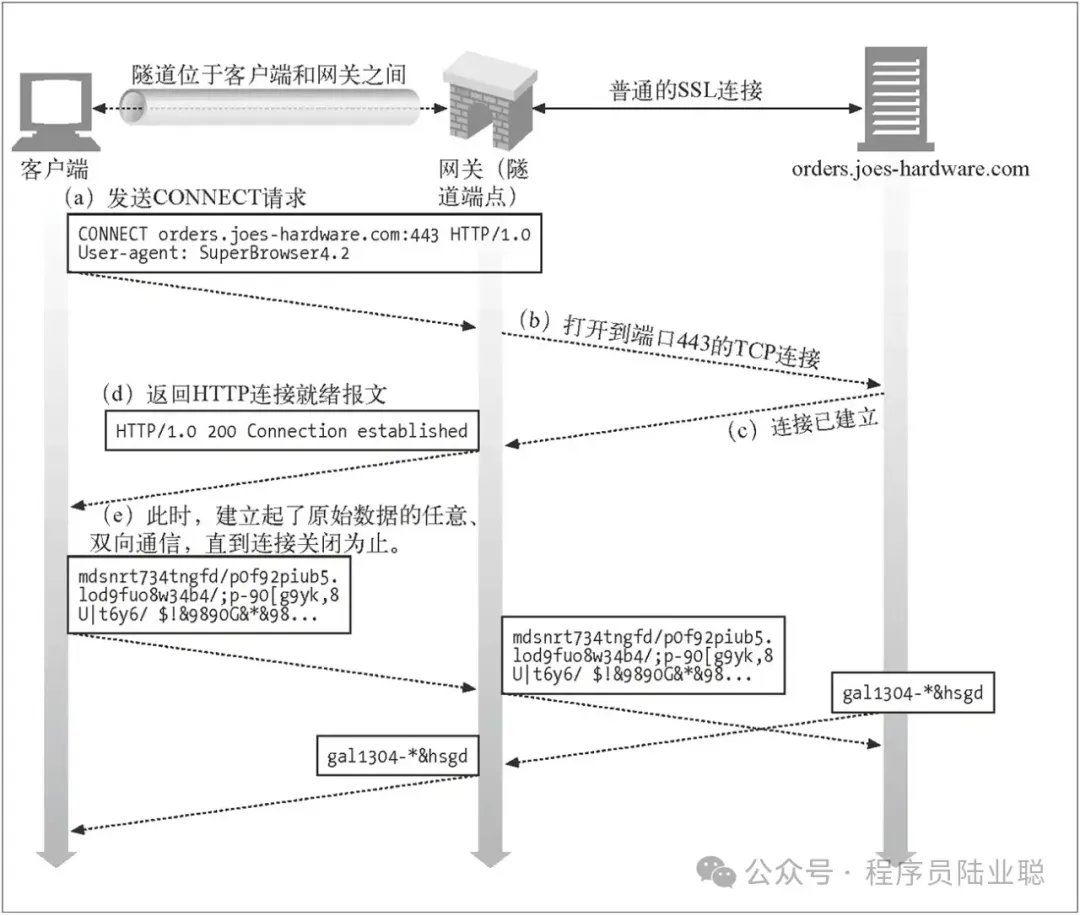

1. The proxy server does not modify or parse the data transmitted through the tunnel; it only forwards the data packets.
2. Tunnel proxies are often used to establish secure connections (such as SSL/TLS), in which case the proxy server cannot view or modify the encrypted data.
3. Tunnel proxies can traverse firewalls and NAT devices, accessing internal or restricted network resources.

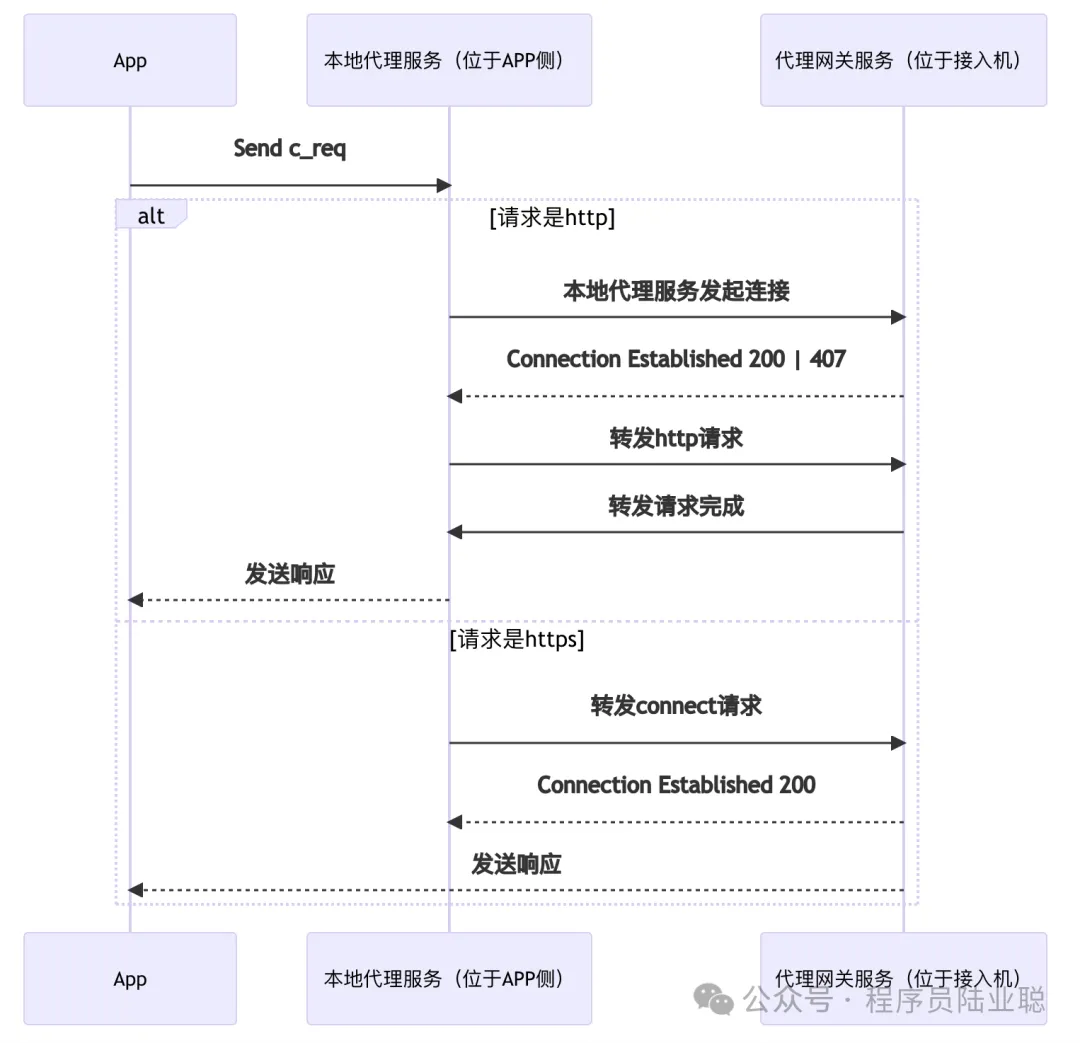

• The local proxy service contains a lot of business logic (such as nearby access, determining whether to go through a VPN tunnel or direct connection, determining whether to access resources through specific access nodes, etc.). If the local proxy service is removed, each client would need to implement this logic themselves.
• In addition to proxying WebView traffic, the local proxy service also proxies CGI traffic (by setting a proxy for libcurl). These two forms of business are quite different, and the local proxy service can consolidate the processing of both types of traffic in one place.
• Each client (Android, iOS, PC) sets the proxy directly for the browser, making it impossible to embed business logic into the browser kernel. By using C++, this can be reused across Android, iOS, and PC.

1. Check if the WebView supports proxy override functionality.
2. Create a ProxyConfig.Builder instance and add proxy rules.
3. Check if the WebView supports reverse proxy override functionality and add exception rules. When setReverseBypassEnabled is true, addresses added through addBypassRule will be treated as a blacklist. That is, addresses in the list will be accessed through the proxy server, while addresses not in the list will be accessed directly without going through the proxy server.
4. Add direct connections to the proxy rules.
5. Apply the proxy configuration and set the callback function.

// Check if the WebView supports proxy override functionality
if (ReflecterHelper.invokeStaticMethod("androidx.webkit.WebViewFeature", "isFeatureSupported", arrayOf(WebViewFeature.PROXY_OVERRIDE)) as? Boolean != true) {
    return
}

// Create a ProxyConfig.Builder instance and add proxy rules
val builder = ReflecterHelper.newInstance("androidx.webkit.ProxyConfig$Builder")
ReflecterHelper.invokeMethod(builder, "addProxyRule", arrayOf(proxy))

// Check if the WebView supports reverse proxy override functionality and add exception rules
if (ReflecterHelper.invokeStaticMethod("androidx.webkit.WebViewFeature", "isFeatureSupported", arrayOf(WebViewFeature.PROXY_OVERRIDE_REVERSE_BYPASS)) as? Boolean == true) {
    urlsToProxy?.forEach {
        if (!TextUtils.isEmpty(it)) {
            ReflecterHelper.invokeMethod(builder, "addBypassRule", arrayOf(it))
            ReflecterHelper.invokeMethod(builder, "setReverseBypassEnabled", arrayOf(true))
        }
    }
}

// Add direct connections to the proxy rules
ReflecterHelper.invokeMethod(builder, "addDirect")

// Apply the proxy configuration and set the callback function
val controller = ReflecterHelper.invokeStaticMethod("androidx.webkit.ProxyController", "getInstance")
val config = ReflecterHelper.invokeMethod(builder, "build")
ReflecterHelper.invokeMethod(controller, "setProxyOverride", arrayOf(config.javaClass, Executor::class.java, Runnable::class.java), arrayOf(config, Executor { command -> command.run() }, callback))

• Create a new evhttp instance, set the allowed HTTP methods, and attempt to bind a port on the specified IP address.
• If binding fails, it will attempt to randomly generate a port and bind it 10 times.
• After successfully binding the port, the function will display the listening socket information and return success.

*http_server = evhttp_new(base);
evhttp_set_allowed_methods(*http_server, /*...*/);

for (int i = 0; i < 10; i++) {
    if (port == 0) {
        port = (rand() % 20000) + 10000;
    }

    handle = evhttp_bind_socket_with_handle(*http_server, PROXY_IP_ADDRESS, port);
    if (!handle) {
        port = 0;
        continue;
    }
    break;
}

if (port == 0) {
    // Return error
}

// Successfully returned

• Get the host of the connection and the client connection.
• Get the client’s bufferevent and proxy connection, and create a new proxy request.
• Copy the request headers and body, and create a proxy request. If it is a CGI thread, for performance optimization, reply to the client with 200 OK first.

// Get the host of the connection
string host = ctx->connect_host;

// Get the client connection and bufferevent
ctx->client_conn = evhttp_request_get_connection(ctx->client_req);
ctx->client_bufev = evhttp_connection_get_bufferevent(ctx->client_conn);

// Get the proxy connection
ctx->proxy_conn = get_proxy_connection(ctx, ctx->scheme, ctx->ip, ctx->port);

// Create a new proxy request and set the error callback
ctx->proxy_req = evhttp_request_new(connect_request_done, ctx);
evhttp_request_set_error_cb(ctx->proxy_req, http_request_error);

// Copy the request headers and body	http_header_copy(ctx, ctx->client_req, ctx->proxy_req, CLIENT_TO_GATEWAY);
evbuffer_add_buffer_reference(evhttp_request_get_output_buffer(ctx->proxy_req),
evhttp_request_get_input_buffer(ctx->client_req));

// Create the proxy request
evhttp_make_request(ctx->proxy_conn, ctx->proxy_req,
evhttp_request_get_command(ctx->client_req), host.c_str());

// Add connections to global context
ctx->gCtx->AddConn(ctx->client_bufev, ctx->client_conn);
ctx->gCtx->AddConn(ctx->proxy_bufev, ctx->proxy_conn);

// If it is a CGI thread, reply to the client with 200 OK, set the callback function, and disable read operations
if (ctx->gCtx->IsCgiThread()) {
evhttp_send_reply(ctx->client_req, 200, "Connection Established", NULL);
bufferevent_setcb(ctx->client_bufev, readcb, NULL, eventcb, ctx);
bufferevent_disable(ctx->client_bufev, EV_READ);
}

• evhttp_request_get_connection: Gets the evhttp_connection object associated with the specified request.
• evhttp_connection_get_bufferevent: Gets the bufferevent object associated with the specified evhttp_connection.

• evhttp_request_new: Creates a new evhttp_request object and sets the callback function when the request is completed.
• evhttp_request_set_error_cb: Sets the error callback function for the specified evhttp_request.
• evbuffer_add_buffer_reference: Adds the contents of one evbuffer to another evbuffer while keeping a reference to the original buffer.
• evhttp_make_request: Associates the specified evhttp_request with the evhttp_connection and sends the request.

• evhttp_send_reply: Sends an HTTP response to the client.

• bufferevent_setcb: Sets the callback function for the specified bufferevent.
• bufferevent_disable: Disables certain events on the specified bufferevent (in this case, disables read operations).

1. Get Proxy Configuration: Chromium obtains proxy configuration through ProxyConfigService. These configurations may come from user settings or operating system settings. ProxyConfigService returns a ProxyConfig instance containing proxy rules and exception lists.
2. Parse Proxy Rules: ProxyService selects the appropriate proxy server for the HTTP request based on the proxy rules in the ProxyConfig. This process may involve parsing PAC files (via ProxyResolverV8) or using fixed proxy rules (via ProxyResolverFixed).
3. Select Proxy Server: ProxyService selects a suitable proxy server for the request based on the URL and proxy rules. If no suitable proxy server is found, or if a direct connection (DIRECT) is configured, the request will be sent directly to the target server.

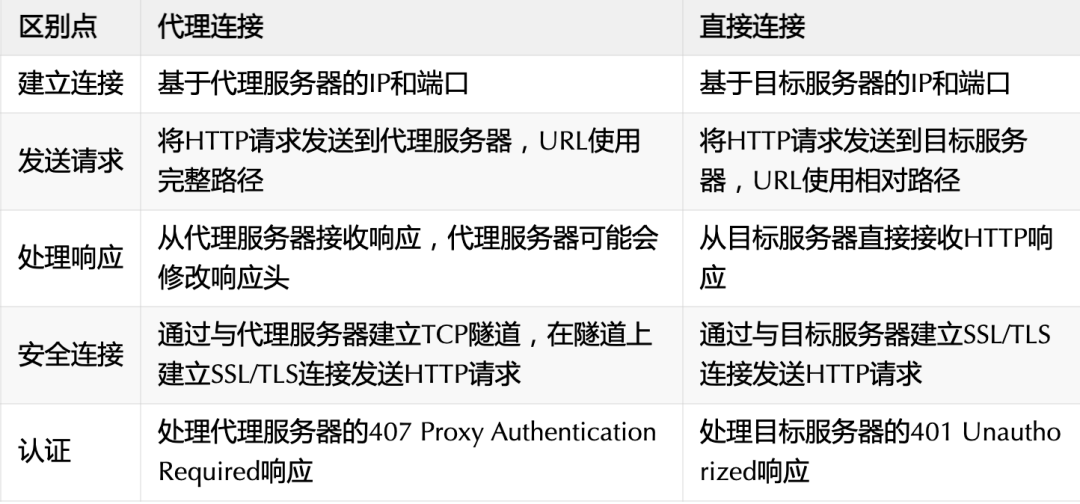

4. Establish Connection: Chromium uses ClientSocketPoolManager to manage network connections. When a proxy server is needed, ClientSocketPoolManager creates a new ClientSocketHandle for the proxy server. This ClientSocketHandle contains the IP address and port of the proxy server.

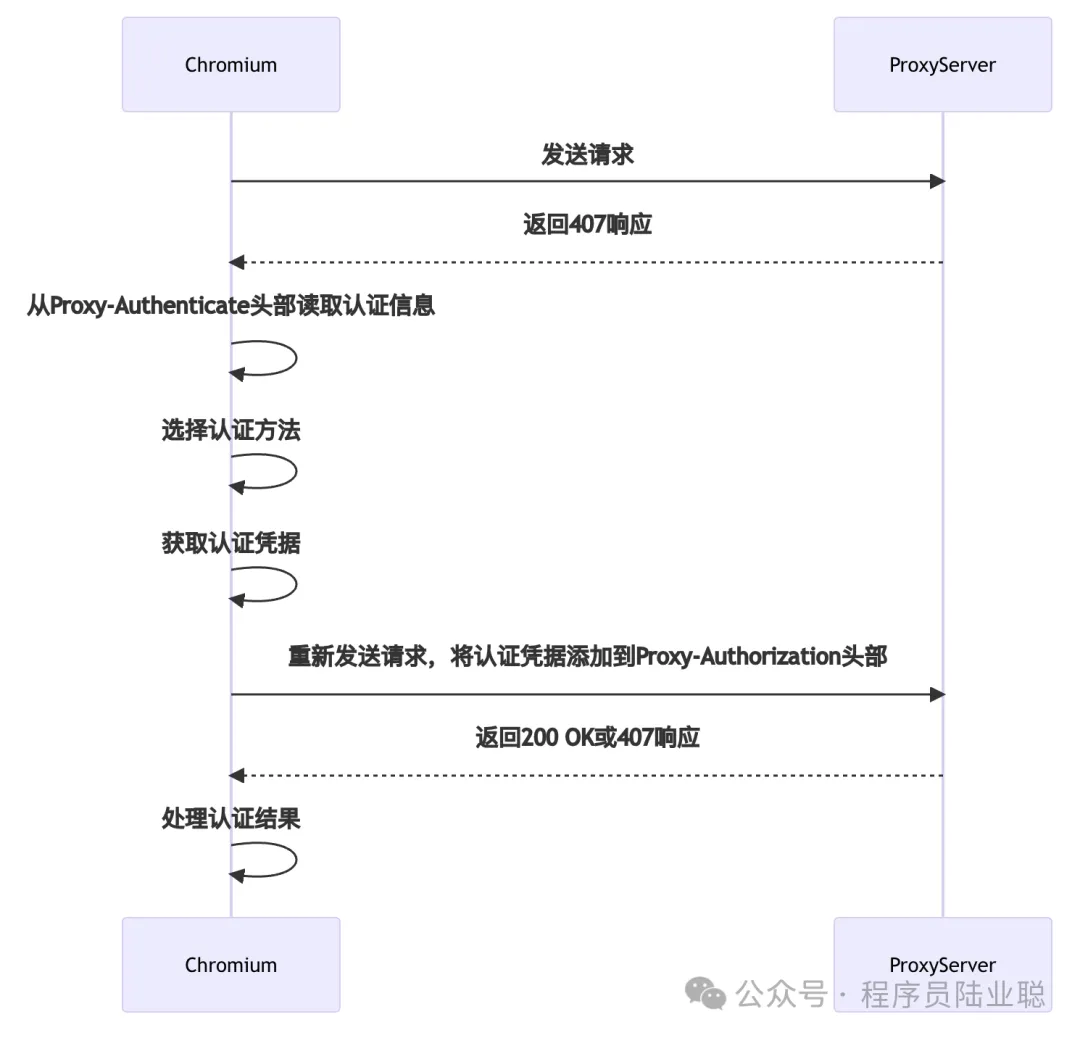

5. Send Request: Chromium sends the HTTP request to the proxy server. If the proxy server requires authentication, Chromium handles the authentication process. For HTTP proxies, Chromium adds the Proxy-Connection field to the HTTP request header. For SOCKS proxies, Chromium follows the SOCKS protocol to send requests.
6. Receive Response: The proxy server forwards the request to the target server and returns the target server’s response to Chromium. Chromium processes the response, parses the page content, and presents it to the user.

1. proxy_config.cc / proxy_config.h: The ProxyConfig class represents proxy configuration, including proxy rules and exception lists. These configurations can come from user settings or operating system settings.
2. proxy_config_service.cc / proxy_config_service.h: The ProxyConfigService class is an abstract class used to obtain the current ProxyConfig. The specific implementation may depend on the operating system or user settings.
3. proxy_info.cc / proxy_info.h: The ProxyInfo class contains information about the proxy server selected for a specific URL. When initiating an HTTP request, ProxyService uses ProxyInfo to determine which proxy server to use.
4. proxy_list.cc / proxy_list.h: The ProxyList class represents a set of alternative proxy servers. In some cases, there may be multiple proxy servers to choose from, and ProxyList provides functionality to select an available proxy from them.
5. proxy_service.cc / proxy_service.h: The ProxyService class is responsible for selecting the appropriate proxy server for HTTP requests based on proxy configuration. It uses ProxyConfigService to obtain proxy configurations and applies them to HTTP requests.
6. proxy_server.cc / proxy_server.h: The ProxyServer class represents a specific proxy server, including the proxy protocol (such as HTTP, SOCKS4, SOCKS5, etc.), hostname, and port.
7. proxy_resolver.cc / proxy_resolver.h: The ProxyResolver class is an abstract class used to resolve proxy rules. Specific implementations may include PAC file parsing (proxy_resolver_v8.cc / proxy_resolver_v8.h) or fixed proxy rules (proxy_resolver_fixed.cc / proxy_resolver_fixed.h).
