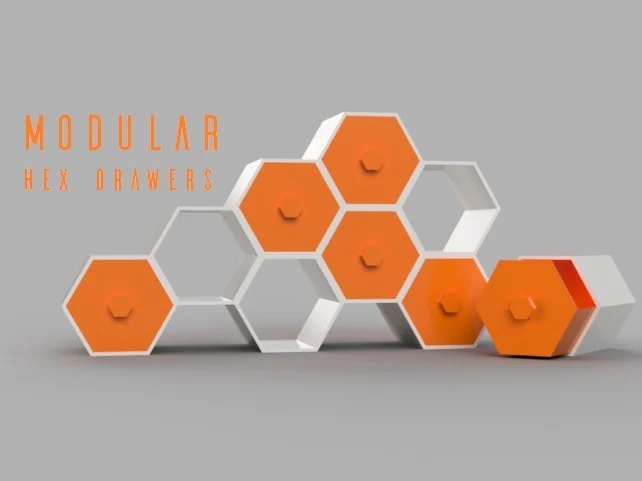

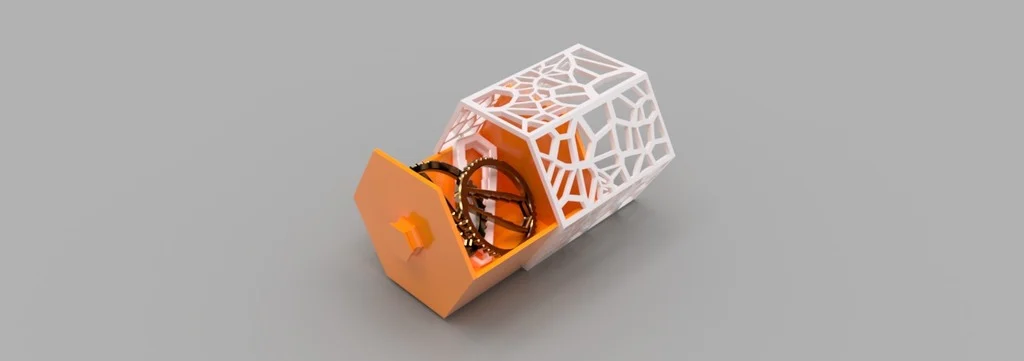

Recently, I have been sketching a box and came across this drawer system. I had seen it many times before but didn’t pay much attention to it and had never printed it. Today, upon closer inspection, I found that this modular drawer is actually the eighth most popular model on the entire Thingiverse platform! I almost missed out on a great model.
Project Link:
https://www.thingiverse.com/thing:1743145
Released in 2016, its early release may have contributed to its popularity. The design and rendering still look modern today. However, it is important to note that the author has moved many originally free parts to other paid model sites for profit, so you need to decide whether to use just the free basic version, purchase the paid parts, or find other channels… Additionally, I must remind you that many negative comments are due to users not following the printing requirements. You need to adjust the drawer to 99% for printing; otherwise, it will be too tight to install. It is recommended to print a few test pieces before mass printing.
Regardless, this is a cleverly designed, simple, and practical modular drawer system that is perfect for wall installation, artistic, easy to expand, and convenient to use.
The author has also designed several other derivative styles:

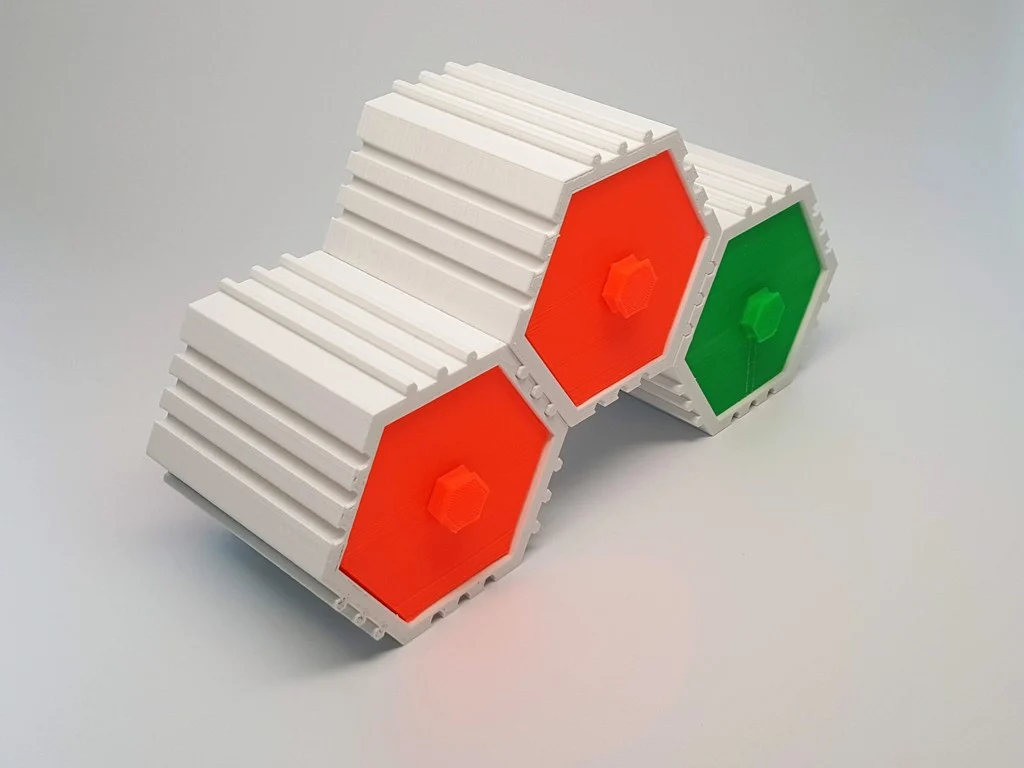

Square interlocking:
Project Link:
https://www.thingiverse.com/thing:2539830

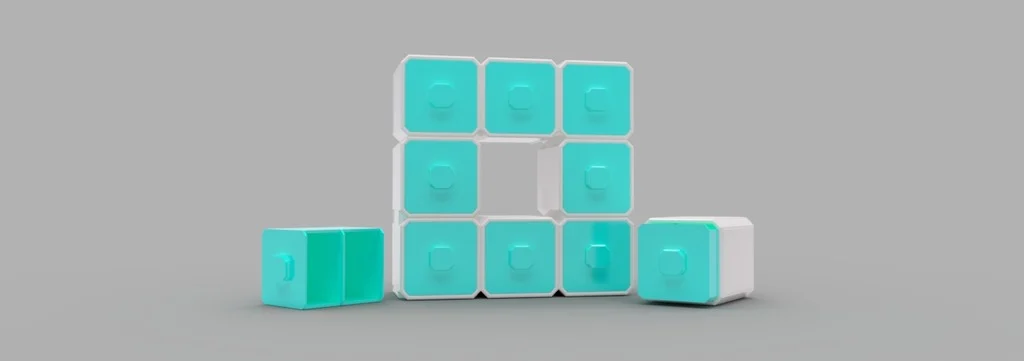

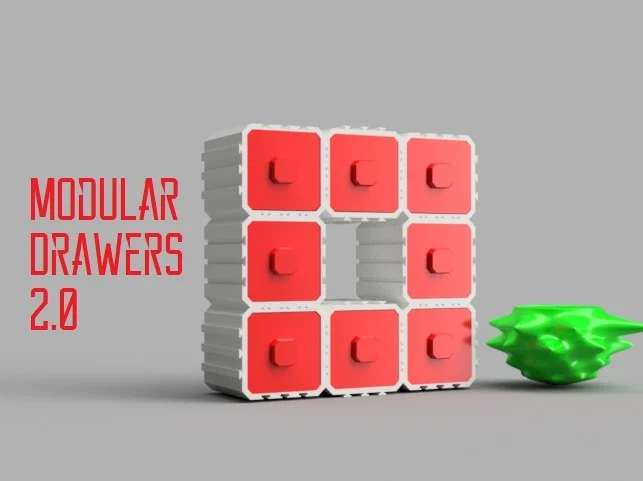

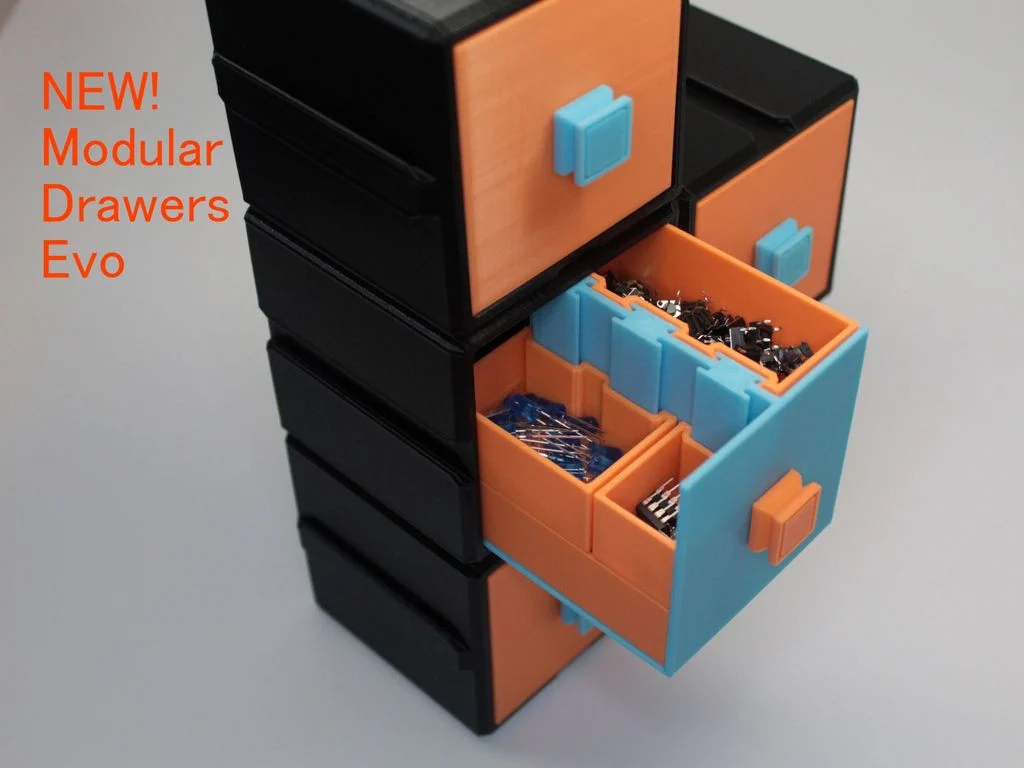

Square modular:
Project Link:
https://www.thingiverse.com/thing:1716141

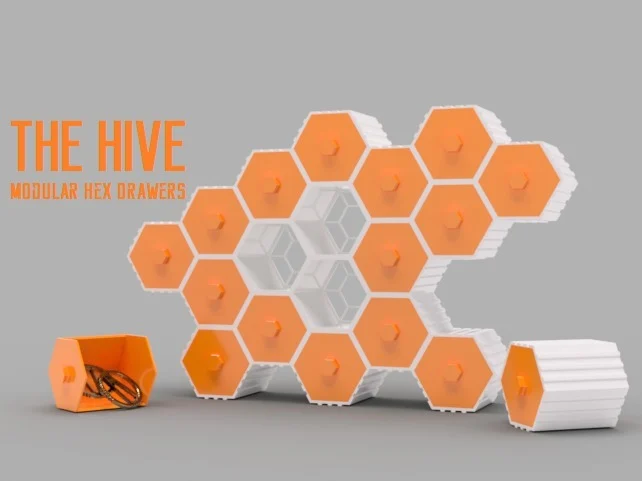

Honeycomb modular:
Project Link:
https://www.thingiverse.com/thing:1612401
You might be curious about how they connect and secure without interlocking. I had the same question and upon closer inspection of the model, I realized that they are meant to be nailed to the wall; the interlocking feature is just for a tighter fit, and they can be used without interlocking.
If the wall is very empty, it consumes a lot of materials, so get started.
