Comprehensive CT cross-sectional images of the whole body, very complete and detailed, packed with useful information. Let’s sit on the small bench and learn together…
Skull

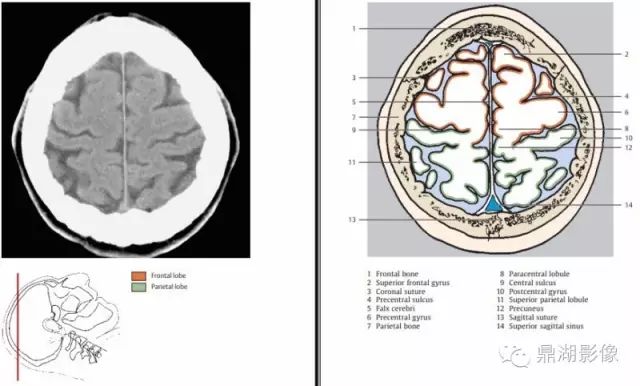

1. Frontal bone 2. Frontal gyrus 3. Coronal suture 4. Anterior central sulcus 5. Falx cerebri 6. Anterior central gyrus 7. Parietal bone 8. Paracentral lobule 9. Central sulcus 10. Posterior central gyrus 11. Superior parietal lobule 12. Precuneus 13. Sagittal suture 14. Superior sagittal sinus

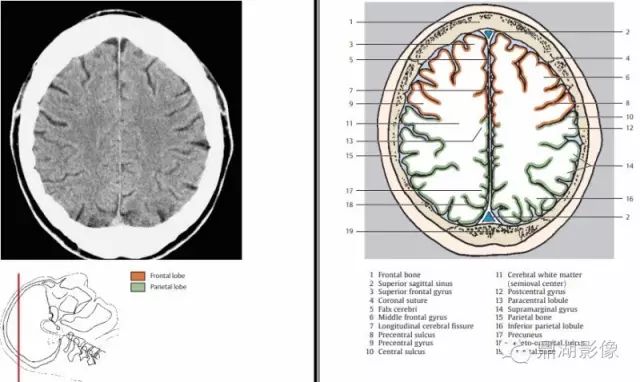

1. Frontal bone 2. Superior sagittal sinus 3. Frontal lobe 4. Coronal suture 5. Falx cerebri 6. Middle frontal gyrus 7. Longitudinal fissure 8. Anterior central sulcus 9. Anterior central gyrus 10. Central sulcus 11. White matter (semioval center) 12. Posterior central gyrus 13. Paracentral lobule 14. Marginal gyrus 15. Parietal bone 16. Inferior parietal lobule 17. Precuneus 18. Parieto-occipital sulcus 19. Occipital bone

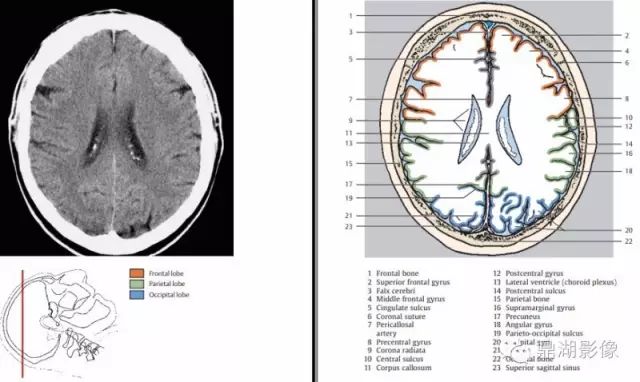

1. Frontal bone 2. Frontal gyrus 3. Falx cerebri 4. Middle frontal gyrus 5. Cingulate gyrus 6. Coronal suture 7. Pericallosal arteries 8. Anterior central gyrus 9. Corona radiata 10. Central sulcus 11. Corpus callosum 12. Posterior central gyrus 13. Lateral ventricle (choroid plexus) 14. Posterior central sulcus 15. Parietal bone 16. Marginal gyrus 17. Precuneus 18. Angular gyrus 19. Parieto-occipital sulcus 20. Occipital gyrus 21. Cuneus 22. Occipital bone 23. Superior sagittal sinus
1. Frontal bone 2. Falx cerebri 3. Frontal gyrus 4. Middle frontal gyrus 5. Inferior frontal gyrus 6. Cingulate gyrus 7. Body of corpus callosum 8. Anterior horn of lateral ventricle 9. Head of caudate nucleus 10. Anterior central gyrus 11. Central sulcus 12. Corona radiata 13. Posterior central gyrus 14. Caudate nucleus 15. Thalamus 16. Lateral fissure 17. Insula 18. Tail of caudate nucleus 19. Superior temporal gyrus 20. Body of corpus callosum 21. Cingulate gyrus 22. Choroid plexus of lateral ventricle 23. Straight sinus 24. Great cerebral vein 25. Parietal bone 26. Parieto-occipital sulcus 27. Occipital gyrus 28. Cuneus 29. Superior sagittal sinus 30. Occipital bone 31. Primary visual cortex (V1) 32. Occipital pole

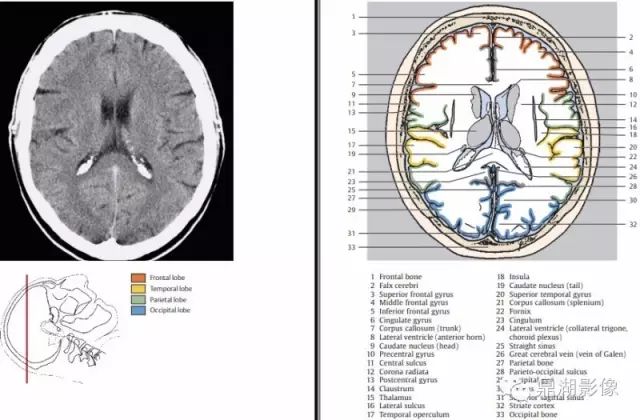

1. Frontal bone 2. Frontal sinus 3. Frontal gyrus 4. Middle frontal gyrus 5. Falx cerebri 6. Head of caudate nucleus 7. Cingulate gyrus 8. Inferior frontal gyrus 9. Knee of corpus callosum 10. Anterior limb of internal capsule 11. Anterior horn of lateral ventricle 12. Third ventricle 13. Central sulcus 14. Anterior central gyrus 15. Cingulate gyrus 16. Posterior central gyrus 17. Foramen of Monro 18. Lateral fissure 19. Caudate nucleus 20. Lateral fissure island artery? 21. Posterior limb of internal capsule 22. Insula 23. Thalamus 24. Globus pallidus 25. Pineal gland 26. Putamen (nucleus) 27. Tail of caudate nucleus 28. Horizontal fissure of temporal lobe 29. Cerebellar vermis 30. Lateral ventricle posterior horn (choroid plexus) 31. Straight sinus 32. Middle temporal gyrus 33. Parietal bone 34. Parieto-occipital sulcus 35. Occipital gyrus 36. Occipital bone 37. Primary visual cortex (V1) 38. Occipital pole
1. Frontal bone 2. Frontal sinus 3. Frontal gyrus 4. Middle frontal gyrus 5. Falx cerebri 6. Head of caudate nucleus 7. Cingulate gyrus 8. Inferior frontal gyrus 9. Knee of corpus callosum 10. Anterior limb of internal capsule 11. Anterior horn of lateral ventricle 12. Third ventricle 13. Central sulcus 14. Anterior central gyrus 15. Cingulate gyrus 16. Posterior central gyrus 17. Foramen of Monro 18. Lateral fissure 19. Caudate nucleus 20. Lateral fissure island artery? 21. Posterior limb of internal capsule 22. Insula 23. Thalamus 24. Globus pallidus 25. Pineal gland 26. Putamen (nucleus) 27. Tail of caudate nucleus 28. Horizontal fissure of temporal lobe 29. Cerebellar vermis 30. Lateral ventricle posterior horn (choroid plexus) 31. Straight sinus 32. Middle temporal gyrus 33. Parietal bone 34. Parieto-occipital sulcus 35. Occipital gyrus 36. Occipital bone 37. Primary visual cortex (V1) 38. Occipital pole
